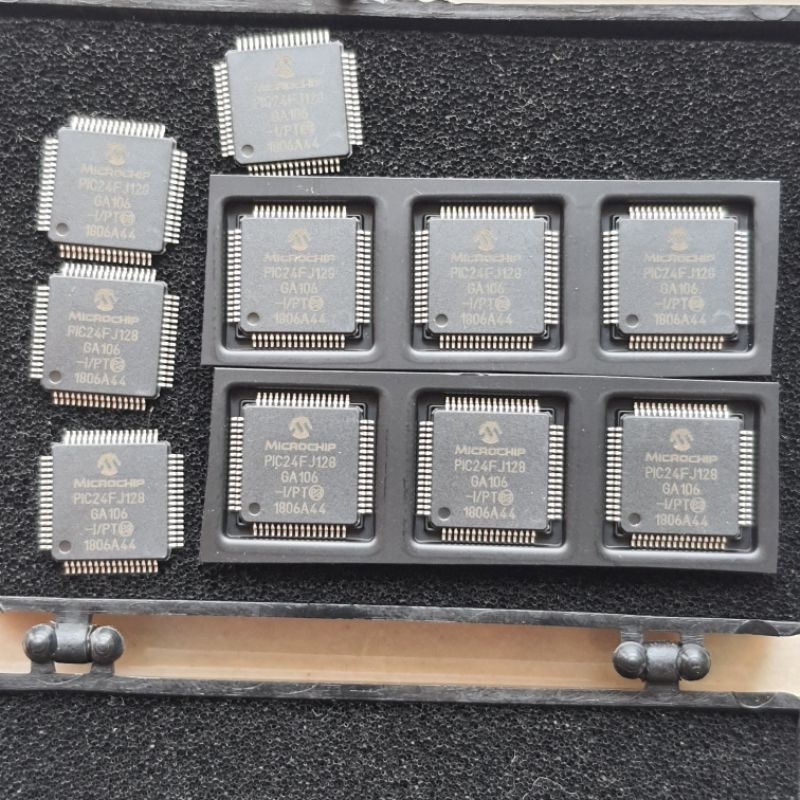

Giới thiệu microchip PIC24FJ128GA106 I/PT PIC PIC® 24F Microcontroller IC 16-Bit 32MHz 128KB (43K x 24) FLASH 64-TQFP (10x10)

PIC PIC® 24F Microcontroller IC 16-Bit 32MHz 128KB (43K x 24) FLASH 64-TQFP (10x10)
Up to 16 MIPS performance
16 x 16 Hardware Multiply, Single Cycle Execution
12-bit x 16-bit Hardware Divider
C Compiler Optimized Instruction Set
Low Power nanoWatt
Run, Idle and Sleep modes
Multiple, Switchable Clock Modes for Optimum Performance and Power Management
Run mode: 1 mA/MIPS, 2.0V Typical
Sleep mode Current Down to 100 nA Typical
Standby Current with 32 kHz Oscillator:2.5 uA,2.0V typical
Flash Program Memory
Self-Reprogrammable under Software Control
10,000 erase/write cycles
20 year data retention
EEprom emulation capable
System
Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
On-chip LDO Voltage Regulator
JTAG Boundary Scan and Flash Memory Program Support
Fail-Safe Clock Monitor – allows safe shutdown if clock fails
Watchdog Timer with separate RC oscillator
Analog Features
10-bit ADC, 16 channels, 500k samples per second
Three Analog comparators
Peripherals
CTMU supports Capacitive Touch applications
Perpheral Pin Select allows I/O remapping of many peripherals in real time
4xUART Modules with LIN and IrDA support, 4 Deep FIFO
3xSPI ™ Modules with 8 Deep FIFO
3xI2C™ Modules with Master and Slave Modes
Five 16-bit Timer Modules
Up to 9 Input Capture and 9 Output Compare/PWM with dedicated time base
Hardware RTCC, Real-Time Clock Calendar with Alarms
PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
