Phụ kiện ESC mini cho máy bay điều khiển BLHeli 20A-OPTO 2S-4S
Mô tả ngắn
Mua Phụ kiện ESC mini cho máy bay điều khiển BLHeli 20A-OPTO 2S-4S giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
147,763₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu Phụ kiện ESC mini cho máy bay điều khiển BLHeli 20A-OPTO 2S-4S
Firmware ESC Mini for BLHeli 20A-OPTO 2S-4S RC Helicopters Mini Multirotor Mini Quadcopter Multicopter ESC AccessoriesFeatures: 100% brand new and high quality
The ESC firmware is BLHELI 14.2 version, but it can be connected through the signal line to flash the firmware to adjust the parameters. It is specially designed for the mini multi-rotor traversing aircraft, and the throttle response speed is fast.
Energy-saving design, with good compatibility with common motors;

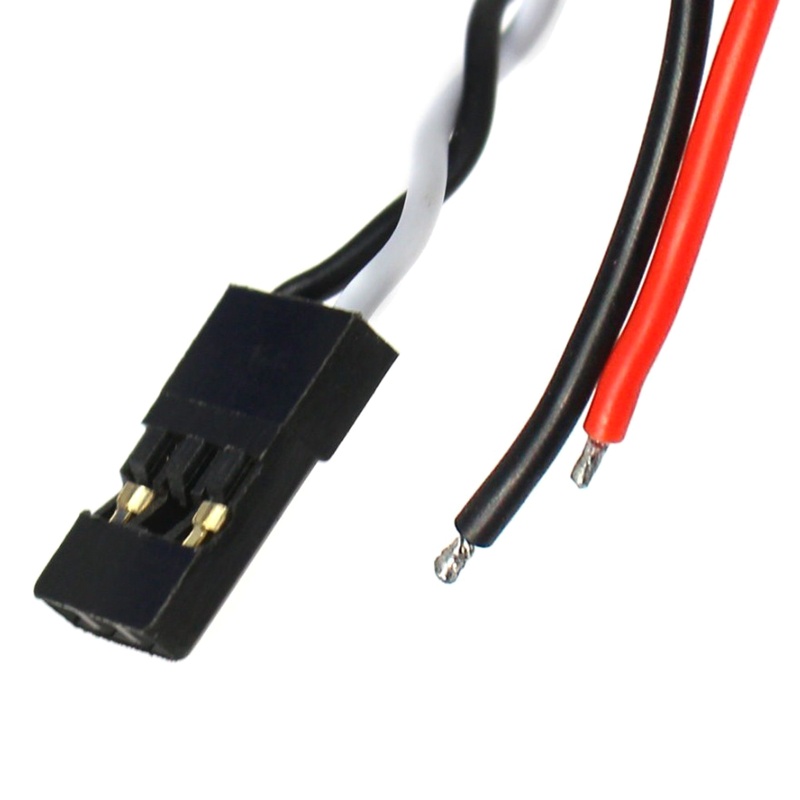

Throttle signal adopts twisted pair cable to reduce crosstalk and more stable signal transmission in flight.
Throttle refresh rate, compatible with all flight control systems.
Using the new process ultra-low resistance miniature MOSFET, it has the characteristics of high-speed and high-load conductivity.
Specification: Specifications: RW.RC MINI 20A 2-4s
Voltage: 6-14.8V (2-4S Lithium Polymer)
Output current: 20A
BEC: none
Signal frequency: 20-499Hz
Output PWM frequency: 18KHz
Firmware: BLHeli firmware .14.2 version
Bootloader: ATMEL Bootloader (ArduinoUSBLinker)
Weight: 3g (without wires)
Weight: 6 grams (including wires)
Material:PCB board

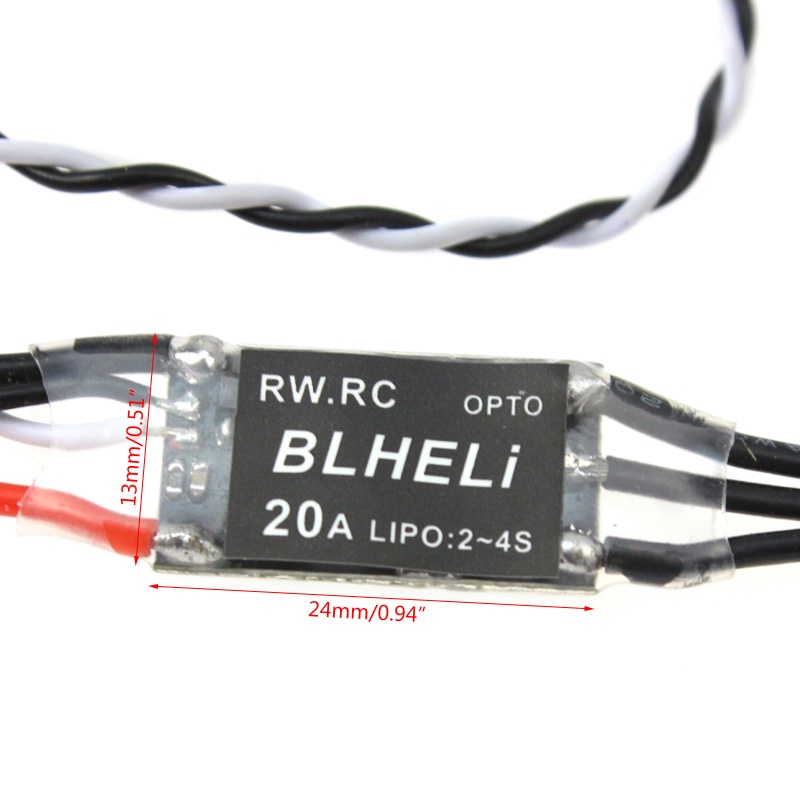

Size: Approx. 24x13x5mm/0.94x0.51x0.2 inches
Package Includes: 1x Speed Controller
note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
