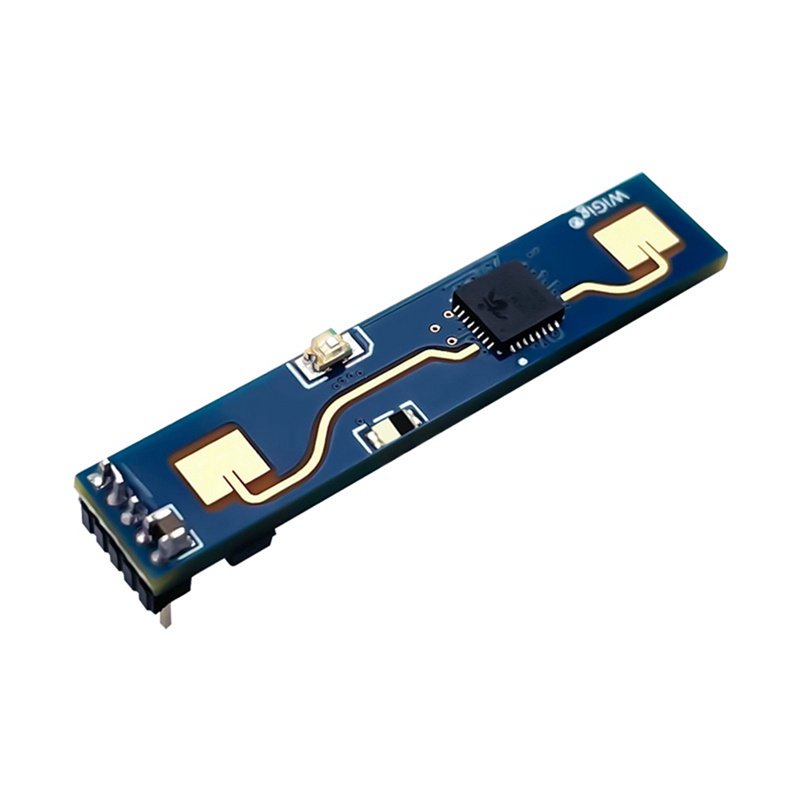

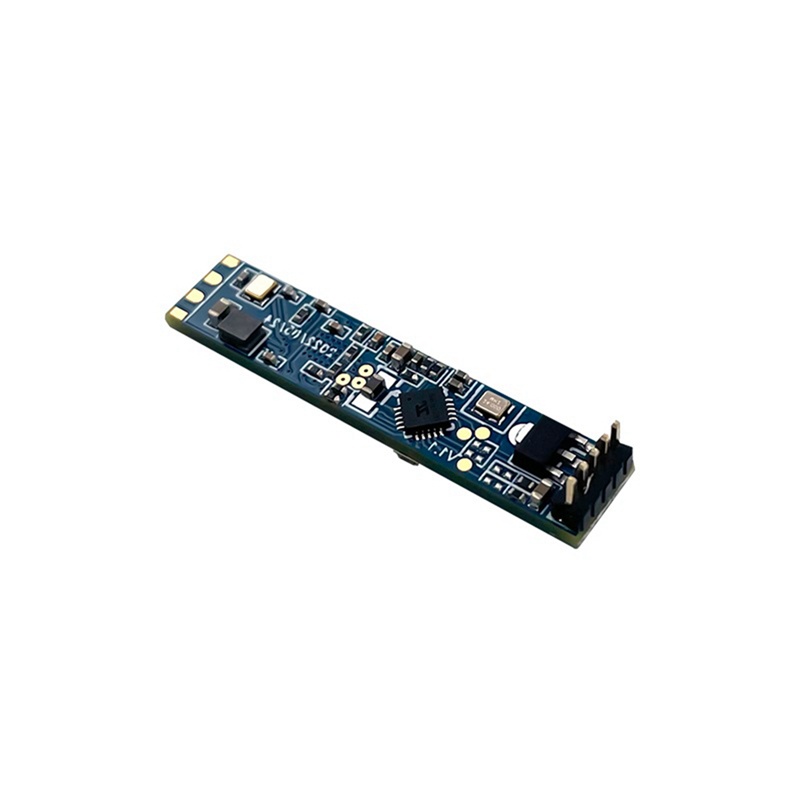

Giới thiệu WIGIG Mini HLK-LD2410B High-Sensitivity 24GHz Human Presence Status Sensing Radar Sensor Module

LD2410B is a high-sensitivity 24GHz human presence status sensing module. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and precise human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals, and unmanned delay time, etc., to adapt to different specific application needs.

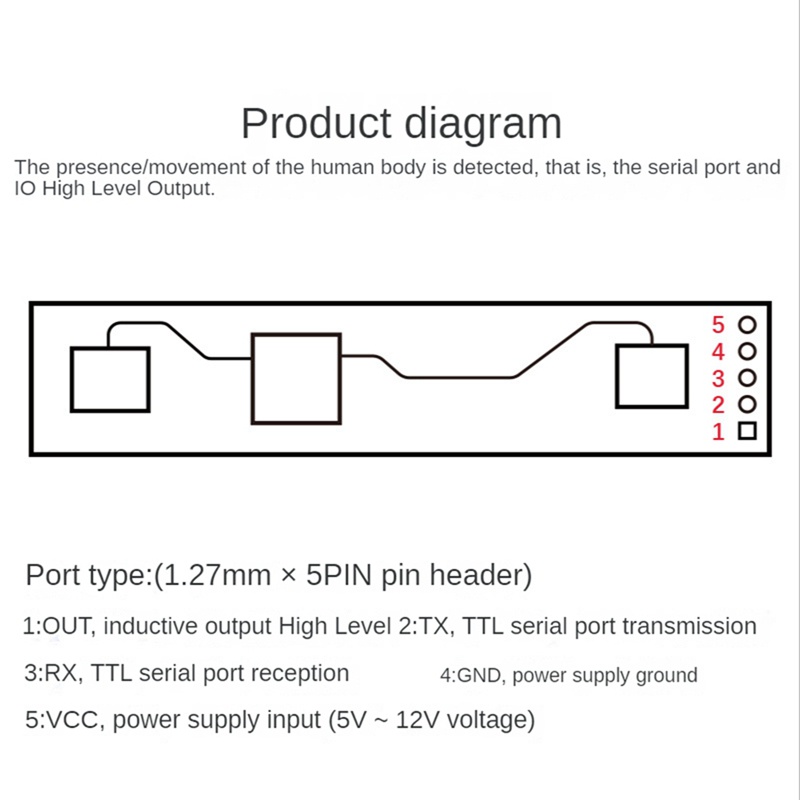

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

Product Features and advantage
Plug and play, easy assembly
The longest sensing distance is up to 5 meters

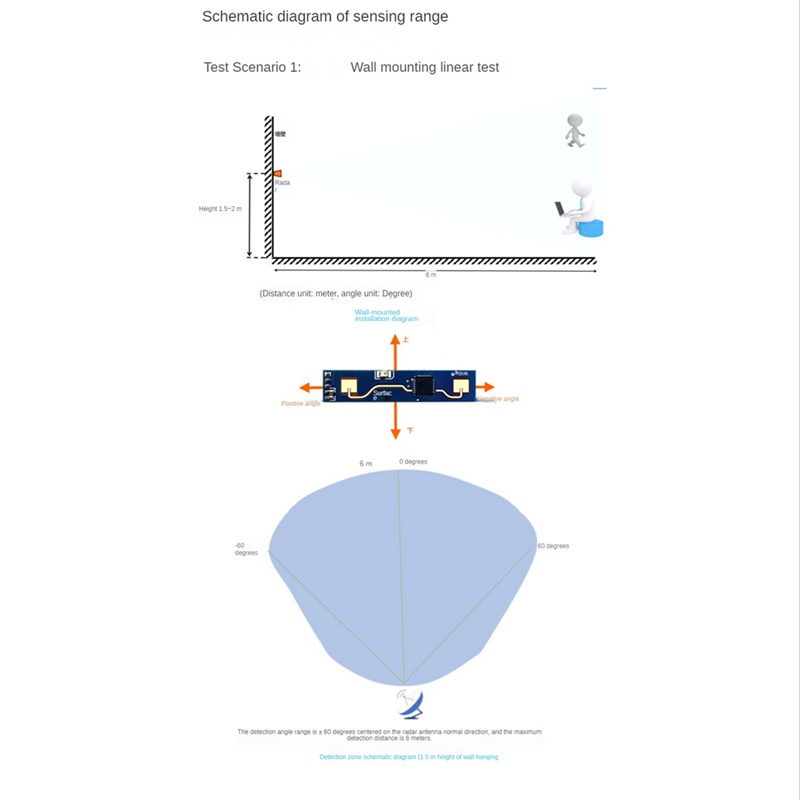

Large detection angle, coverage up to ±60 degrees
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes
Visual debugging and configuration tools
Small and simplified, the minimum size is only 7mm x 35mm

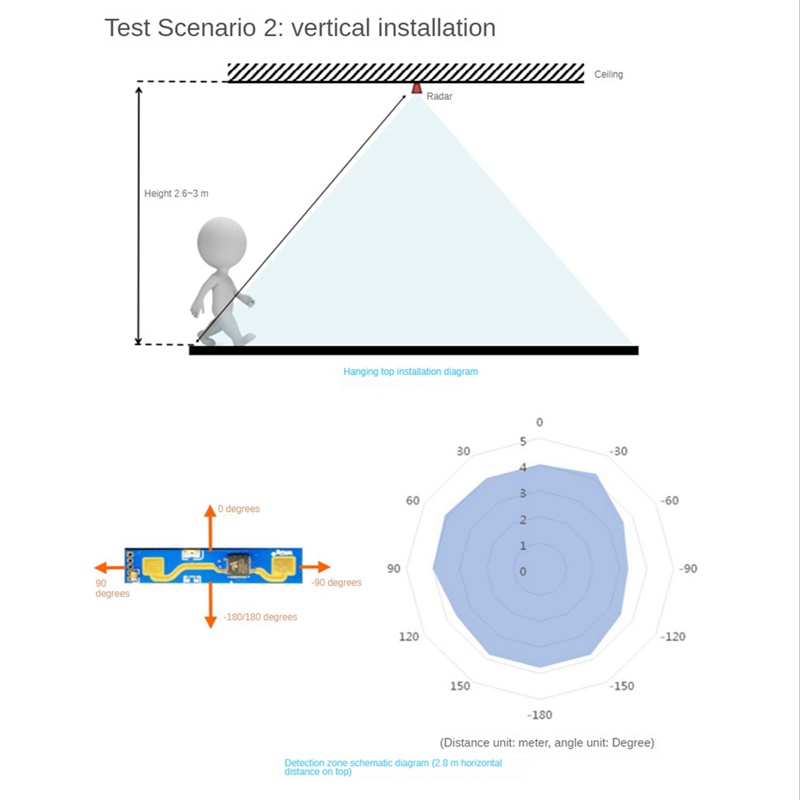

Supports various installation methods such as ceiling hanging and wall hanging.
Material: PCB
colour: Blue

Package Contents:
1 x Radar Sensor ModuleOnly the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
