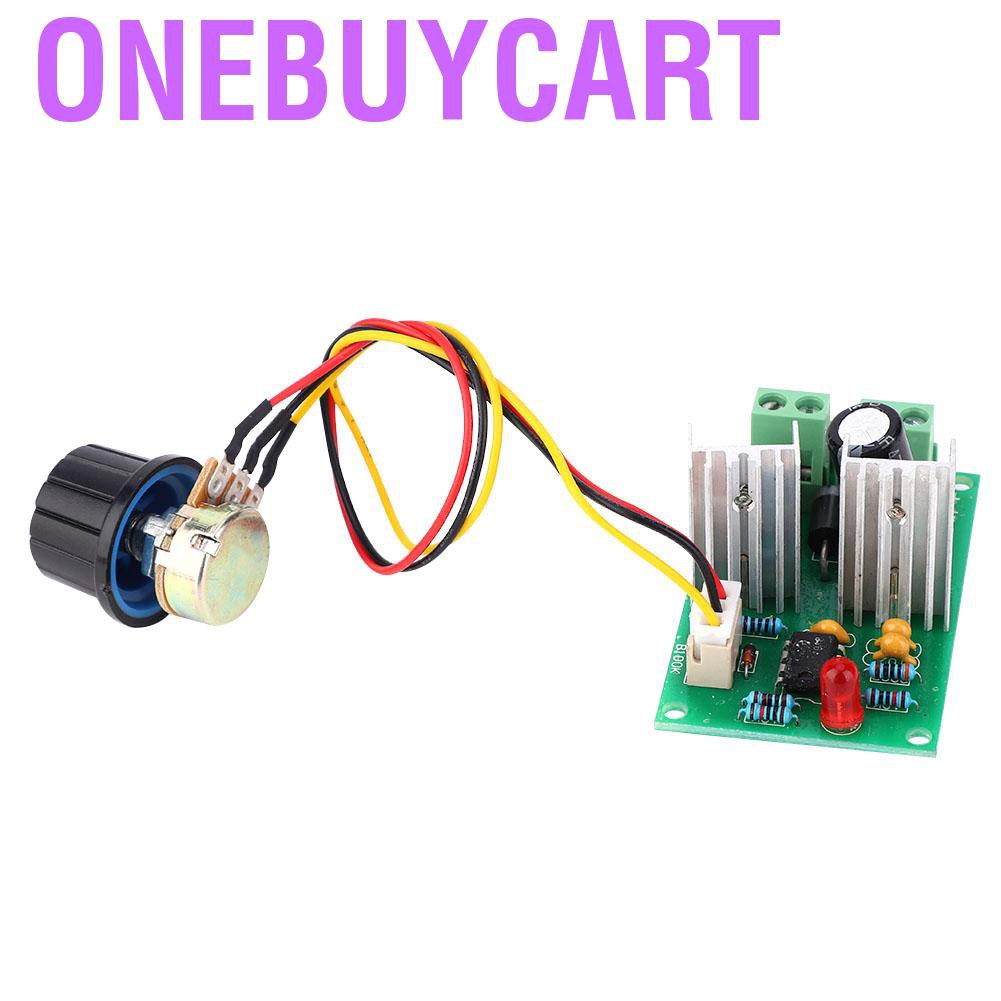

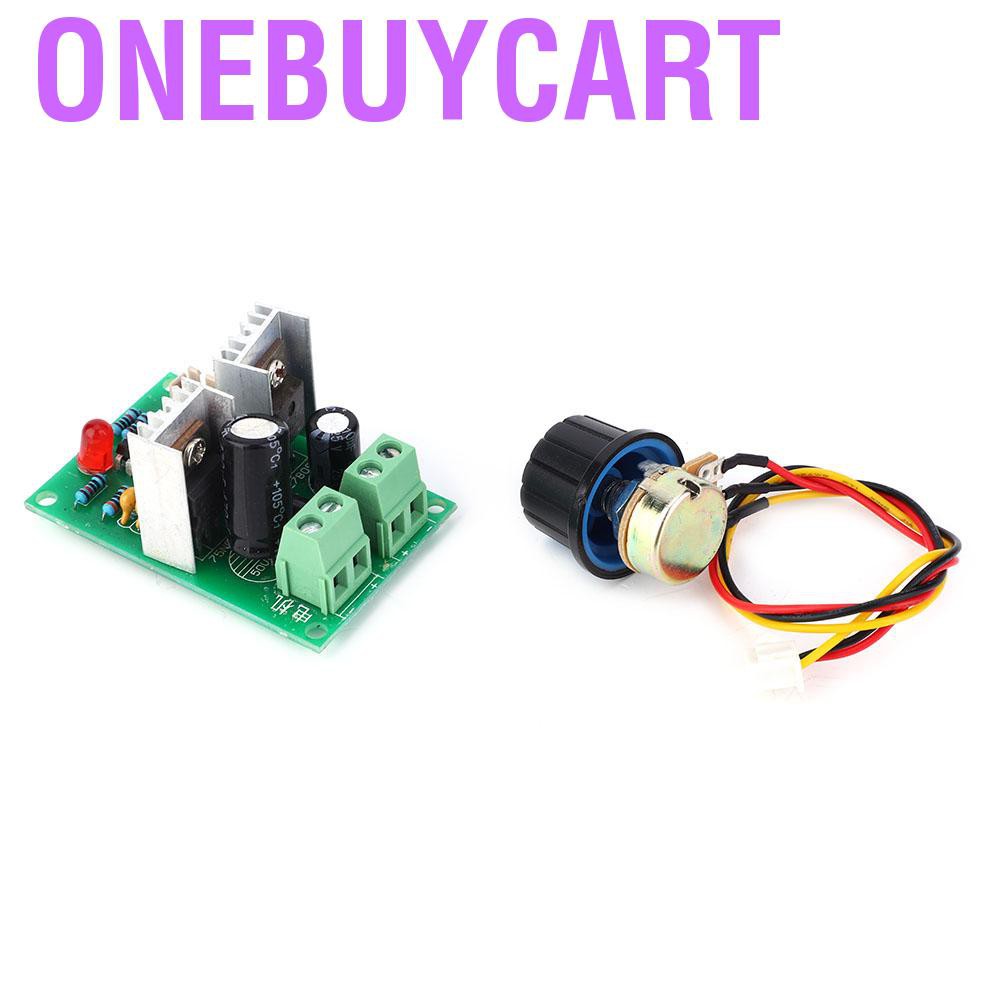

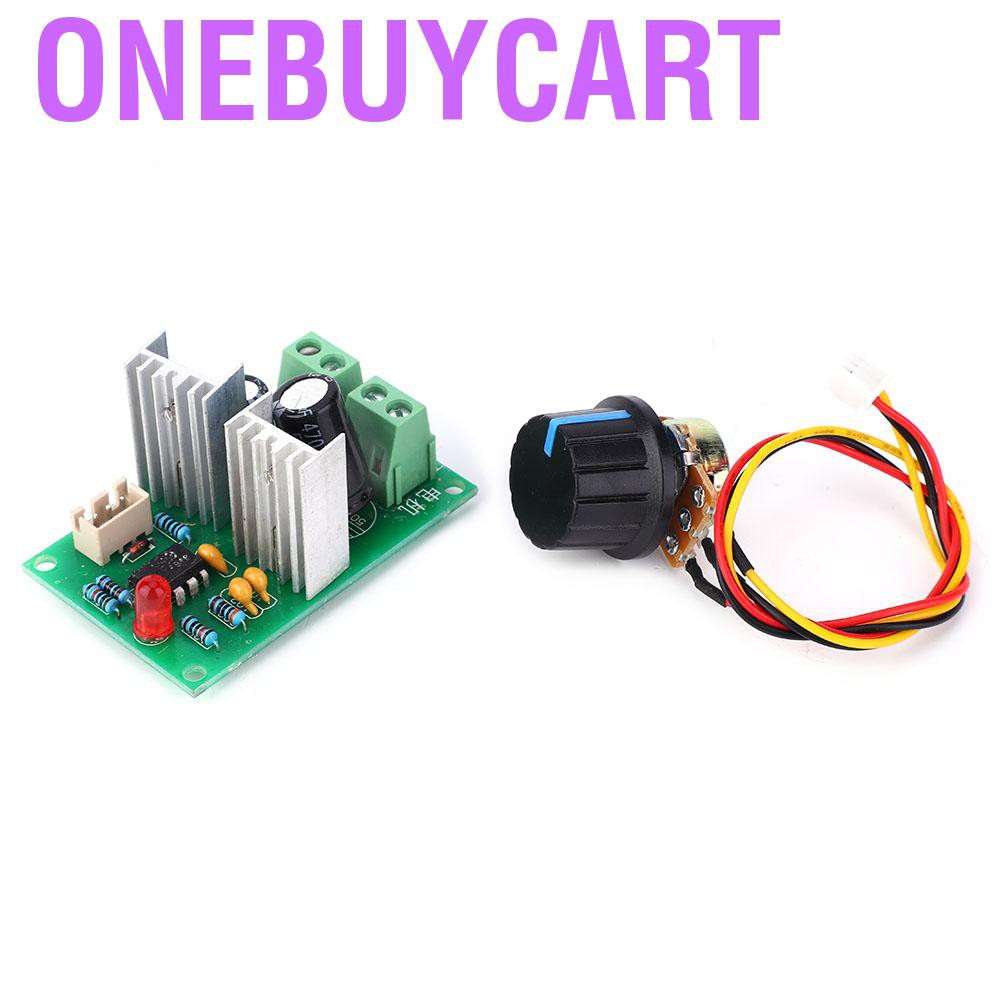

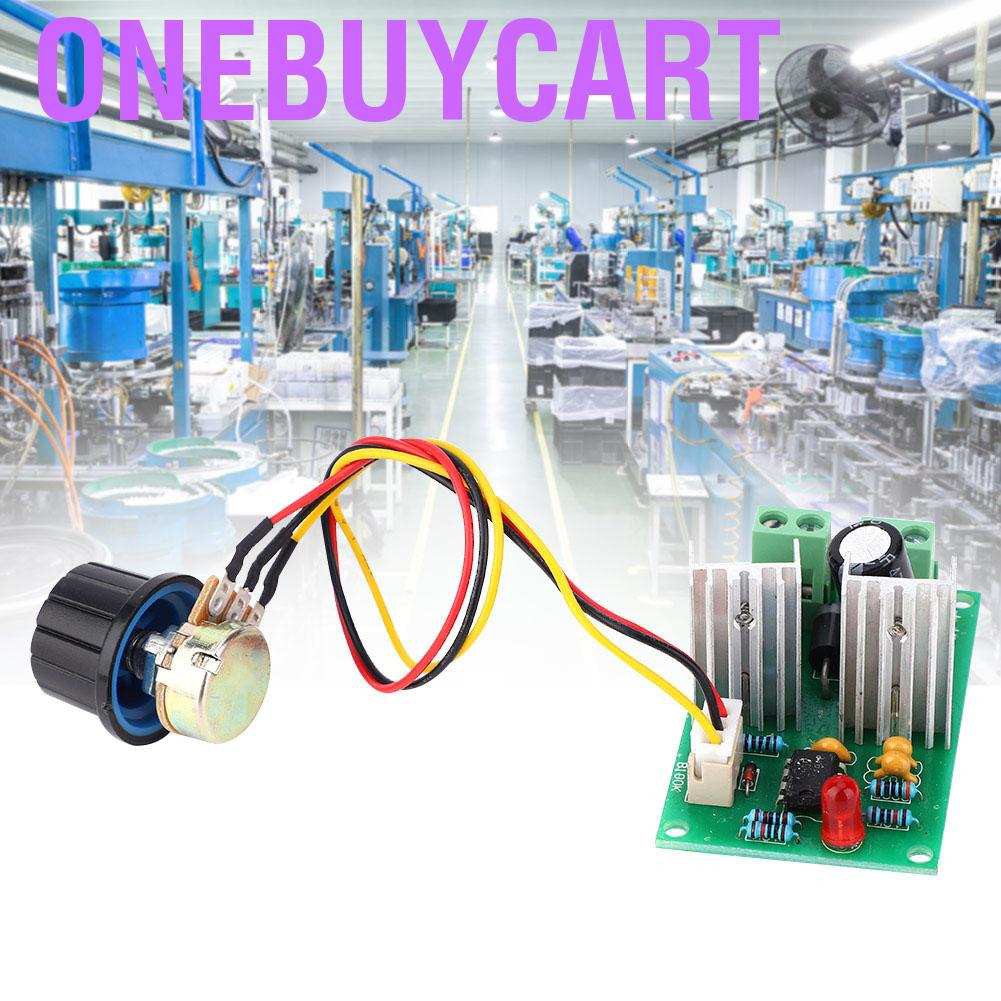

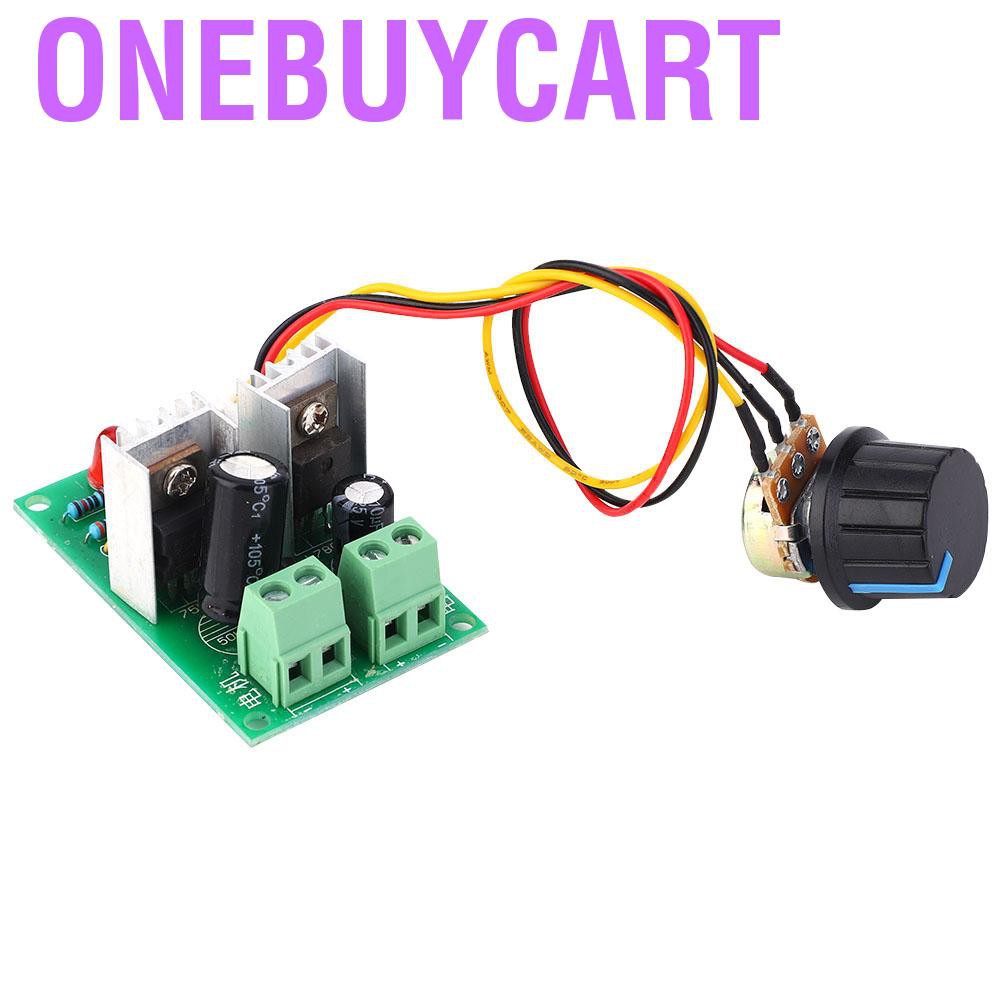

Giới thiệu DC Bảng Mạch Điều Khiển Tốc Độ Động Cơ 12v 24v 36v 10a Pwm
Your Best ChoiceFeature:
1. Use this controller to control the speed of the DC motor.
2. Use this controller to control the light of the lamps.
3. PWM speed regulation, more accurate controlling and high efficiency.
4. High efficiency, high torsion, high power, high heat dissipation.
5. With overcurrent protection function, safer to use.
6. Well made with high quality circuit board, easy wiring and installation, long service life.
Specification:
Item Type: DC Motor Speed Controller
Working Voltage: DC12V-36V
The 12V 24V 36V DC power supply, including the battery as a power supply, can work normally.
Output Current: rated current 5A, maximum instantaneous output current 10A.
It can work in 5A for a long time. If it exceeds 5A, it needs to be forced to dissipate heat by adding a fan.
Control Power: Up To 200W
Power Calculation: Voltage x Current = Power
Frequency: 25KHZ
Control the number of power tubes per unit time.
Speed Range: 0-100%
The motor can be adjusted linearly from the stop state to the fastest motor.
Package List:
1 x Motor Governor
1 x Nut
1 x Gasket
1 x Knob Cover
Chi Tiết Sản Phẩm
| Bảo Hành | Không Bảo Hành |
|---|
