Giới thiệu Mainboard Asus ROG STRIX B660-A GAMING WIFI D4 hàng chính hãng BH 36 tháng

Thông số kỹ thuật chi tiết Mainboard Asus ROG STRIX B660-A GAMING WIFI D4
Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B660-A Gaming Wifi D4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/

3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

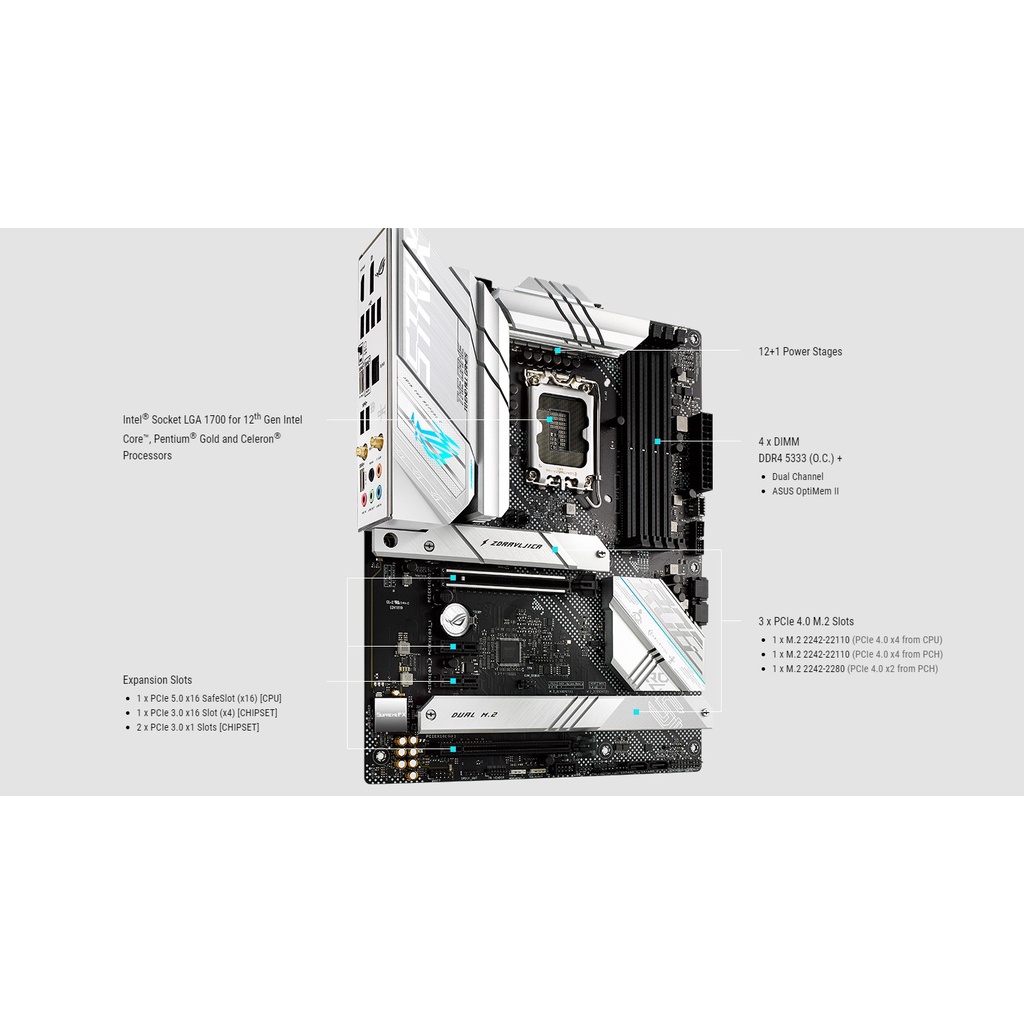

Khe cắm mở rộng

Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot(s)*

Intel® B660 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Connectors
Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector
