Giới thiệu 1 Mô đun tăng áp MT3608 DC-DC MAX 28V 2A

Description:

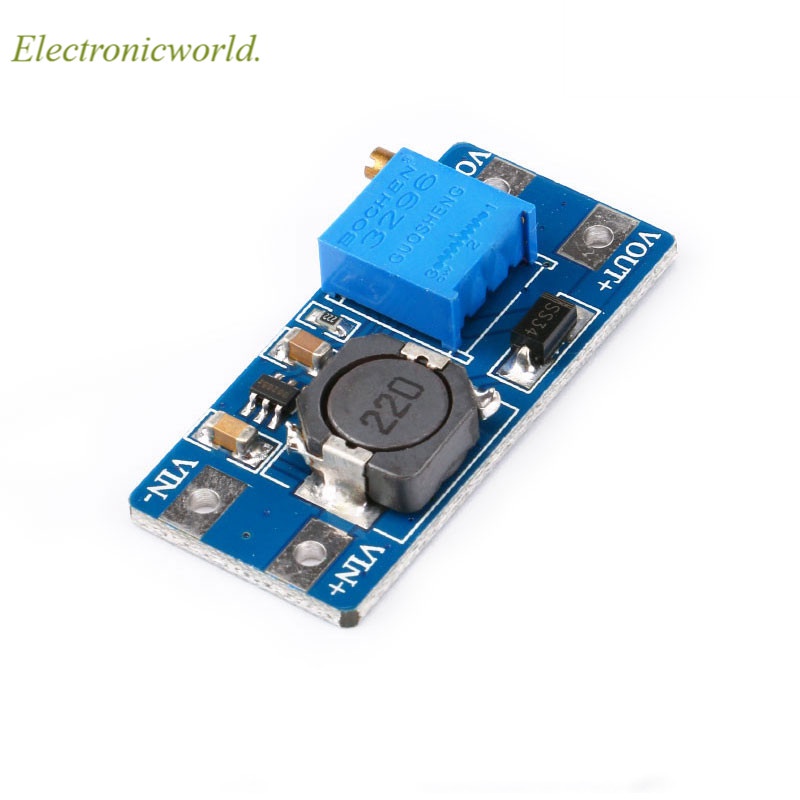

The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Maximum output current: 2A (recommended for use within 1A)
Input voltage: 2 v ~ 24 v
Maximum output voltage:> 28 v (recommended for use within 26V)
Efficiency:> 93%
Size: 30mm * 17mm * 14mm (L * W * H)
This module is a step-up module, the output voltage is greater than the input voltage.
Peak current output current does not exceed 2A.



Note:

1. Input voltage should not exceed the maximum input voltage

2. Peak current output current does not exceed 2A
3. When the module output voltage can not be adjusted, always equal to the input voltage when the first 20 laps counterclockwise rotary potentiometer or more, then you can use the module properly regulate the voltage. Surge mode: potentiometer face chest, counterclockwise turn boost!
