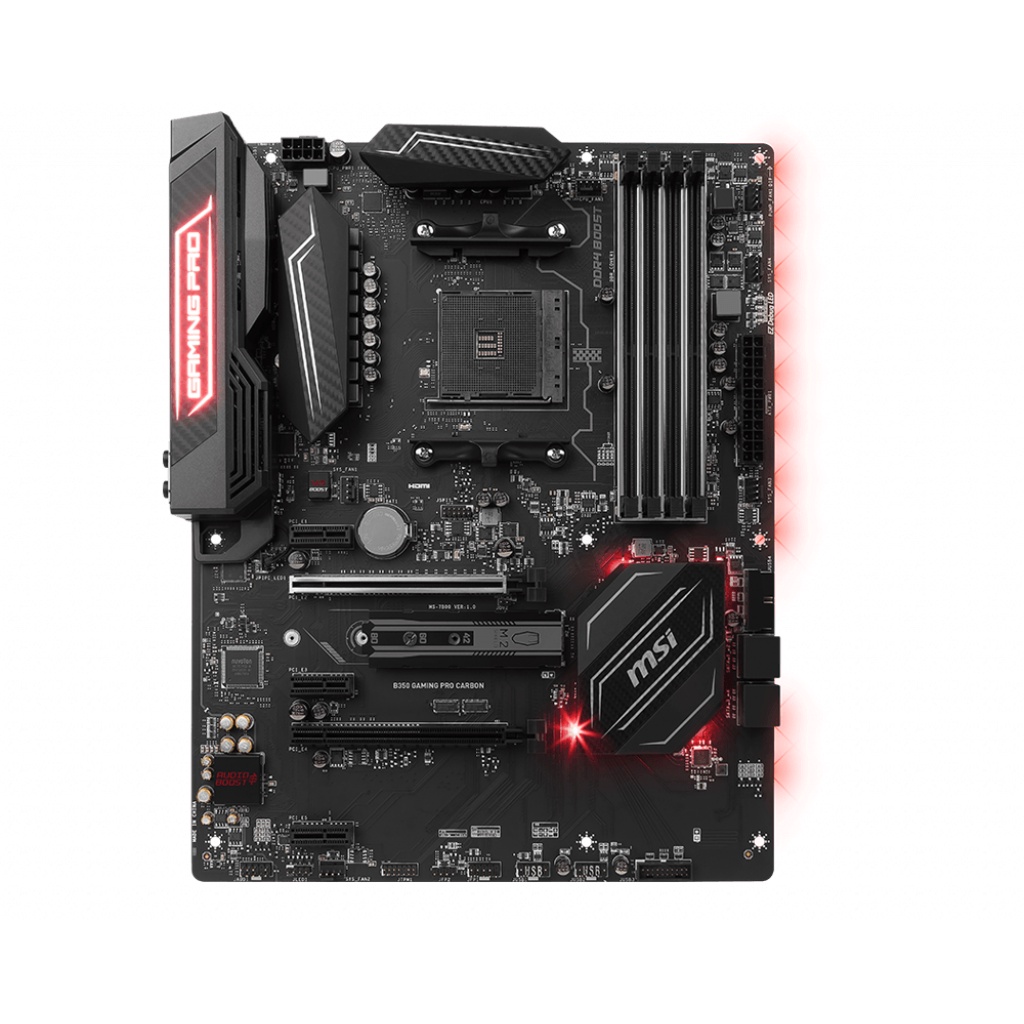

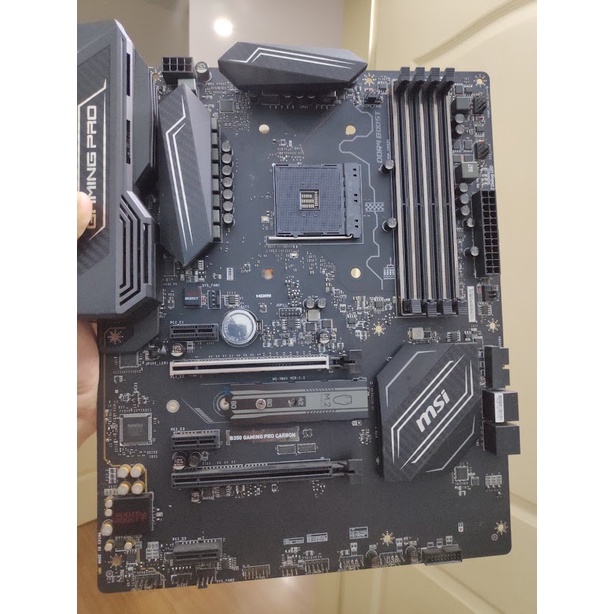

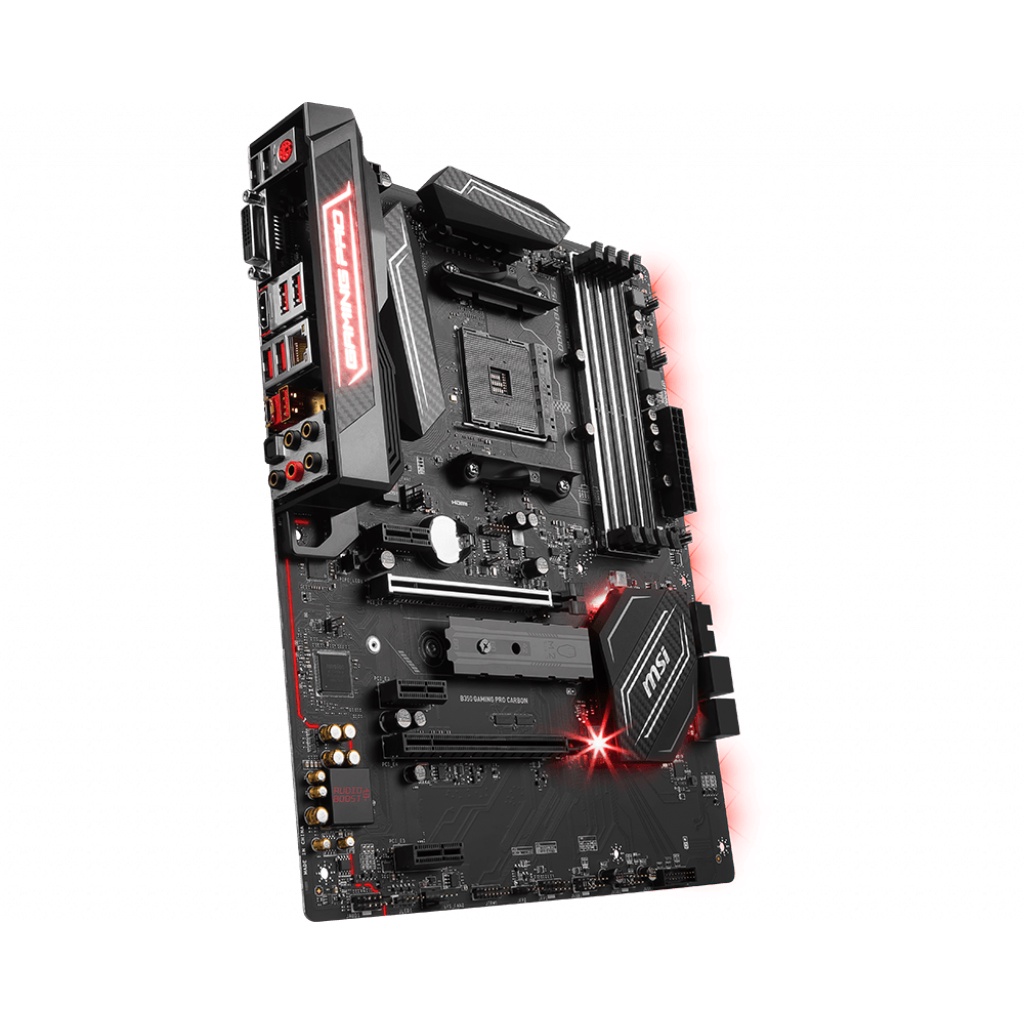

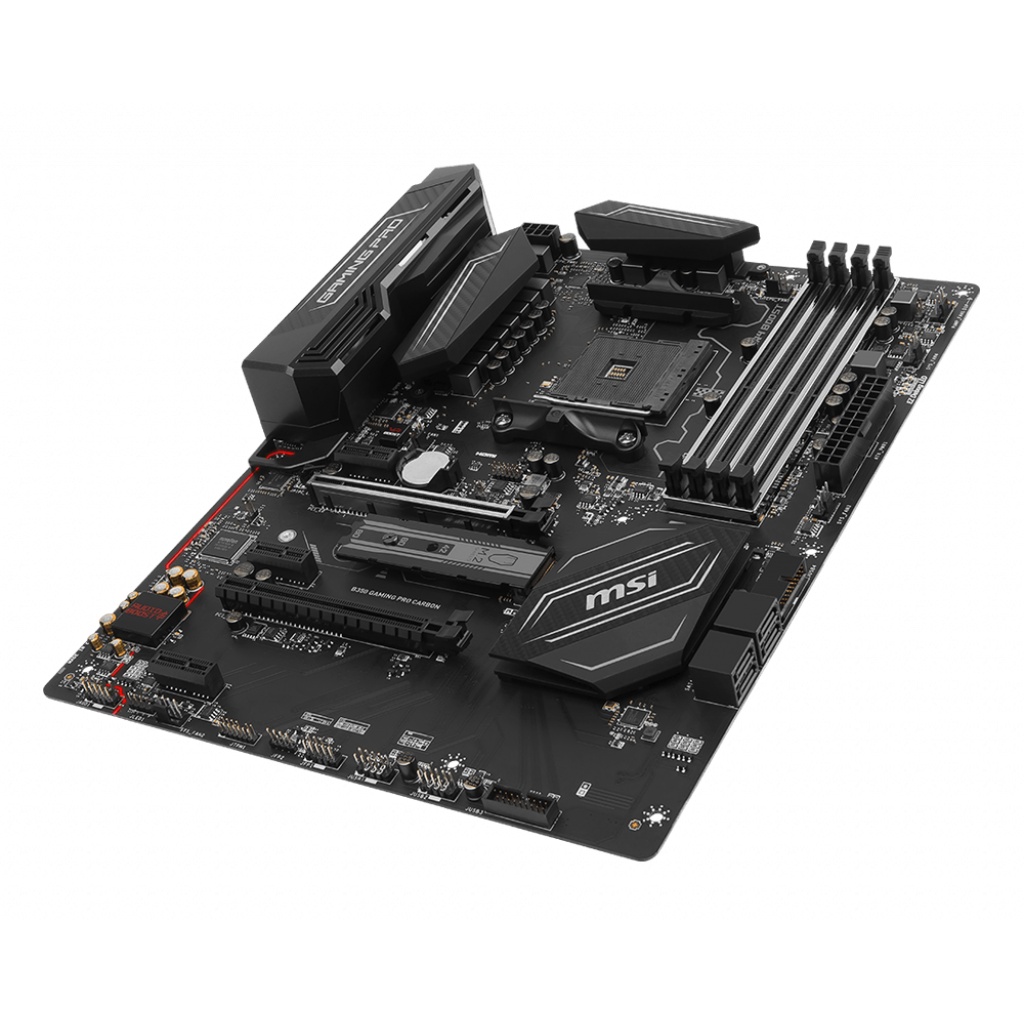

Giới thiệu Bo mạch chủ máy tính MSI B350 Gaming Pro Cacbon

CPU

• Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4


Chipset

• AMD® B350 Chipset



Main Memory

• 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
* A-series / Athlon™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.



Slots

• 1 x PCIe 3.0 x16 slot (PCI_E2)
- RYZEN series processors support x16 mode
- Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 processors support x8/x0 mode
- AMD® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 mode • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
• 3 x PCIe 2.0 x1 slots
* PCI_E4 slot will support PCIe 2.0 x1 when installing PCIe device in any PCIe x1 slot.



Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz(*1,3)
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz(*1,2,3)
1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
2. Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could only support HDMI display output
3. Maximum shared memory of 2048 MB



Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology
- Only when all PCIe x1 slots are empty, this motherboard could support AMD® CrossFire™ technology.


Storage

• AMD® B350 Chipset
• 2 x SATA 6Gb/s ports (SATA1, SATA2)
- Supports RAID 0 and RAID1
• 1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• ASMedia ASM 1061
- 2 x SATA 6Gb/s ports (SATA3, SATA4)

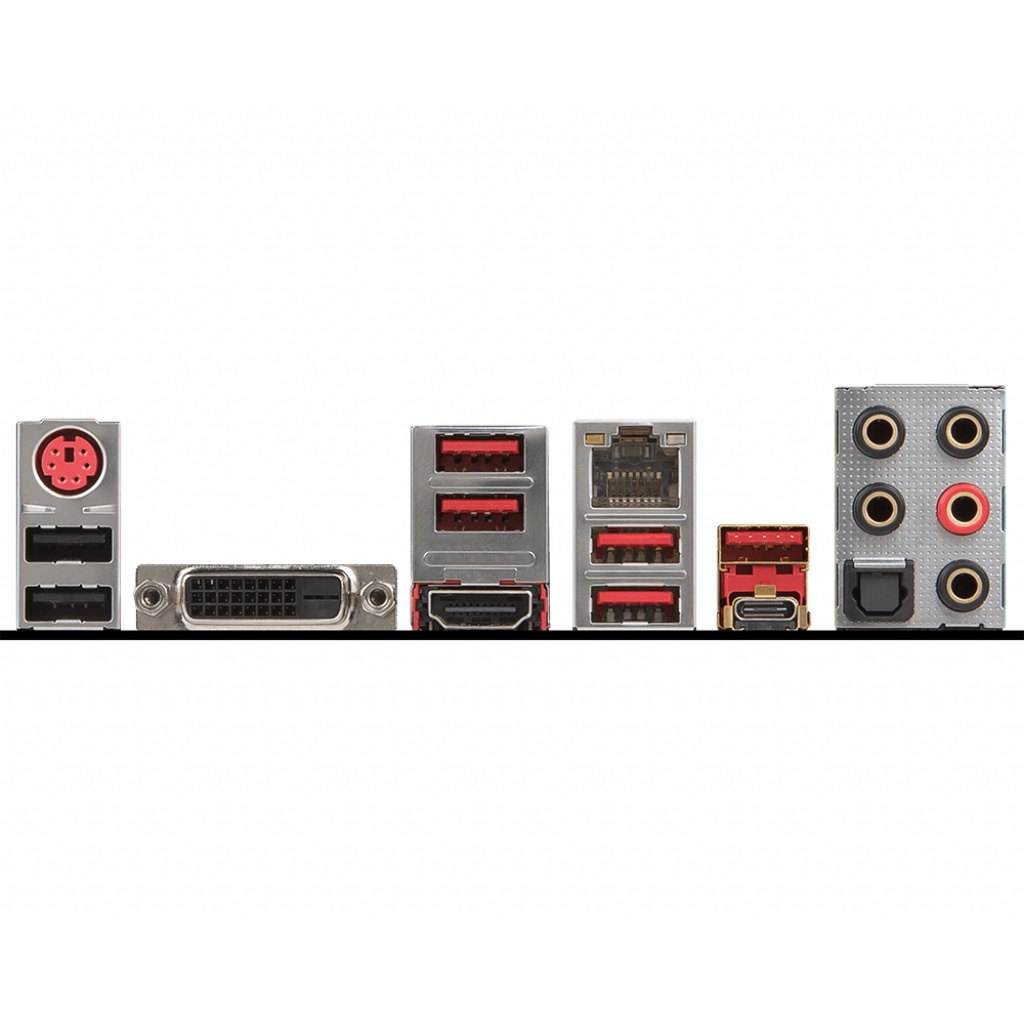

USB

• ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

• AMD® B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
• AMD® CPU
- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel



Audio

• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output



LAN

• 1 x Intel® I211AT Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan con
