Giới thiệu Bảng Mạch Bảo Vệ Pin Lithium 3s 12v 100a Bms

Overcharge and discharge protection to prevent overcharge and discharge of the battery, Overcurrent protection to prevent abnormal high current of battery.
Balance protection, battery voltage balance, make battery life longer

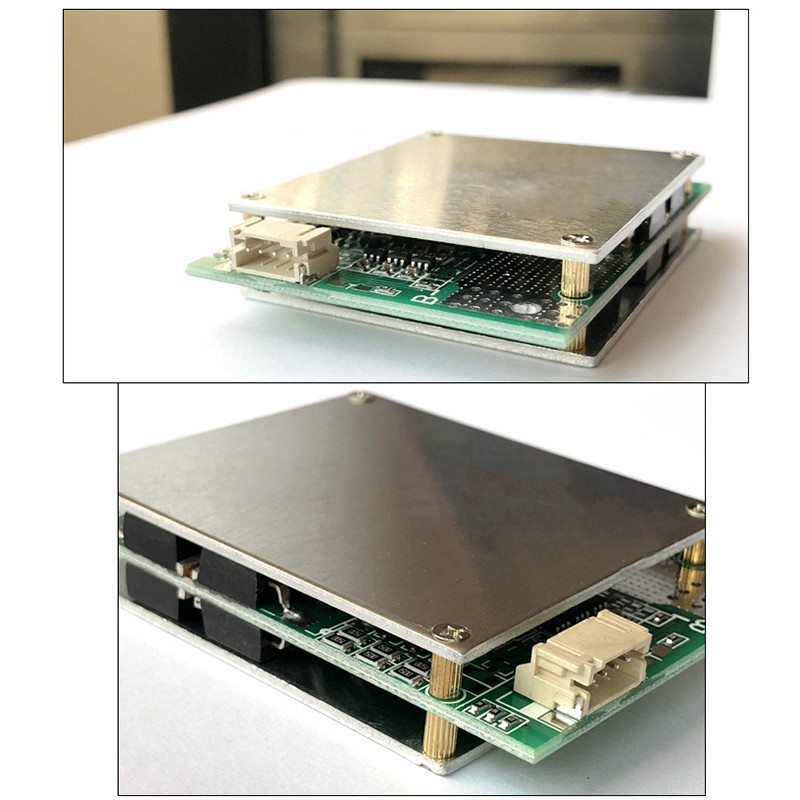

Stable heat dissipation, stable heat dissipation of the aluminum substrate, safer
TVS safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
Suitable for most electric tools on the market, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc.

el: 3S 12V 100A with equalization-same port
Continuous current: within 100A
Instantaneous current: 200A
Charging voltage: 12.8-16V
Charging current: within 100A
Overcharge protection: single channel 4.2V±0.025V
Over-discharge protection: single 2.8V±0.1V
Short circuit protection: Yes
Applicable assembly: nominal 3.6/3.7V batteries
size:53 x 76 x 15mm
Material:PCB
colour:White+green

Package Contents:
1 x Lithium Battery Charger Protection BoardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
