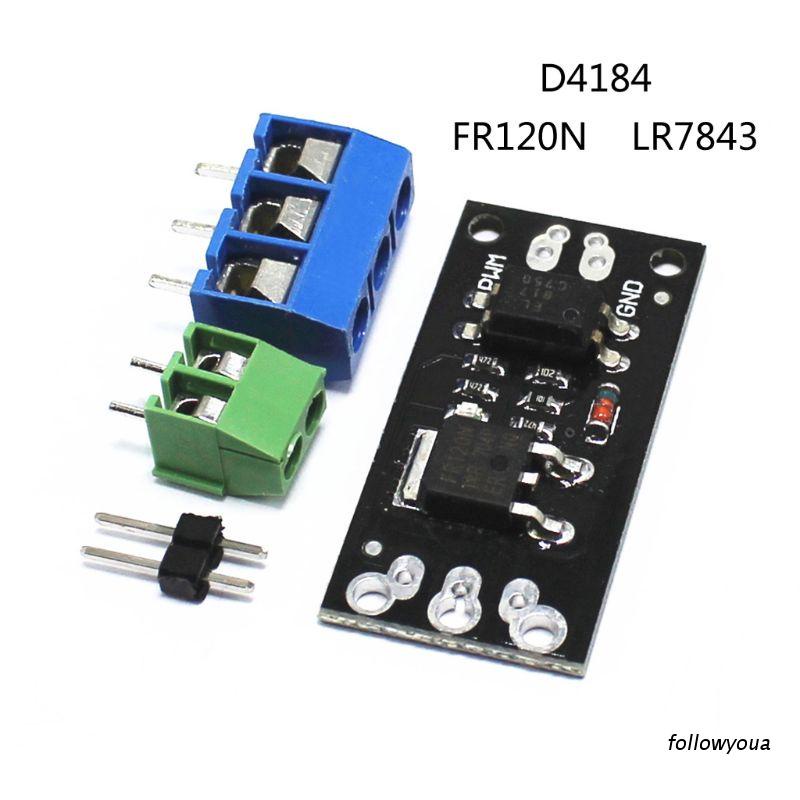

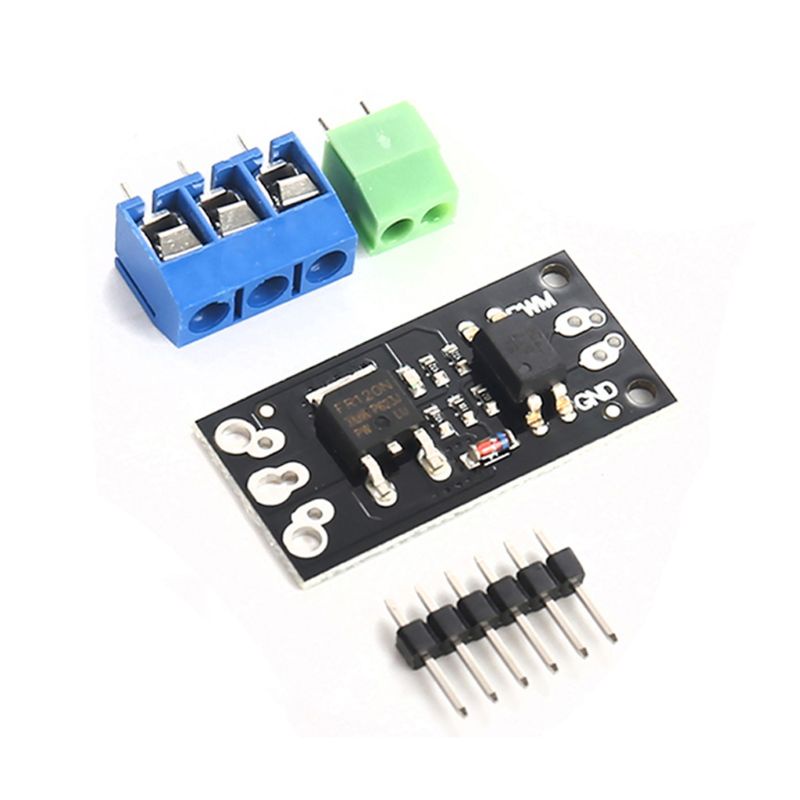

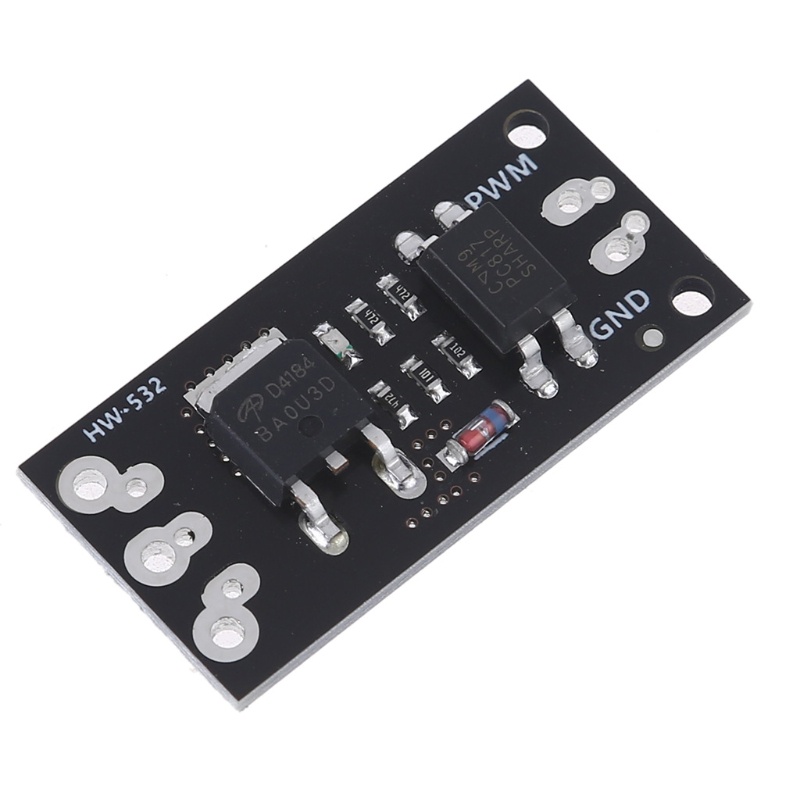

1PC D4184/FR120N/LR7843 Isolated MOSFET MOS Tube FET Module Replacement Relay 40V 50A 100V 9.4A 30V 161A Plate Board
Description:

Features:
100% brand new and high quality
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference.
Compatible with MCU and Arduino control board, 3V or 5V signal.
High level start, low level stop, PWM speed regulation.
Widely used to control the start and stop of the motor, solenoid valve and other tributary equipment.
There are various specifications of MOS tube to provide choices.
E.g:
FR120N: 100V 9.4A; LR7843: 30V 161A; AOD4184: 40V 50A
The signal input side can be welded to the terminal or pin itself, compatible breadboard.
Output can be soldered to the terminal or direct wire.
Module size 23mmx16mm. There are two 2mm diameter screw holes, hole spacing 8mm.

Specification:
Optional Model: D4184/FR120N/LR7843
Color: As pictures shown.
Size: app. 23x16mm(0.91x0.63in)
Material: Electronic component
Quantity: 1 pc

Note:
Transition: 1cm=10mm=0.39inch
With retail package.
Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Isolated MOSFET Tube Module(other accessories demo in the picture is not included.)
