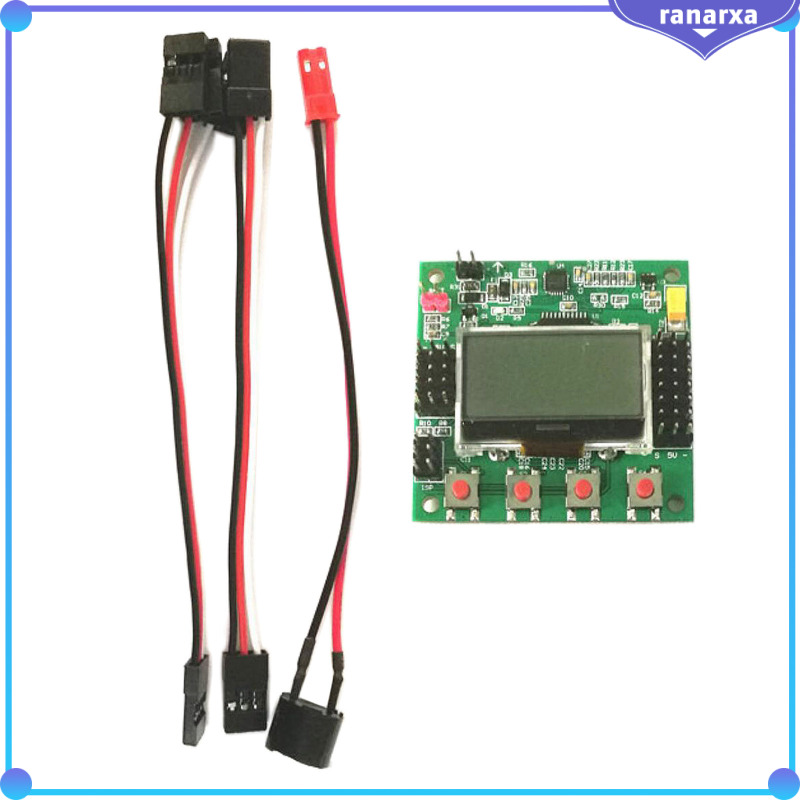

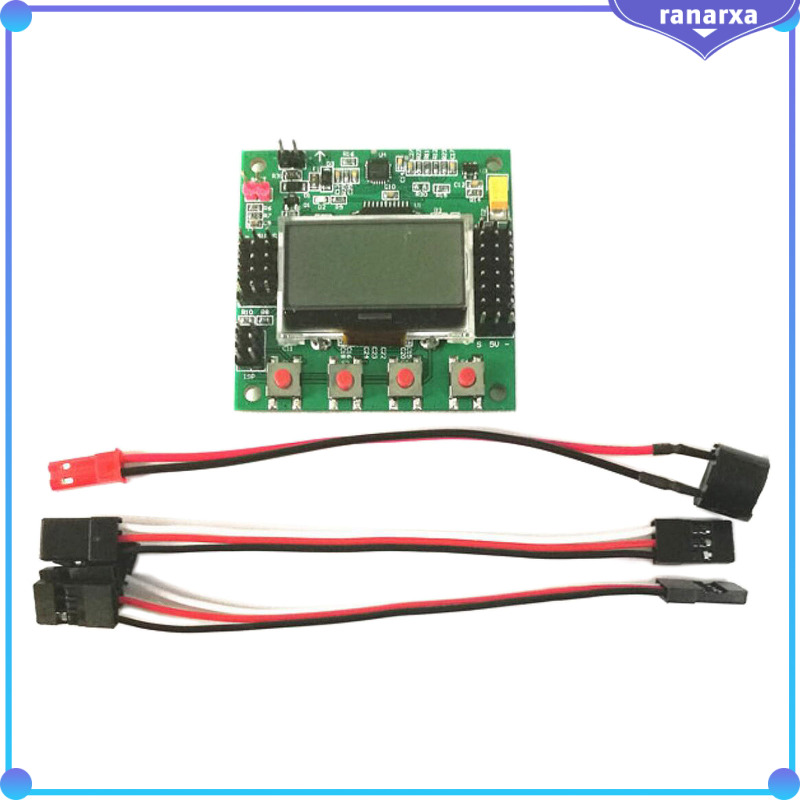

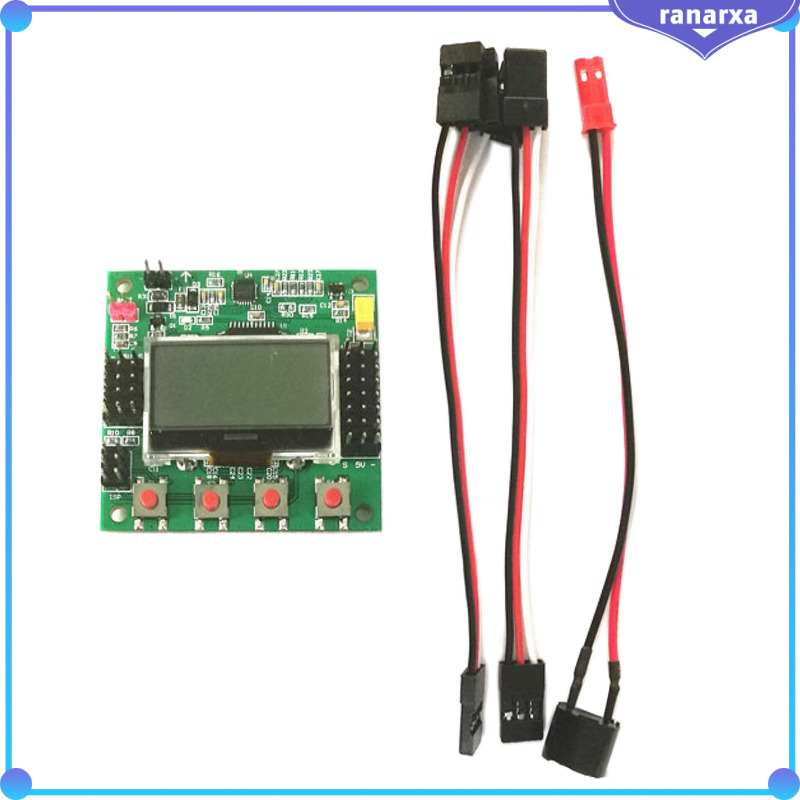

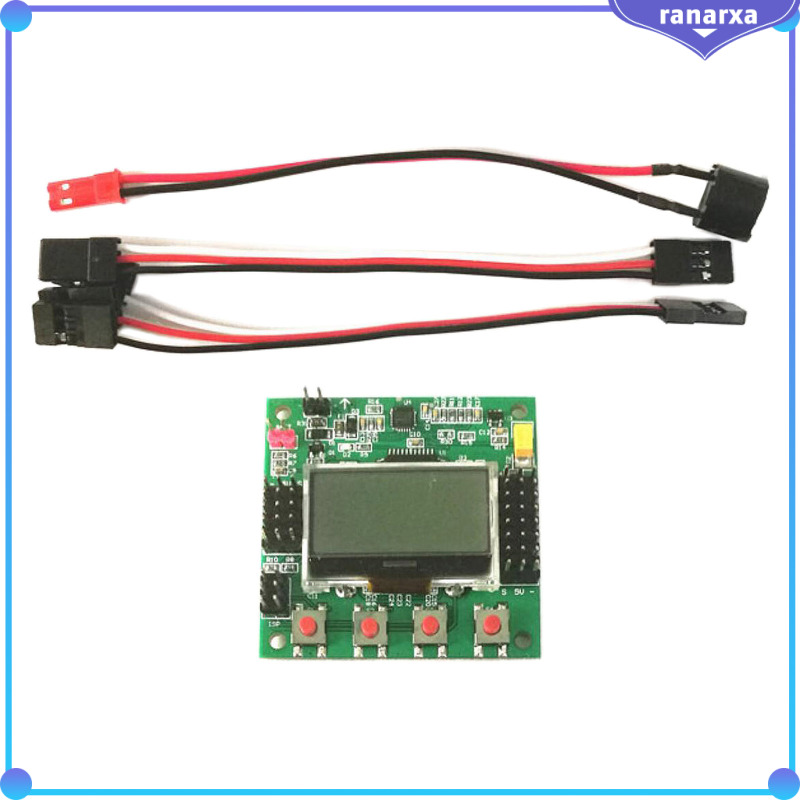

Giới thiệu Bảng Mạch Điều Khiển Cho Máy Bay Điều Khiển Kk2.1.5 6050mpu
Description:
Flight control board for multi-rotor aircraft (Tricopters, Quadcopters, Hexcopters etc) so as to stabilize the aircraft during flight.
High performance,easy and convenient to use.
Updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function.
Uses signals from your radio systems receiver (Rx) and passes these signals to the Atmega644PA IC via the aileron, elevator, throttle and rudder inputs.Once this information has been processed the IC will send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled flight (up, down, backwards, forwards, left, right, yaw).
Size:Approx.51x51x12mm/2x2x0.47inch
Specification:
Built-in flight mode:
Dualcopter
Tricopter
Y6
Quadcopter +
Quadcopter X
Hexcopter +
Hexcopter X
Octocopter +
Octocopter X
X8 +
X8 X
H8
H6
V8
V6
Aero 1S Aileron
Aero 2S Aileron
Flying Wing
Singlecopter 2M 2S
Singlecopter 1M 4S
Size Chart:
IC: Atmega644 PA
Gyro/Acc: 6050MPU InvenSense Inc.
Auto-level: Yes
Input Voltage: 4.8-6.0V
AVR interface: standard 6 pin.
Signal from Receiver: 1520us (5 channels)
Signal to ESC: 1520us
Firmware Version: V1.17S1

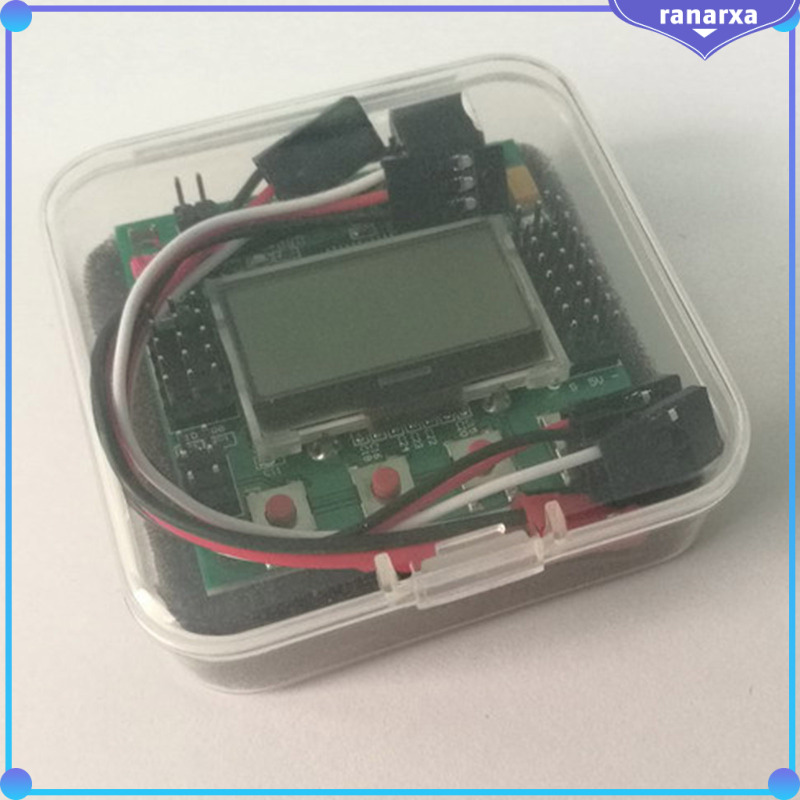

Package Includes:
1 Piece Flight Controller Board
Note:
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may 1-2 error in size.
