DC POWER Nguồn Cung Cấp Điện 400w 60v S-400-60 6.6a Cho Máy Cnc

Mô tả ngắn

Mua DC POWER Nguồn Cung Cấp Điện 400w 60v S-400-60 6.6a Cho Máy Cnc giá rẻ nhất ở đâu?
: Còn hàng
Nước ngoài
: Shopee.vn
965,475₫

Sản phẩm cùng danh mục

Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.

Xem thêm

Sản phẩm cùng tầm giá

Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.

Siêu sale Xmas - Lazada.vn

Giới thiệu DC POWER Nguồn Cung Cấp Điện 400w 60v S-400-60 6.6a Cho Máy Cnc

400W 60V Switch DC Power Supply S-400-60 6.6A Single Output for CNC Router Foaming Mill Cut Engraver Plasma
Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:
Convert AC input selected by switch.
With over voltage, over current, high temperature, short circuit protection.
Built-in DC fan forced air cooling.
PWM control.
Automatic cooling fan control.
100% full load burn-in test.
Low cost, high reliability, has a long service life.

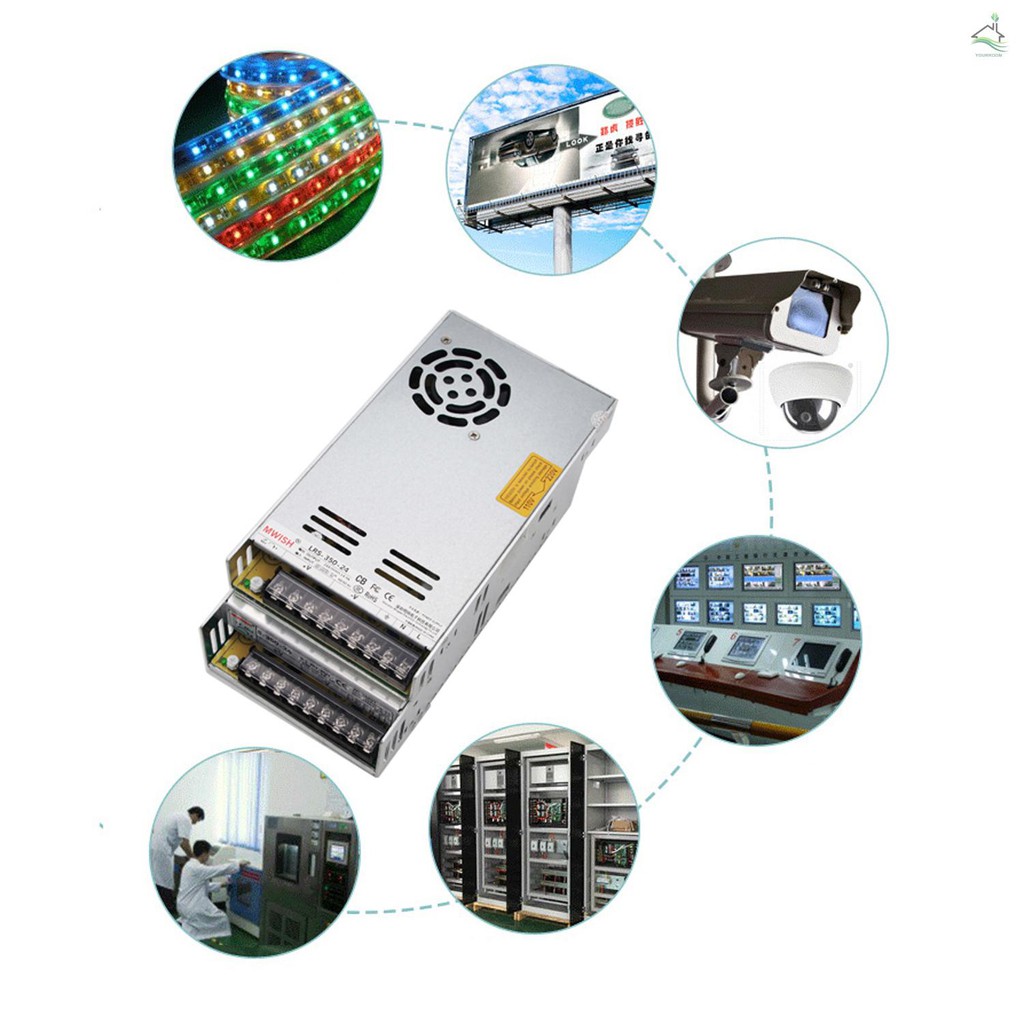

Can be used in industrial control equipment, automation control, LED display, LED lighting, billboard light boxes, water and electricity installation, electronic communications, instrumentation and other industries.

Specifications:
Material: metal
Color: silver
Model: S-400-60
DC output voltage: 60V
Output voltage tolerance: ±1%
Rated output current: 6.6A
Output current range: 0~6.6A
Wave and noise: 150mVp-p
Inlet stability: ±0.5%
Load stability: ±0.5%
DC output power: 396W
Efficiency: 86%
Adjustable range for DC voltage: ±10%
AC input voltage range: 90~132V AC / 180~264V AC selected by switch 47~63Hz; 254~370V DC
Input current: 7A / 115V, 4.5A / 230V
AC inrush current: 25A / 115V, 50A / 230V
Leakage current: 3.5mA / 240V AC
Overload protection: 105%~135% shut off current, automatically restore
Over voltage protection: 115%~135% of the output voltage
High temperature protection: RTH3≥65℃ fan on, RTH3≤55℃ fan off, RTH3≥80℃ off the output
Temperature coefficient: ±0.03% / ℃ (0~50℃)
Setup, rise, hold up time: 200ms, 100ms, 30ms
Vibration: 10~500Hz, 2G 10 minutes / cycle, 60 minutes each for X, Y, and Z
Withstand voltage: input and output internal: 1.5KVAC, input and enclosure: 1.5KVAC, output and enclosure: 0.5KVAC
Isolation resistance: input and output internal, input and enclosure, output and enclosure: 500VDC / 100MΩ
Working temperature and humidity: -10℃~+60℃, 20%~90%RH
Storage temperature and humidity: -20℃~+85℃, 10%~95%RH
Item size: 215 * 115 * 50mm / 8.5 * 4.5 * 2.0in
Package size: 220 * 120 * 60mm / 8.7 * 4.7 * 2.4in
Package weight: 900g / 2.0lb
Packing List:
1 * 400W 60V / 6.6A Switching Power Supply
