Giới thiệu Mô đun giảm áp XL4015 5A DC-DC có màn hình LED

#XL4015 #Step #Down #Module #Adjustable #5A #DC-DC #Buck- #Converter #with #LED #Display

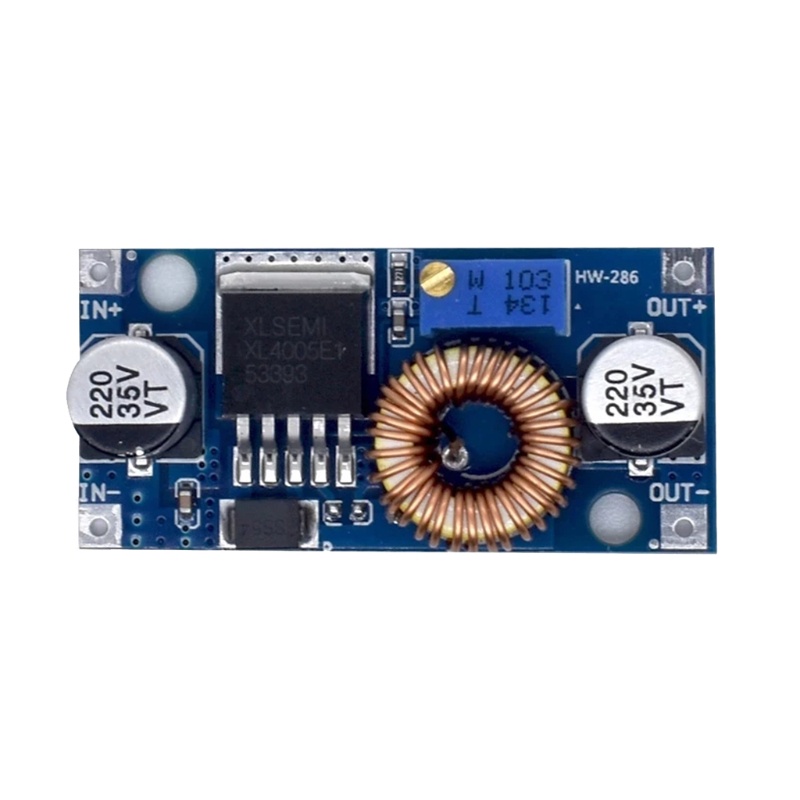

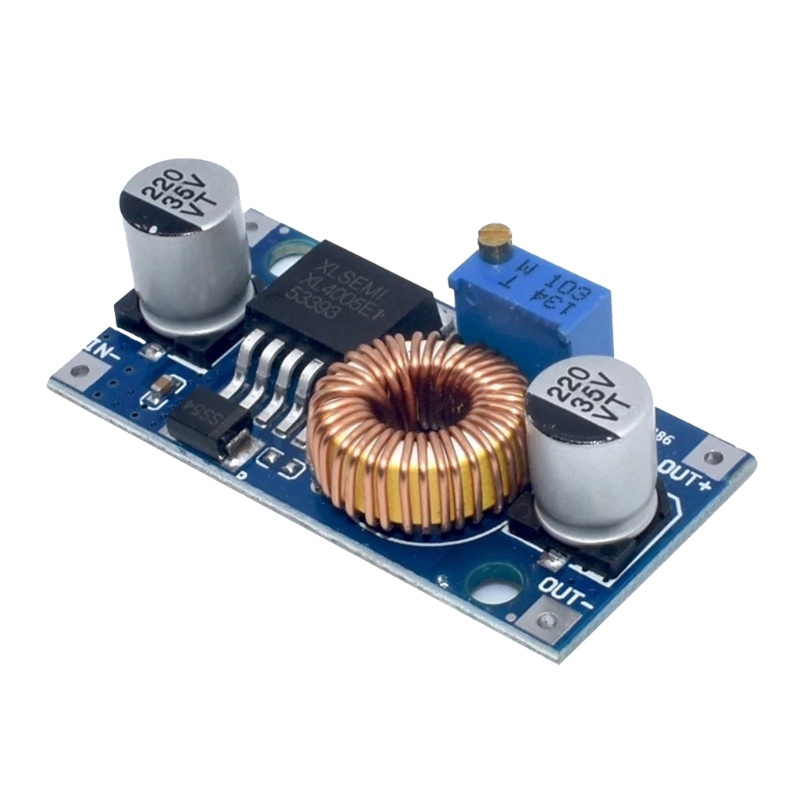

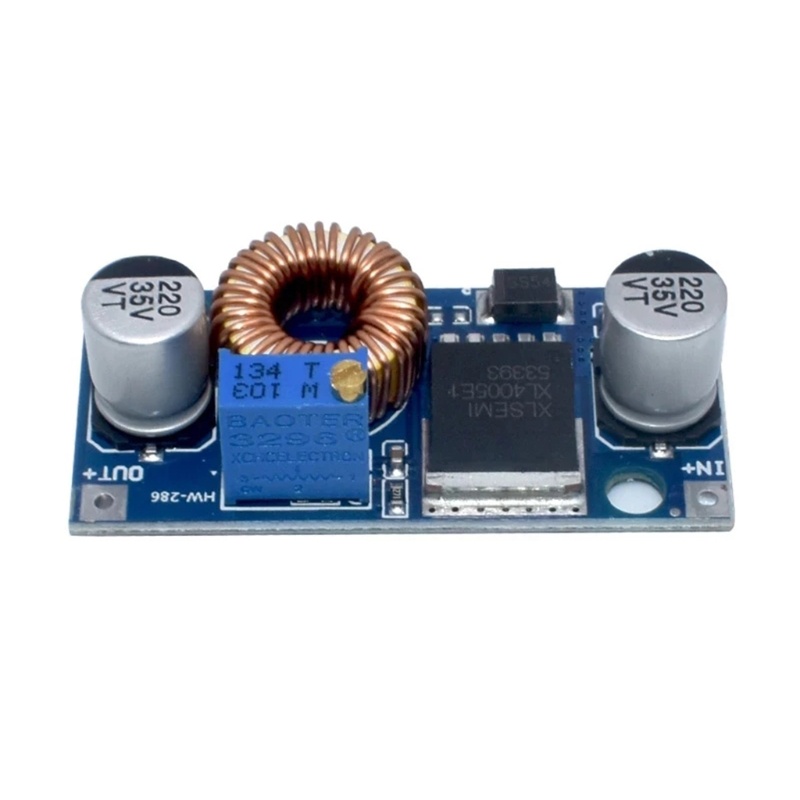

XL4015 Step Down Module Adjustable 5A DC-DC Buck- Converter with LED Display
Features: 100% brand new and high quality
Input voltage DC 4V-38V; output voltage DC 1.25V-36V continuously adjustable; output current 5A max; output power 75W max.
As normal buck- step down voltage module with over-current protection; as charger for various battery, for solar battery panels, wind turbine; as high power LED CC drive module, etc.
Protect short-circuit protection; over-temp protection.
Indictor indicate current mode of CC/CV & charging status of charging/full-charged.
With constant current & constant voltage mode; float volt & charging amp can be set when used as lithium battery charger; high efficiency of 96%; low ripple.

Specification: Module nature: Non-isolated Buck- Module
Input voltage: 4-38V (Please try not to exceed 38V as input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-, recommended for use within 4..
Output power: It is recommended to use within 75W. If more than 50W, please add heat sink.
Working temperature: -40~+85 degrees
Working frequency: 180KHz SUNLEPHANT
Conversion efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference)
Load adjustment rate: S(I) ≤ 0.8%
Voltage adjustment rate: S(u) ≤ 0.8%
Power indicator: Yes
Short circuit protection: Yes (limited current 8A)
Over temperature protection: Yes (automatically turn off the output after over temperature)
Input reverse connection protection: None, (If necessary, please input a large current diode in the input string)
Installation method: 2 3mm silk

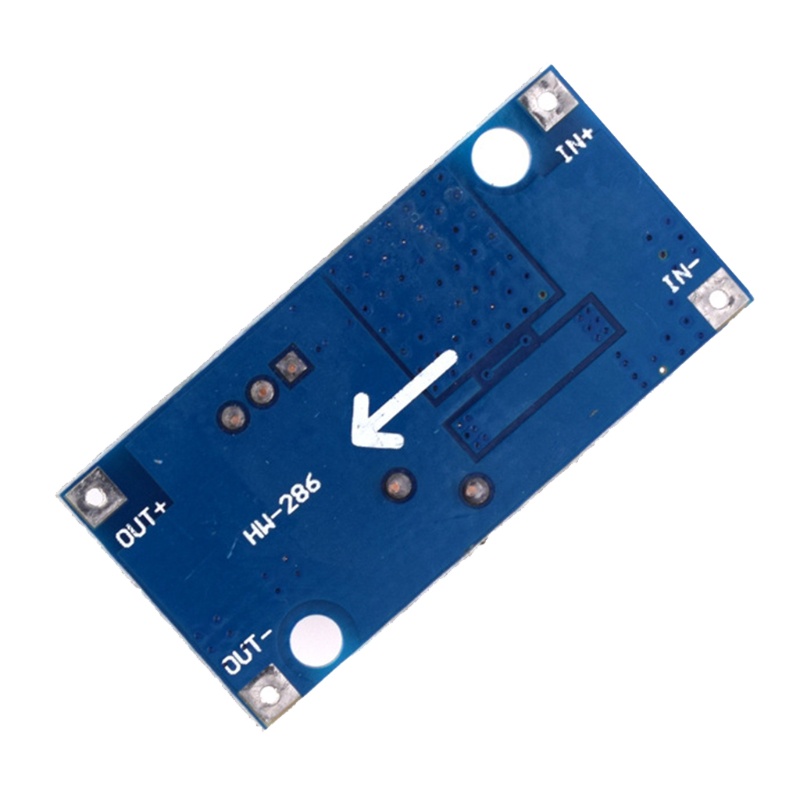

Wiring method: welding, V-IN is input, V-OUT is output

Package Includes: 1PC x Step Down Power Supply Module

note: Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.

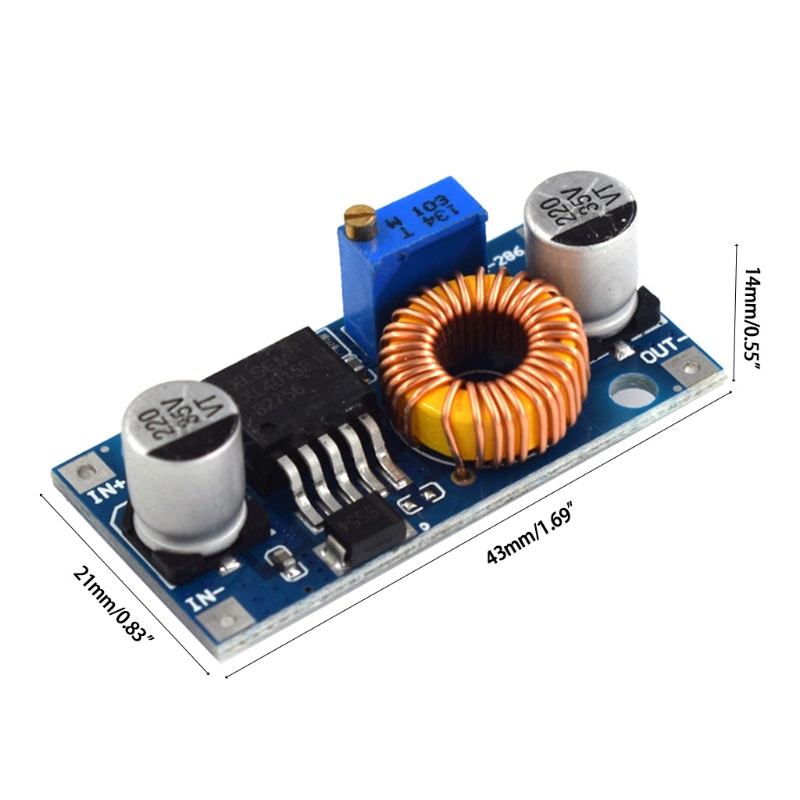

Please allow 0-3mm error due to manual measurment.
