Bộ mã hóa tay quay 5V 60MM cho hệ thống CNC


Mô tả ngắn

Mua Bộ mã hóa tay quay 5V 60MM cho hệ thống CNC giá rẻ nhất ở đâu?
: Còn hàng
Nước ngoài
: Shopee.vn
246,000₫

Sản phẩm cùng danh mục

Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.

Xem thêm
Siêu sale Xmas - Lazada.vn

Giới thiệu Bộ mã hóa tay quay 5V 60MM cho hệ thống CNC

----------------------- ♥♥ -Produkasyong Impormasyon - ♥♥ ------------------ -------
✔Magpadala upang magpadala ng ✔High kalidad ✔Binungunang presyo ✔Brand bagong 100%
✔ Pinakamahusay na Presyo ng Dami ng Shopee ✔upplier Info ✔invoice
Mga sorpresa para sa iyo:
❀ Sundin ang mga shop / "Tulad ng" Item: Priority Shipping & Free Gift
☞PS: Kung nais mo ng isang libreng regalo, mangyaring ipadala sa akin ang screen na sinusundan mo ang aking shop at mag-iwan ng mensahe sa iyong order. # Xiyijiaproduct

Features:
100% brand new and high quality

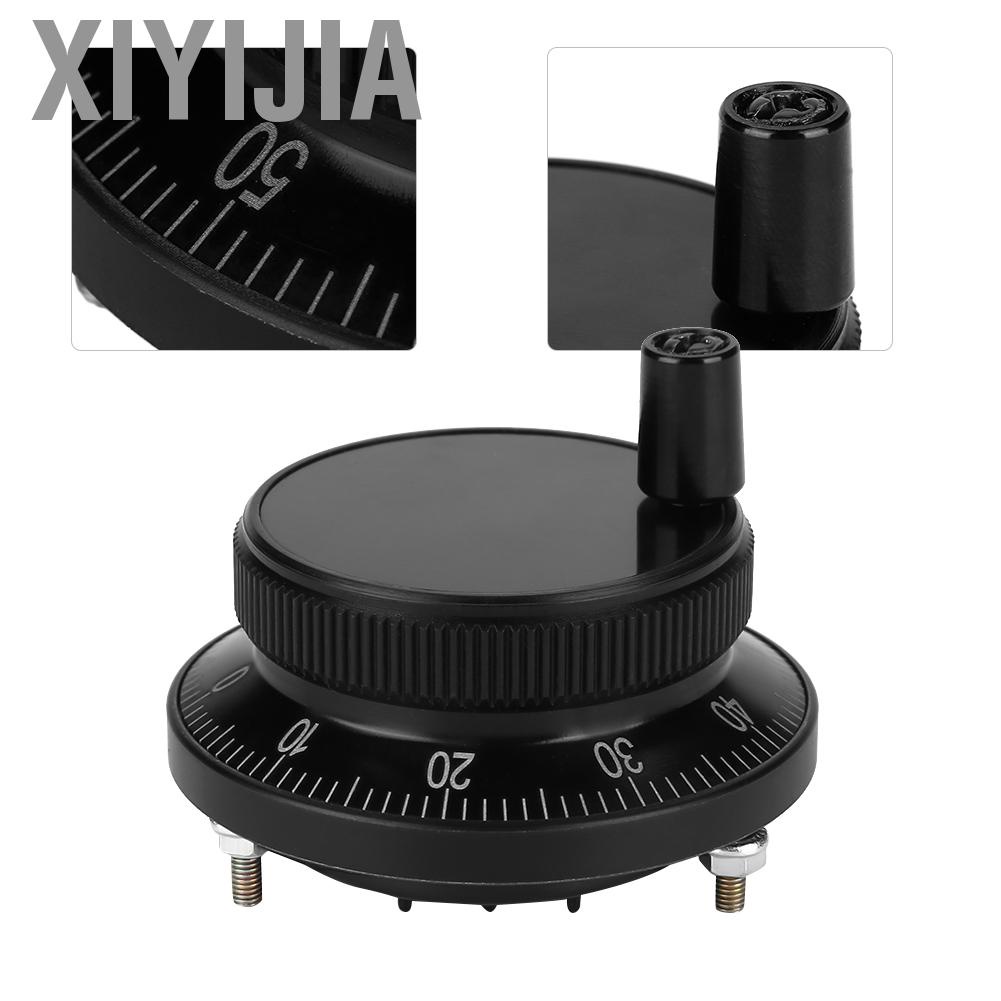

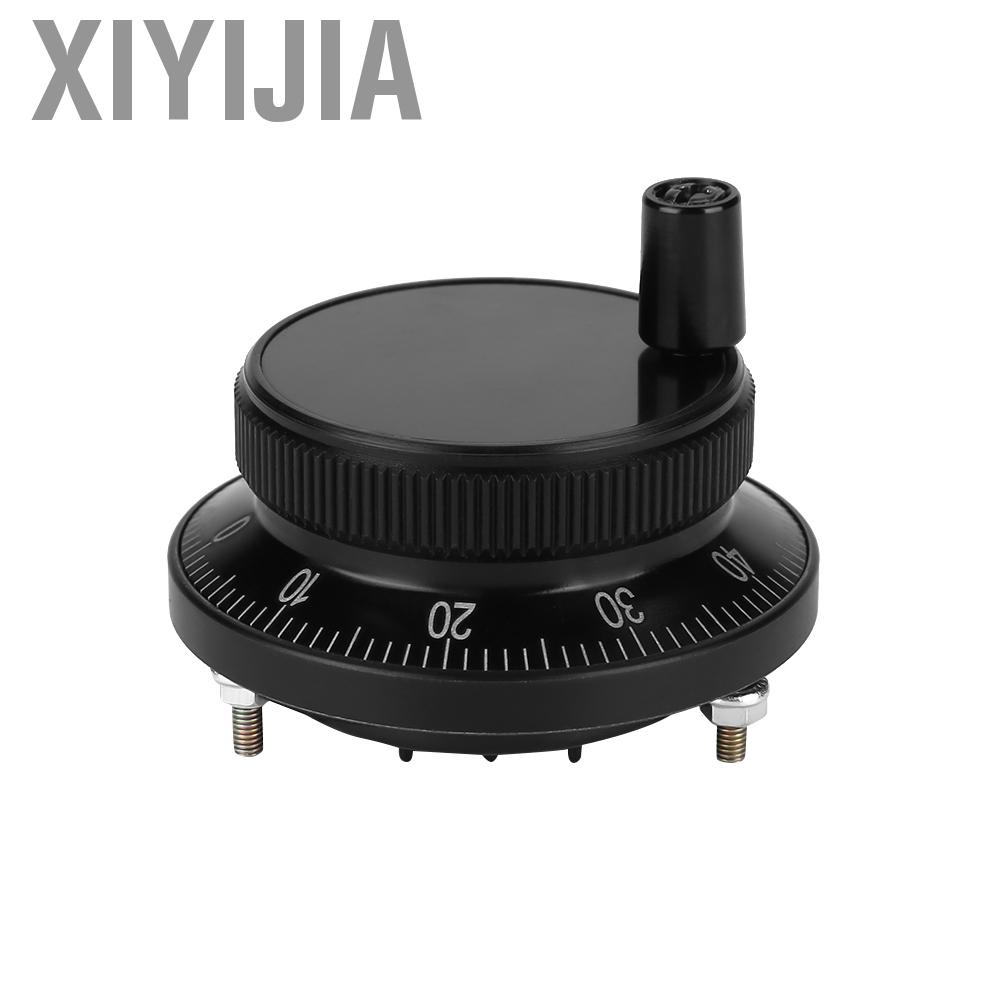

This pulse encoder is suitable for manual pulse input type such as CNC or Milling machine
High reliability, 6mm terminal connection type

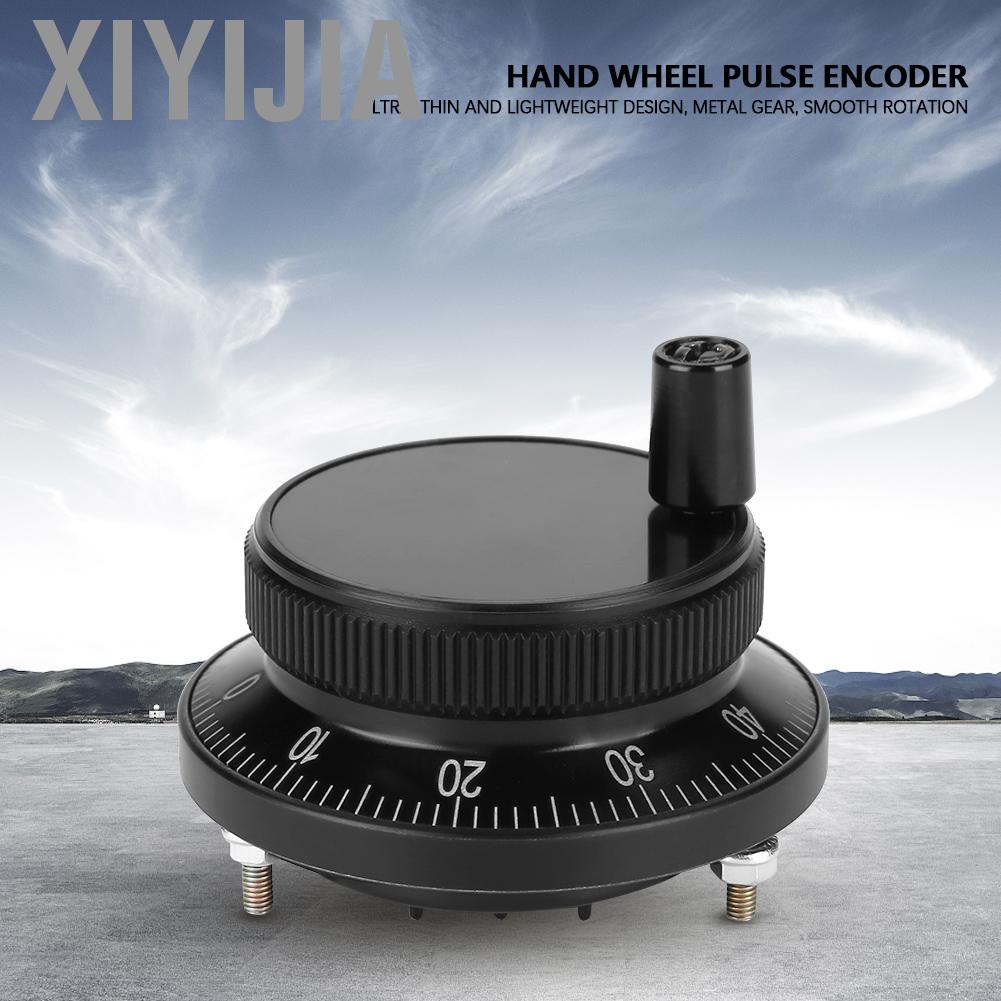

Ultra-thin and lightweight design, metal gear, smooth rotation, no sticking point position
Hand wheel 100 stop positions, can return to normal, no high level output

Specifications:
Material: aviation aluminum

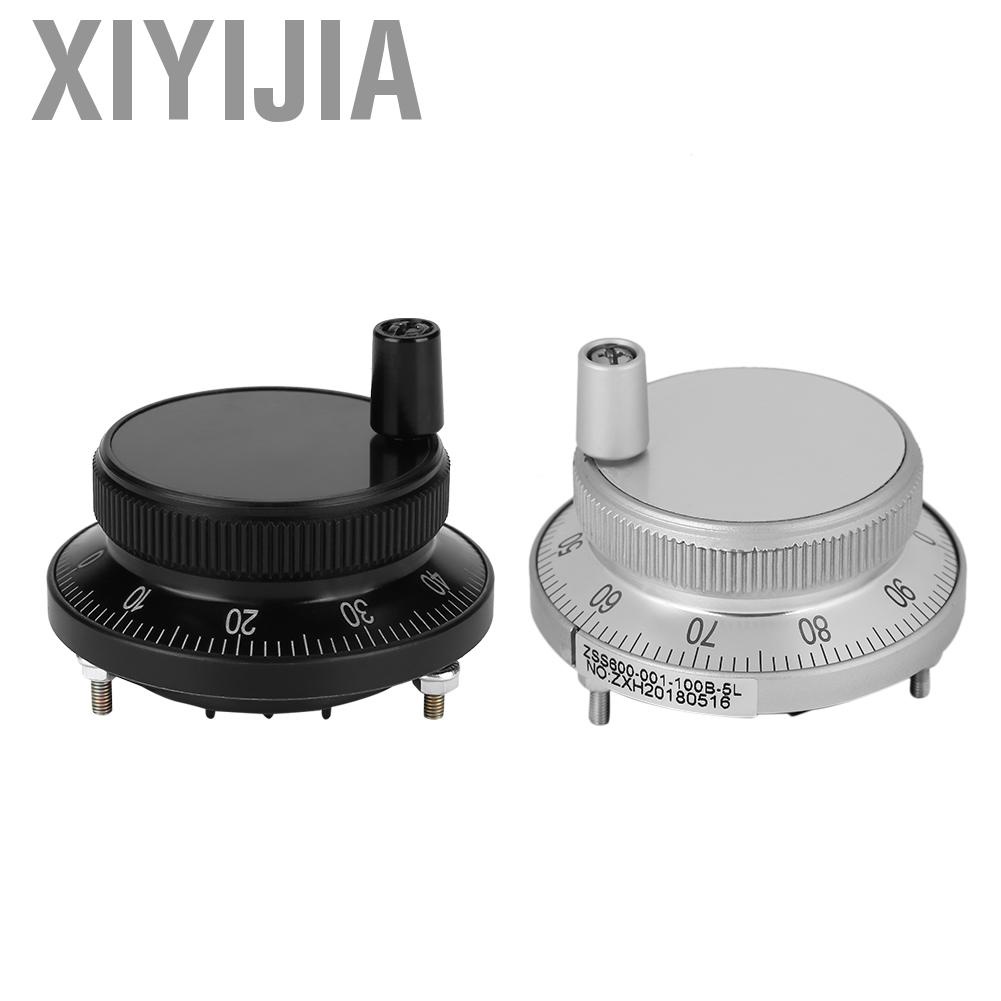

Color: black, white (Optional)
Product type: 6 terminal
Voltage: 5V
Diameter: 60mm/2.36in
Consumption current: ≤100mA
Response frequency :0-20 KHZ
Empty ratio: 0.5 T ± 0.1 T
Mechanical revolution: 500rpm
Normal revolutions: ≤200RPM
Protection: oil proof, water-resistance, dustproof IP54
Working temperature: -10~70℃
Working humidity: 30-85%

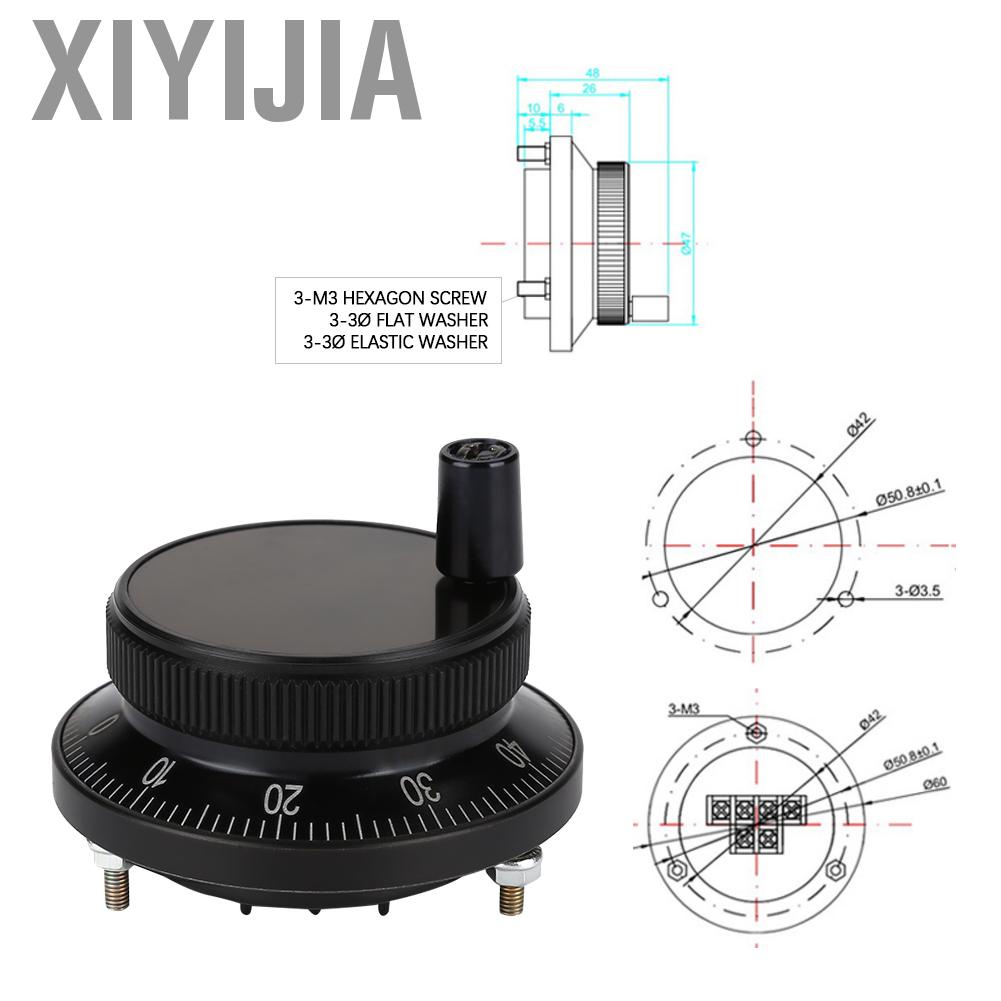

Size: as the picture
Weight: 200g

Package includes:
1 x CNC Pulse Encoder

#PulseEncoder#CNCPulseEncoder#HandwheelPulseEncoder#Handmanualpulsegenerator#CNCManualPulseGenerator
