Giới thiệu Ampe kìm KYORITSU 2200 (AC 1000A) Nhập Khẩu Thái Lan - Đồ Nghề Không Thể Thiếu Của Thợ Điện Chuyên Nghiệp

AC A : 40.00/400.0/1000A (Auto-ranging)
AC V :4.000/40.00/400.0/600V (Auto-ranging)
DC V : 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
Ω :400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
Đo liên tục : Còi kêu 50±30Ω
Đường kính kìm : Ø33mm max.
Nguồn : R03/LR03 (AAA) (1.5V) × 2
Kích thước : 190(L) × 68(W) × 20(D)mm
Khối lươngj . 120g

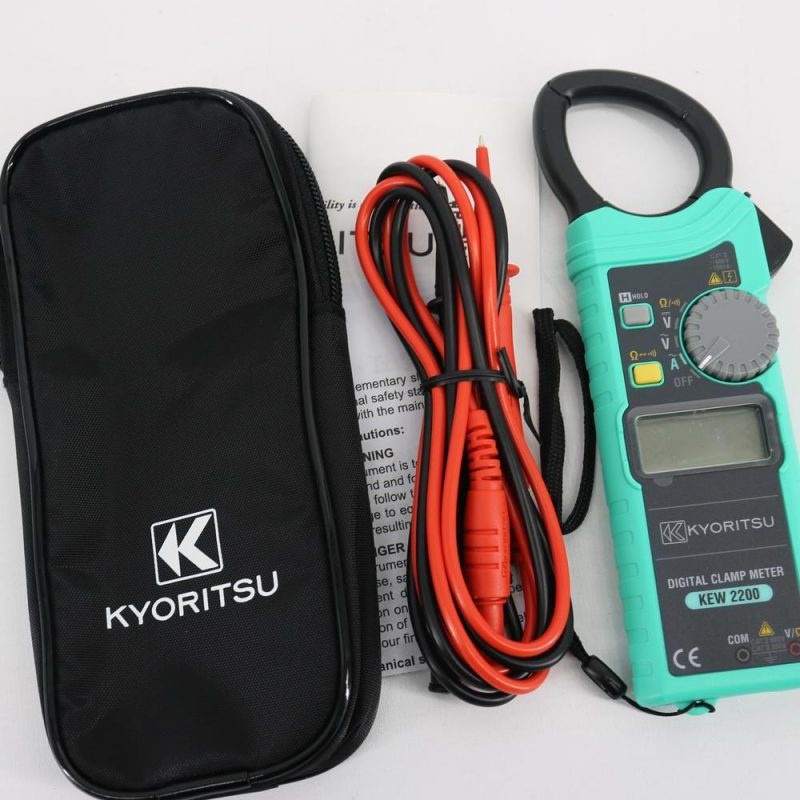

Phụ kiện :

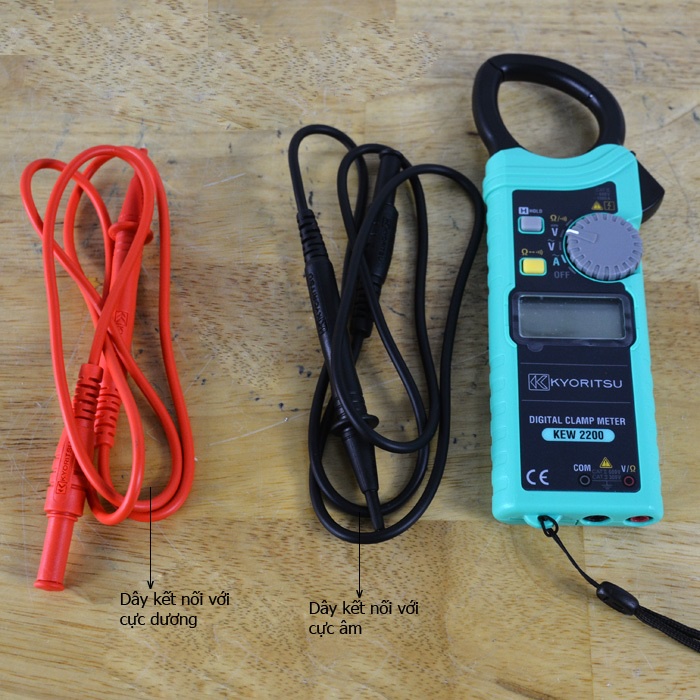

+ Que đo 7107A
+ Hộp đựng 9160
+ R03 (AAA) × 2,
+ Hướng dẫn sử dụng
ENG
φ33MAX 1000AAC ADC/AC VΩ

Continuity BuzzerDATA HOLDAUTO POWER OFF
2200
(Drag to rotate the image)

CE

AC A
40.00/400.0/1000A (Auto-ranging)

±1.4%rdg±6dgt(50/60Hz)
±1.6%rdg±6dgt(45~65Hz)
AC V
4.000/40.00/400.0/600V (Auto-ranging)

±1.8%rdg±7dgt(45~65Hz)
±2.3%rdg±8dgt(65~500Hz)
DC V
400.0mV/4.000/40.00/400.0/600V (Auto-ranging)

±1.0%rdg±3dgt(*1)
Ω
400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)

±2.0%rdg±4dgt(0~400kΩ)
±4.0%rdg±4dgt(4MΩ)
±8.0%rdg±4dgt(40MΩ)
Continuity buzzerbuzzer sounds below 50±30Ω
Conductor sizeØ33mm max.
Withstand voltage5320V AC for 5 seconds (AC A)
3540V AC for 5 seconds (AC/DC V)
Applicable standardsIEC 61010-1
CAT.III 600V Pollution degree 2 (AC A),
CAT.III 300V / CAT.II 600V Pollution degree 2 (AC/DC V)

IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC)
Power source
R03/LR03 (AAA) (1.5V) × 2
*continuous measuring time:
approx. 350 hours (Auto power off: approx. 10 minutes)
Dimensions190(L) × 68(W) × 20(D)mm
WeightApprox. 120g (including batteries)
Accessories7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2,
Instruction Manual
Optional8008 (Multi-Tran)(*1) 400.0mV Range : Accuracy is not guaranteed.
