Giới thiệu Máy Quét Kiểm Tra Hệ Thống Đọc Mã Toàn Diện Với Màn Hình Màu Dành Cho Xe Hơi

Car Engine Fault Code Reader ABS Auto Diagnostic Scan Tester with Color Screen Multifunctional for Car Testing for Read Code
Feature:

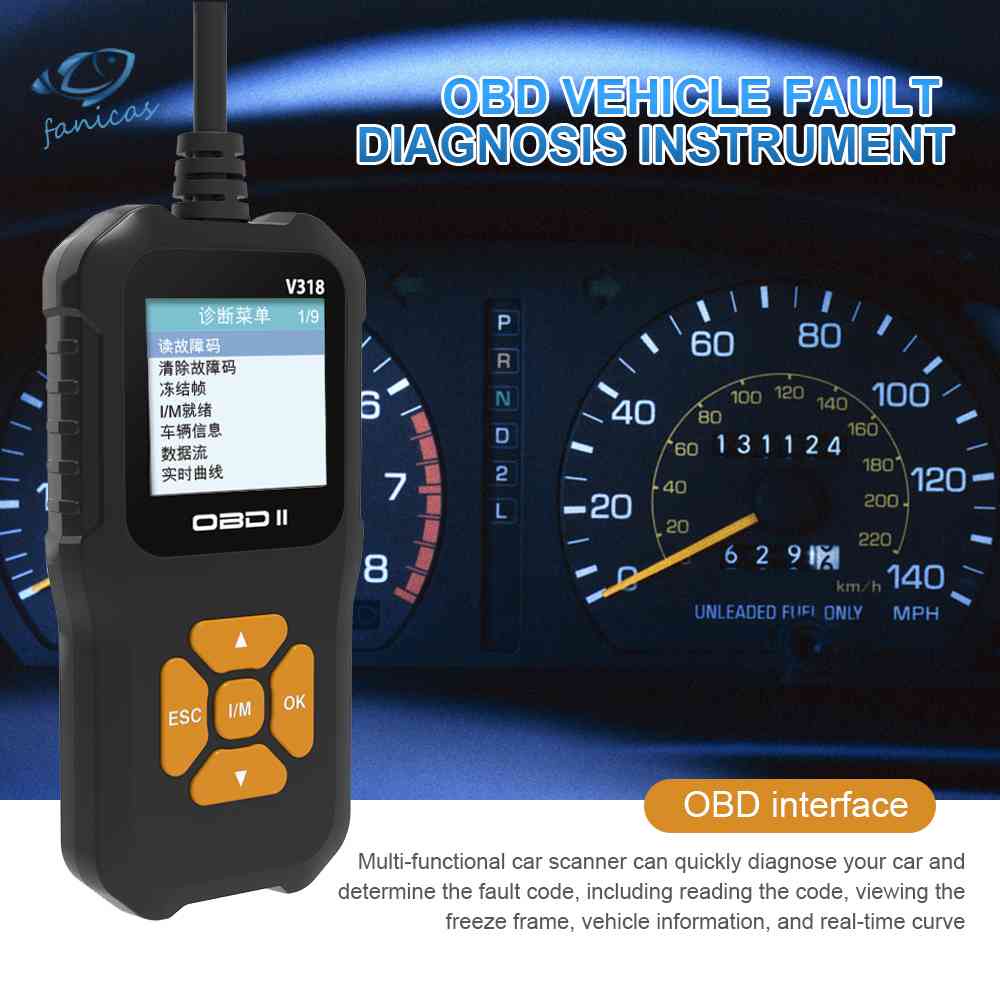

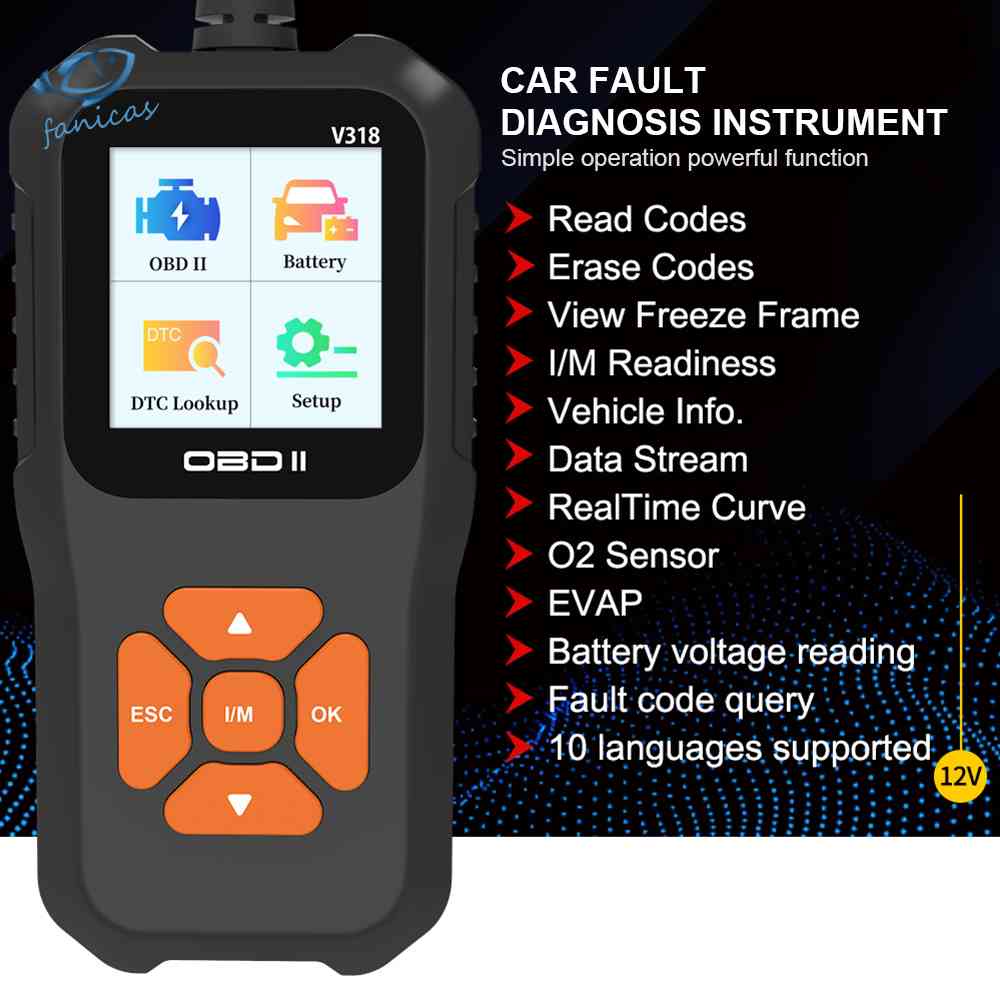

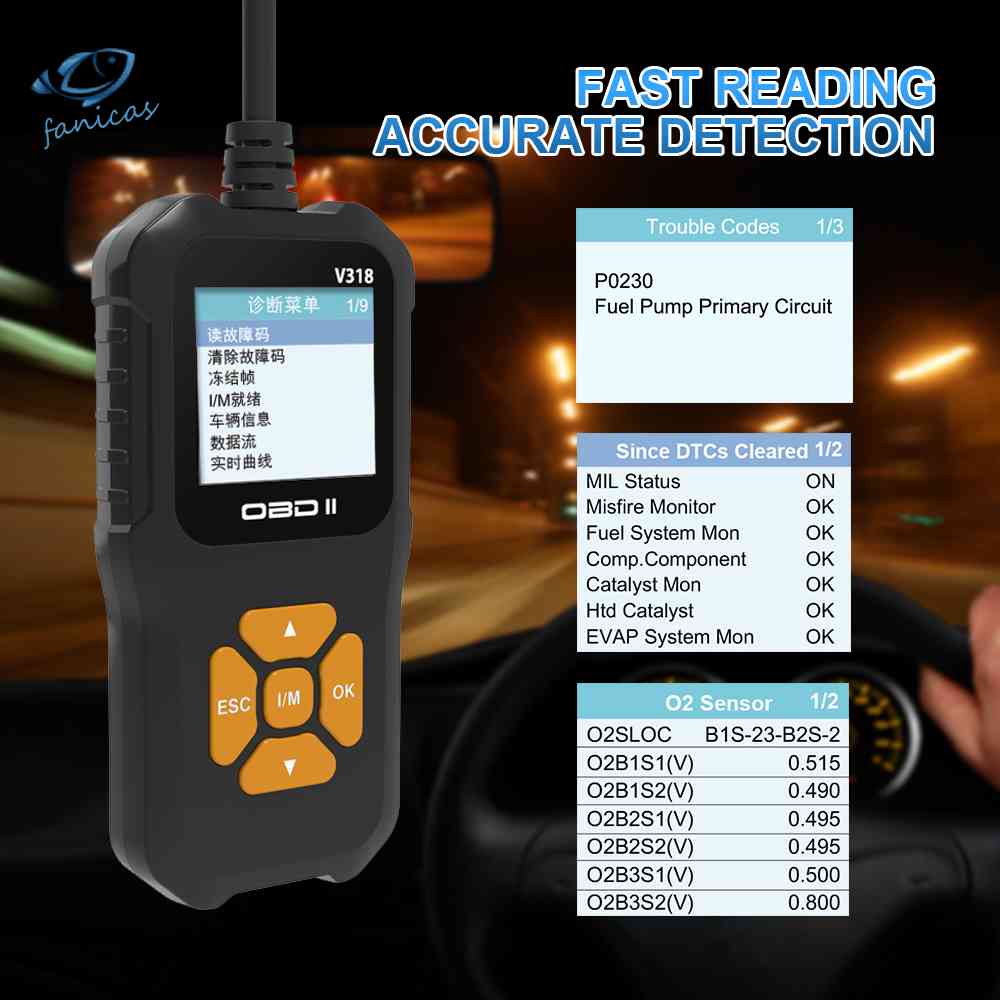

1. Multi-function: Auto Check Scanner can quickly diagnose your car and determine the fault code, including reading the code, viewing the freeze frame, vehicle information, and real-time curve

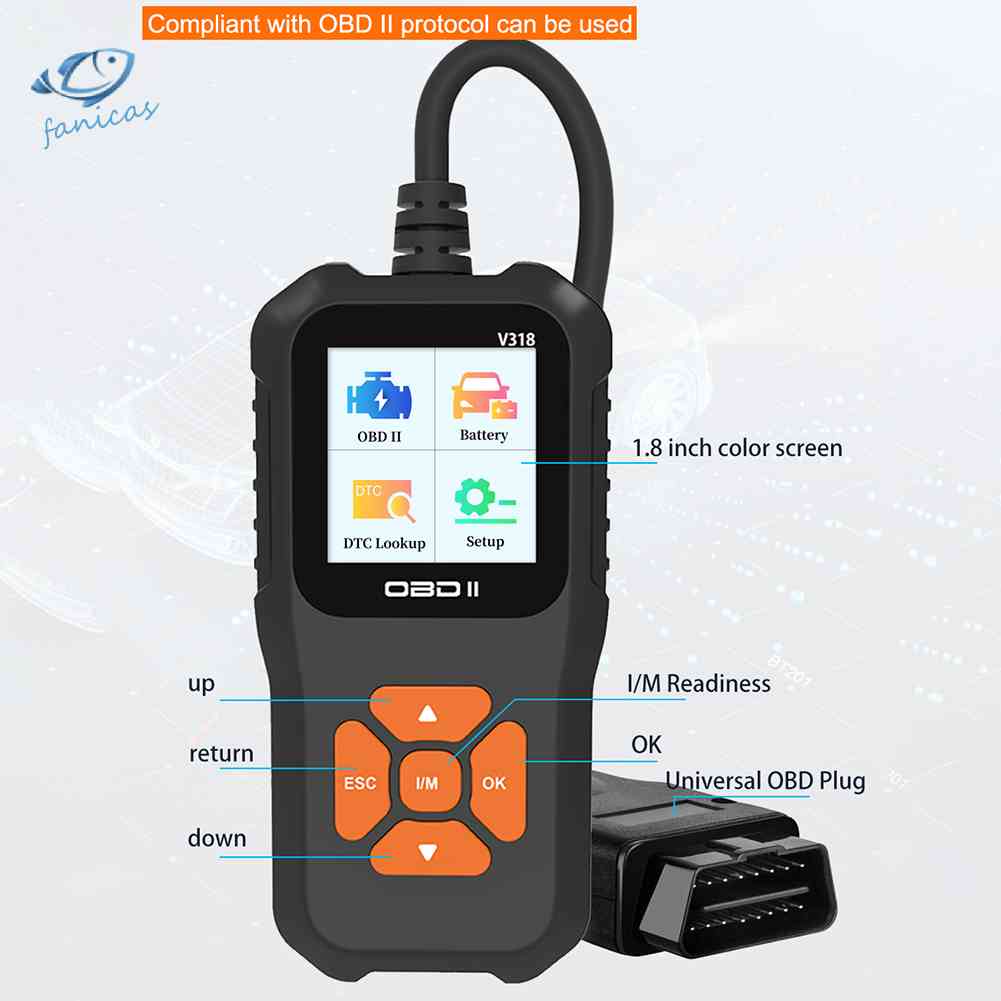

2. Large Color Screen: Auto Scanner has a 1.8-inch color screen with fashionable appearance.
3. Support Multiple Languages: The Full System Code Reader supports most of the world's car brands, including more than 1000 car models. The scan tool can be set in 10 languages.
4. Easy to Use: Our Car Diagnostic Scanner is easy to use. You don't need to download any application or charge it. Plug and play, even novices can quickly master it.
5. Energy Saving: Diagnostic Scan does not need batteries or chargers. The OBD reader directly obtains power from your vehicle through OBDII data link connector.

Specification:
Origin: Mainland China
Model Name: OBD2 Scanner
Product size: 130 * 70 * 25mm/5.1 * 2.7 * 0.9in
Working temperature: - 20-60 °C
Storage temperature: - 30-70 °C
Working voltage: DC12V
Working current: 59mA
Screen: 1.8 inches
Communication mode: OBD interface
Applicable model: general
Support Agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.




Included:

1pc x Auto Scanner
1pc x Instruction
