【PeaceShells】 1pcs New Reprap NTC 3950 Thermistor 100K with 1 Meter wire for 3D Printer .
Mô tả ngắn
Mua 【PeaceShells】 1pcs New Reprap NTC 3950 Thermistor 100K with 1 Meter wire for 3D Printer . giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.

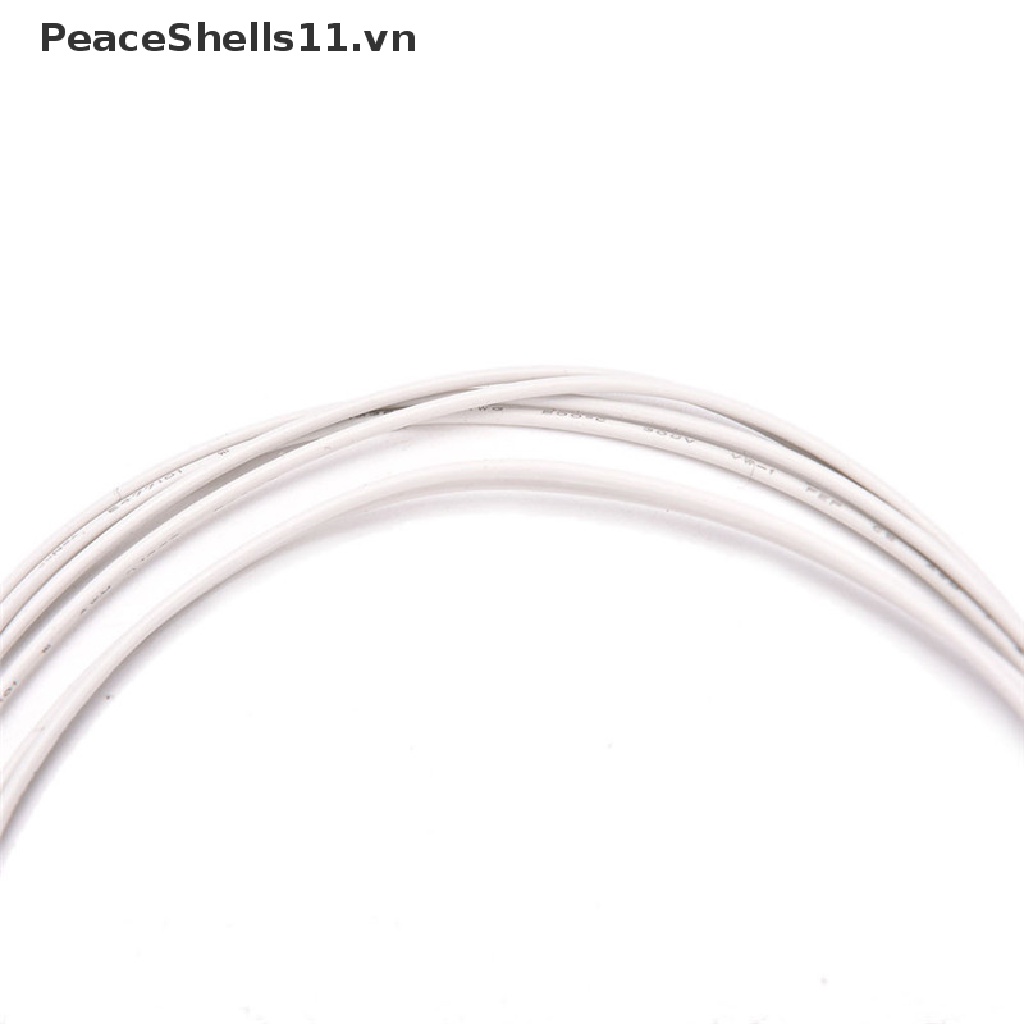

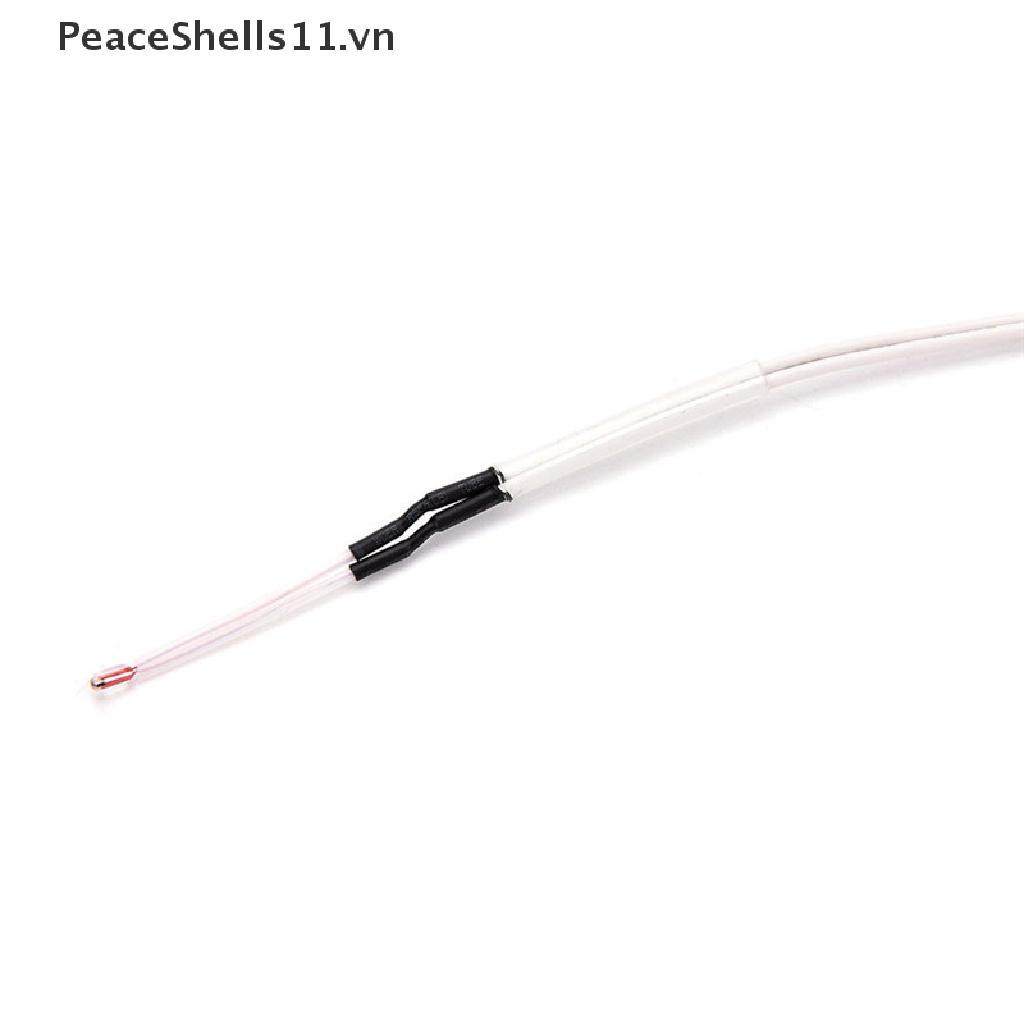

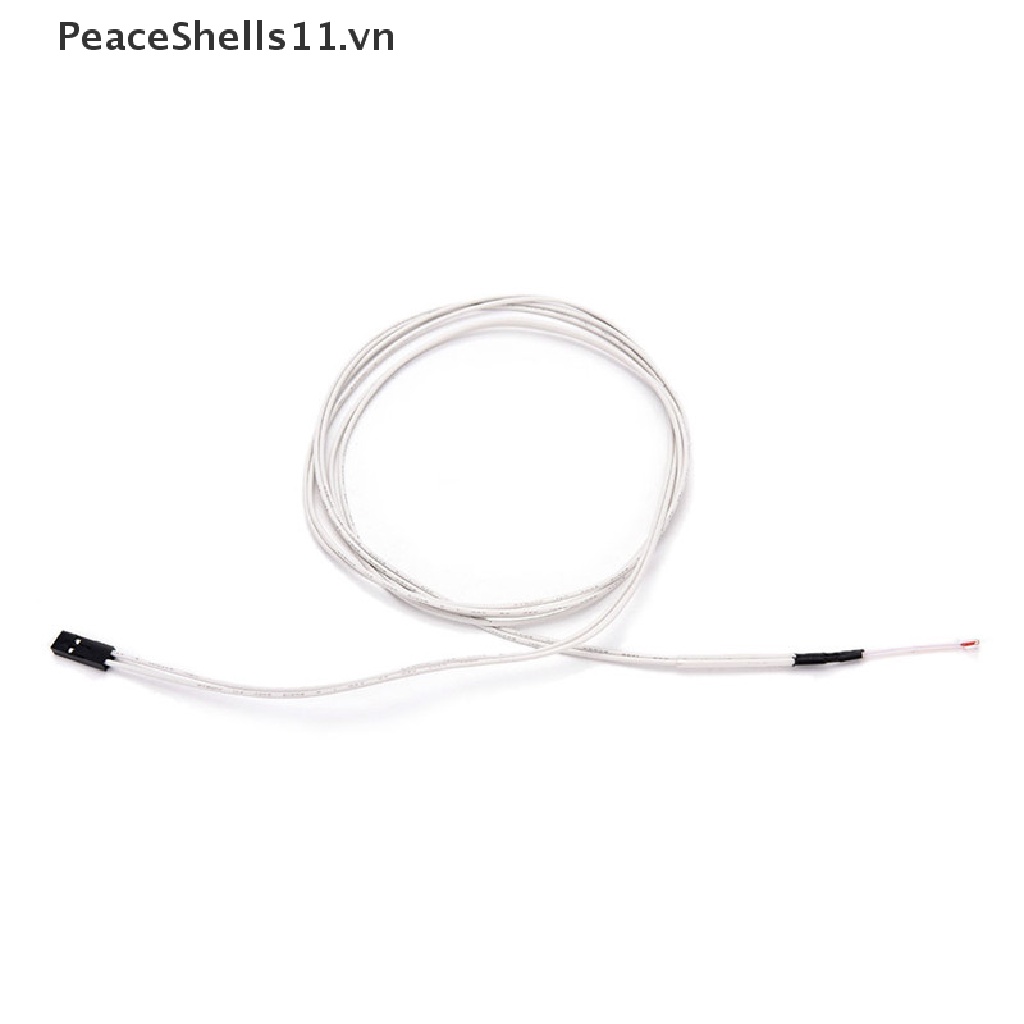

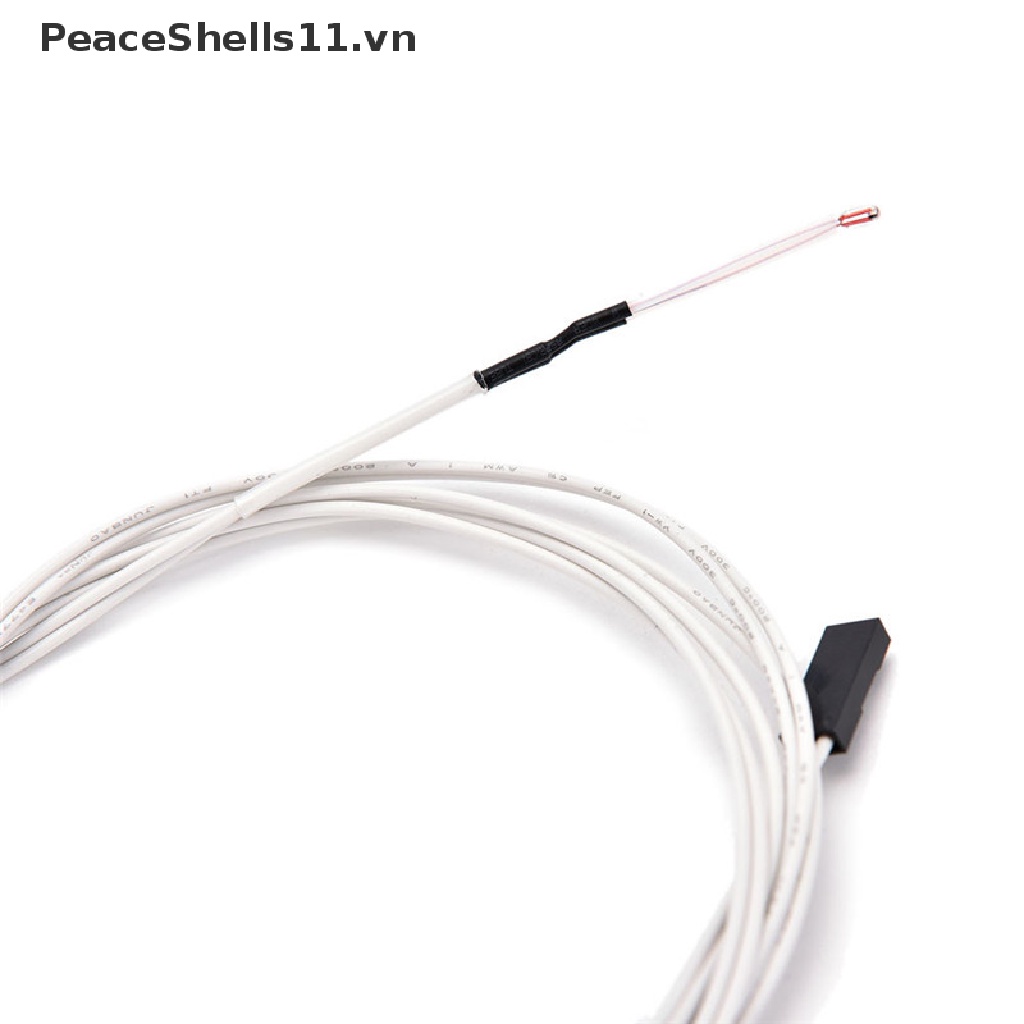

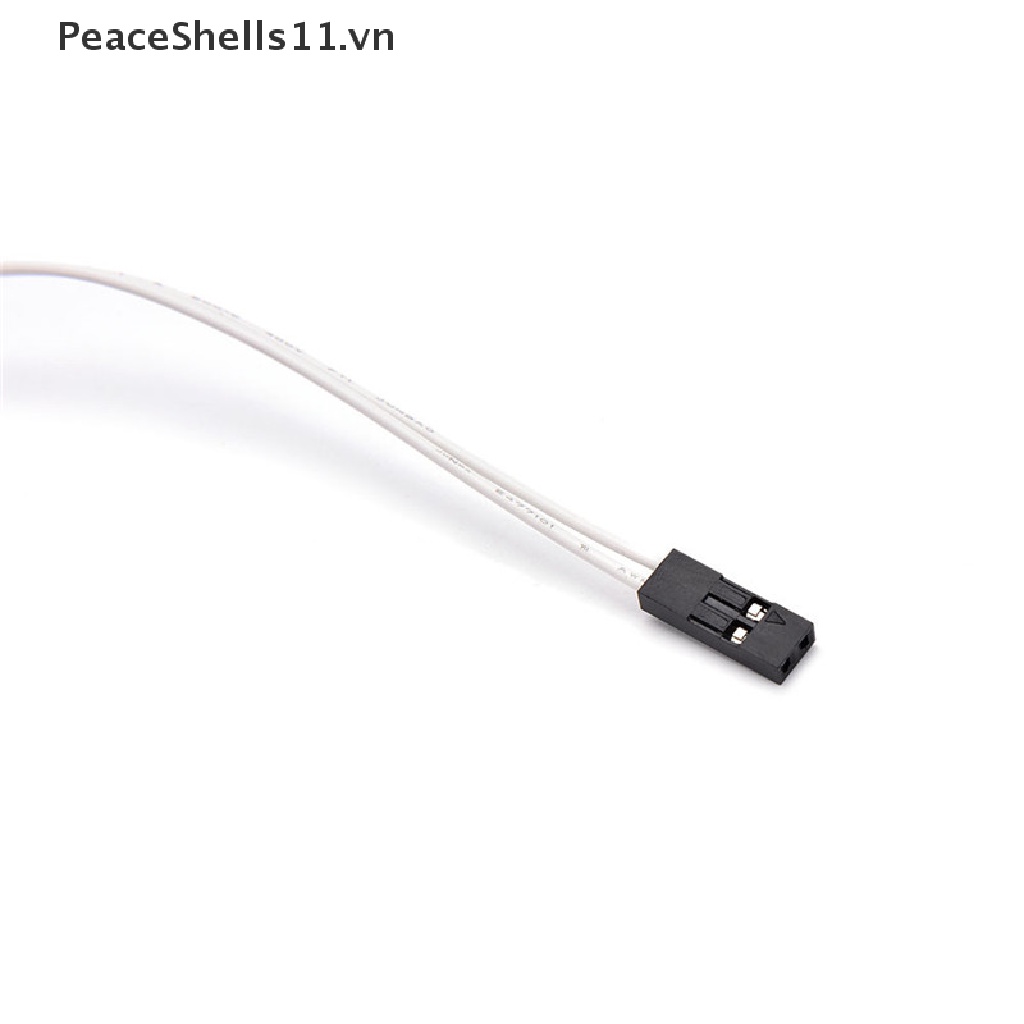

Giới thiệu 【PeaceShells】 1pcs New Reprap NTC 3950 Thermistor 100K with 1 Meter wire for 3D Printer .
FeaturesBrand new and high quality
NTC Thin Film Thermistor Cable
Nominal value: R25 (25 ℃) : (common) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc
Resistance precision: ± 1%, ± 2%, ± 3%
B value R25/50 (common) 3435k, 3600k, 3950k, 3990k, 4100k, 4200k, etc
B value accuracy: ± 1%
Temperature range of use: - 40 ℃ ~ + 300 ℃
Dissipation power factor: ≥5 mW / ℃ (static in the air)
Biggest power rating: 45 mw
Hot time constant: ≤7 s(in the air)
Temperature coefficient of resistance: - 2 ~ 5% / ℃
Recommend the use of parameters: R25℃ = 100 k B25/50 = 3950 k ± 1%)
Product Included:
1 X NTC 3950 Thermistor
