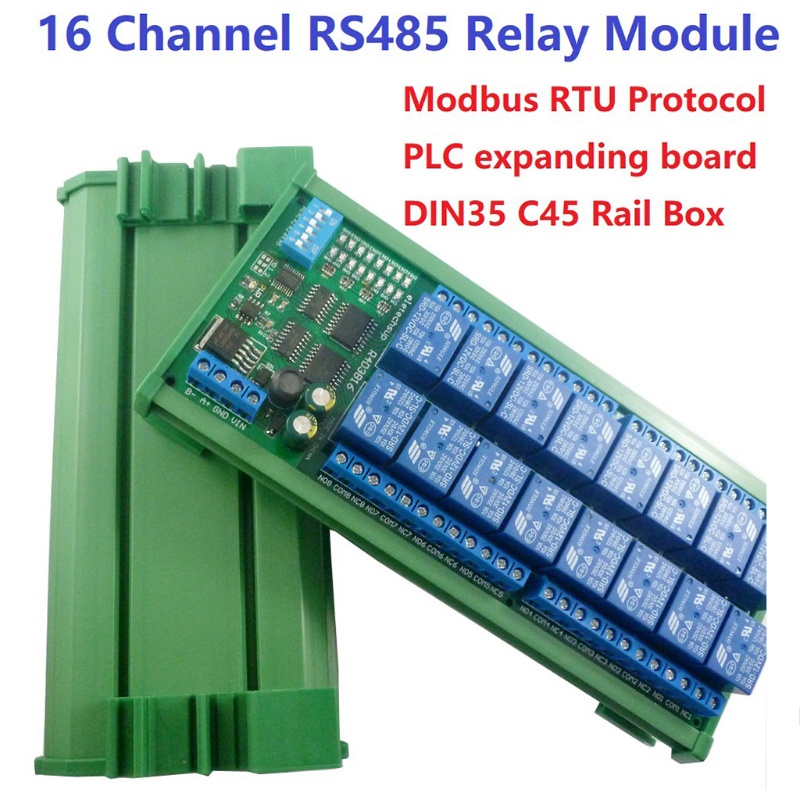

16-Channel 12V 10A DIN Rail Box PLC Expansion Board RS485 Modbus RTU Relay Modul
16-Channel 12V 10A DIN Rail Box PLC Expansion Board RS485 Modbus RTU Relay Module

100% brand new and high quality
Features:
1: DC 12V power supply
2: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA.etc
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

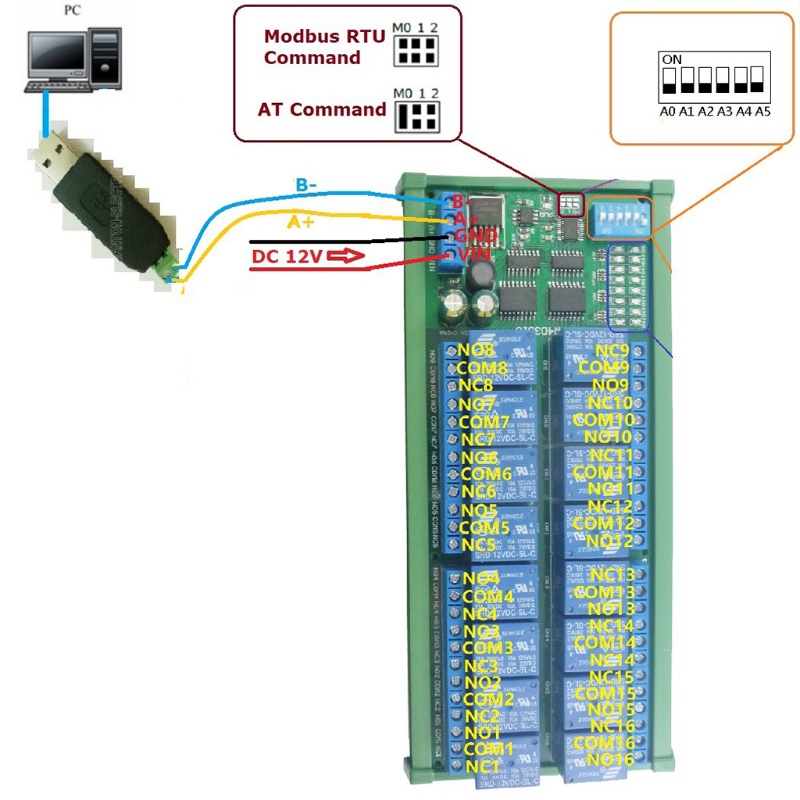

4: Two instruction-control mode : MODBUS RTU command and AT command
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
Under the AT command ,the maximum delay is 9999 seconds
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

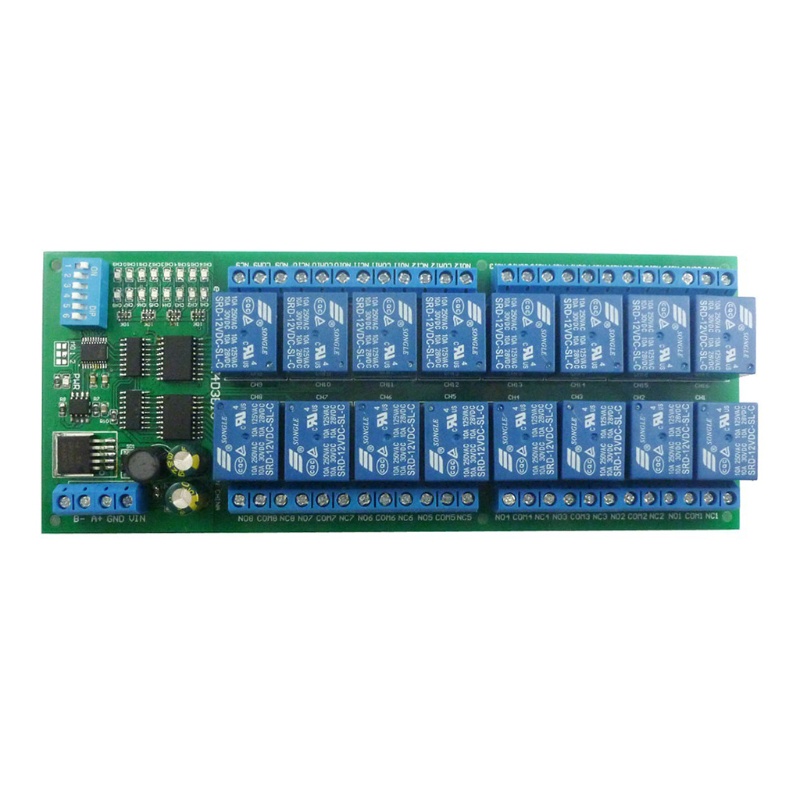

9 Weight: 230g(Only PCB Board);358g(with Din Rail Box)
10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Specifications:
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 180 mm PCB boards
Net weight: 128g

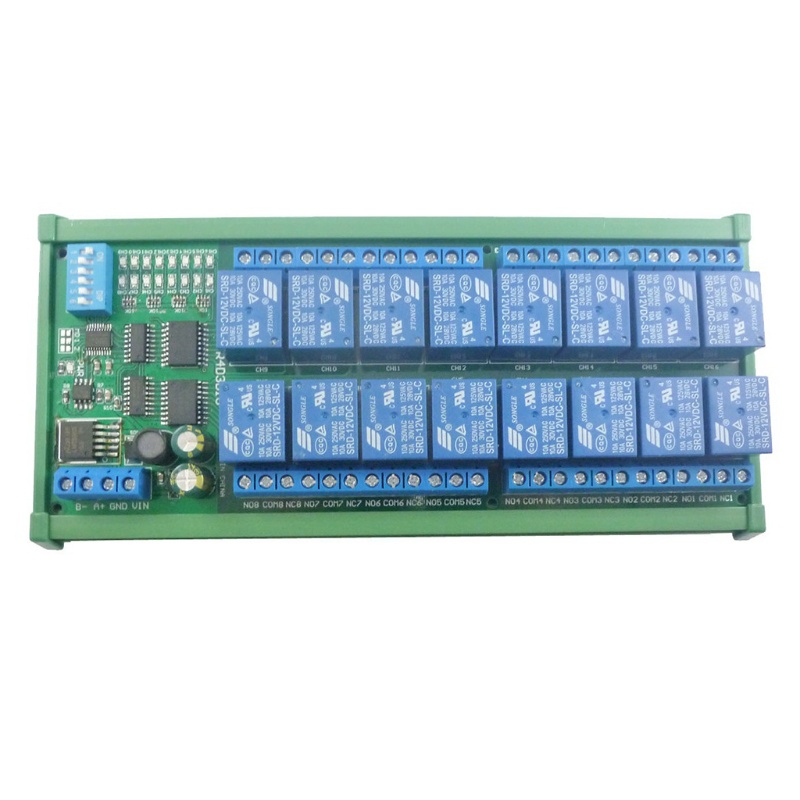

Installation: DIN35 OR C45 rail

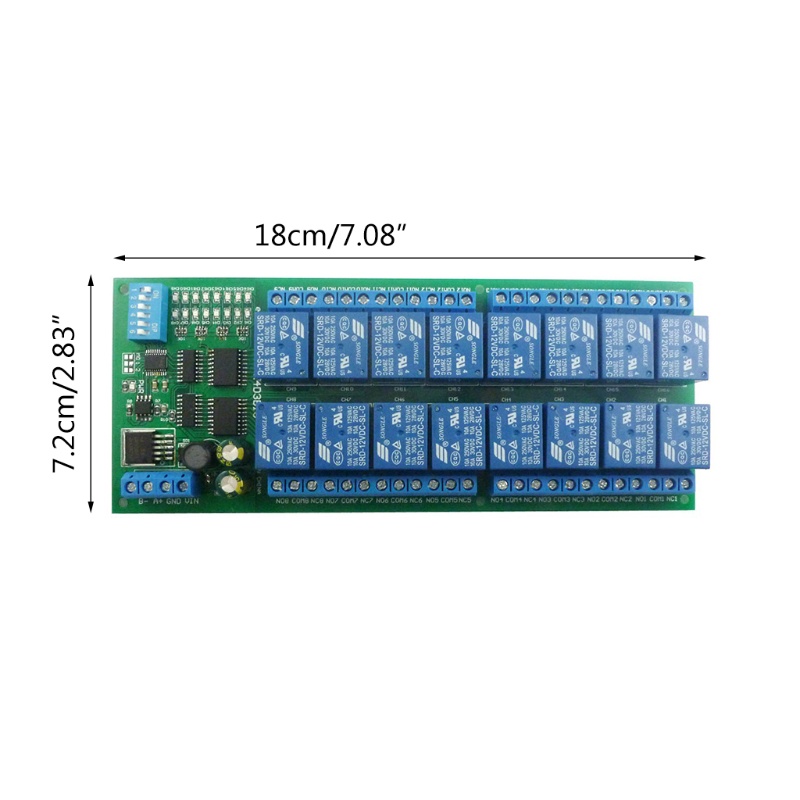

Size: 180 * 72 * 20mm(Only PCB Board);184 * 88* 42mm(with Din Rail Box)
Quantity:1 pc

Note:
No retail package.
Transition: 1cm=10mm=0.39inch.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Relay Board(other accessories demo in the picture is not included.)
