Giới thiệu Camera Lùi Xe Ô Tô Hyundai Grand Starex

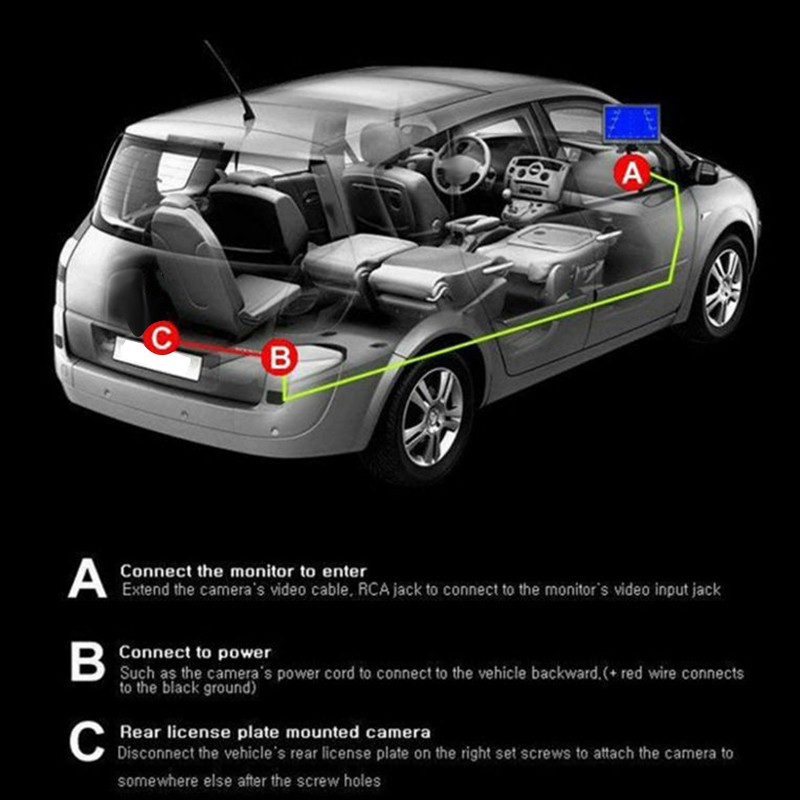

1. Mount the camera in the license area of the license plate
2. Adjust the camera lens to the best position.
3. Connect the power cord (red and black) to the headlight wiring of the car's power cord.
4. Connect the video output (yellow line) to the display.
About the rear view camera system of the car:Typically, most monitors support NTSC and PAL TV systems. Therefore, it is not important that the camera is a PAL or NTSC system.
Power: DC 12V
View Angle: 170 degree
Image Sensor: CCD1/4
TV system: NTSC
Operating Temperature: -35 Celsius ~ +60 Celsius, RH95% Max
Storage Temperature: -35 Celsius ~ +80 Celsius, RH95% Max
Horizontal Resolution: 520 TV lines
Lens: 18.5mm
Sync. System: internal
S/N Ratio: more than 48Db
Electronic Shutter: 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Water-proof: IP68
Video Cable Length: about 6m
Power cable length: about 1.2m
Colour:black
Material:plastic
Applicable for:HyundaiiGRANDDSTAREX

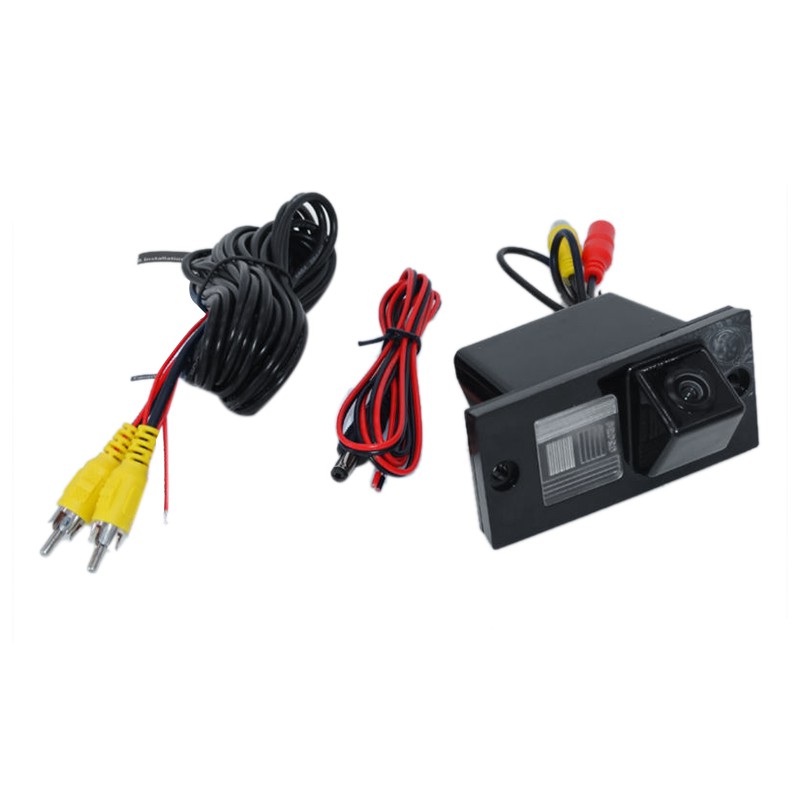

Package contents:
1* camera
1* video cable
1* power cord
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
