Giới thiệu Thiết Bị Đo Công Suất Dòng Điện Ac 50-300v 0-100a

#AC #50-300V #Voltmeter #Ammeter #Power #Energy #Meter #Wattmeter #Electric #Meter #0-100A

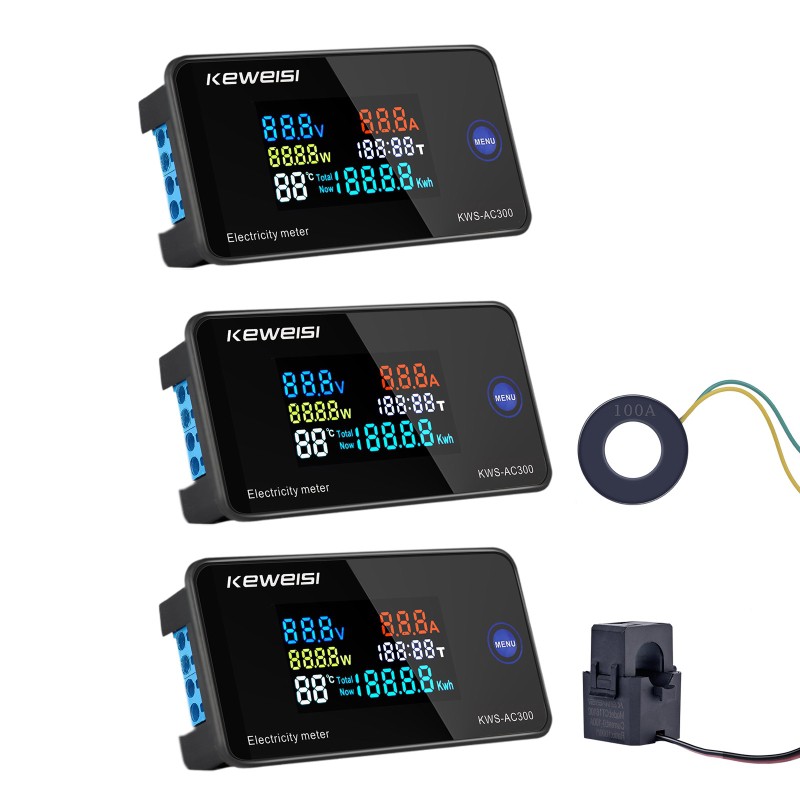

AC 50-300V 0-100A Power Energy Meter Voltmeter Ammeter kWh Digital AC Electric Monitor Panel Meter with Reset Function

Model:AC300-10A
1.Voltage: AC50-300V
2.Current: 0-10A
3.Power: 0-3000W
4.Capacity: 0.01-19999Kwh
5.Timing: 0-200H
6.Temperature: -10 ° C to 99 ° C
7.Package include:1*1 x Meter(10A is without shunt/CT Coil)、1*Usuer Manual

Model:AC300-100A
1.Voltage: AC50-300V
2.Current: 0-100A
3.Power: 0-30KW
4.Capacity: 0.01-19999Kwh
5.Timing: 0-200H
6.Temperature: -10 ° C to 99 ° C

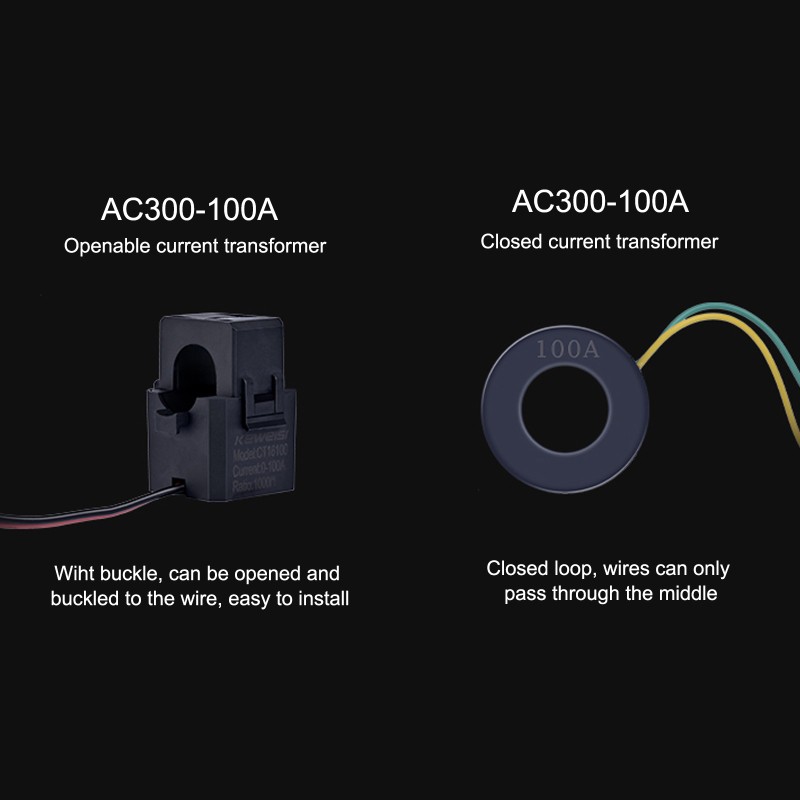

7.7.Package include:1*1 x Meter、1 x 100A shunt/CT Coil 、1*Usuer Manual

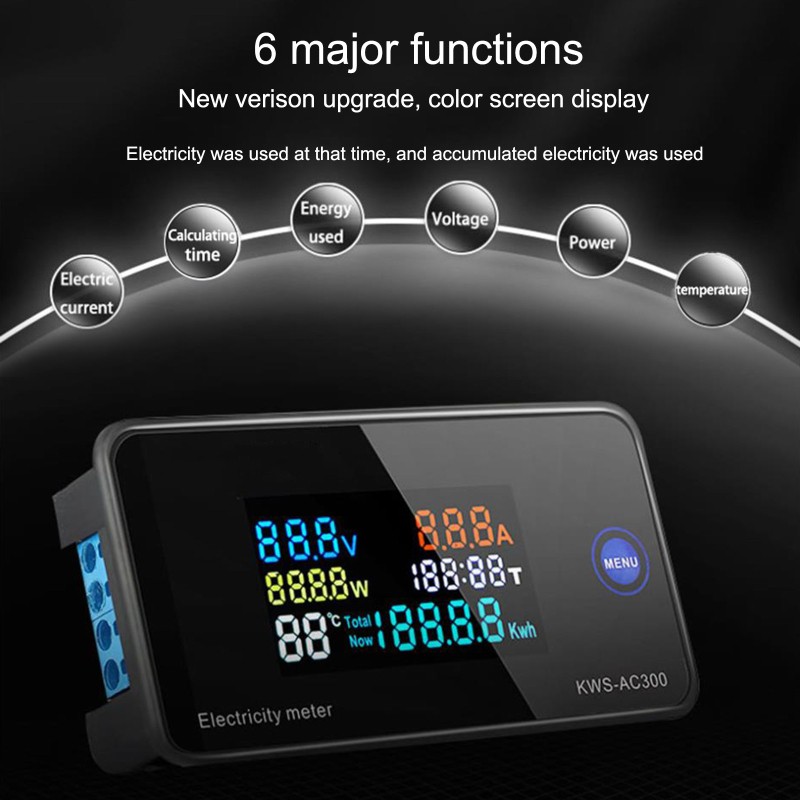

Product Function:
1.Volage curent, power, iming. humilyCurrent electical energy,cumulative electrical energy
2. Electic energy and üming can be reset
3. Electic energy and iming have power down memory uncion
4. Rated frequency 45-65Hz

Operating Instructions:
Click the MENU button on the panel to view the current electrical energyand cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timingarea will flash, then click the button to select timing, current electricalenergy and cumulative electrical energy reset. When the number flashes,double-click the button to reset. Press and hold the button for 5 secondsto save the settings.
