_______________❀Product Information❀______________
1. HIGH SENSITIVITY: Come with small size, stable and reliable performance, high receiving sensitivity, signals can pass through wall, floors and doors
2. FOR VARIOUS EQUIPMENT: Applicable to control switch, some DC motor CW and CCW control, access control and other equipment
3. INTERFERENCE RESISTANT: Relay modules provide high signal sensitivity and immunity to interference at lower cost, very reliable
4. GOOD QUALITY MATERIALS: Made of good quality ABS and PCB materials, possess impact resistance, scratch resistance, good reliability and miniaturization
5. FOR INDUSTRIAL USES: Used in industrial control and security fields, such as light, motor, controller, controller, etc.

Specification:

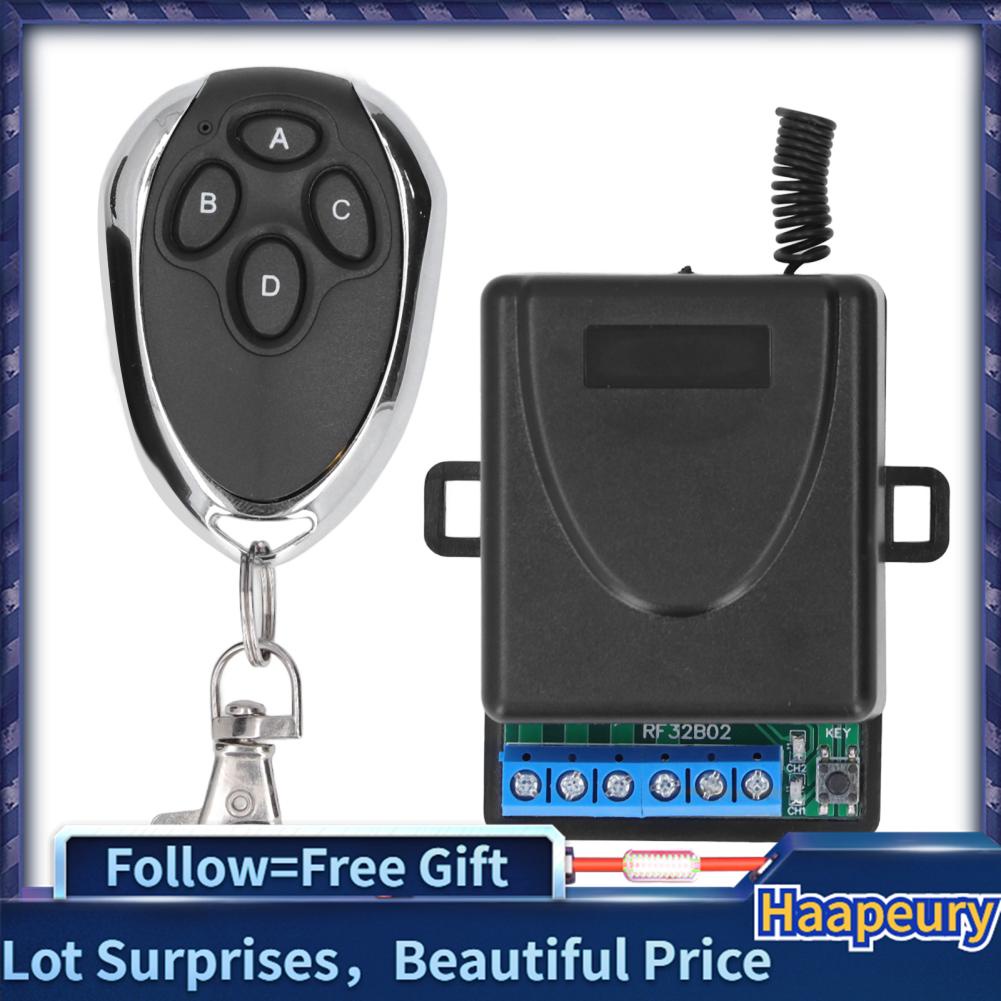

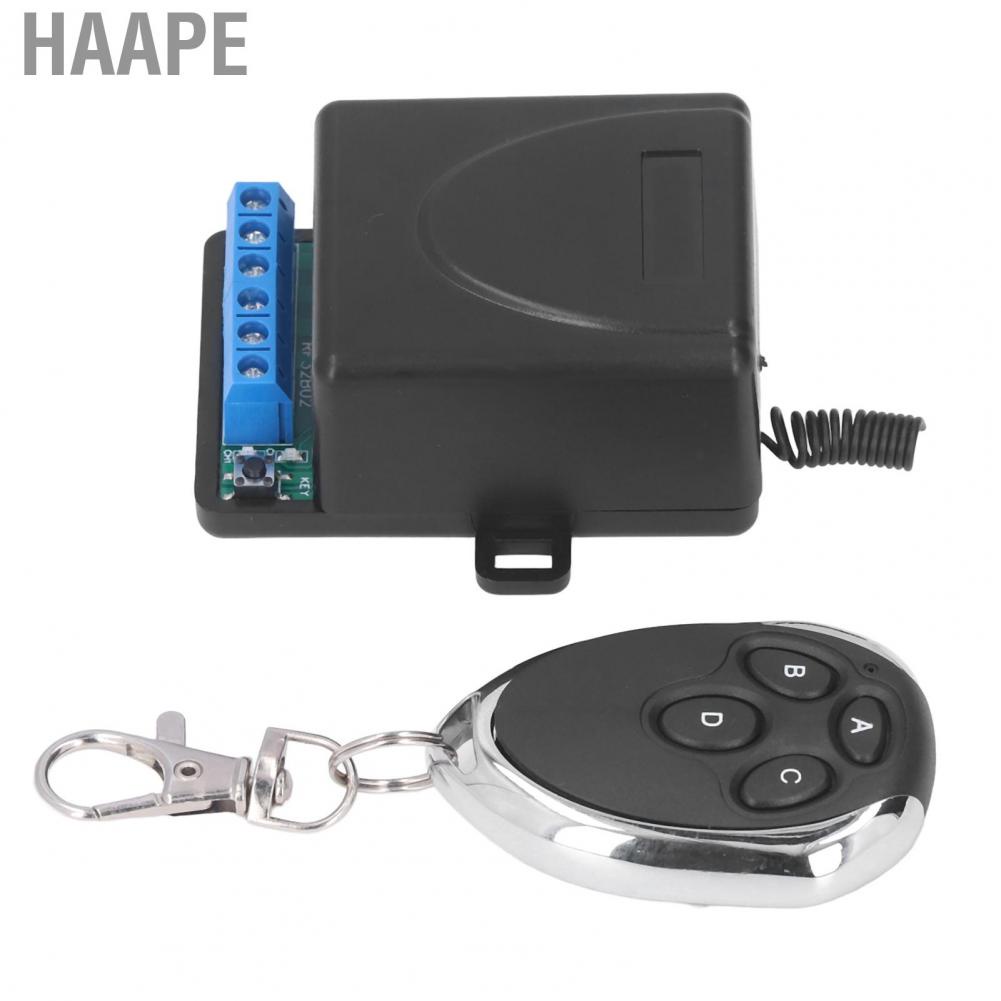

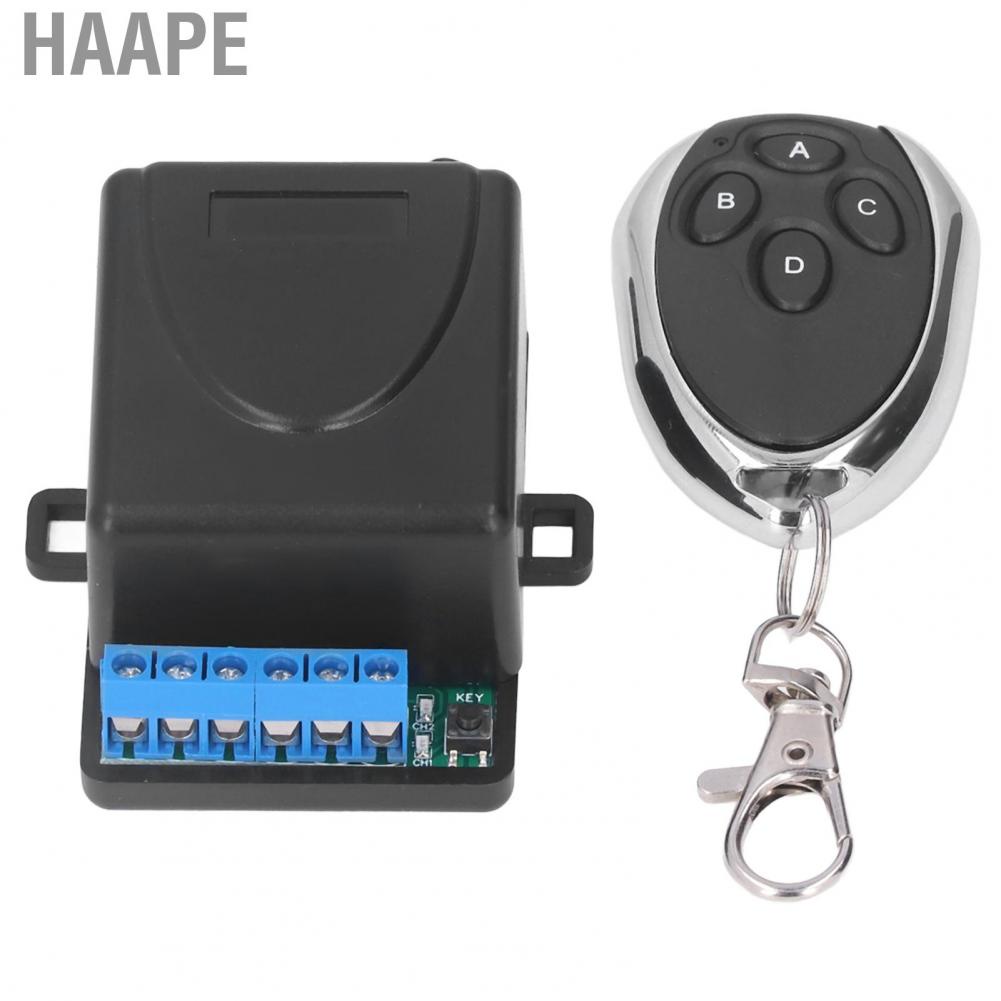

Item Type: Relay Receiver Switch Module
Model: RF32B02+RC43A04
Material: ABS, PCB
Relay Board Module Parameters:
Working Voltage: DC 12V;
Working Current: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 68MA;
Receiving Frequency: 433.92M;
Receiving Sensitivity: -108dBm;
Decoding Method: Rolling code, only suitable for RC43A04 (HCS301 control) control, can store up to 32 RC43A04 control;
Working Mode: Non locking (Momentary is defult), self locking (Toggle), interlocking (Latch), delay; delay time can be 5 seconds, 10 seconds, 120 seconds;
Relay Maximum Load (recommended Control Transmitter Parameters:
Power Supply: 12V 27A alkaline battery (not include)
Working Current: ≤9mA;
Oscillation Mode: resonator;
Modulation Method: ASK;
Working Frequency: 433.92MHz;
Frequency Deviation: ±150Hz (maximum);
Coding Format: Rolling code (HCS301).

How to Use:
Typical Application: control, telemetry system;DC 12V home lighting system;Garage door;Elevator;Motor CCW control; control;Smart home or home automation;LED light;Fluorescent lamp;DC12 DC motor;For RS360 PTZ Camera

Package List:
1 x Relay Board Module
1 x Control Transmitter
