Giới thiệu Động Cơ Tuyến Tính 750n 12v Dc

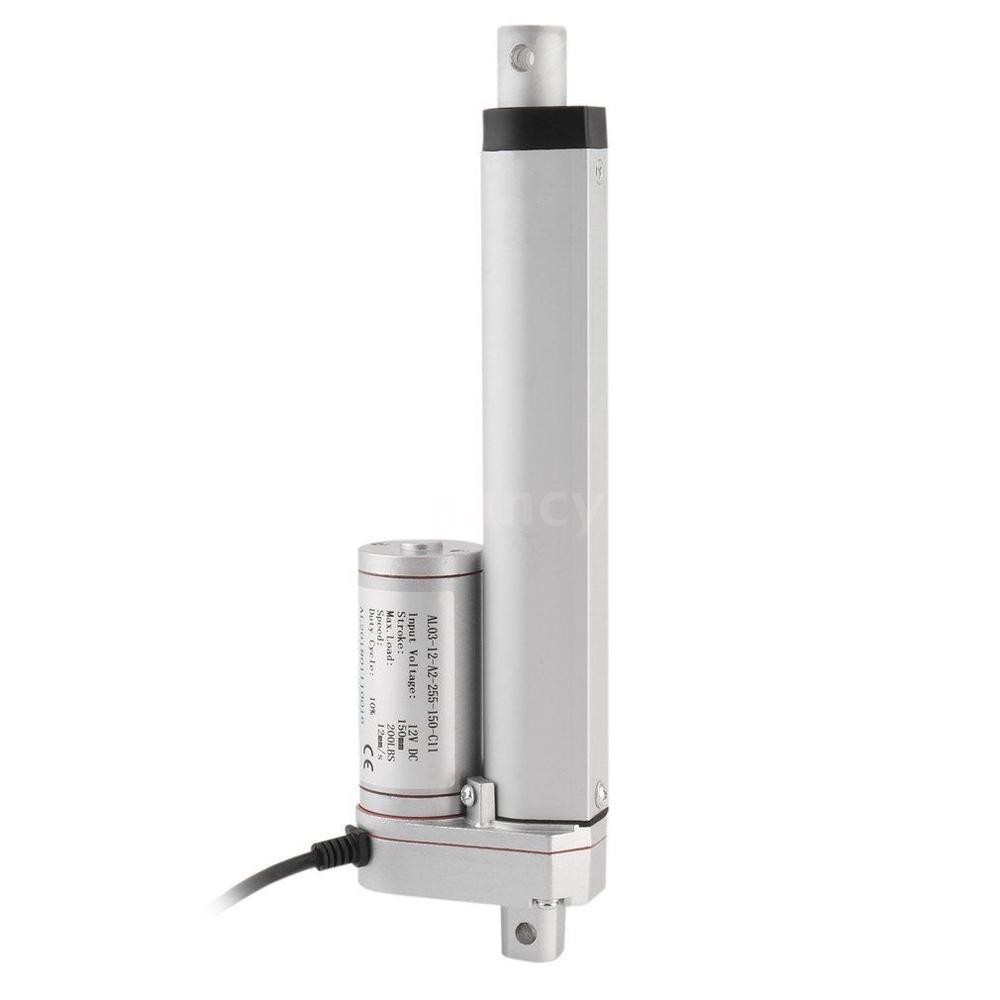

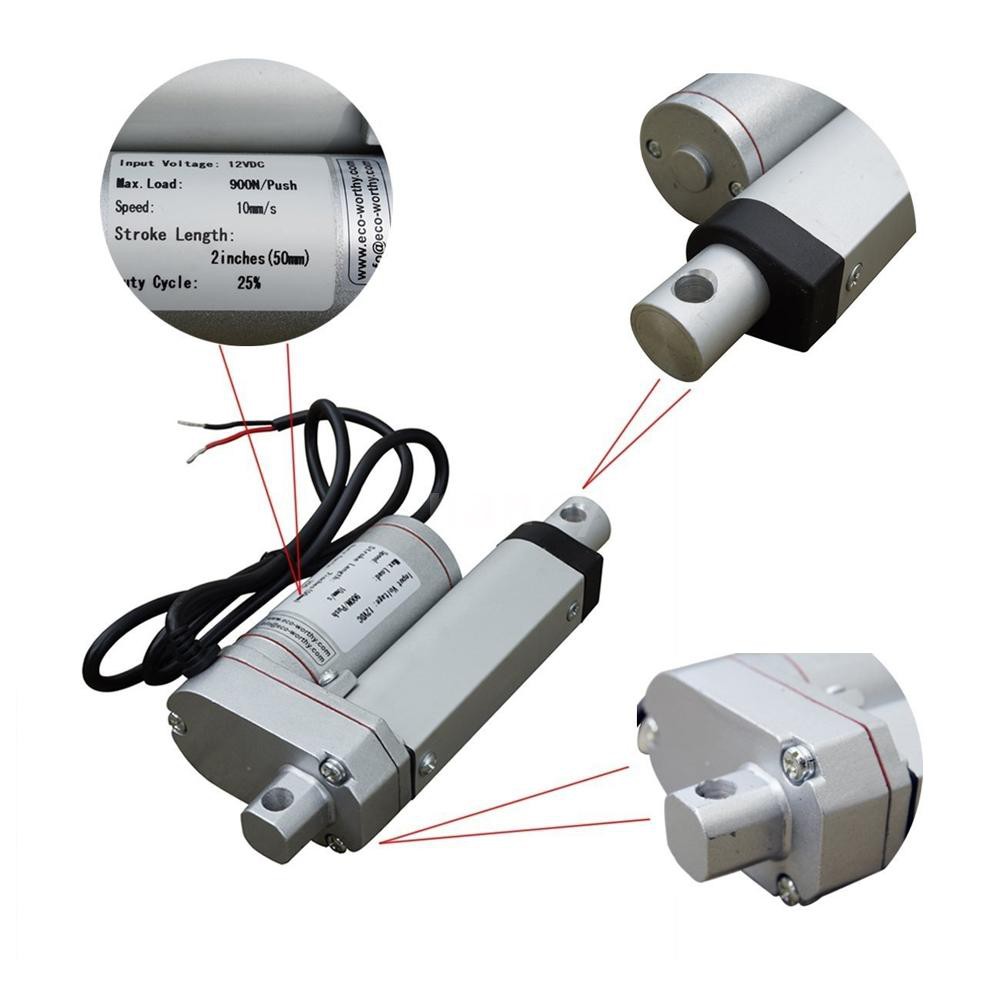

750N Electric Linear Actuator 12V DC Motor Linear Motion Controller with Limit Switch JS-TGZ-U1

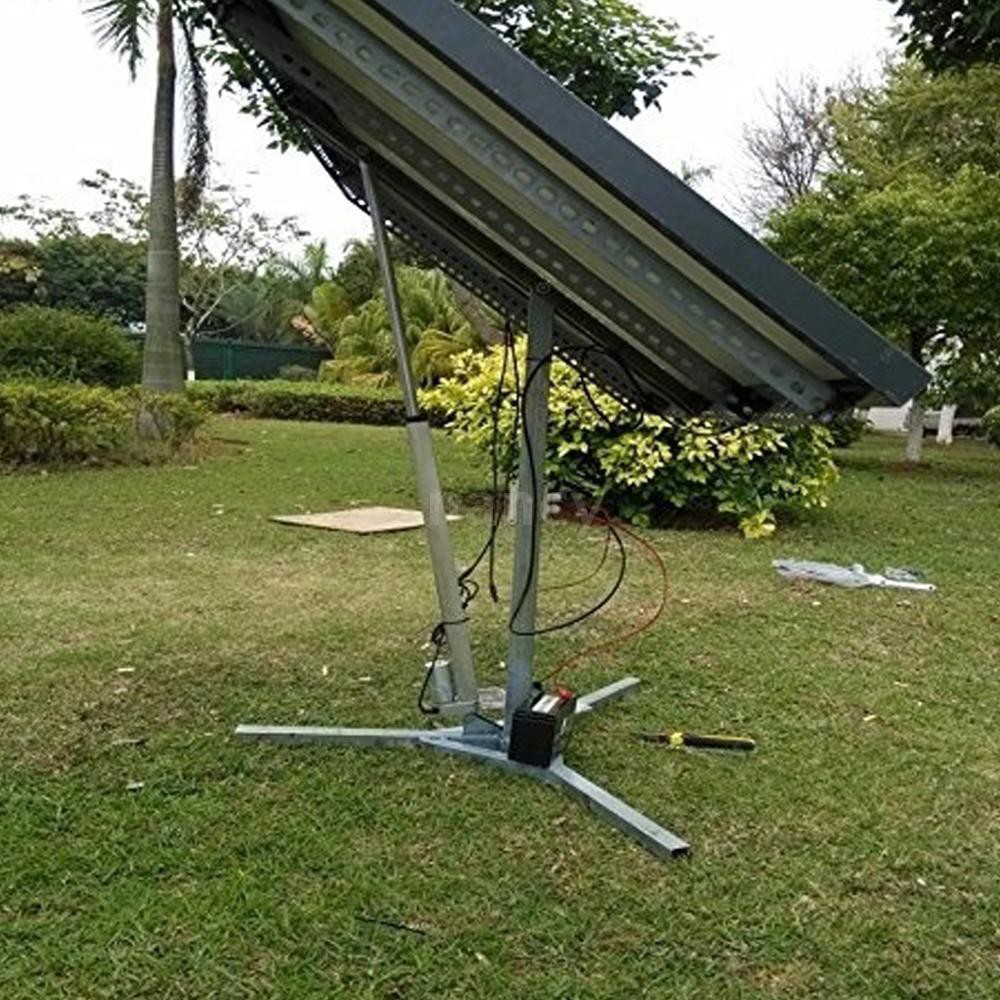

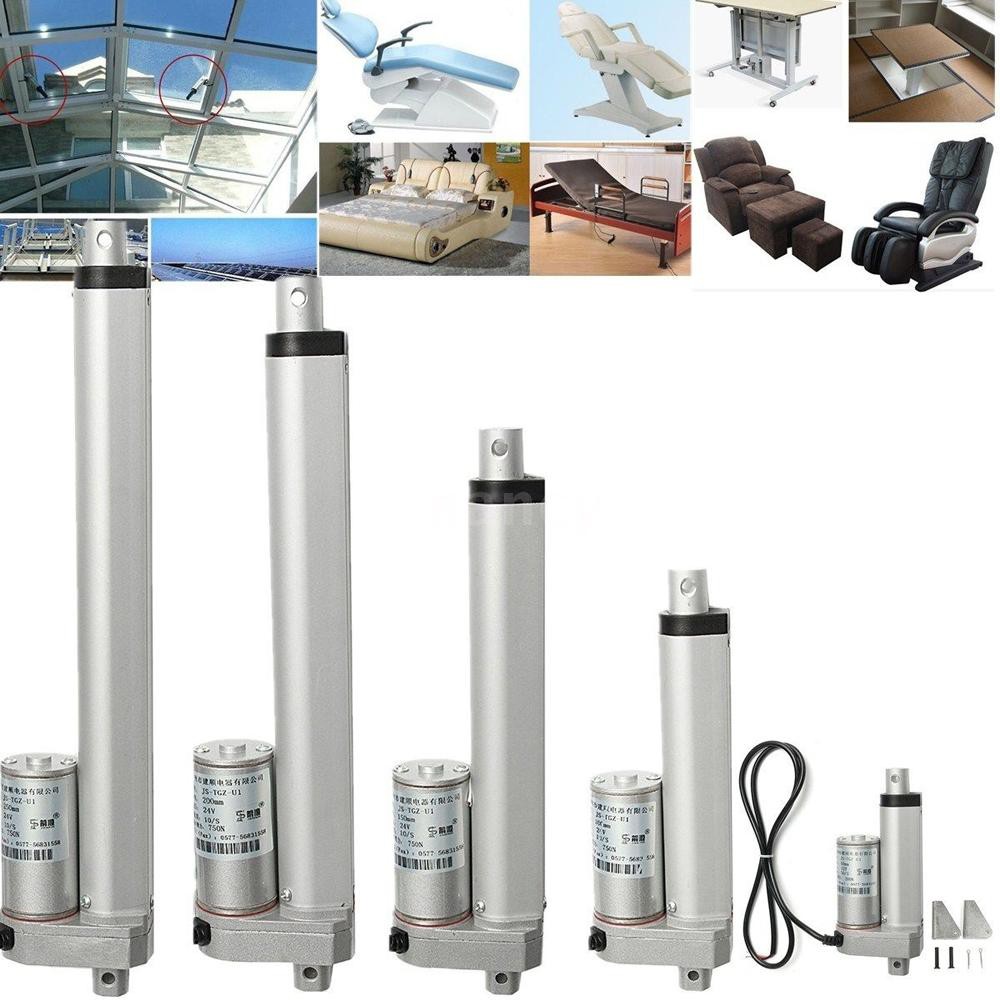

The heavy duty 750N12V DC motor linear actuator is with pre-installed limit switches, sealed and lubricated shaft, metal gears etc. Suitable for applications as electric automatic window, electric sofa, electric lifting stage, manual ICU bed,  industrial machine/platform development etc.

Features:
Reliable performance.
Stable running.
The same characteristics of push and pull.
Good environment adaptability.
Heavy duty and long lasting motor.
Fine quality aluminum alloy material.
High performance motor.
Built-in fine quality limit switch.
The low noise design, noise level below 65 dB.
Multiple purpose applications linear actuator.
Commonly used in automotive, medical devices and engineering industry.

Specifications:
Main color: silver
Stroke length: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm (optional)
Waterproof: IP54
Noise Value: >65dB
Package size:
50mm: 200 * 80 * 50mm / 7.9 * 3.1 * 2.0in
100mm: 250 * 80 * 50mm / 9.8 * 3.1 * 2.0in
150mm: 300 * 80 * 50mm / 11.8 * 3.1 * 2.0in
200mm: 350 * 80 * 50mm / 13.8 * 3.1 * 2.0in
250mm: 400 * 80 * 50mm / 15.7 * 3.1 * 2.0in
300mm: 450 * 80 * 50mm / 17.7 * 3.1 * 2.0in
Package weight:
50mm: 984g / 2.2lb
100mm: 1031g / 2.3lb
150mm: 970g / 2.1lb
200mm: 1213g / 2.7lb
250mm: 1290g / 2.8lb
300mm: 1373g / 3.0lb

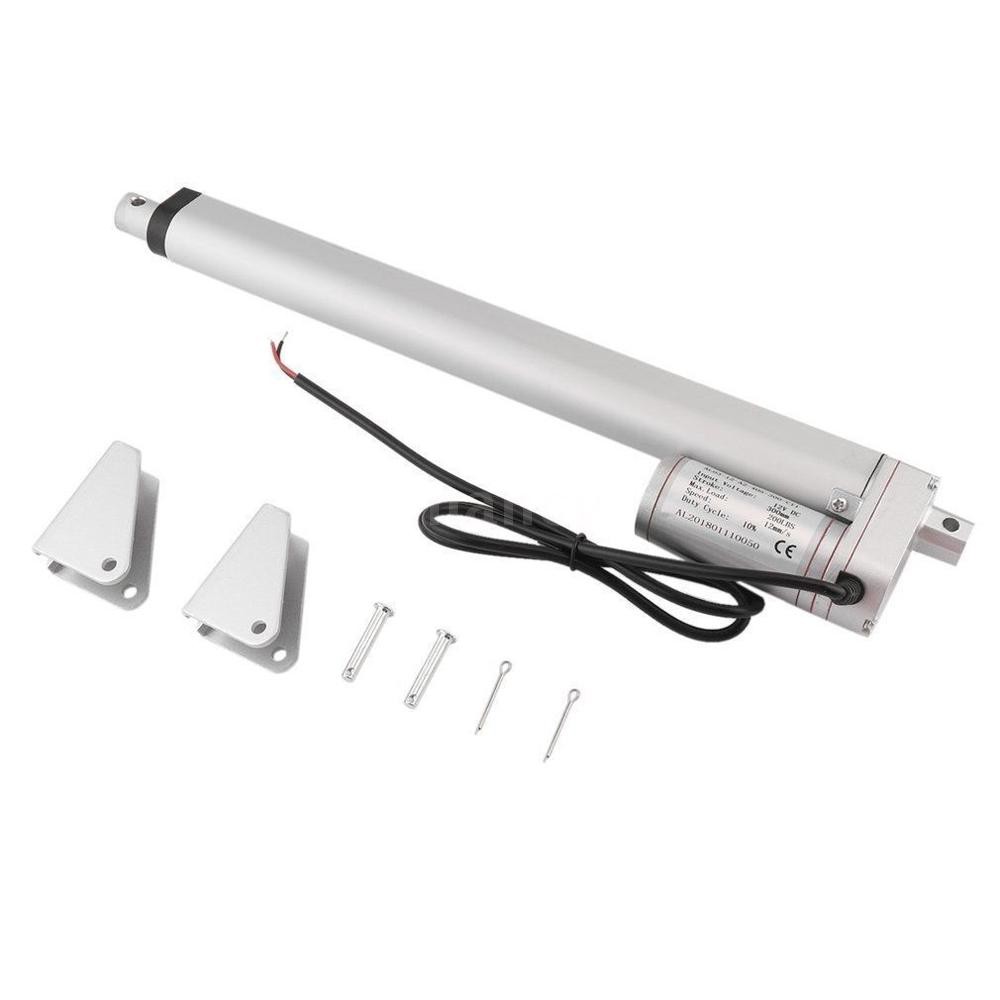

Package List:
1 * Motor Linear Actuator
2 * Mounting clamp with screws
