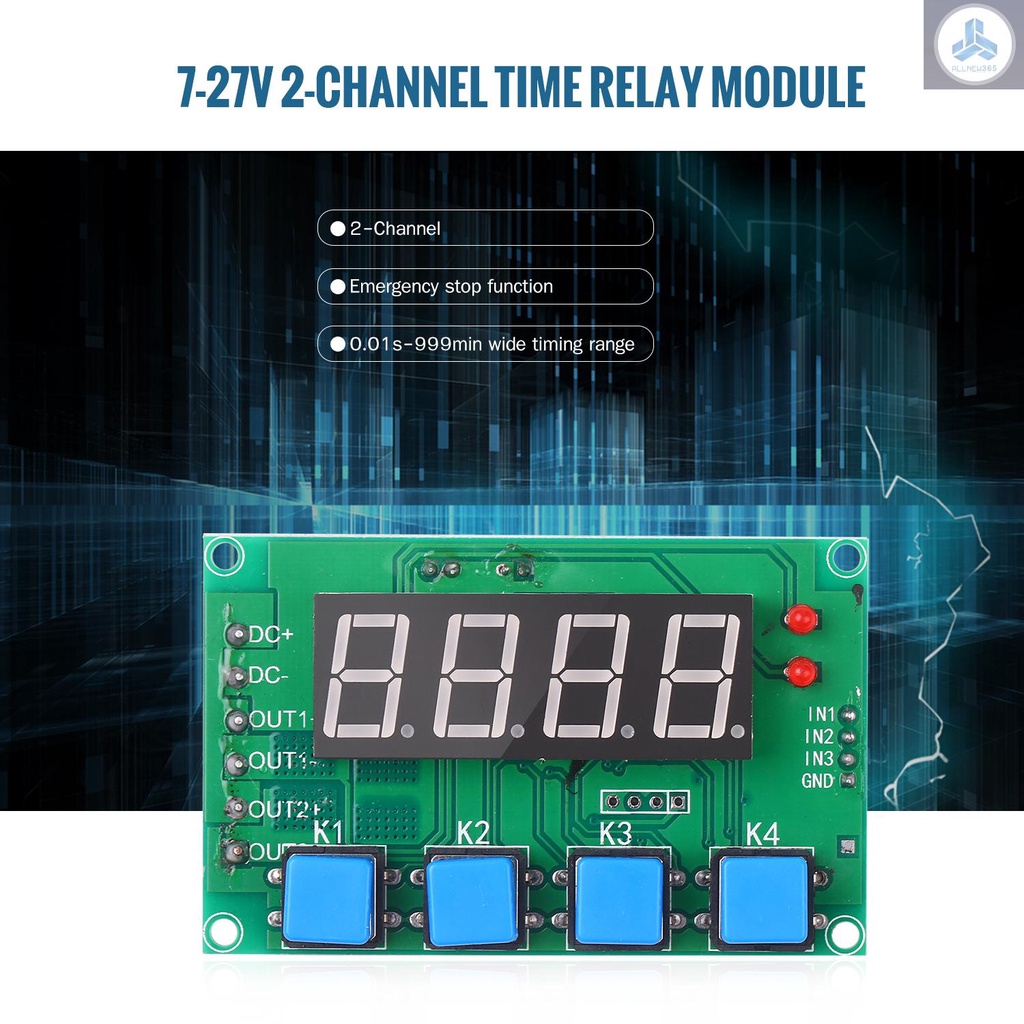

7-27V 2-Channel Time Relay Module Digital Time Cycle Delay Switch Control with 0.01s-999min Timing Range for Smart Home Industrial Control



Features:

Wide Timing Range: its timing adjusting range, ranging from 0.01second to 999minutes, available for various application.

Safe to Use: the relay module has an emergency stop function with protection.

Convenient to Use: it covers multiple working modes and enables to separately control 2 channels.

High Quality Material: premium material and electronic parts ensure durability and stable performance.

Use It in: it can be used for the control of relay, motor, pump, light, solenoid valves, etc.

About Working Mode:

P-1: given signal 1, output 1 works and stops at time A; given signal 2, output 2 closes and stops at time B; signal 3 is emergency stop signal.

P-2: given signal 1, output 1 works and stops at time A; output 2 works after B period delay and stops at time C(this function is available when time unit is according).

P-3: electrified, input 1 works to time A to release, wait for C period, input 2 works to time B to release, wait for C period. Input 1 and 2 take turns to work and repeat this cycle.

P-4: given signal 1, output 1 works; given signal 2, input 1 stops working, starts timing to time A in which input 2 starts working; given signal 3, input 2 stops working, starts timing to time B in which input 1 starts working. Repeat this cycle.

P-5: given signal 1, output 1 works; given signal 2, input 1 stops working, starts timing to time A in which input 2 starts working; given signal 3, input 2 stops working. Given signal 1, do this cycle again.

P-6: given signal 1, output 1 works; given signal 2, input 1 stops working; given signal 1 again, input 2 works; given signal 3, input 2 stops working.

About Decimal Point:

X.XX If the decimal point is in the third last, the time range is 0.01-9.99 seconds.

XX.X If the decimal point is in the second last, the time range is 0.1-99.9 seconds.

XXX If there is no decimal point, the time range is 1-999 seconds.

XXX. If the decimal point is in the end, the time range is 1-999 minutes.

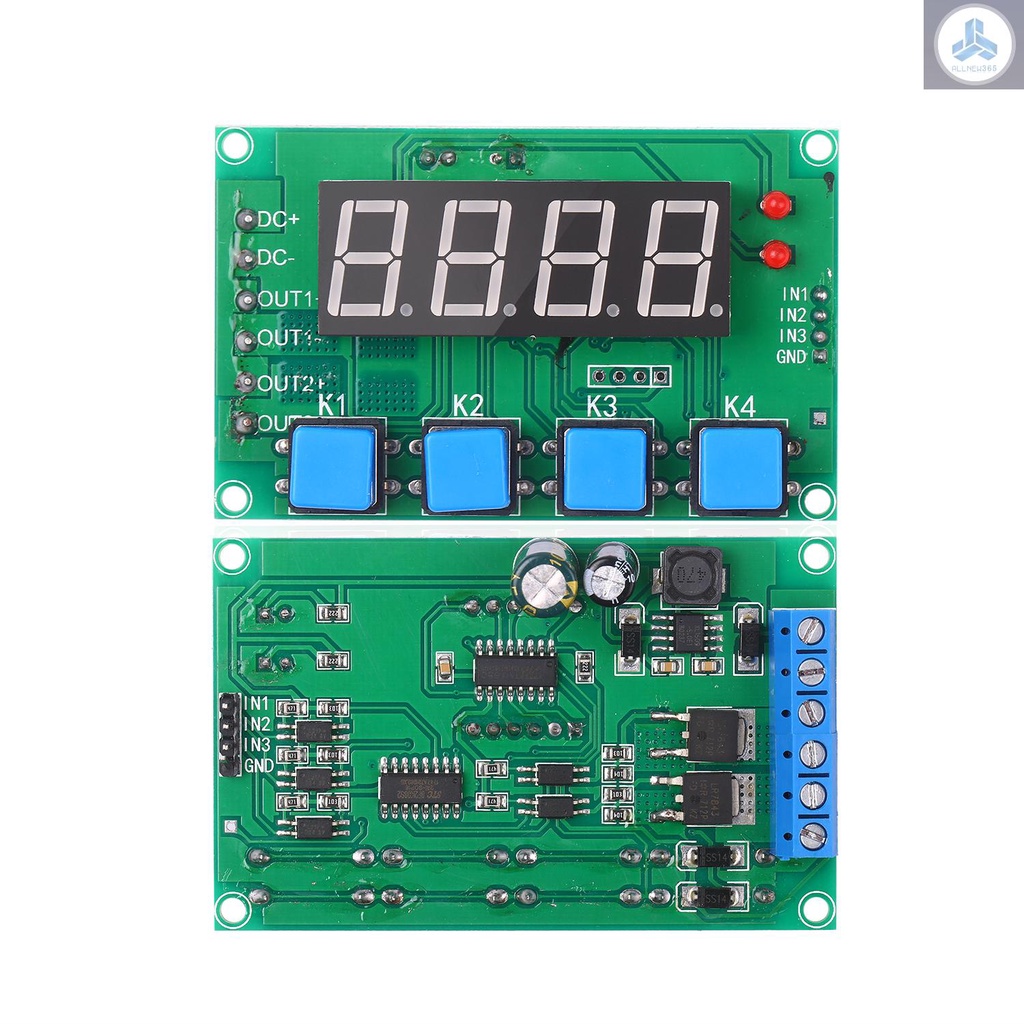

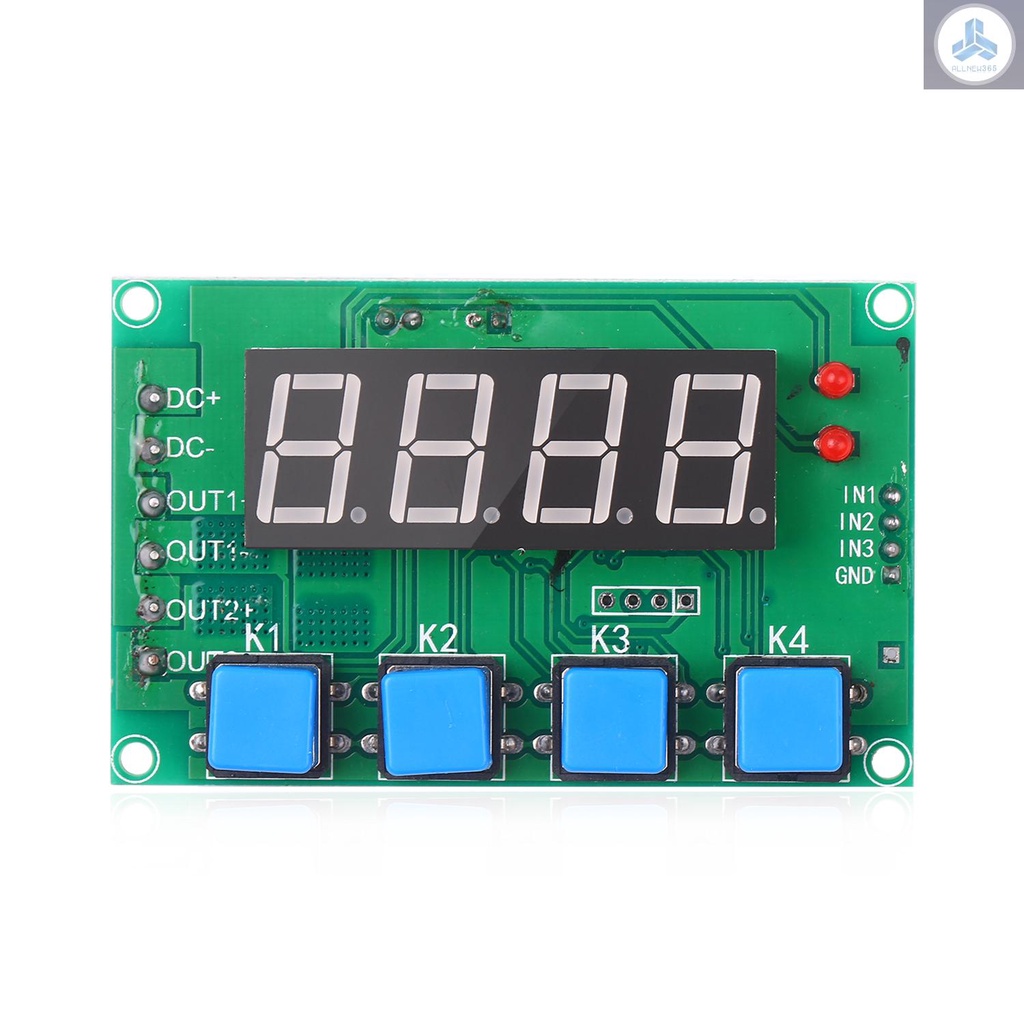

About Ports:

DC+: Positive pole of input power, 7-27V

DC-: Negative pole of input power

IN1: Signal input 1

IN2: Signal input 2

IN3: Signal input 3

O1+: Output 1 positive pole

O1-: Output 1 negative pole

O2+: Output 2 positive pole

O2-: Output 2 negative pole

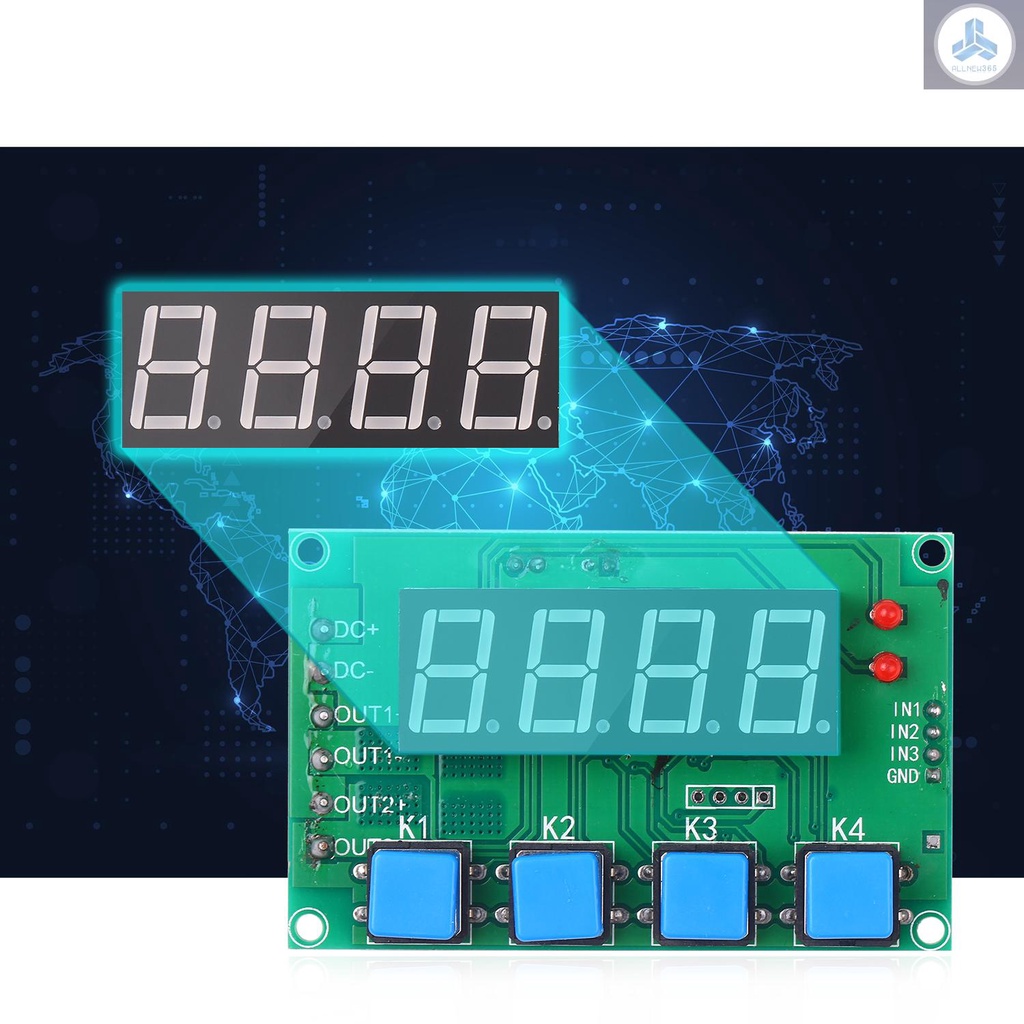

About Button:

After it is electrified, screen display shows "----", meaning standby state.

Press K1, screen display shows P-1; press K2 and K3 to adjust mode.

Press K1 again, screen display shows A001; press K2 and K3 to adjust the time A, press K4 to adjust decimal point(unit of time).

Press K1 at the third time, screen display shows B001; press K2 and K3 to adjust the time B, press K4 to adjust decimal point(unit of time).

Press K1 at the fourth time, screen display shows C001; press K2 and K3 to adjust the time C, press K4 to adjust decimal point(unit of time).

Press K1 at the fift
