Bộ điều khiển tốc độ động cơ không chổi than 35A ESC cho xe điều khiển từ xa 1/14 1/16 2S 3S


Mô tả ngắn

Mua Bộ điều khiển tốc độ động cơ không chổi than 35A ESC cho xe điều khiển từ xa 1/14 1/16 2S 3S giá rẻ nhất ở đâu?
: Còn hàng
Nước ngoài
: Shopee.vn
215,111₫ 281,000₫

Sản phẩm cùng danh mục

Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.

Xem thêm
Siêu sale Xmas - Lazada.vn

Giới thiệu Bộ điều khiển tốc độ động cơ không chổi than 35A ESC cho xe điều khiển từ xa 1/14 1/16 2S 3S

#1/14 #1/16 #RC #Car #35A #Brushless #ESC #Electric #Speed #Control #2S #3S #Running #Off #Road

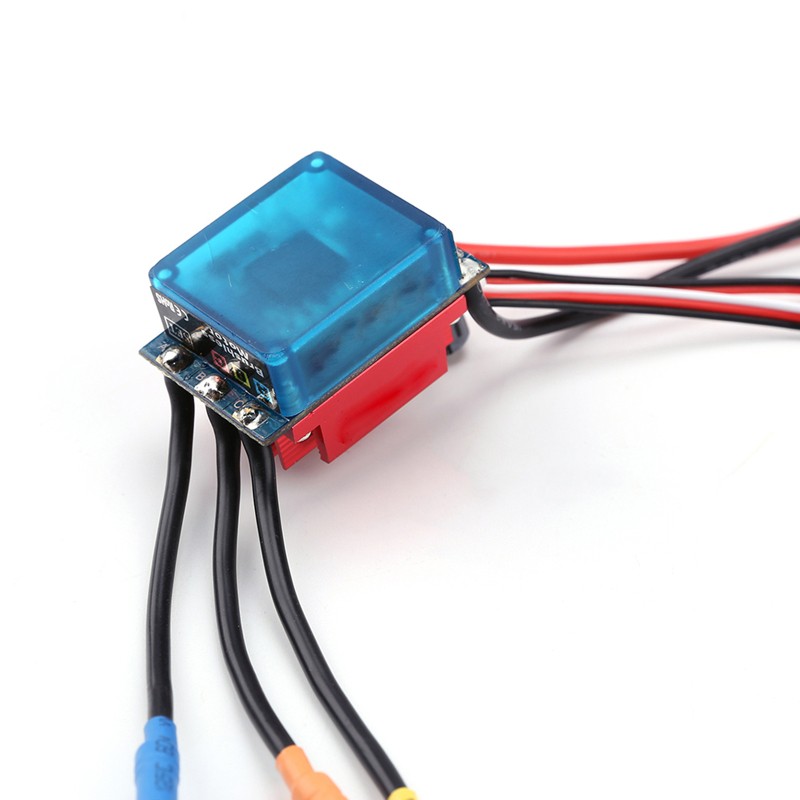

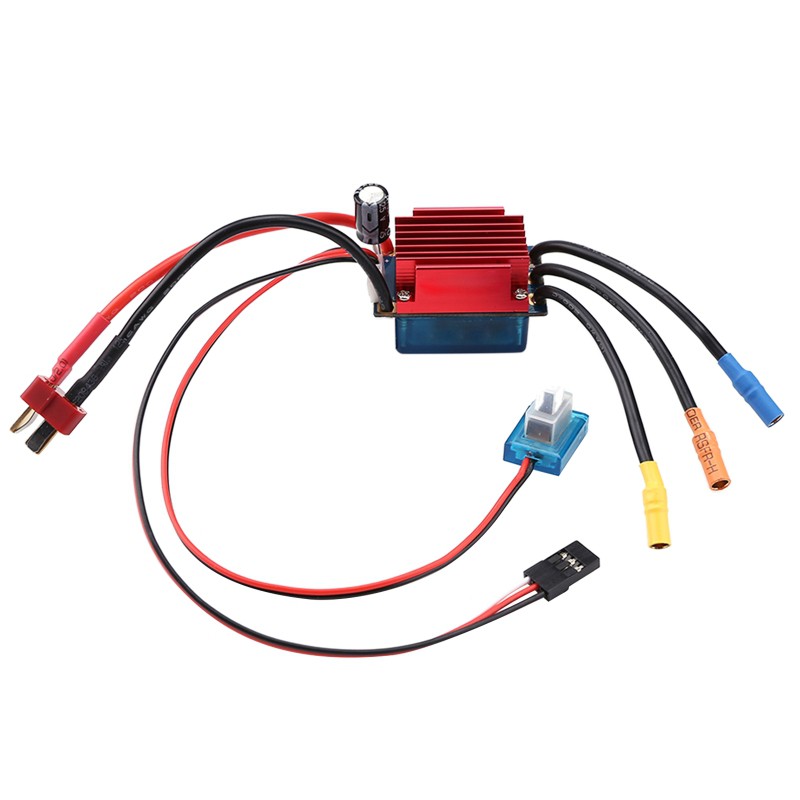

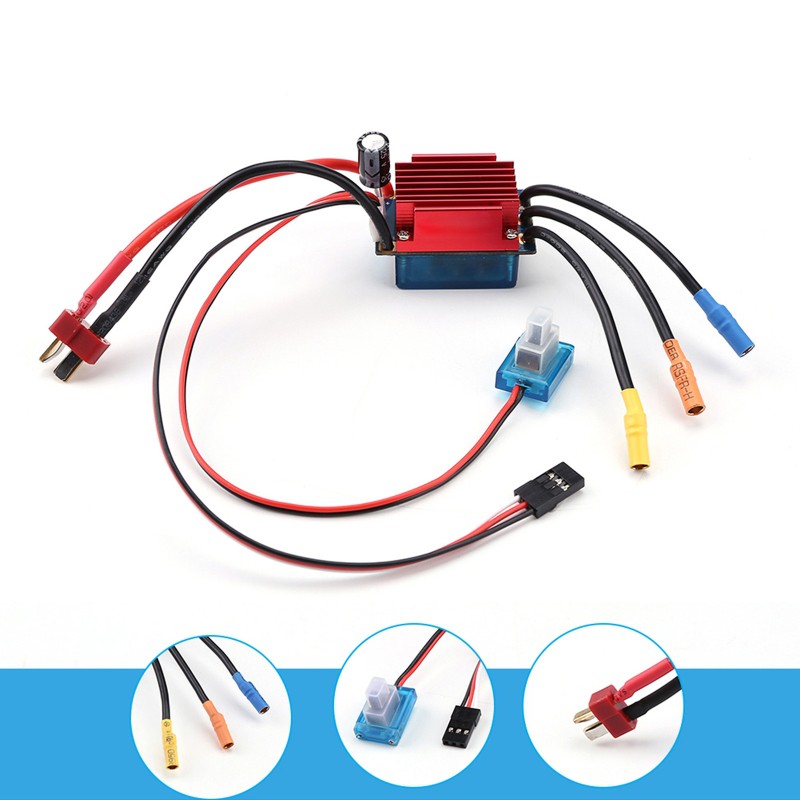

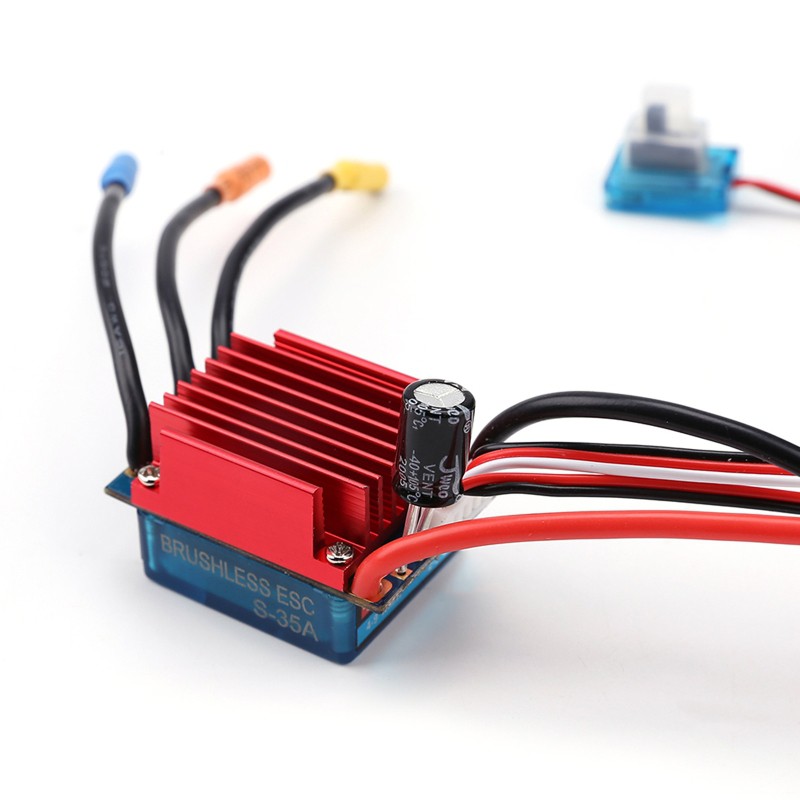

35A Brushless ESC Electric Speed Control for 1/14 1/16 RC Car 2S Running Off Road Truck Speed Controller

Cont.Current/Burst Current:35A/120A
Motor Type
Sensorless Brushless Motor
For 2s Lipo or 6 cells NIMH:
1.on-road:28XX-size or smaller motor with the KV<6000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<4000
For 3s Lipo or 9 cells NIMH:
1.on-road:28XX-size or smaller motor with the KV<4000
2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<3000
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits “Beep-Beep” tone.
6. When the throttle stick is in the neutral position, the motor re-emits “Beep-Beep” tone.
7. The ESC is workable.

Package Including
1 * 35A ESC
