Giới thiệu Bộ cảm biến nguồn điện Ina219 Gy-219 I2C

This breakout board will soe all your power-monitoring problems.Instead of struggling with two multimeters,you can just use the handy INA219B chip on this breakout to both measure both the high side voltage and DC current draw over I2C with 1% precision.
Most current-measuring devices such as our current panel meter are only good for low side measuring.That means that unless you want to get a battery invoed,you have to stick the measurement resistor between the target ground and true ground.
This can cause problems with circuits since electronics tend to not like it when the ground references change and move with varying current draw.This chip is much smarter-it can handle high side current measuring,up to + 26VDC,even though it is powered with 3 or 5V.It will also report back that high side voltage,which is great for tracking battery life or solar panels.

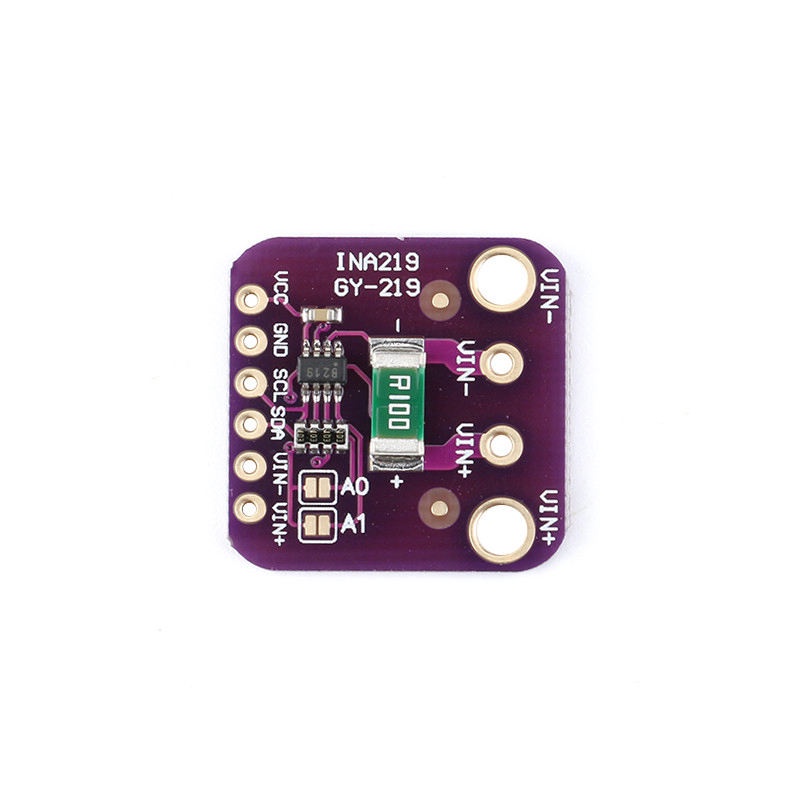

A precision amplifier measures the voltage across the 0.1 ohm,1% sense resistor.Since the amplifier maximum input difference is +/-320mV.With the internal 12 bit ADC,the resolution at + /-3.2A range is 0.8mA.With the internal gain set at the minimum of div8,the max current is +/-400mA and the resolution is 0.1mA.Advanced hackers can remove the 0.1 ohm current sense resistor and replace it with their own to change the range(say a 0.01 ohm to measure up 32 Amps with a resolution of 8mA)

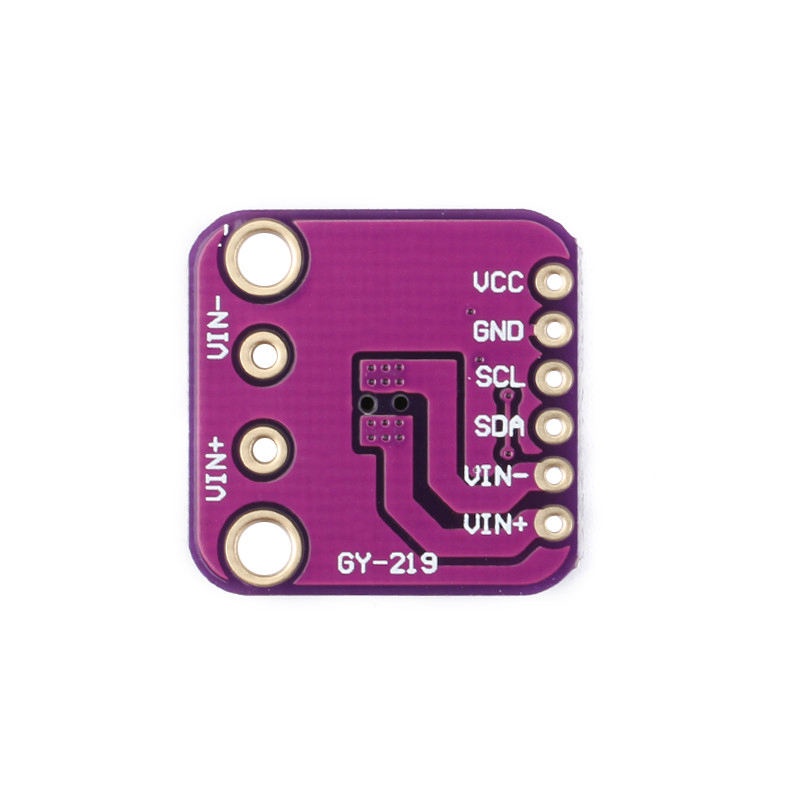

We include a 6-pin header(so you can easily attach this sensor to a breadboard)as well as a 3.5mm terminal plug so you can easily attach and detach your load.Usage is simple.Power the sensor itself with 3 to 5VDC and connect the two I2C pins up to your microcontroller.Then connect your target power supply to VIN + and the load to ground to VIN-.
Color:purple
Material:PC + metal

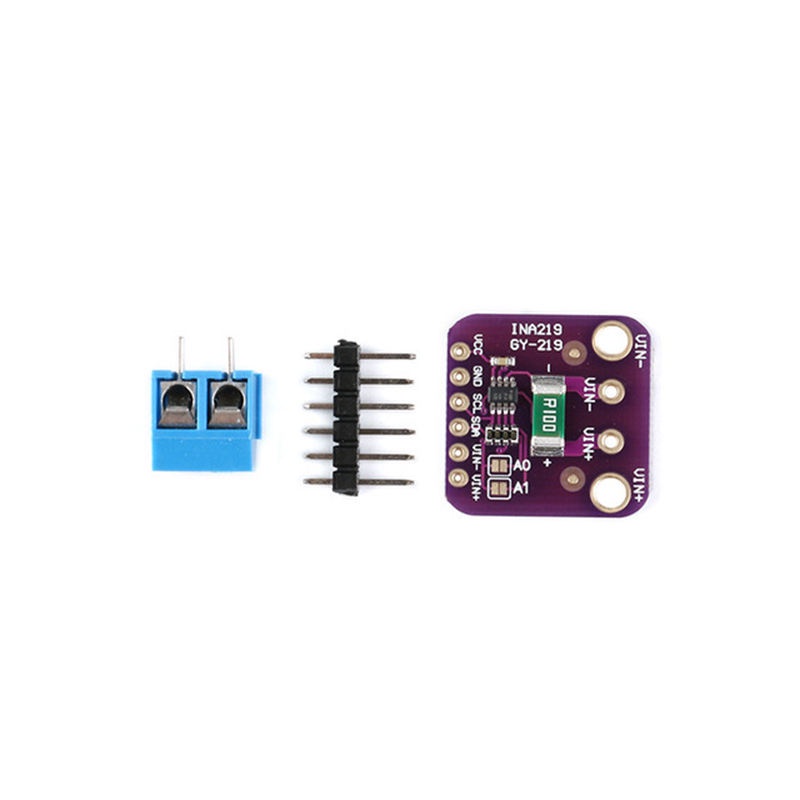

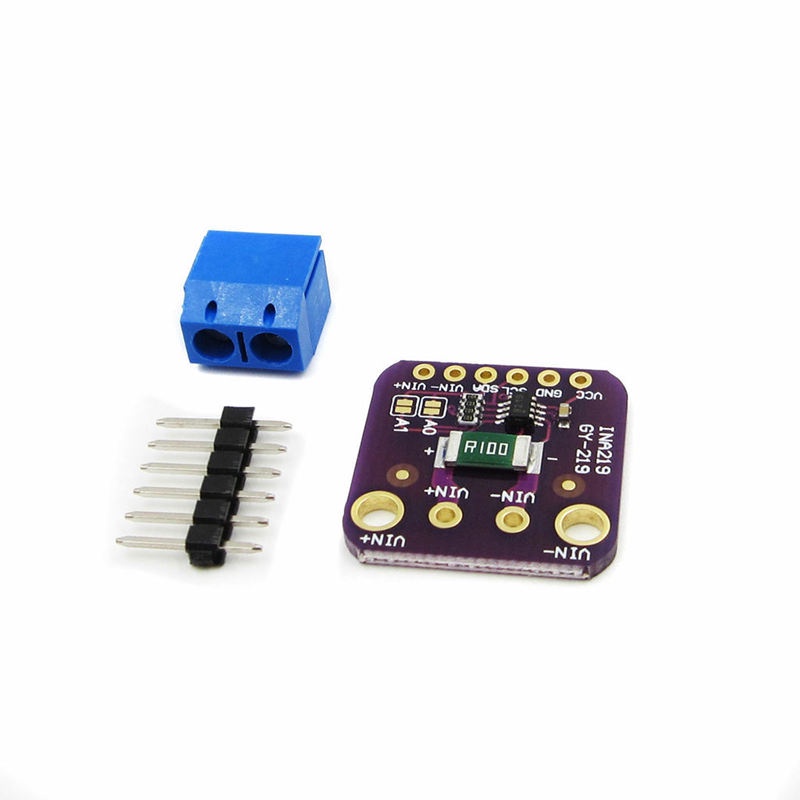

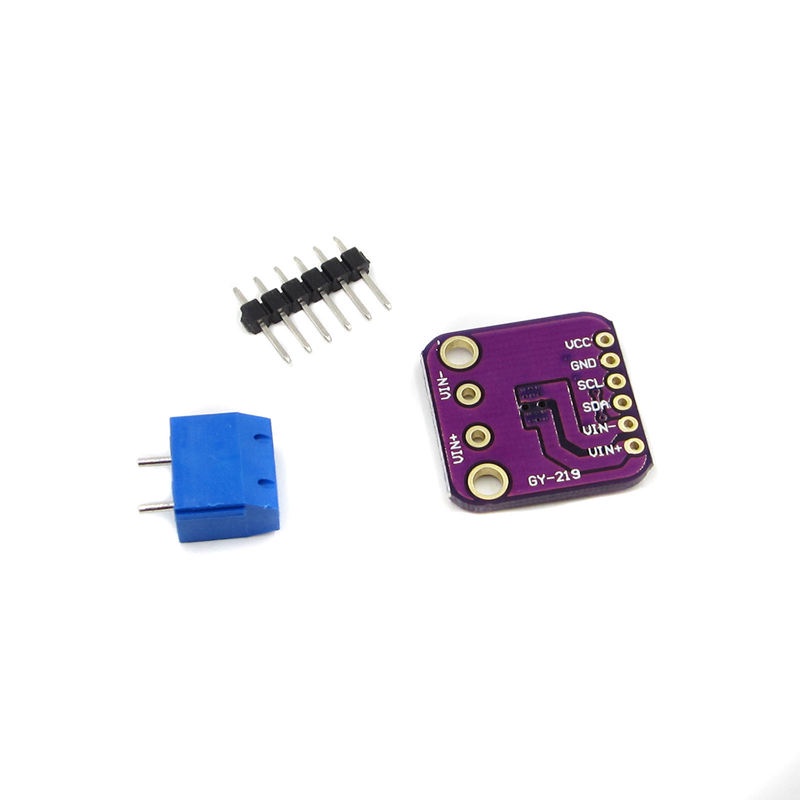

Package Contents:
1*INA219 GY-219 Bi-direction DC Current Power Supply Breakout Sensor
1*Connector
6*pinOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
