1 Cảm biến chất lượng khí CO VOCs CJMCU-811 CCS811
Mô tả ngắn
Mua 1 Cảm biến chất lượng khí CO VOCs CJMCU-811 CCS811 giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
620,061₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu 1 Cảm biến chất lượng khí CO VOCs CJMCU-811 CCS811
Usage: Open source hardwareOutput: Digital Sensor
el Number: CJMCU-81
Type: Gas Sensor

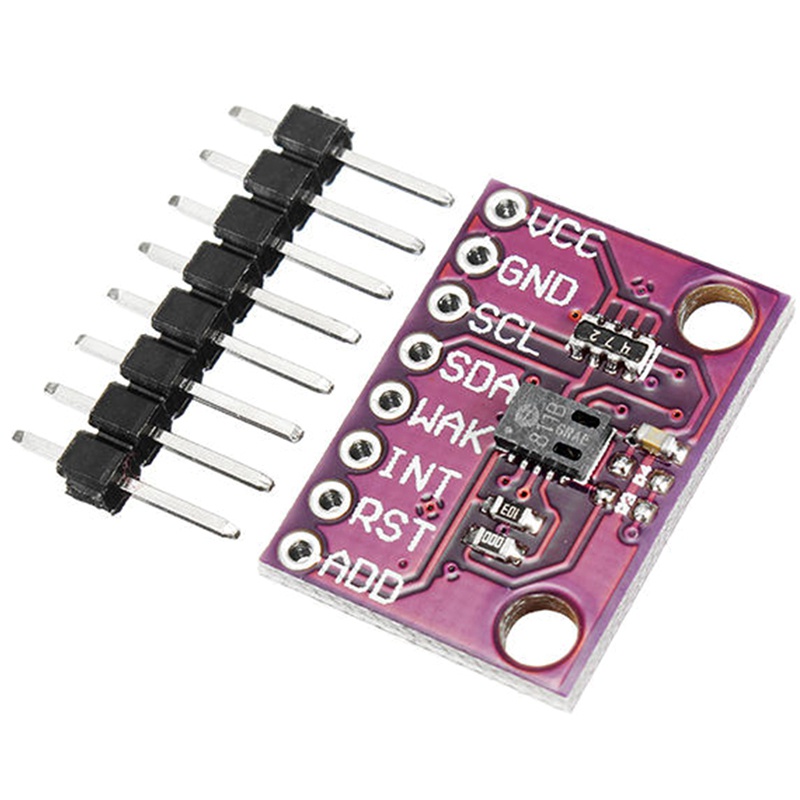

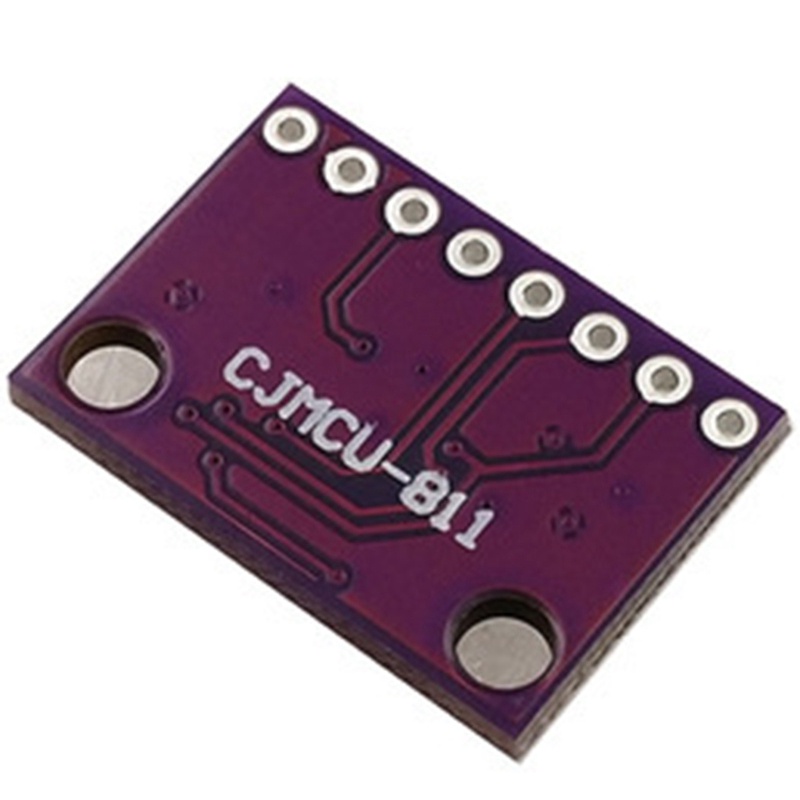

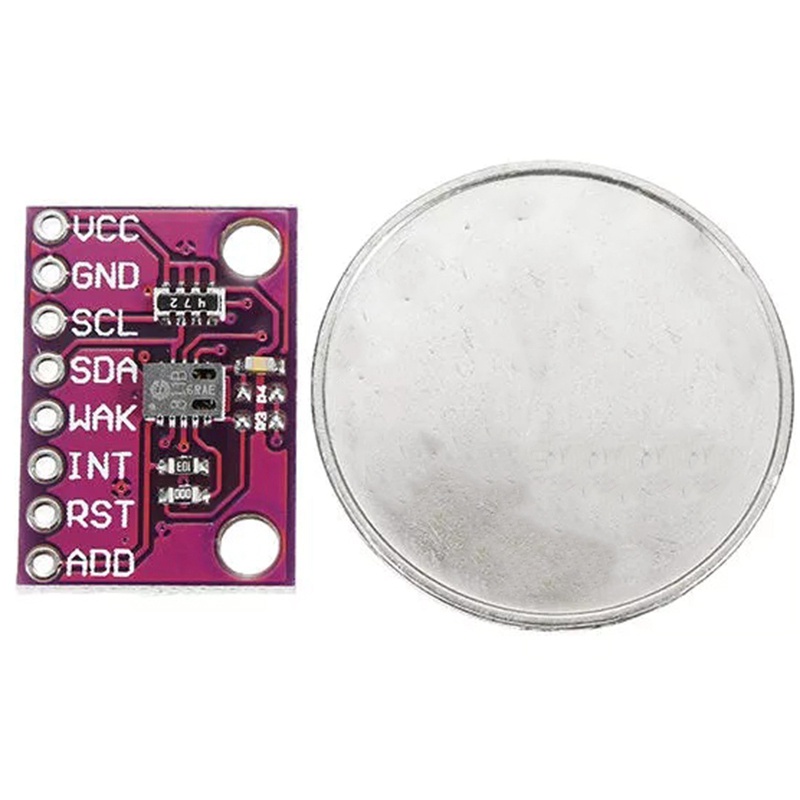

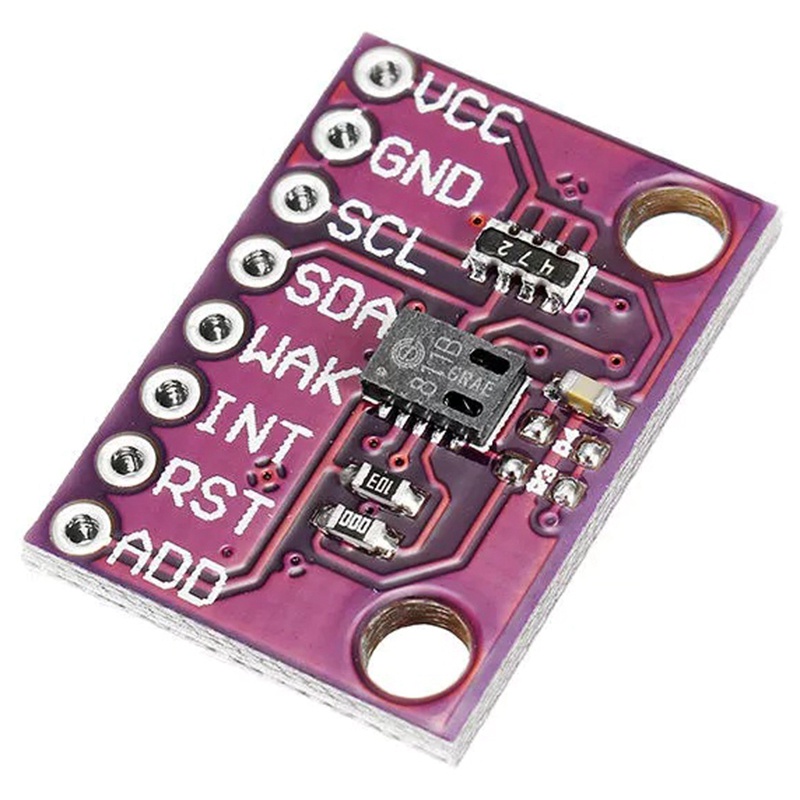

The CJMCU-811 is an ultra-low-power digital gas sensor that integrates a CCS801 sensor and an 8-bit MCU with an analog-to-digital converter (ADC) to detect indoor air quality, including carbon monoxide (CO) and a wide range of Volatile Organic Compounds (VOCs).
Air quality sensor CCS811 features:
Ultra-low power consumption can be used in battery-operated equipment
High sensitivity, fast heating
The intelligent algorithm calculates TVOC / eCO2 values
Output I2C signal, direct communication with the main system
The main features of the air quality sensor CJMCU-811:
Metal oxide (MOX) sensors for monitoring indoor air quality
An 8-bit MCU is integrated to run the first-level algorithm
Integrated 12-bit ADC for sensor readings and digitized conversions
I2C slave interface can be directly connected to the master control system
Reset / interrupt control
Material: plastic
Color: purple
Package Contents:
1pcs * Gas SensorsOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
