Giới thiệu Mạch Điều Khiển Bay Turtlebee F3 5a 1s

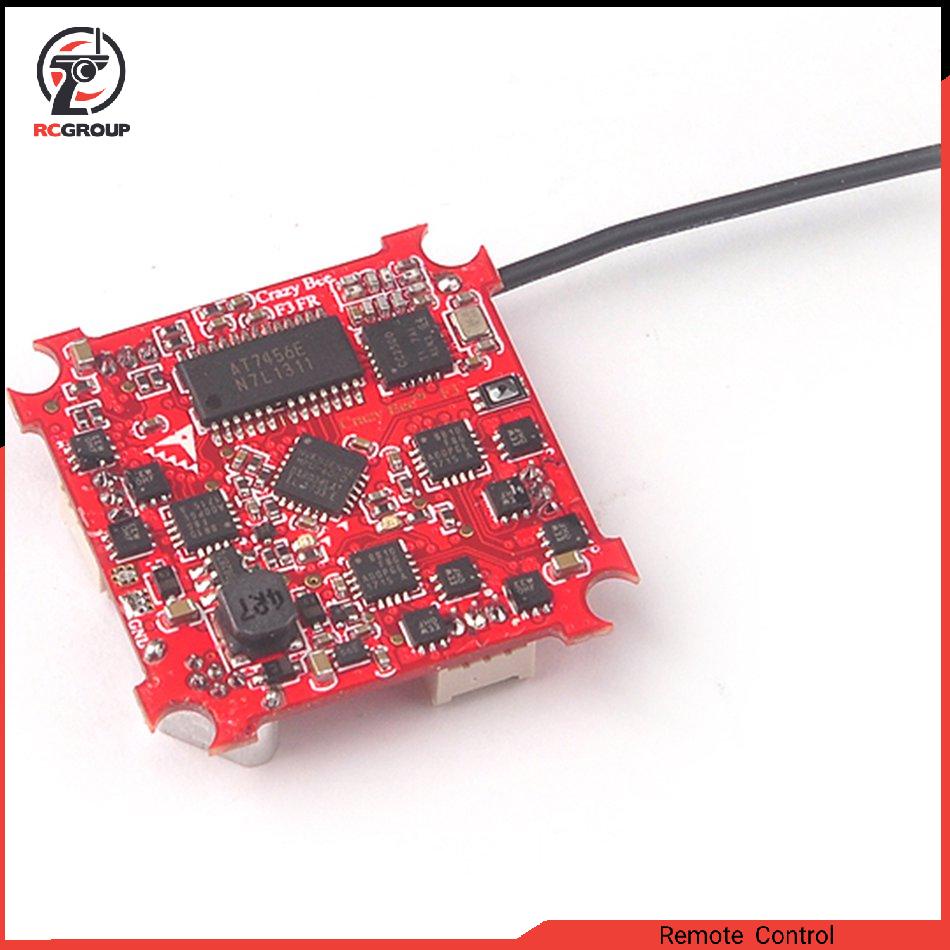

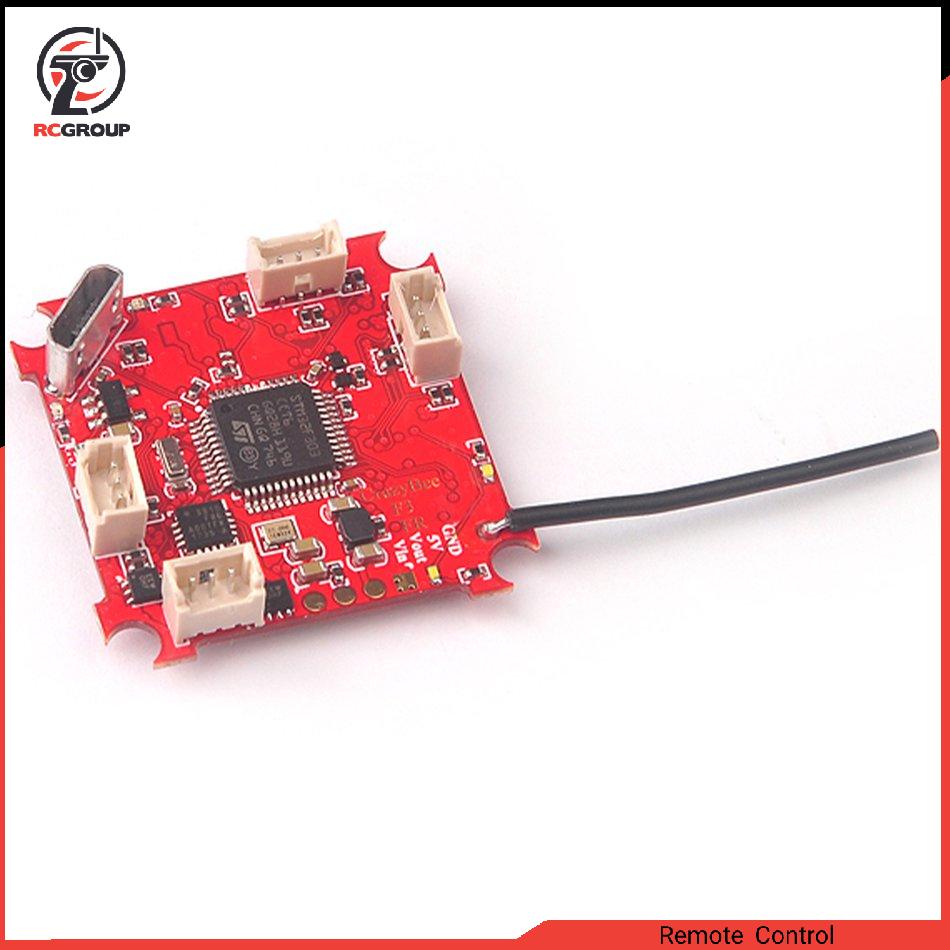

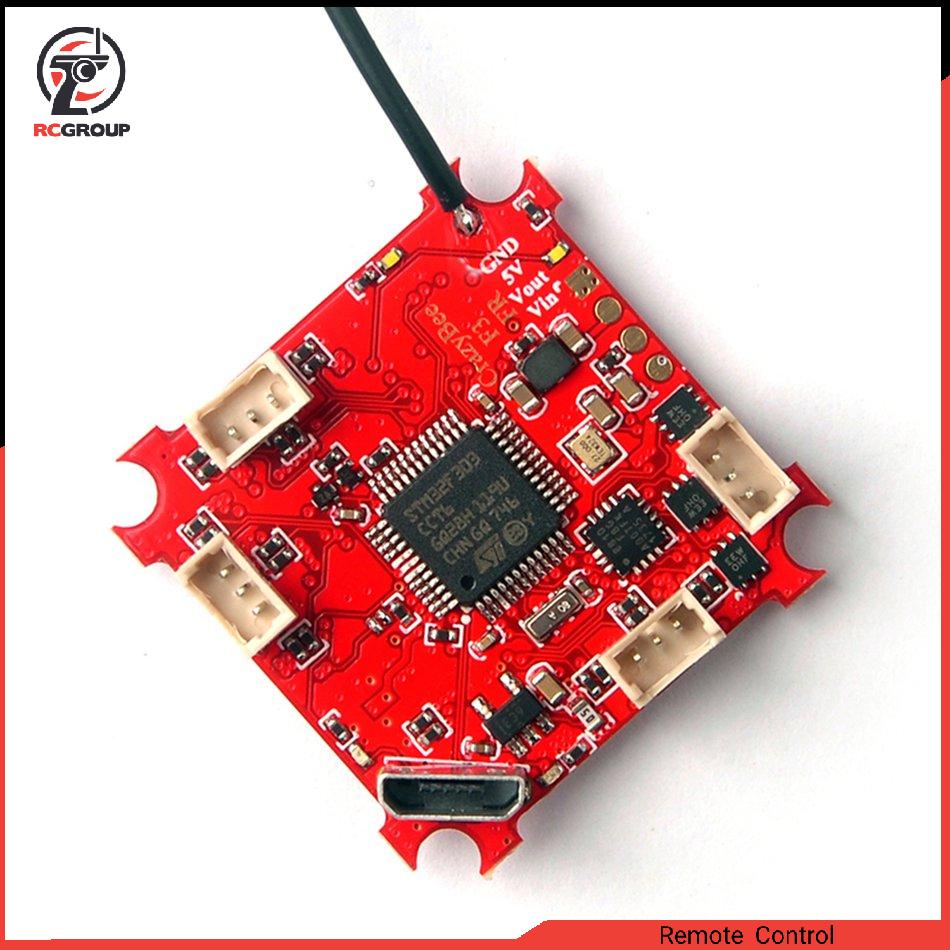

Happymodel Turtlebee F3 Flight Controller Integrated OSD Current Meter 5A 1S
Features:
1. It has precision machining, moderate weight, corrosion resistance and high mechanical strength.
2. It's easy to build your own FPV drone with this flight controller.
3. It has good anti-drop performance and special humanized design.

Description:
The flight controller has precision machining, stable characteristics, high reliability, durability and strong adaptability.

Specifications:
Brand: Happymodel
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Controll)
Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Board size: 28.5 * 28.5MM

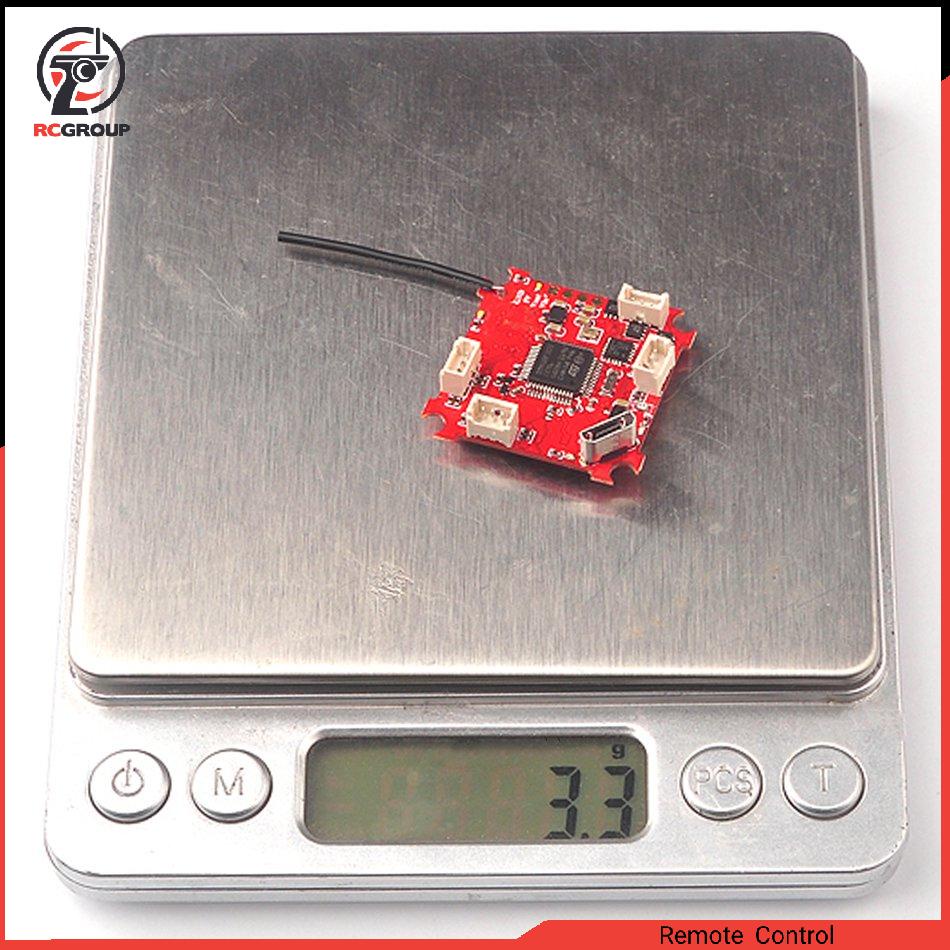

Board weight: 3.5 g


ESC parameters:
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Signal Support: Dshot150/Dshot300/Dshot600/Oneshot125/Multishot/PWM


Receiver parameters:
SPI BUS receiver
Frsky D8/D16 switchable
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitting and receiving 1 m from the ground): 300m

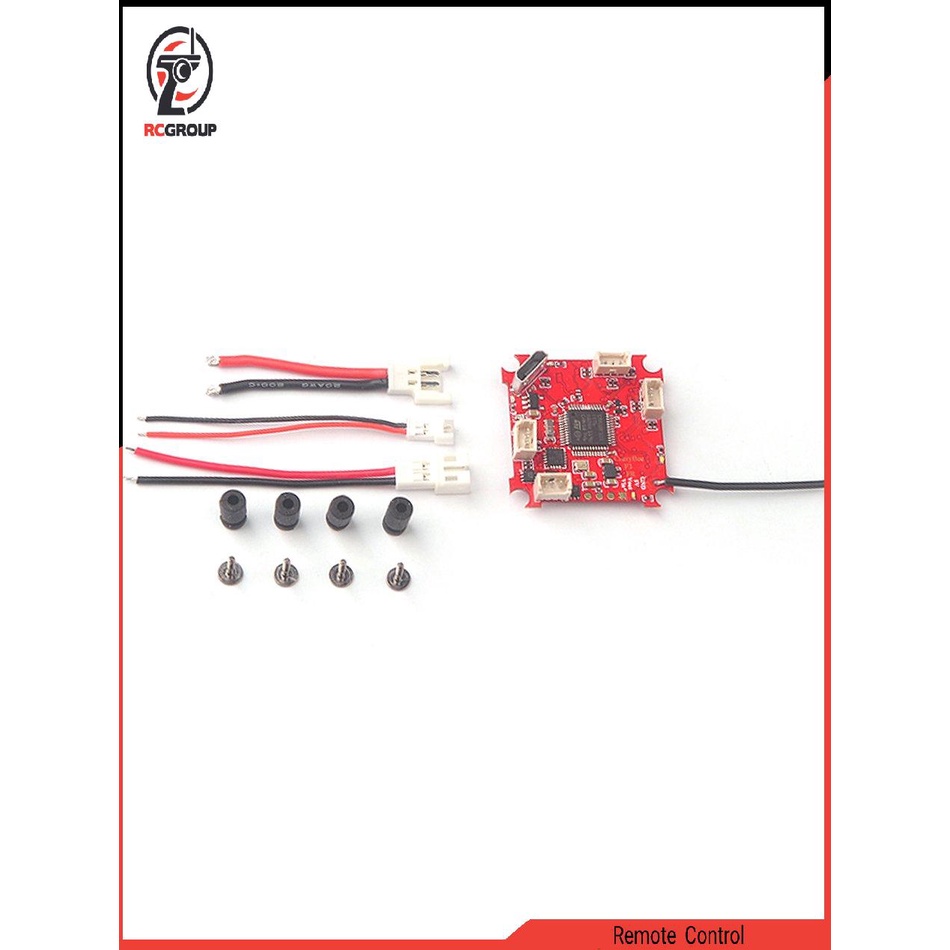

Package Included:
1* Flight controller
3* Power cable
1* Accessories set

Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
