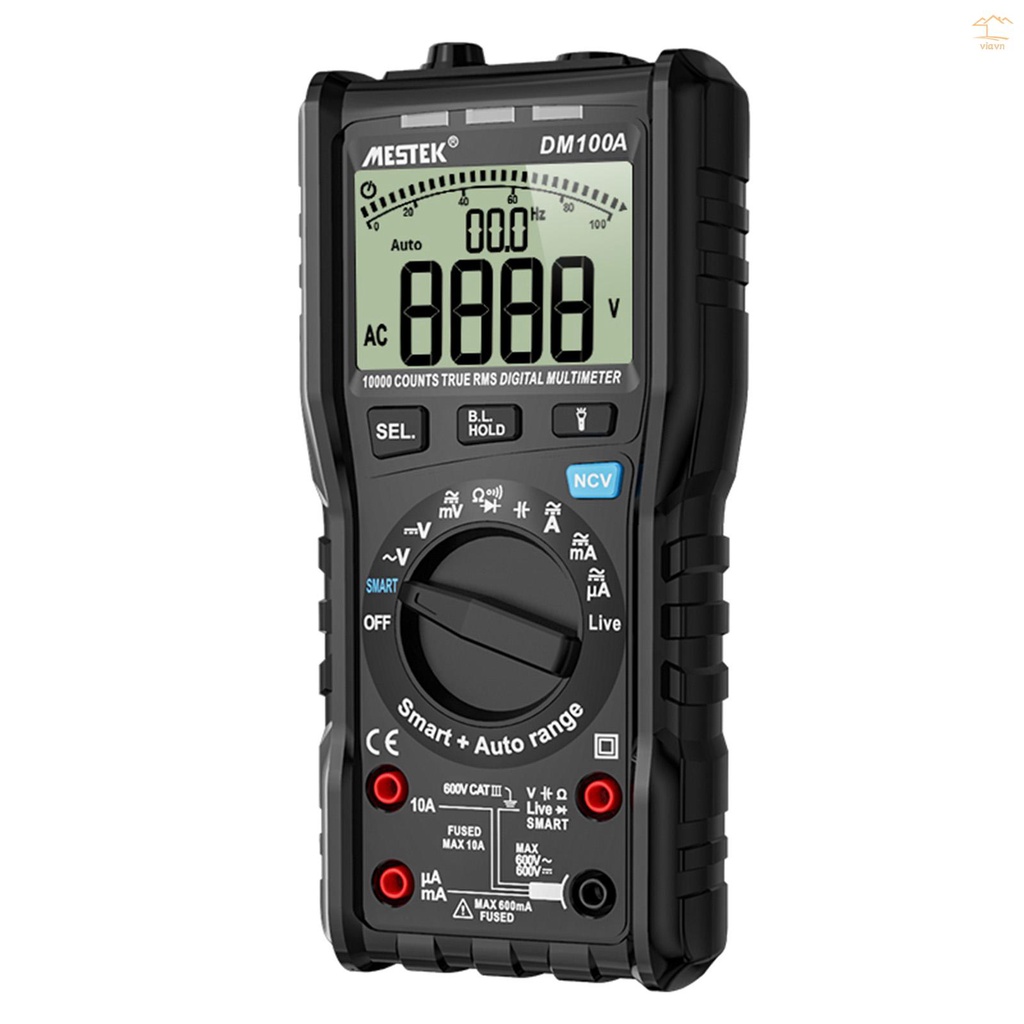

Giới thiệu Đồng hồ vạn năng kế kỹ thuật số MESTEK DM100A 10000 AC/DC
MESTEK DM100A Digital Multimeter Universal Meter 10000 Count AC/DC Voltage AC/DC Current Resistance Capacitance MeasurementFeatures:
Main Functions: measuring AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, NCV test, live wire test, and smart measurement.

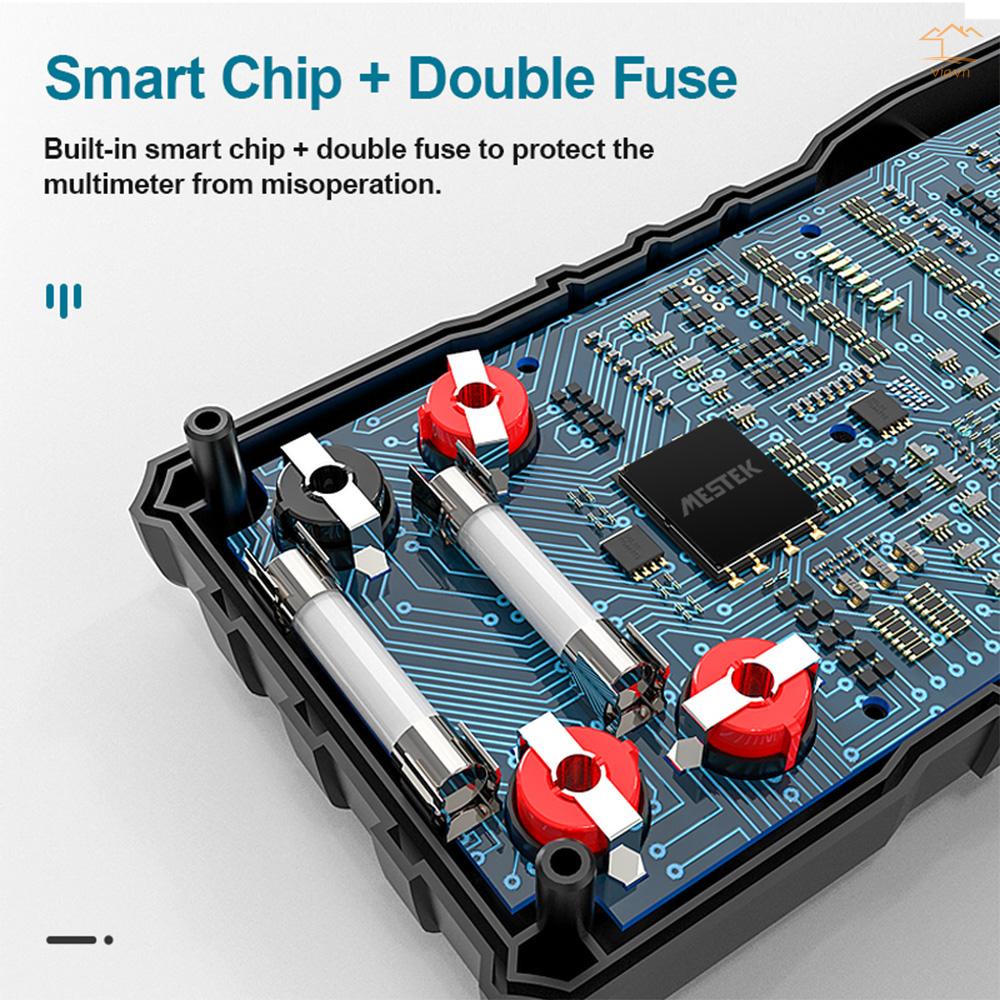

Safety Operation: built-in smart chip and double fuse to protect the multimeter from misoperation, and has overload protection.
Intelligent Recognition: smart intelligent recognition gear and automatic range gear allow user to measure easier.
NCV Measurement: when AC voltage is detected, it will produce sound and light alarm according to the voltage intensity.
HD LCD Display: analog bar and digital display for easily checking the data at a glance, greatly enhance the reading experience.

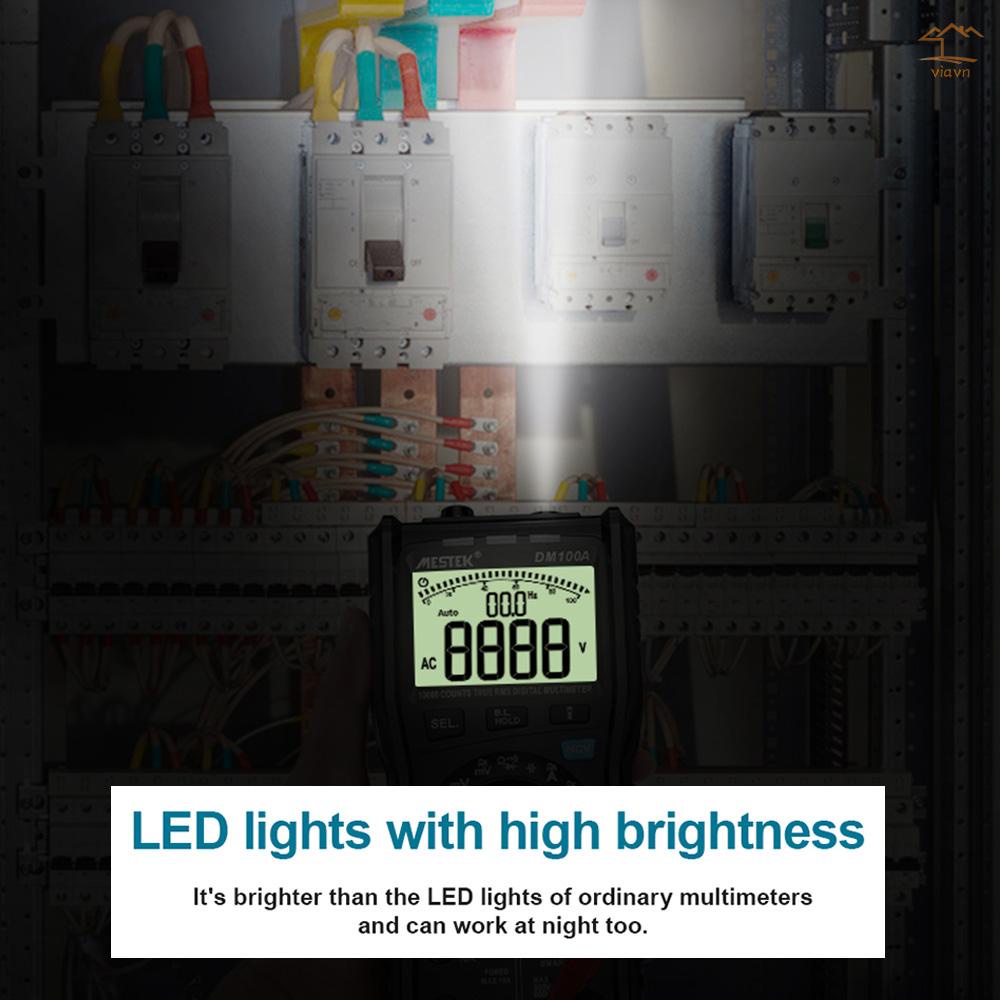

Flashlight Lighting: designed with lighting function to facilitate users to operate in dark places.
Automatic Shutdown: if there is no operation after starting the meter for about 15 minutes, it will automatically shutdown.
Other

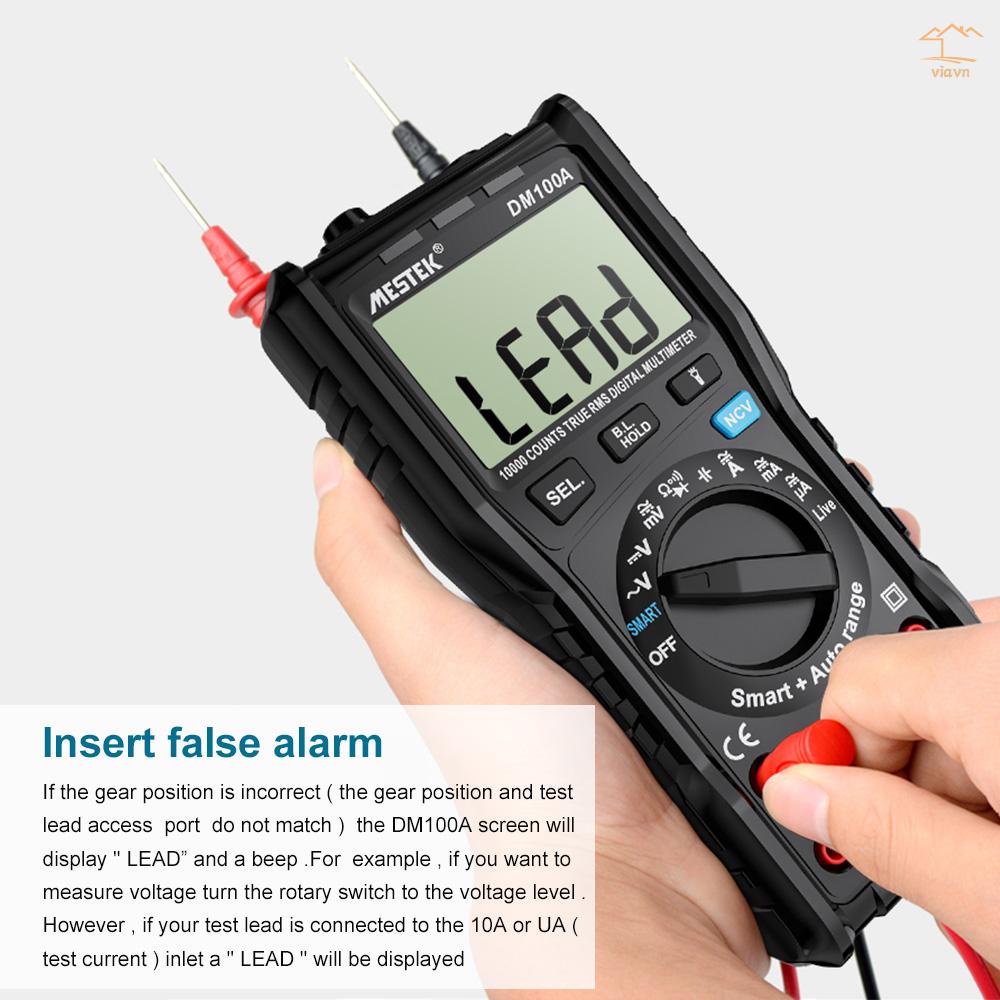

Features: data hold, fuse alarm, wrong insertion alarm, anti-burn design, low battery indicator, under voltage prompt, etc.
Specifications:
Material: ABS
Safety Level: CAT IV 600V/CAT III 1000V
Display: 9,999 counts
DC Voltage: 1000mV/1V±(0.5%+5), 10V/100V/600V±(0.5%+3)
(Smart) DC Voltage: 0.5~600V±(0.5%+4)
AC Voltage: 1000mV/1V±(0.8%+3), 10V/100V/600V±(1%+5)
(Smart) AC Voltage: 0.8~600V±(1%+7)
DC Current: 9999μA/600mA±(0.8%+3), 10A±(1.2%+3)
AC Current: 9999μA/600mA±(1%+3), 10A±(1.5%+3)
Resistance: 1000Ω/10kΩ/100kΩ/1000kΩ/10mΩ±(0.8%+3), 60MΩ±(1.5%+5)
(Smart) Resistance: 0.5~6kΩ±(1.2%+5)
Capacitance: 100nF/1000nF/10μF/100μF/1000μF/10mF±(3.5%+15)
Frequency: 50~60MHz
Diode: 0.15~2.5V
Input Resistance Against: 10MΩ
Working Environment: 0~40℃ (<80%RH)
Storage Environment: -10~60℃ (<70%RH, remove battery)
Power Supply: 2 * 1.5V AA battery (NOT included)
Item Size: 185 * 88 * 52mm / 7.29 * 3.47 * 2.05in
Item Weight: 320g / 11.3oz
Package Weight: 483g / 17.06oz
Package Size: 20.5 * 13 * 6cm / 8.07 * 5.12* 2.36 in
Packing List:
1 * Multimeter
1 * Test Probe
1 * Manual (English)
