Features:
Two large aluminum heat sinks ensures a better heat dissipation and more
stable performance.
Five 470uf/35V high frequency low resistance
capacitors in parallel special for switch-mode power supply lower output
ripple.
23mm large magnet and 1.0 copper wire provides high efficiency
work.
LED indicator light on board make work state more intuitive.
TVS
diode can prevent voltage spike from chip breakdown and ensures module
safety.
Two 50V/MLCC patch capacitors and high frequency low impedance
electrochemical capacitors lower output ripple.
Widely used for storage battery, power transformers, DIY adjustable
regulated power supply, industrial equipment, 12V to 3.3V, 12V to 5V,
24V to 5V, 24V to 12V, etc.

Specifications:
Type: Non-isolated module (BUCK)
Input Voltage: 4.5V to 30V
Output Voltage: 0.8V to 30V (continuously adjustable, default 5V)
Output Current: 0A to 12A
Power: 100W
Operating Temperature: -40℃ to +85℃
Frequency: 300KHz
Max. Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference)
Short Circuit Protection: Yes (14A current limit, please try not to short circuit)
Over Temperature Protection: Yes (automatically shut off output)
Reverse Input Protection: No
Wiring Method: Terminals

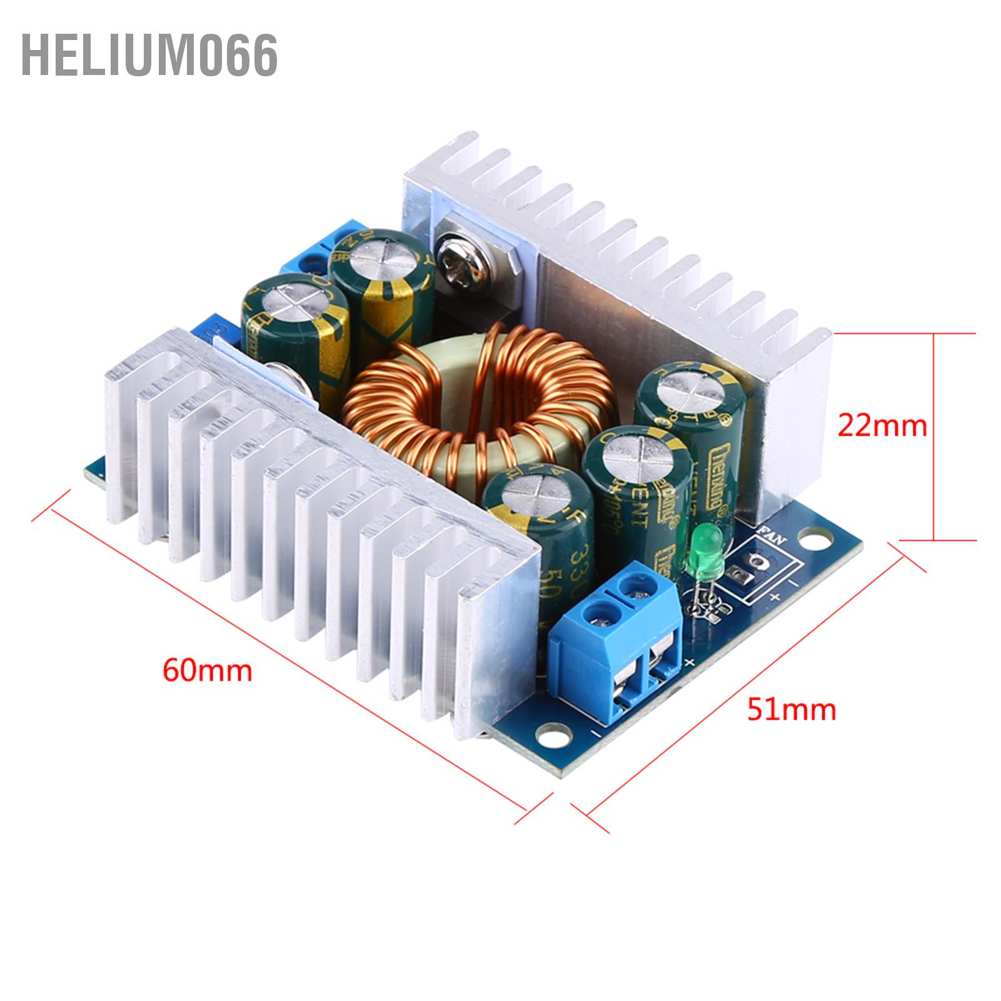

Size: 60 x 51 x 22mm / 2.36 x 2 x 0.86"
Package Includes:
1 x Module

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
