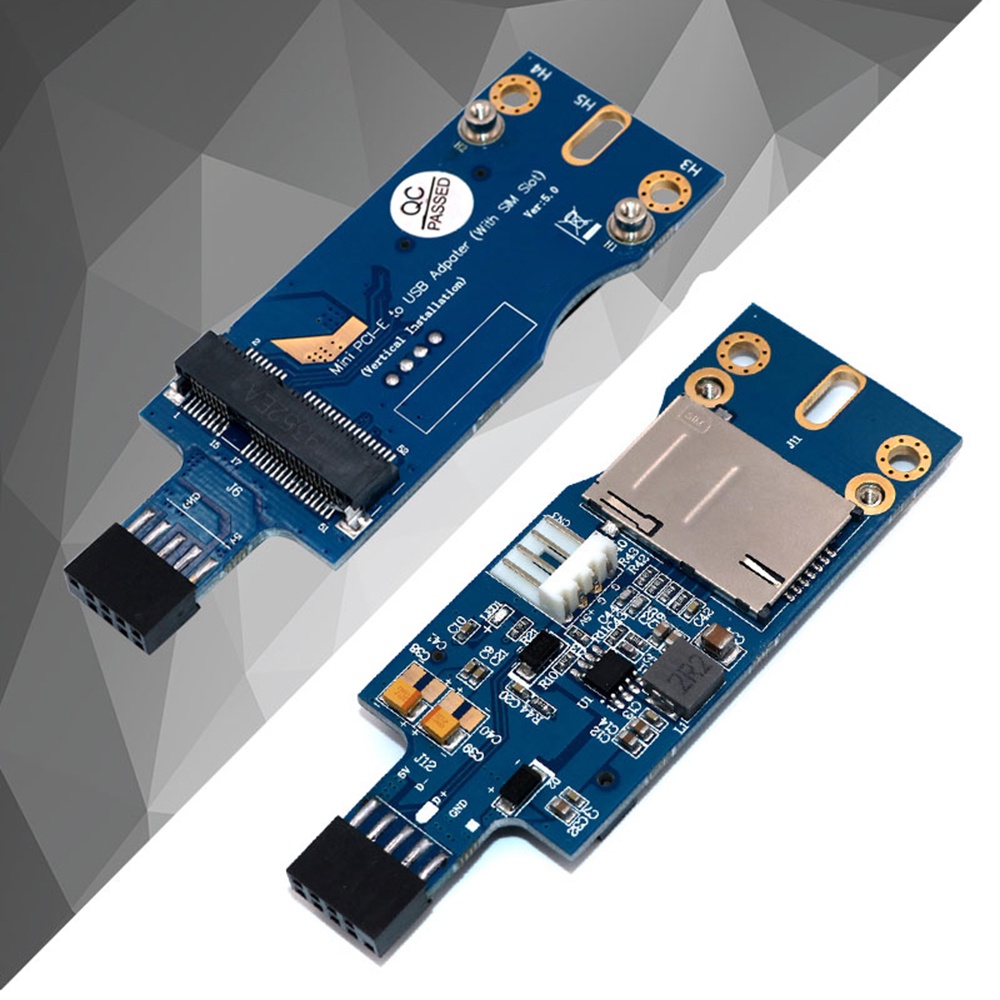

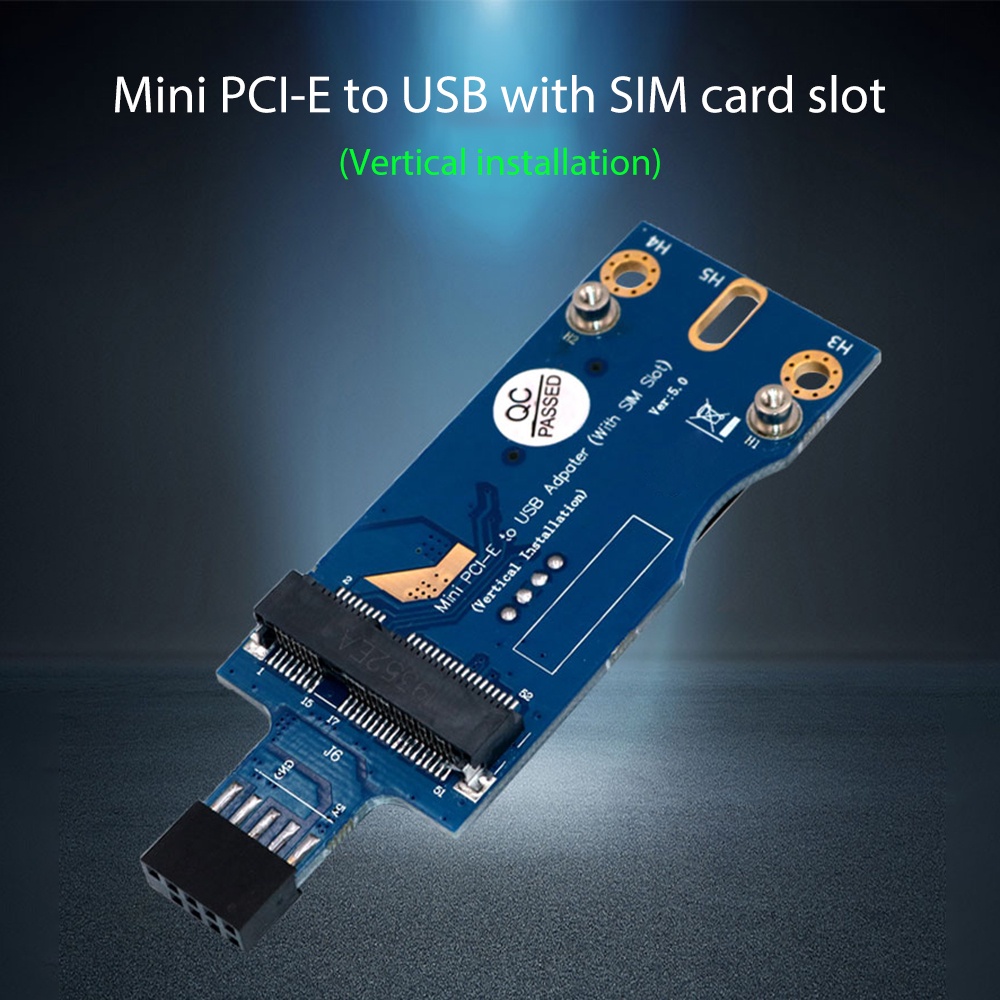

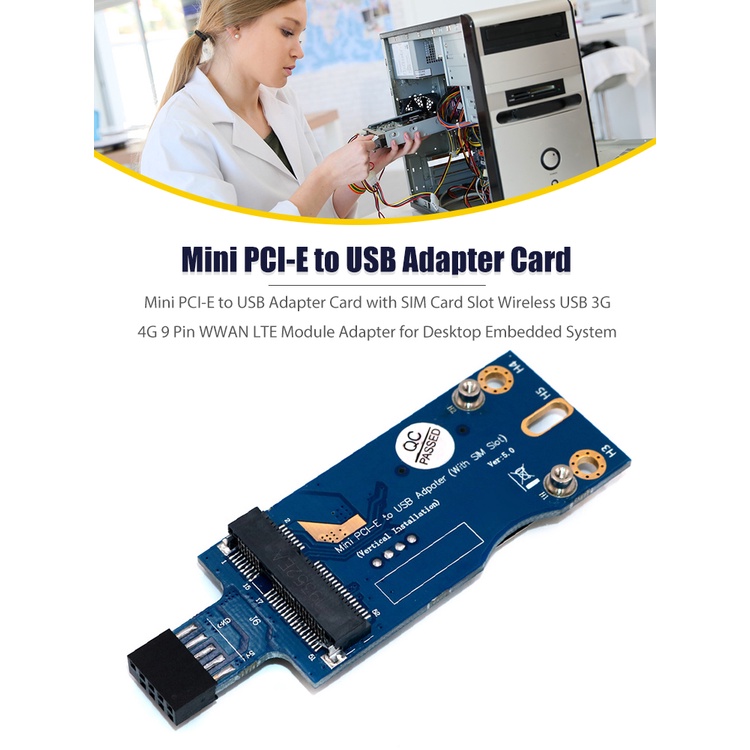

Giới thiệu Thẻ chuyển đổi Mini PCI-E sang USB có khe SIM 3G 4G 9 Pin WWAN LTE cho hệ thống Embed

Description:

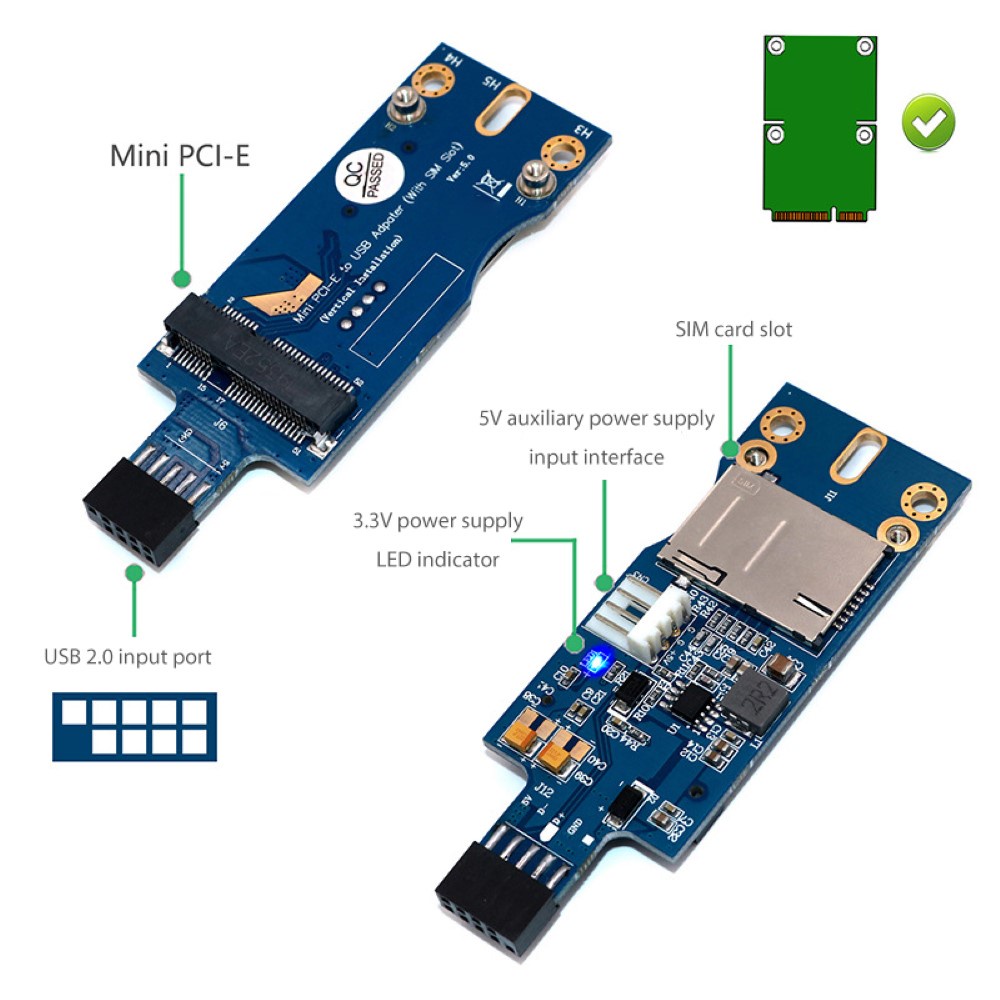

The built-in vertical USB 9PIN installation method, and the USB interface and external 5V auxiliary power supply are used to solve the problem of module disconnection and network disconnection caused by the insufficient power supply.
This adapter card converts the 3G / 4G / LTE module of the mini PCI-E interfaces into a USB signal to realize wireless Internet access.
You can only insert your USB Bus type mini card such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to the USB port, doesn’t support PCI-E bus type mini card such as Wifi module.
The adapter is designed for a desktop/Embedded system that converts 3G/4G wireless Mini-Card to the USB port.
As a standard SIM card slot is provided, you can connect to a network carrier with a SIM card.
Mini PCI-E to USB adapter with SIM card slot for WWAN / LTE module description.
Item Name: Mini PCI-E to USB Adapter Card
Color: Blue

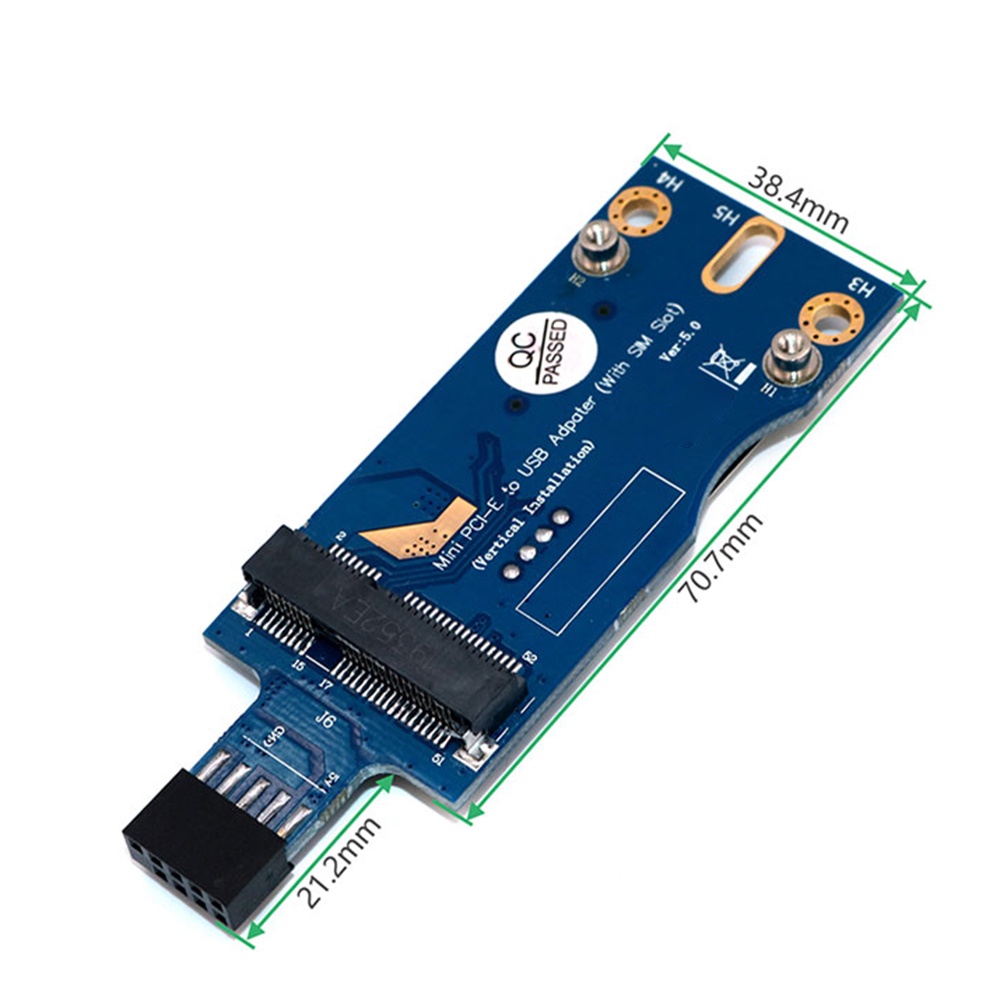

Size: 4.48*2.45*0.3cm
Material: PCB
Interface model: USB extension HUB
Hardware interface: USB, PCI
Quantity: 1pc
Attention:
1. This product is an adapter card and cannot work alone. It requires a module and a SIM card to be installed at the same time.
2. This product does not need to install the driver, but needs to install the module driver.
3. This product is not suitable for WIFI module with Mini PCI-E interface.
Specifications:
Interface Type: PCI Express
Data link protocol: USB
Note:
-
There might be slight error of size for manual measurement.
-
The color's deviation might differ due to different monitor settings, please kindly understand.
