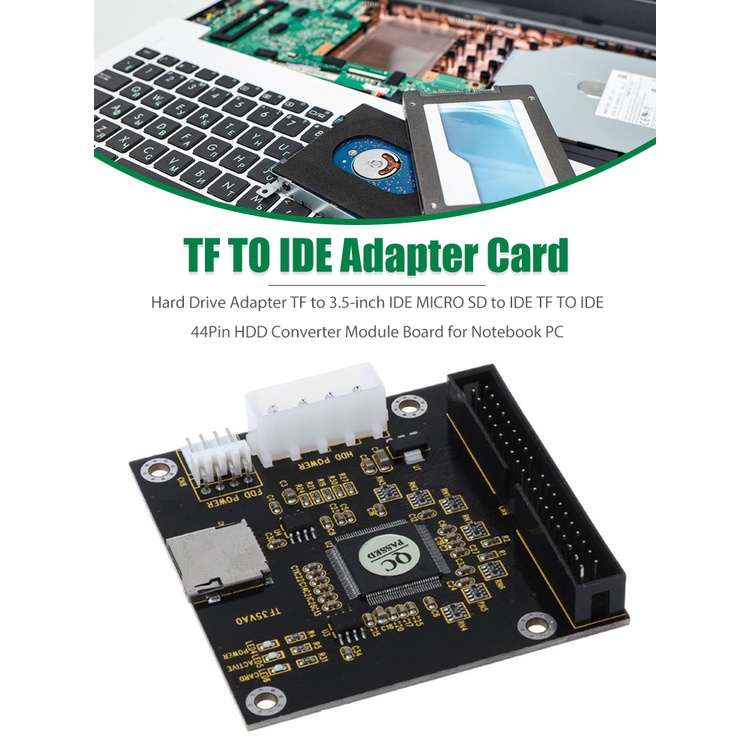

Giới thiệu Bảng mạch chuyển đổi ổ cứng TF sang 3.5-inch IDE MICRO SD sang IDE TF TO IDE 44Pin HDD cho Notebook PC

Description:
TF card has the characteristics of small size, large capacity, shock and moisture resistance, high-temperature resistance, stable performance, permanent and effective data storage, no noise, and no tracking error. It is a popular mainstream product memory card nowadays. This adapter card allows you to use the TF card with this superiority to connect to the standard IDE interface and act as a standard IDE storage device.
Compliance with Standards: TF specification Ver2.0, IDE/ATA-33 specification
Standard IDE Interface:
true-IDE mode, and supports DMA-33 transfer mode.
The IDE interface is a 44-pin/2.0mm male connector.

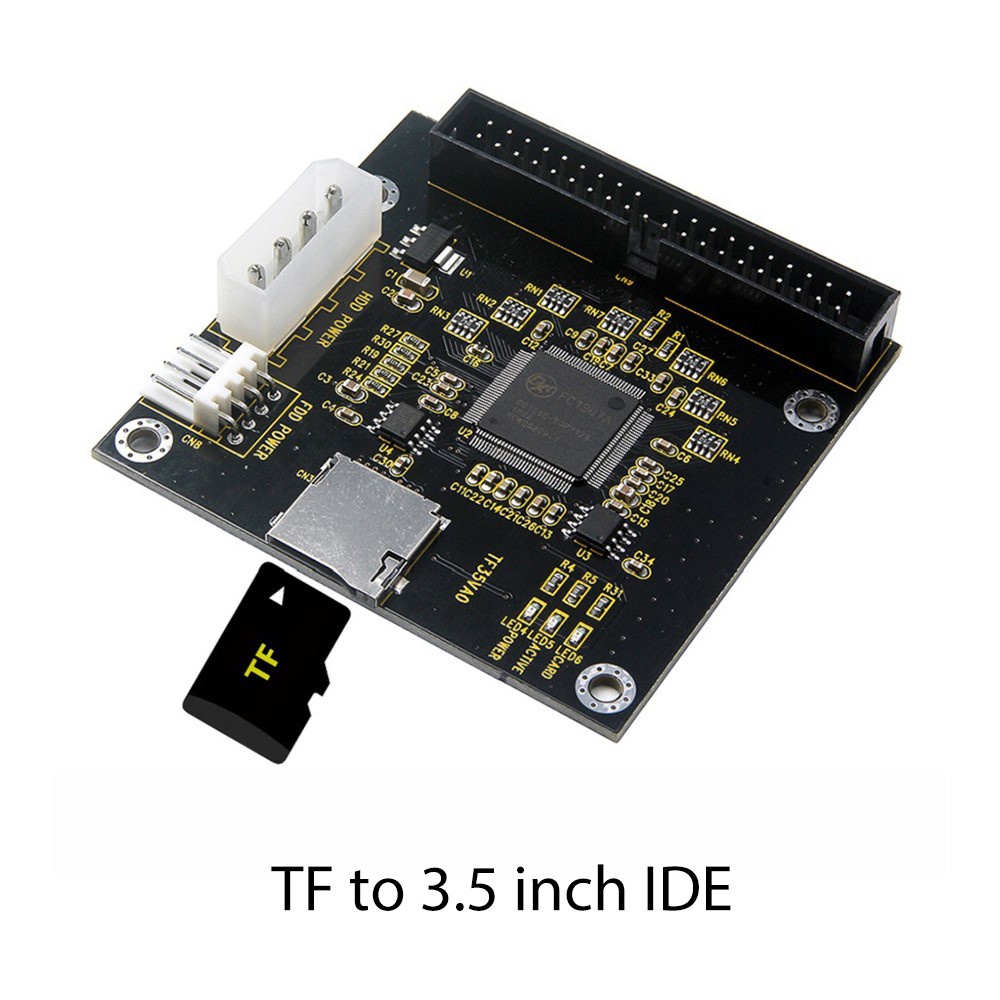

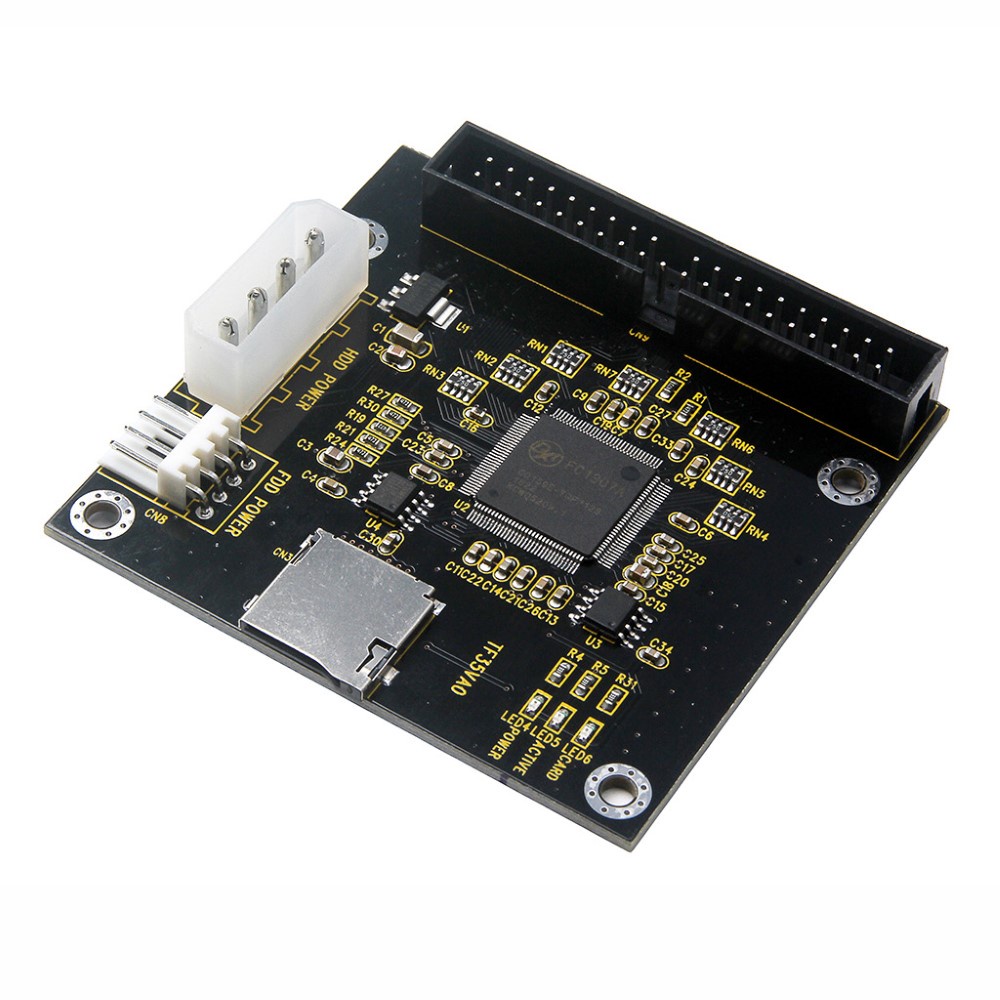

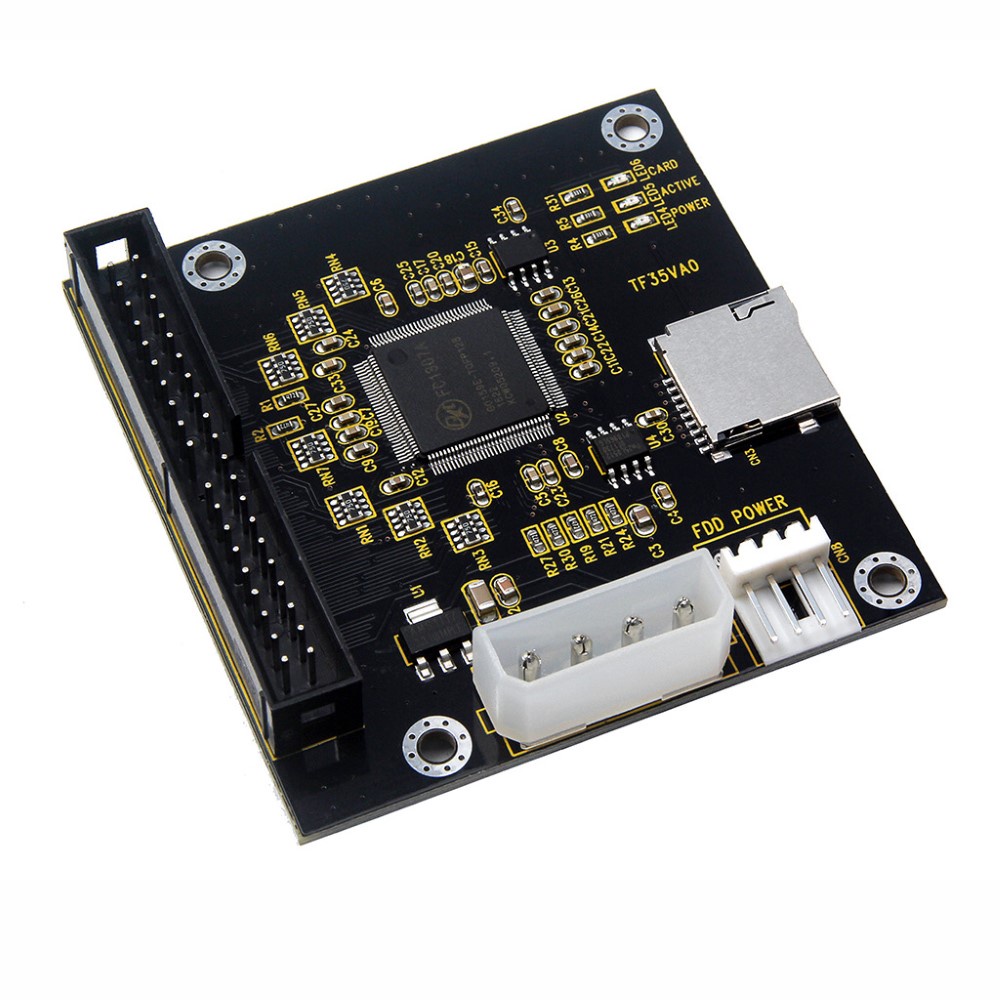

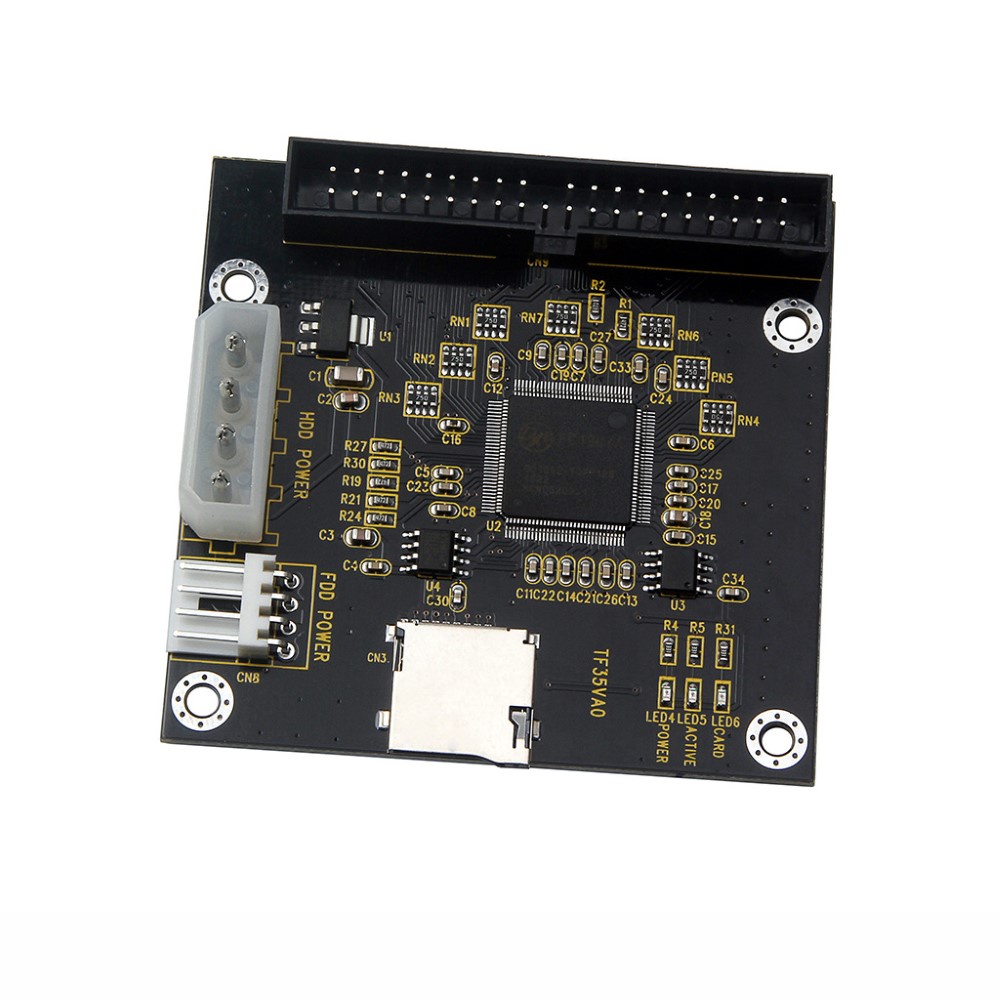

There are two main control chips on this board, and there is a TF card socket on the back.
Advantages: Small footprint, exquisite design, simple operation.
TF card can be used to include OS and application software, and can directly start the device.
Support DMA and ULTRA DMA mode, suitable for DOS, for NT4, for WINDOWS98SE, for ME, 2000, for XP, for VISTA, 7, 8, 10, for MAC, for Linux systems.
Installation Tips:
First install the TF card into the slot, and then connect the hard drive data cable to the interface of the notebook hard drive. It can be operated and used after the power-on test is normal. It's that simple, no need for any driver.
Note that for soft routing, the size of the TF card should be less than 1G. For example, if WIN98, WIN ME, WINXP, and the system are installed, the capacity of the TF card should be more than 2GB. UHS-I high-speed cards are not supported.
Maximum support 128G SD card.
Specifications:
Item Name: TF TO IDE Adapter Card
Color: Black
Quantity: 1
Model Number: Diagnostic card
Note:
-There might be little error of size for manual measurement.
-The color's deviation might differ due to different monitor settings, please kindly understand.
-The product does not include TF card!
