Giới thiệu Hệ thống giám sát áp suất lốp xe hơi TPMS màn hình LCD cảm biến nhiệt độ

Features:

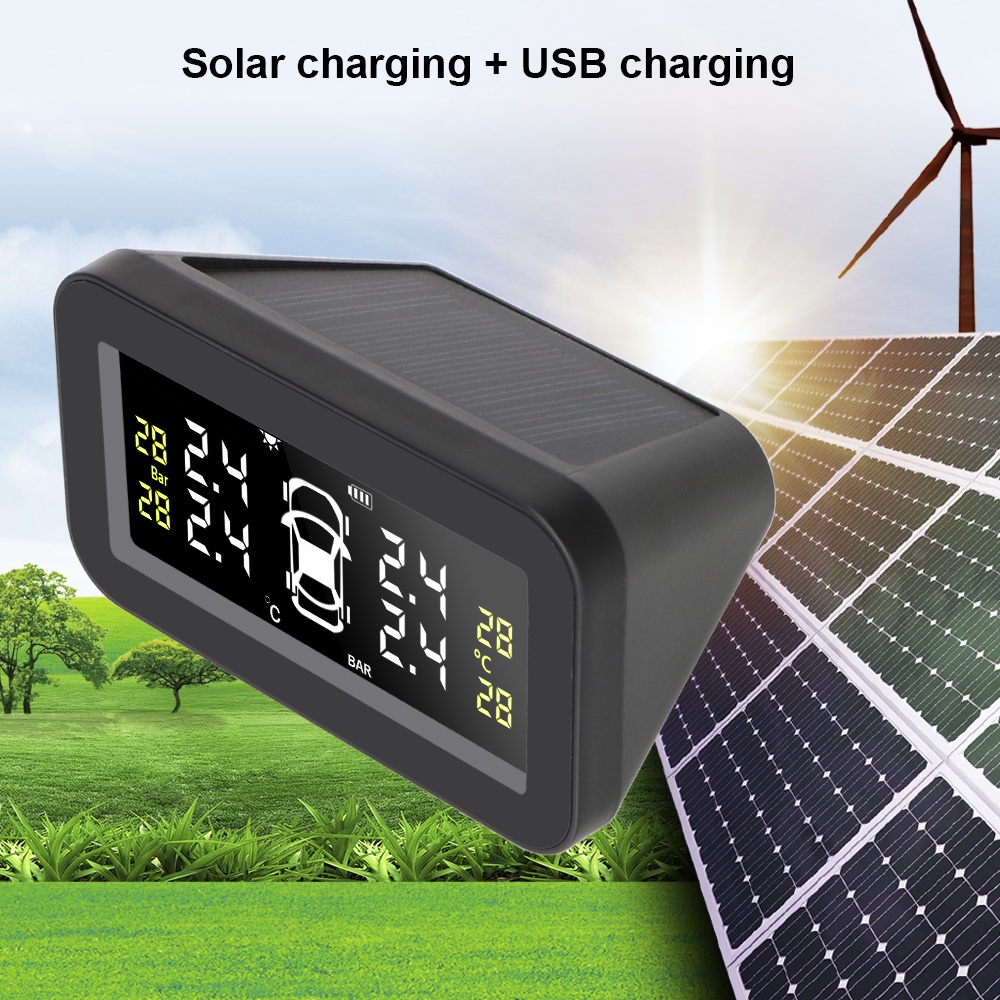

Charger, solar dual-circuit power supply

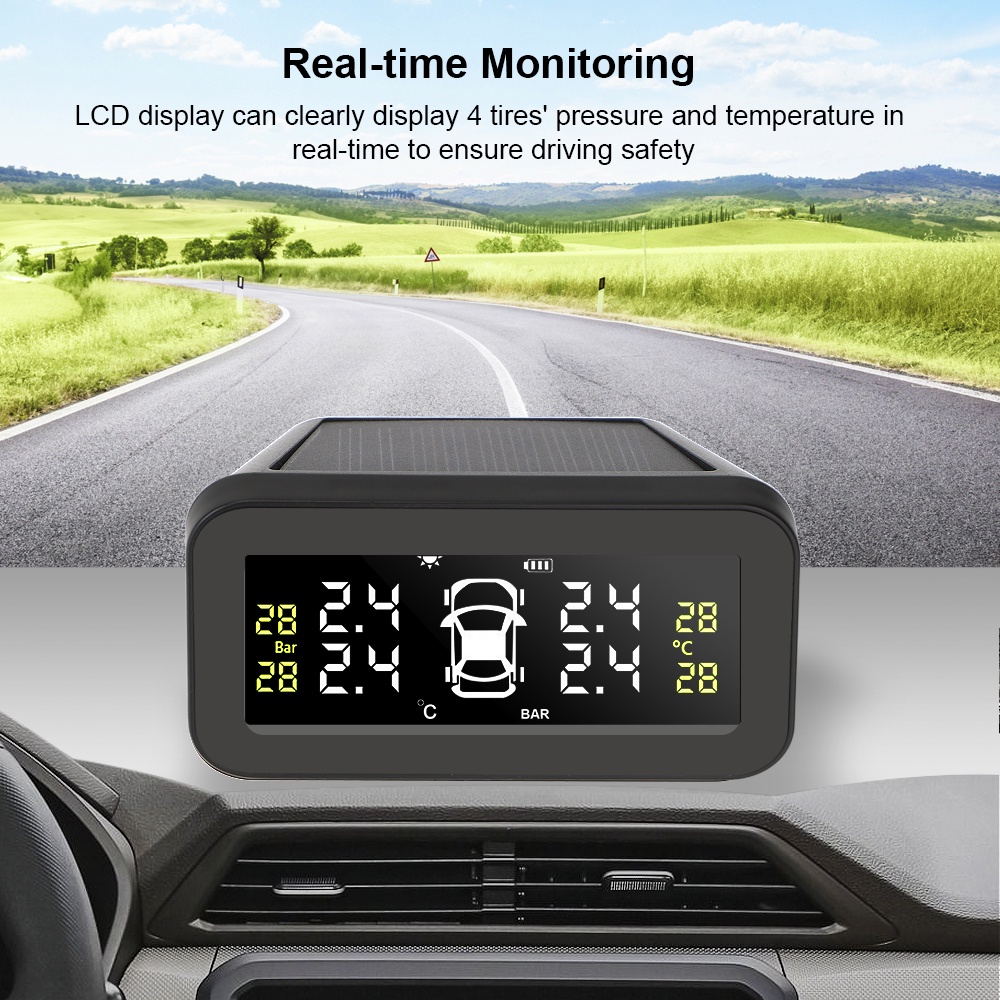

Real-time monitoring of tire pressure & temperature
Low air pressure/high temperature alarm
High Temperature / Leakage / Low Battery Alarm
Wireless connect by sensors, easy install
Exchange The Tire Position Freely
Wireless connect by sensors, easy install
Two units (PSI / Bar/ ℃/°F) changeable, you can set the one you like
Build-in sensors and external sensors options, meets all your need

Setup Steps:

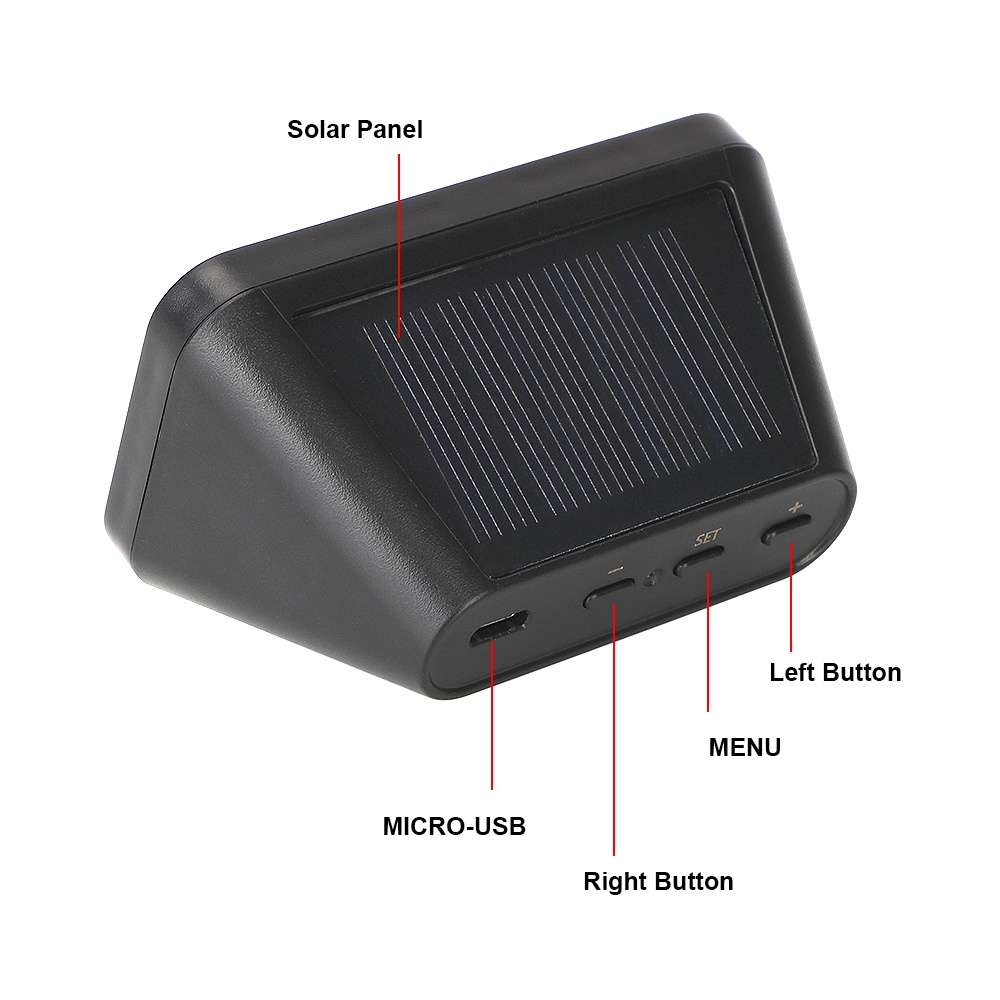

① Power on/off : Long press " -" button for 3 seconds.
② Enter the setting mode : Long press the " SET" button for 4 seconds and enter the settingmode after hearing the bi sound . Short press the " SET " button and then press the " + " and " -"buttons to select the pressure unittemperature unit , upper limit , lower limit andupper limit to be set.
③Pressure unit setting : Select the pressure unitpress the "+"Select " button to rotate thepressure unit BAR or PSI , and then press the" Select " button to confirm saving
④Pressure setting : Select the upper or lowerpressure , press the " + and " - " selection buttonto add or subtract the pressure value , thenpress the setting button to confirm saving .
⑤Tire pressure pairing : Press" +" 8 torelease the tire after hearing BI andenter the pairing mode . The " - " iconof the left front wheel flashes.Press+ or- " button to select the tire thatneeds to be matched.
⑥At this point , short press " + " button or "- " buttonto switch to the next tire position to continuematching , and follow the above steps for othertire matching . After matching , long press setbutton for 3 seconds and save and exit after bisound ( enter the tire matching state without anyaction , and automatically exit the code matchingmode after 3 minutesed.

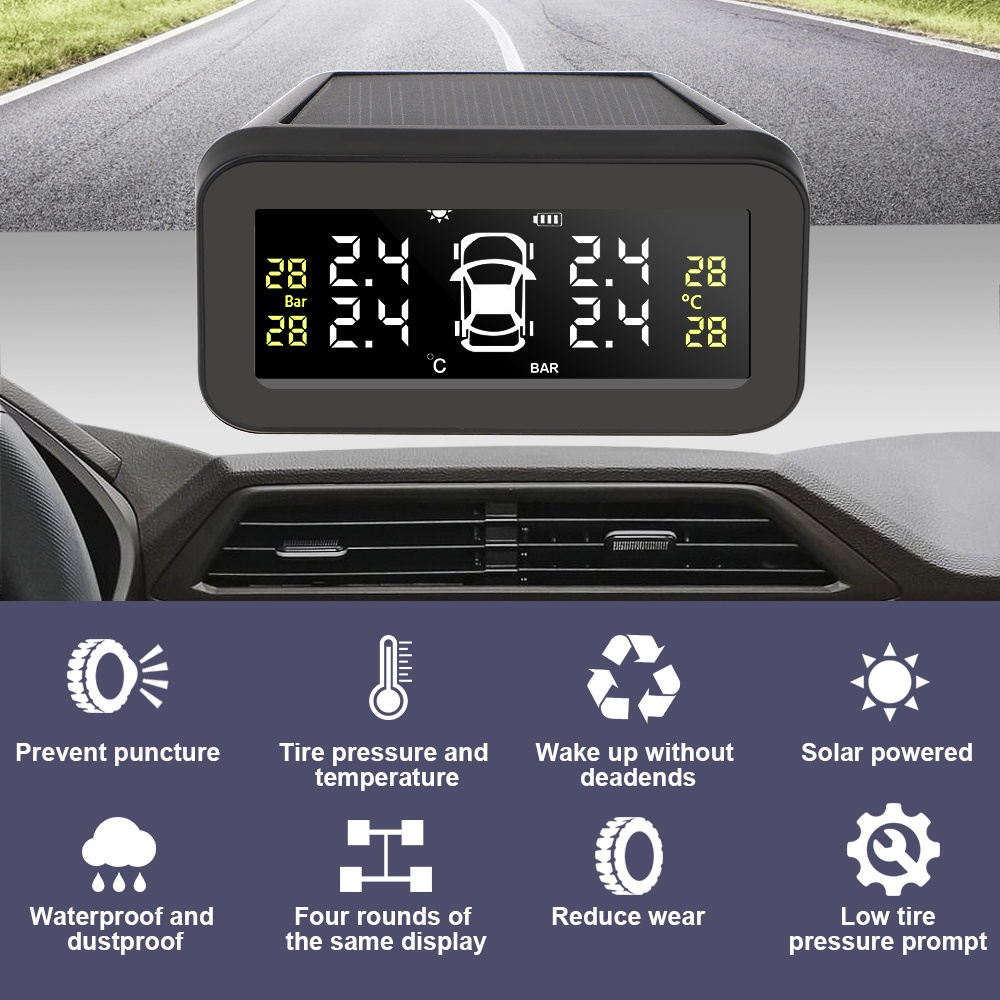

6 Protections for Safety Driving:
High Pressure Alarm
Low Pressure Alarm
Air Leakage Alarm
High Temperature Alarm
Battery Low Power Alarm
Screen&Sound Alarm

TPMS:
Material:PC
Working Temperature: -20℃-80℃
Working Voltage:DC 5V
Frequency :433.92MHz ±20KHz
Working Current:≤5mA
Charging:USB/Solor

External / InternalSensor:
Internal Working Temperature: -40℃-120℃
External Working Temperature: -20℃-80℃
Pressure Range：0-3.5Bar
Frequency :433.92MHz
Waterproof Level:IP67
Pressure Precision：+/-0.1Bar
Temperature Precision:+/-1°C
Built-in Battery：CR2050(Internal) CR1632(External)

Package Included:
1 set Tire Pressure Monitoring System
