Công Tắc Cam Điều Khiển Xoay 8 Vị Trí 5 Vị Trí 20a Màu Đen + Xanh Dương
Mô tả ngắn
Mua Công Tắc Cam Điều Khiển Xoay 8 Vị Trí 5 Vị Trí 20a Màu Đen + Xanh Dương giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
89,052₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu Công Tắc Cam Điều Khiển Xoay 8 Vị Trí 5 Vị Trí 20a Màu Đen + Xanh Dương
Off - On - On - On - On 5 positions control and 8 terminals design.Suitable for the thickness between 1mm to 4mm of the mounting board.
Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment control switch, or change-over switch for electric welding machinery and other equipment.

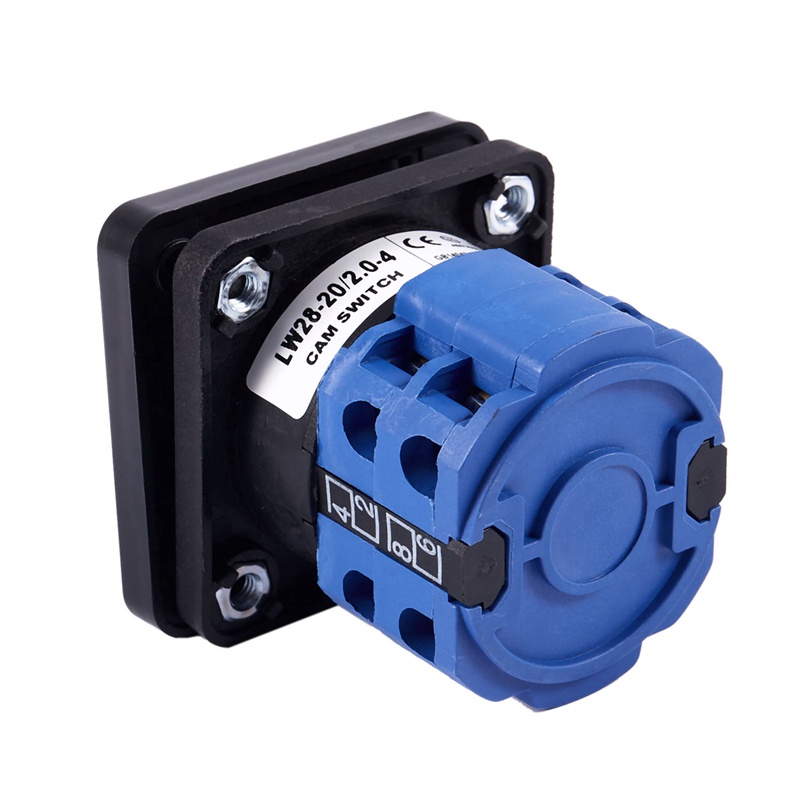

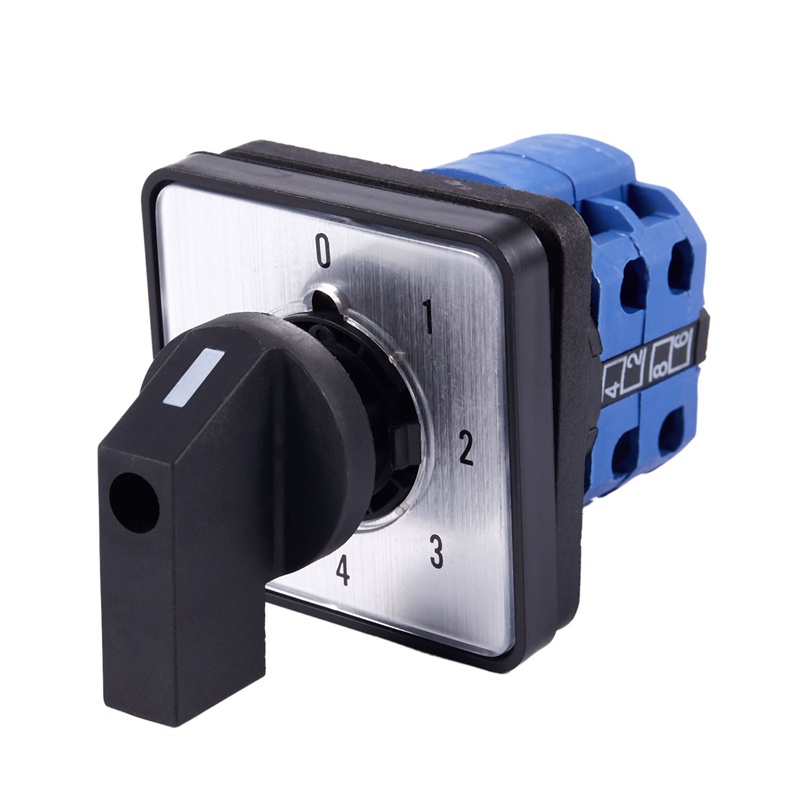

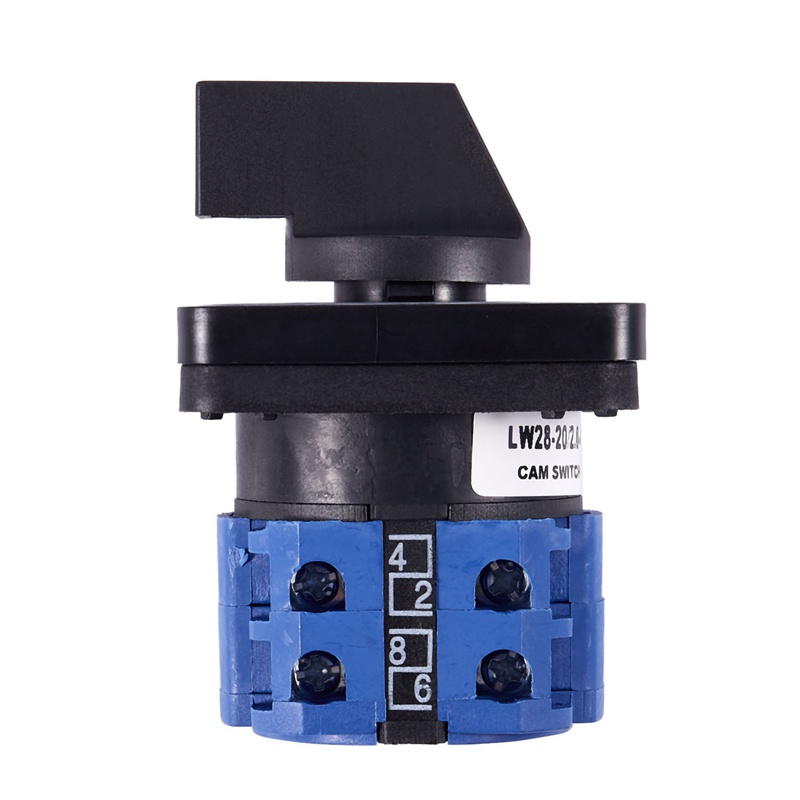

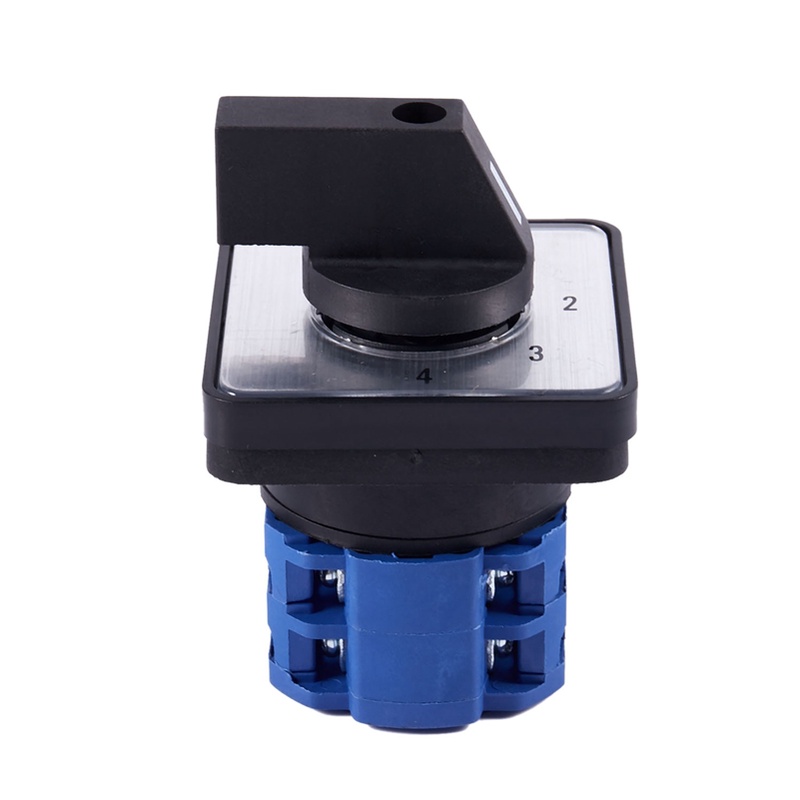

Product Name : Changeover Cam Switch
Control Type : Off - On - On - On - On
Positions Quantity : 5
Terminals Quantity : 8
Rated Voltage (max.) : AC 440V, 240V
Rated Current (max.) : 20A
Ui : 500V
Ith : 20A
Screw Hole Diameter : 0.45cm/ 0.18"
Mounting Hole Distance : 3.6 x 3.6cm/ 1.4" x 1.4" (L*W)
Overall Size : 4.8 x 4.8 x 7.2cm/ 1.9" x1.9" x 2.8" (L*W*H)
Material : Plastic & Electronics
Color : Black & Blue
Net Weight : 92g
Package :
1 x Changeover Cam Switch
4 x Screws
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
