Giới thiệu Mô Đun Đo Khoảng Cách Sóng Siêu Âm K02 Jsn-Sr04T Cho Xe Hơi

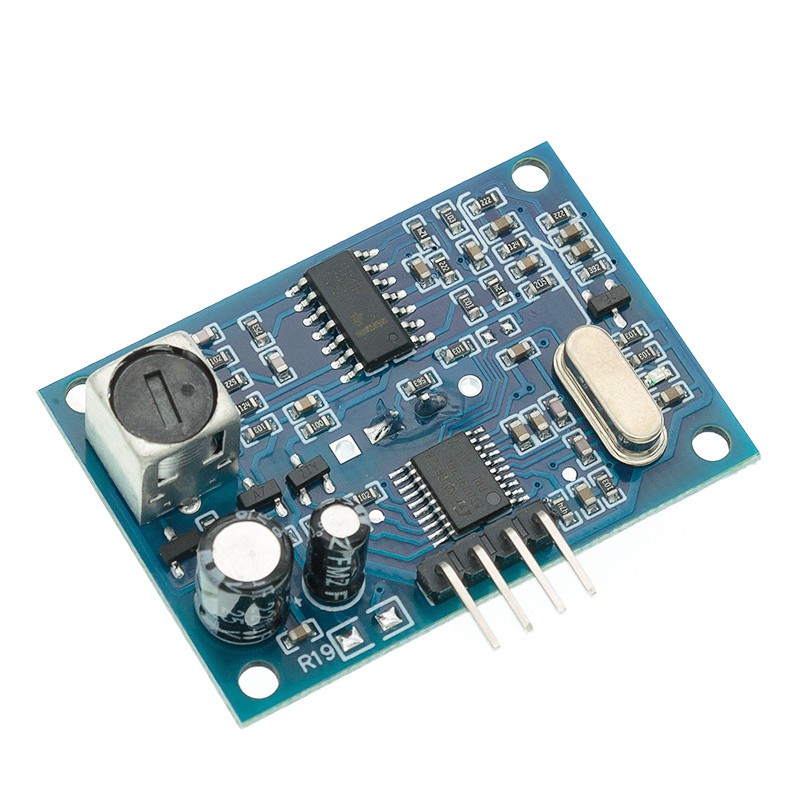

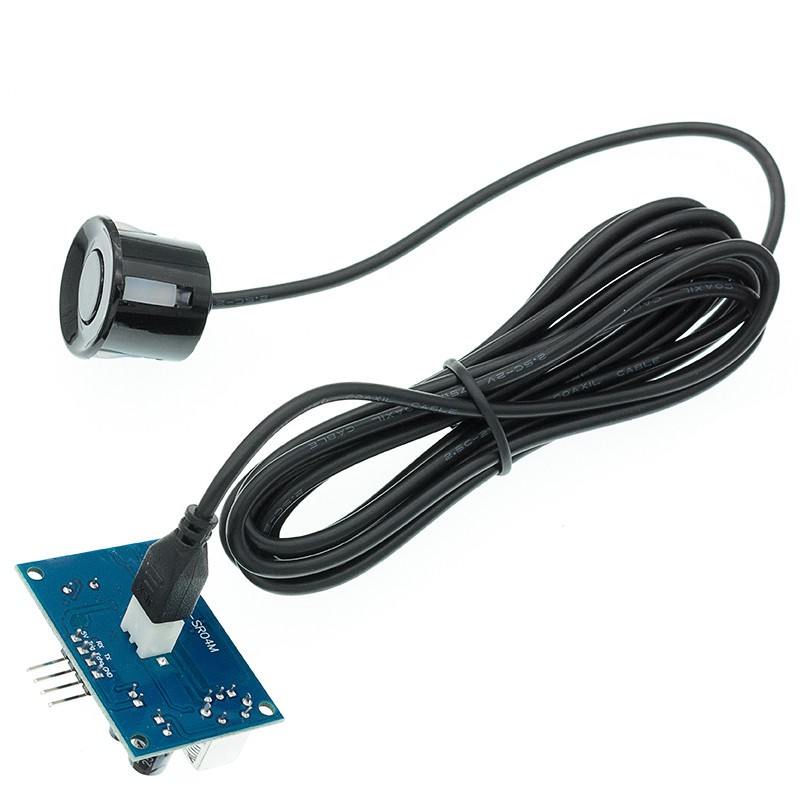

This product adopts industrial grade integrated ultrasonic probe design, waterproof type and stable performance. This module is fully compatible with the HC-SR04 ranging module.

1. The performance of this module is stable and the measurement distance is accurate. It is comparable to ultrasonic ranging modules such as SRF05 and SRF02. Module high precision, blind zone (25cm), stable ranging.

Performance parameters:
1. Electrical parameters: JSN-SRO4T
2, working voltage: DC 5v
3, static working current: 5mA
4, the total working current: 30mA
5, sound wave transmission frequency: 40KHZ
6, the longest distance measurement: 4.5m
7, blind zone: 25cm

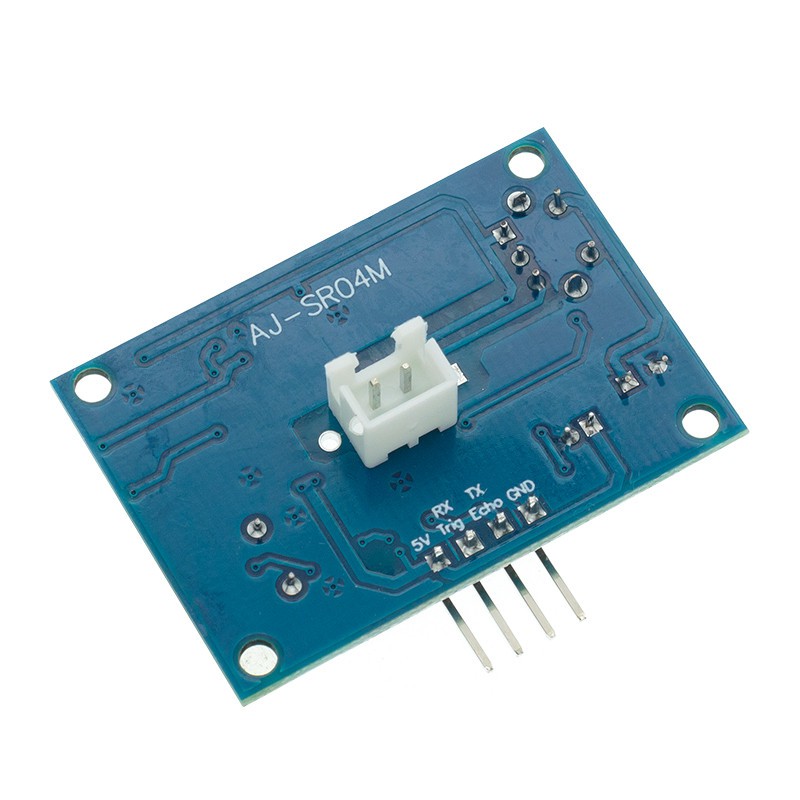

8, wiring method:
+5V (positive power supply)
Trig (control side) RX
Echo (receiver) TX
GND (power supply negative)
9, module size: 41mm * 28.5mm
10, resolution: about 0.5cm
11, angle: less than 50 degrees
12, working temperature: 10-70 ° C
13, storage temperature: 20-80 ° C

Features:
1. Small size and convenient to use;
2. Low voltage and low power consumption;
3. High measurement accuracy;
4, strong anti-interference;

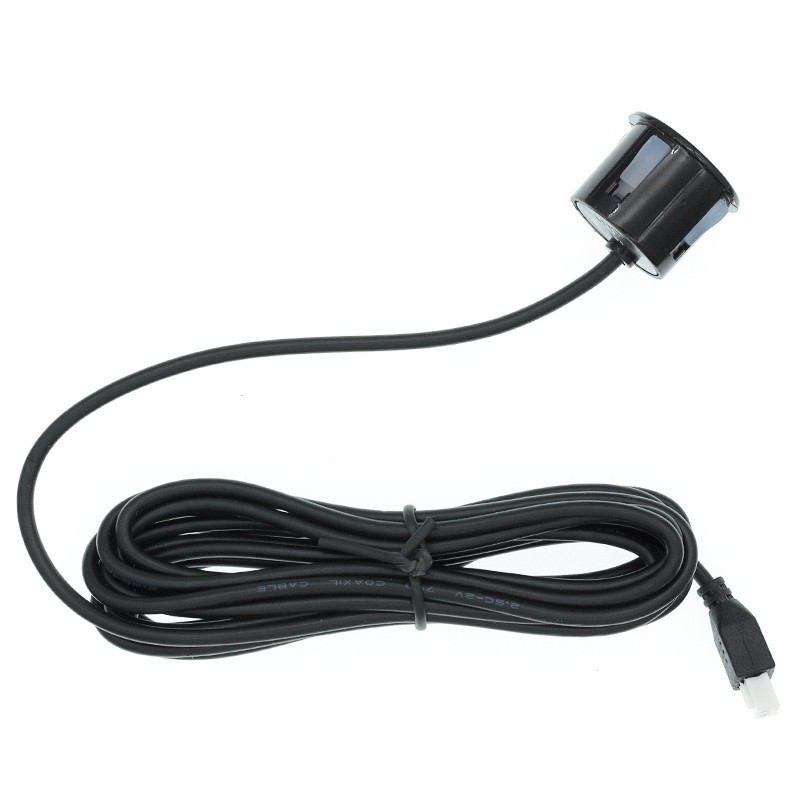

5, integrated closed waterproof tape probe, suitable for wet and harsh measurement occasions.

Application range:
1. Horizontal ranging;
2. Obstacle avoidance and automatic control;
3, the object is close, there is awareness
4. Traffic control;
5. Security and industrial control;
6, artificial intelligence, teaching and research

Basic working principle:
(1) Using IO port TRIG to trigger ranging, giving a high level signal of at least 10us;
(2) The module automatically sends eight 40khz square waves to automatically detect whether there is a signal return;
(3) There is a signal return, and a high level is output through the IO port ECHO, and the high level duration is the time from the transmission to the return of the ultrasonic wave. Test distance = (high time * sound speed (340M / S)) / 2;

This module is easy to use. A control port sends a high level above 10US, so you can wait for the high level output at the receiving port. You can turn on the timer when there is an output. When this port goes low, you can read it. The value of the timer, at this time is the time of the distance measurement, in order to calculate the distance. Such continuous cycle measurement, that is, you can reach the value of your mobile measurement.
