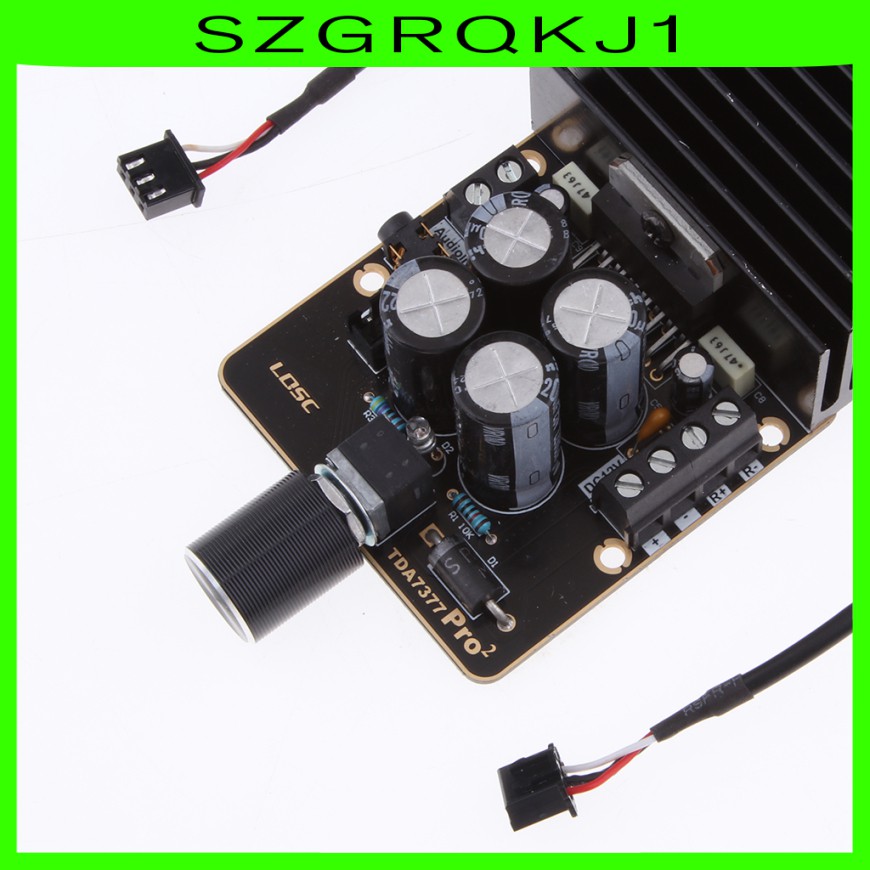

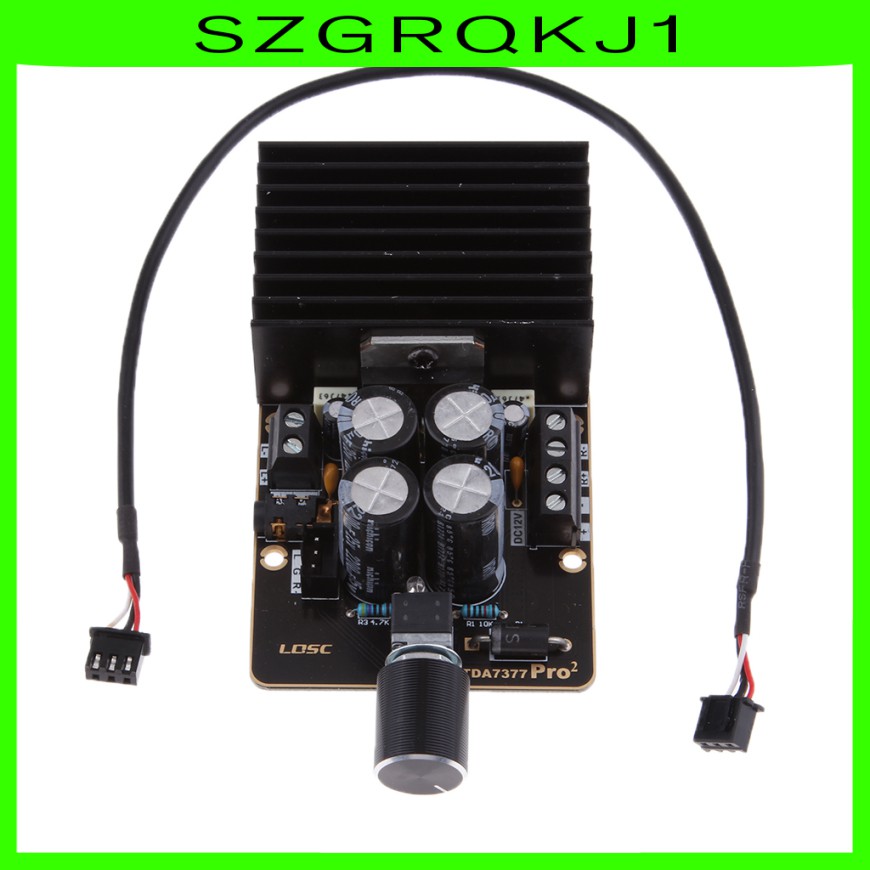

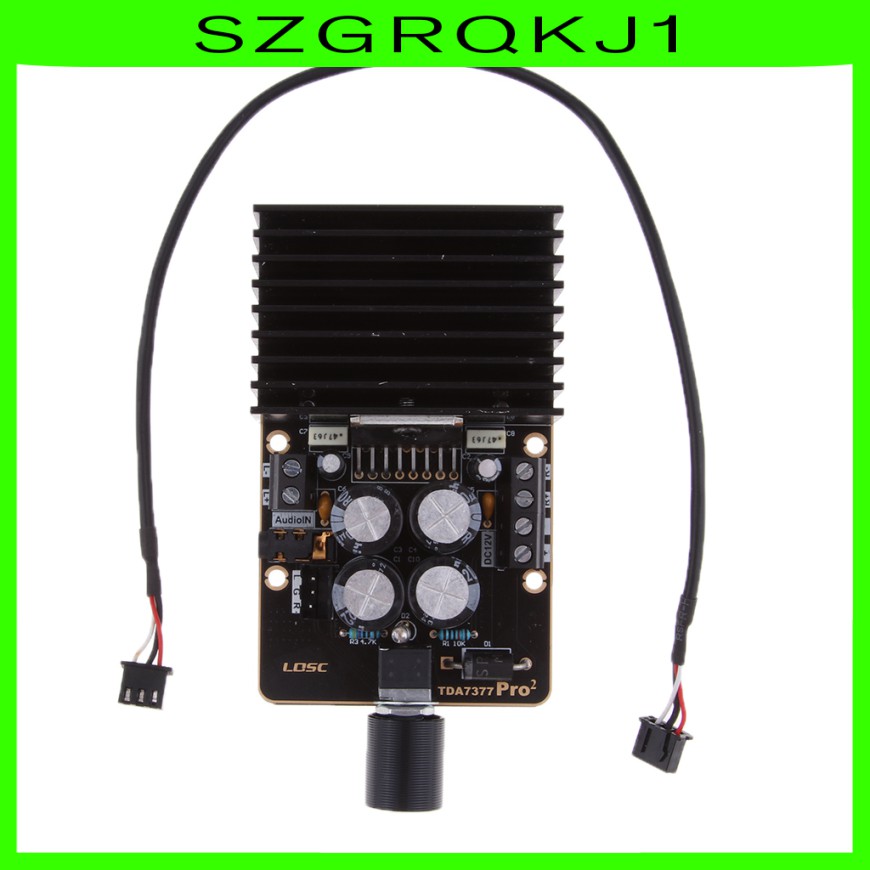

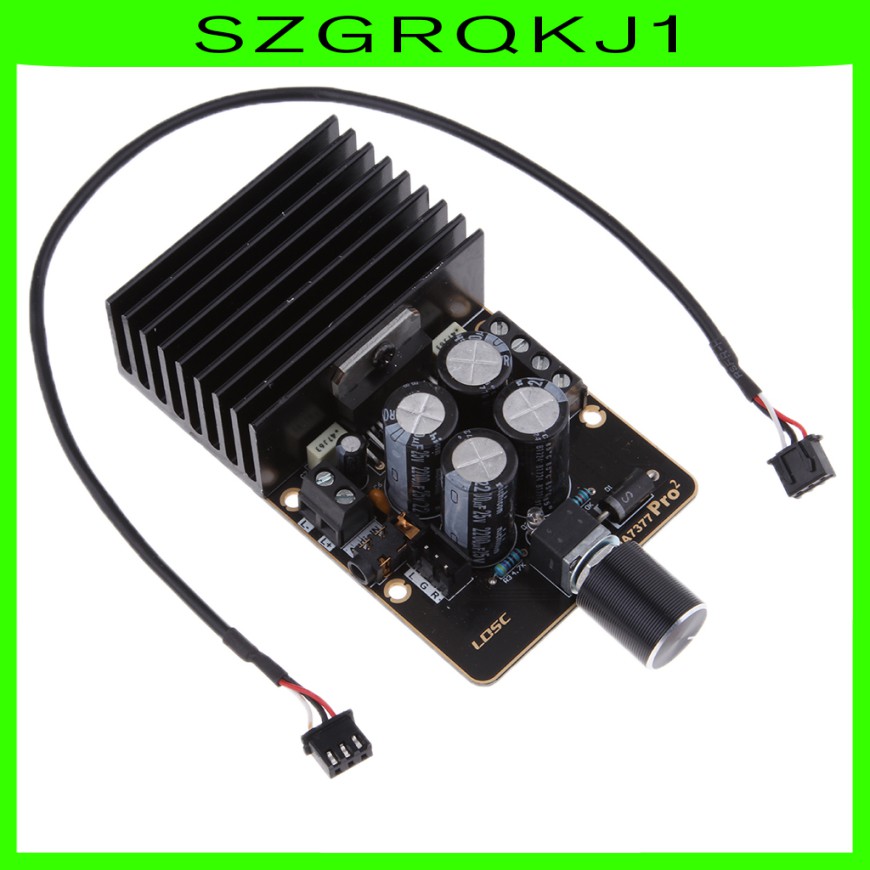

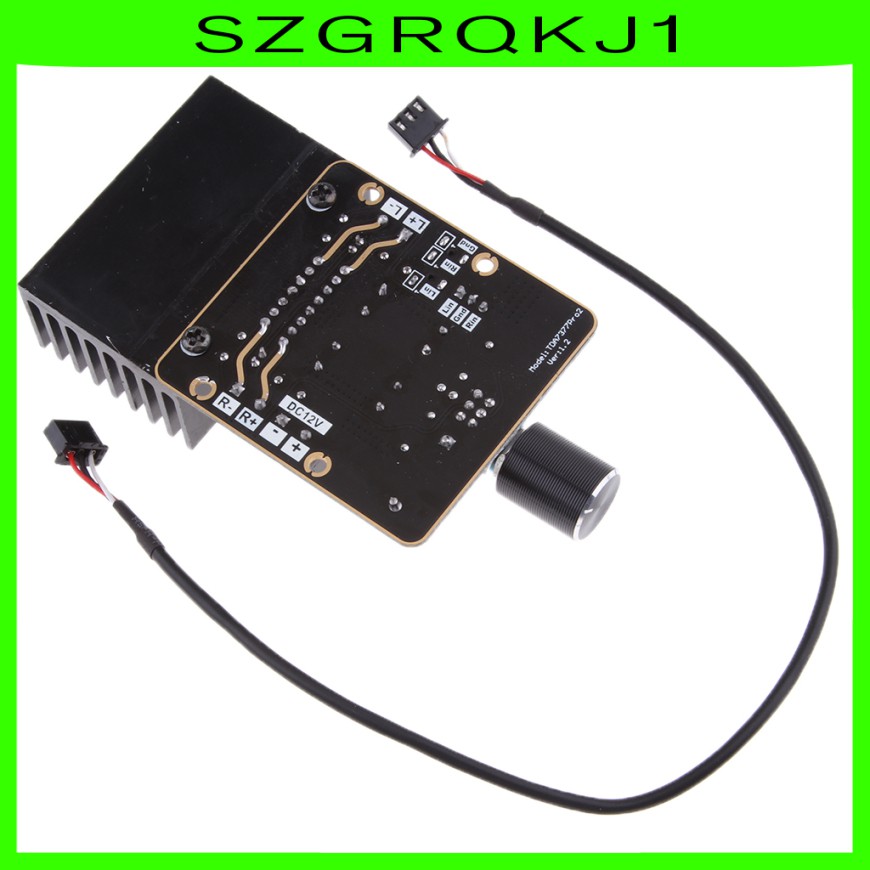

Bảng mạch khuếch đại âm thanh kỹ thuật số 2 kênh 12v Tda7377 2x30w dành cho xe hơi
Mô tả ngắn
Mua Bảng mạch khuếch đại âm thanh kỹ thuật số 2 kênh 12v Tda7377 2x30w dành cho xe hơi giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
275,000₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu Bảng mạch khuếch đại âm thanh kỹ thuật số 2 kênh 12v Tda7377 2x30w dành cho xe hơi
Description:
2*30W Class AB Automotive Grade Amplifier
Supply voltage: DC9-18V, 12V is recommended
Output power: can be connected to 4-8 ohm speakers Maximum 2x35W stereo (18V4 ohms)
Input method: 3.5mm audio input / 3P expansion input port
Protection: power input reverse protection, short circuit, over current, overheat
Potentiometer knob opening: 7mm
High-grade pure black immersion gold circuit board, imported audio capacitors, dual-port large-capacity filter capacitors per channel
Package Includes:
1Piece TDA7377 Stereo Amp
Note:
Please press the PCB board to indicate the wiring, the power supply can not be connected to the channel terminal, and the wrong connection will burn the IC.
