Giới thiệu Bảng Điều Khiển Đèn Năng Lượng Mặt Trời 3.2v Và 6v

This solar light source panel is suitable for connecting 3.2-3.7v cells and 5.5-7.5v photovoltaic panels.

Wiring position of lamp board
B + B - are respectively connected to the positive and negative poles of the battery
S + S - are connected to the positive and negative poles of the solar panel.
--For the convenience of users without soldering iron,
A 10 cm lead wire is soldered at the time of delivery.

Description of lamp board performance:
This lamp board has memory function to remember the last time
set up. The lamp board has no battery protection function
Please ask the battery manufacturer to provide when you buy the battery
Battery overcharge and overdischarge protection board. Otherwise, the battery is overcharged

Overdischarge battery is easy to damage.
The lamp board itself contains the control circuit
Solar photovoltaic panels and cells can be working. white
If it doesn't light up, it will light up automatically at night
The lamp board can be timed, dimmed and forced
Turn on and off the lights.


Principle of light control
Only when connected to the solar photovoltaic panel can the light be realized
Control function. After the photovoltaic board is connected, the current is generated during the day
When the battery is charged, the light will go out by itself, and it will turn off at night
When the board does not generate current, the light will be on by itself.

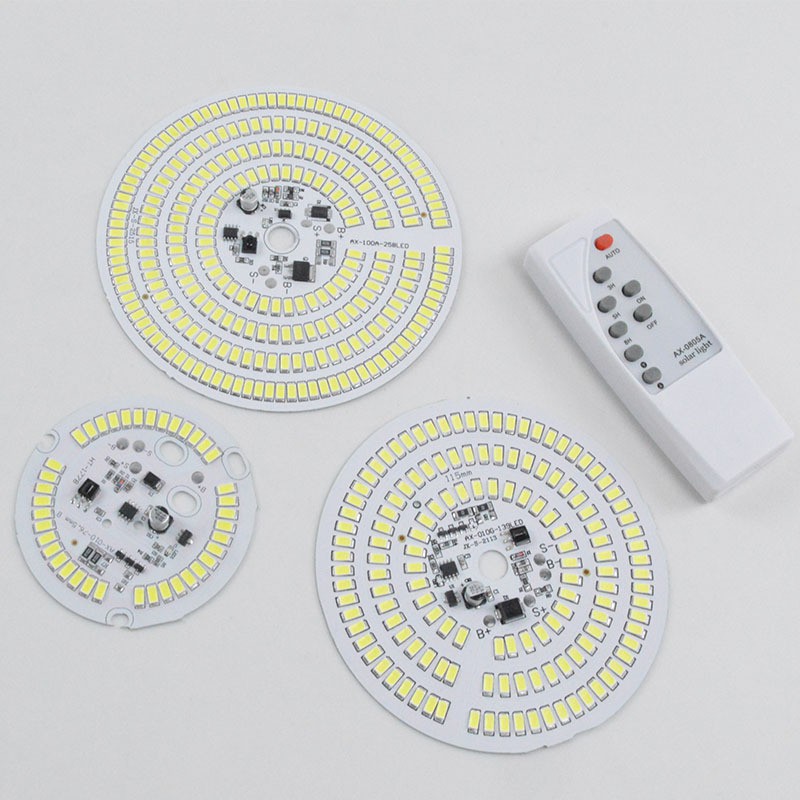

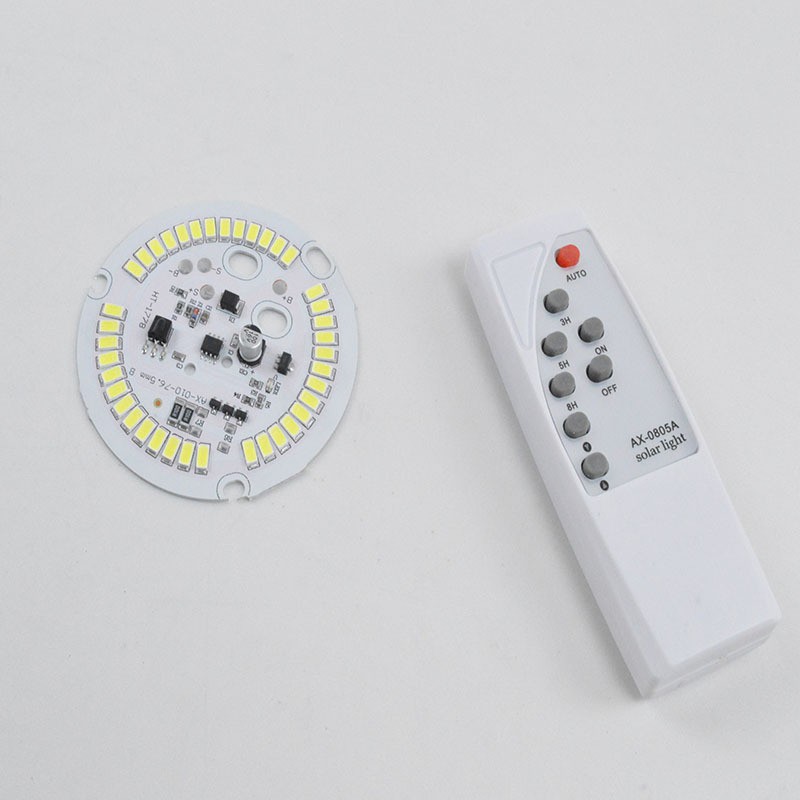

39 bead configuration reference
Battery: 3.2v5000mah
PV panel: 6v6w

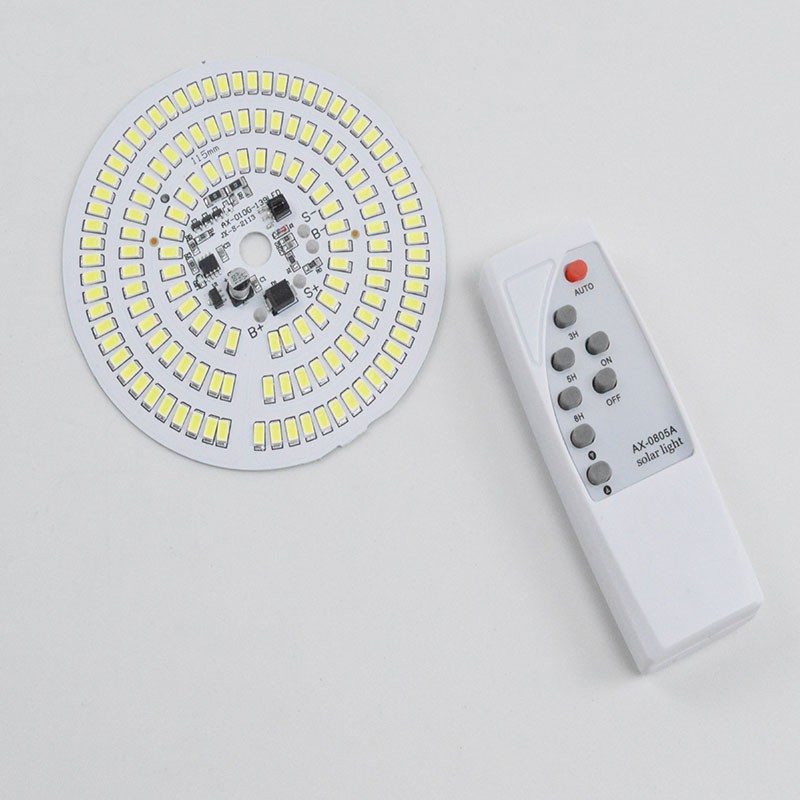

139 bead configuration reference
Tank: 3.2v10ah
PV panel: 6 Ⅵ 12W

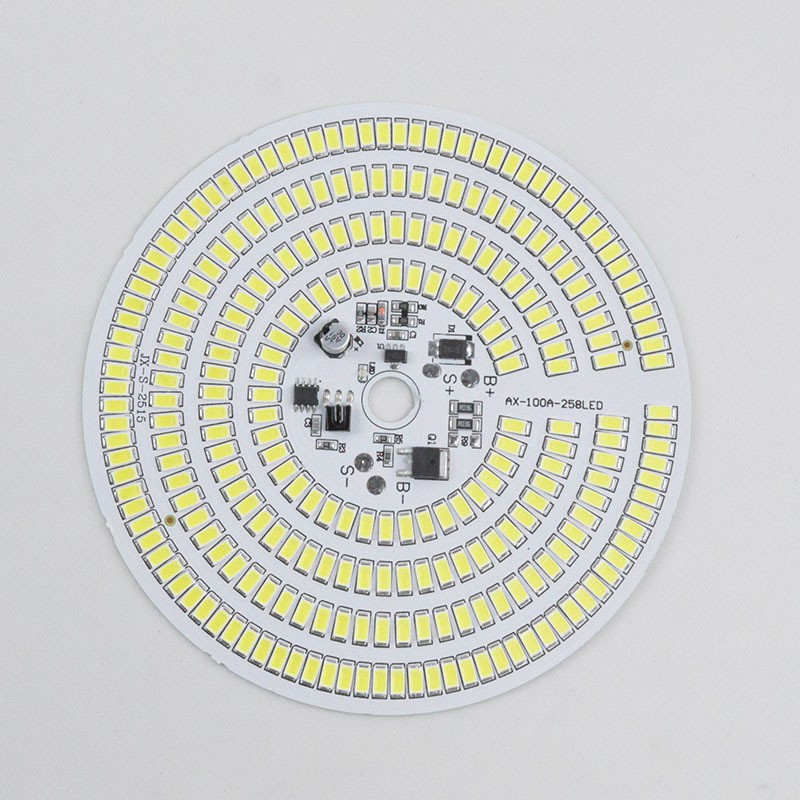

258 bead configuration reference
Battery: 3.2v15ah
PV panel: 6v18w

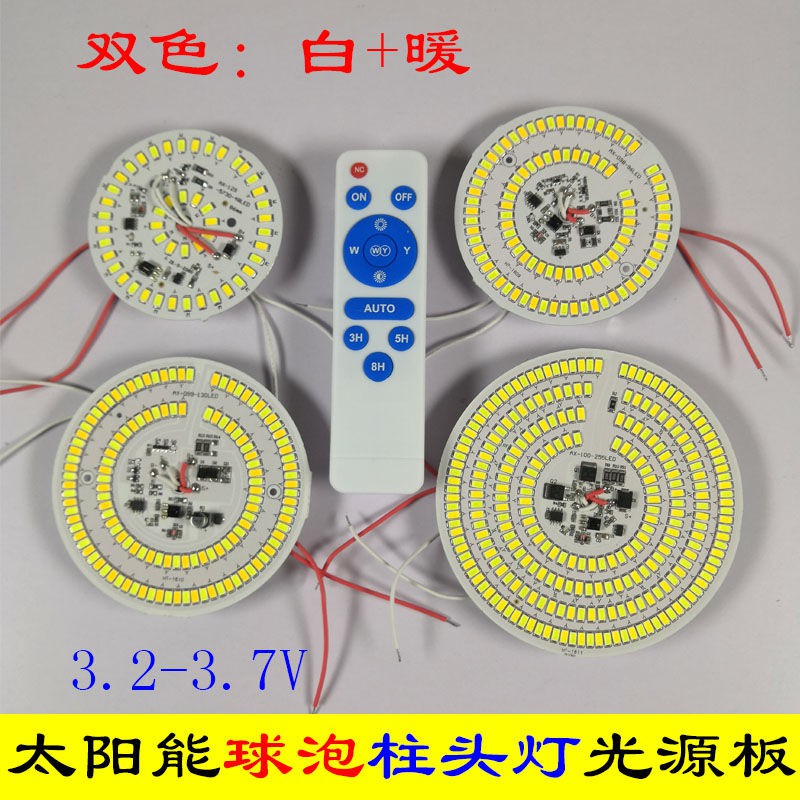

Two color 48 bead configuration reference
Battery: 3.2v5000mah
PV panel: 6v6w

Two color 96 bead configuration reference
2V1OAH
PV panel: 6v12w

Two color 130 bead configuration reference
Battery: 3.2v10ah
PV panel: 6v12w

Two color 255 configuration reference
Bead cell: 3.2v15ah
PV panel: 6v18w

Two color 117 bead configuration reference
Battery: 3.2v10oah
PV panel: 6v12w

Bi color 159 bead configuration reference
Battery: 3.2v15ah
PV panel: 6v18w

Package included
A: 39 beads, white light, 75mm
B: 139 beads, white light, 115mm
C: 258 beads, white light, 130mm
D: 36 beads, 36mm, two colors
E: 48 bead, 85mm, two color
F: 96 beads, 98mm, two colors
J: 130 bead, 110mm, two color
H: 117 beads, 170mm, two colors



Dear customer friends, and any questions you don't understand can consult our customer service Oh
