Giới thiệu Pin Li-Ion LTO Cân Bằng 3S 4S 6S 7S 8S 13S 14S 16S 20S 20S Cho Cân Bằng Lifepo4

!!!Nag again and again, friends without electronic foundation should not buy it, so as to avoid economic losses!!!

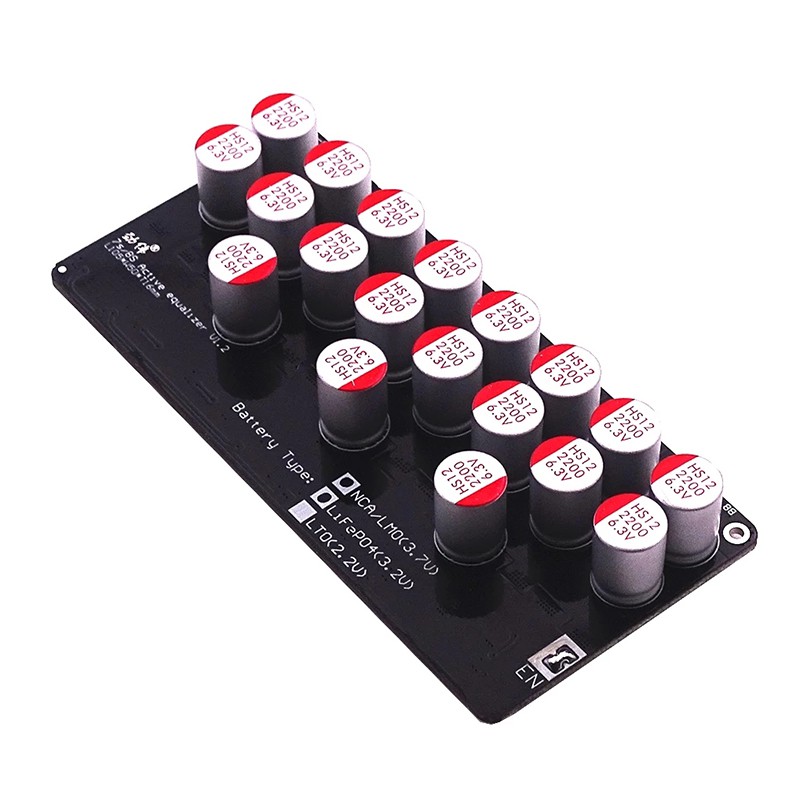

Lithium battery active balance energy transfer board Lithium battery active equalizer high efficiency energy transfer balance
Capacitive energy transfer equalization board (high precision 5mv, the whole group equalization, not adjacent equalization)
Capacitive energy transfer balance board

Feature:
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

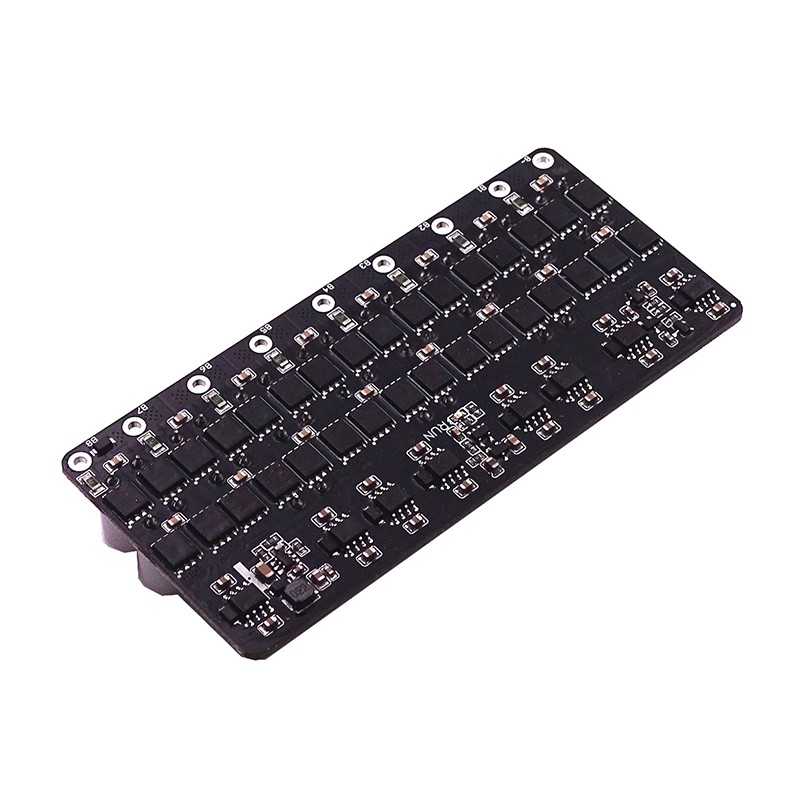

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.

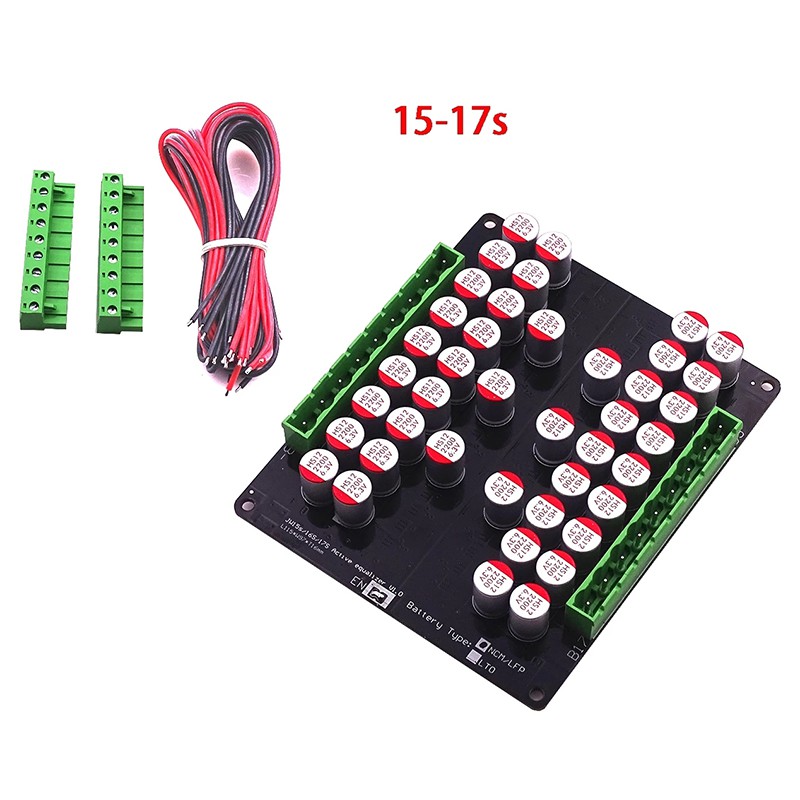

14s for all/15-17S for all is suitable for ternary lithium, lithium iron phosphate, lithium titanate
