Giới thiệu Bo Mạch Ăng Ten Nhận Tín Hiệu Điều Khiển Từ Xa 4CH 27MHZ
Description:100% brand new and high quality
Material: Electronic Components
Color: See pictures
Frequency: 27MHZ
Emission Plate Voltage: 3-4.5V;
Receive board working voltage: 4.5v-6v;
Received board OUTPUT: 4 lines,2v-3.5v
Receiving range about 10meter
Connection method:

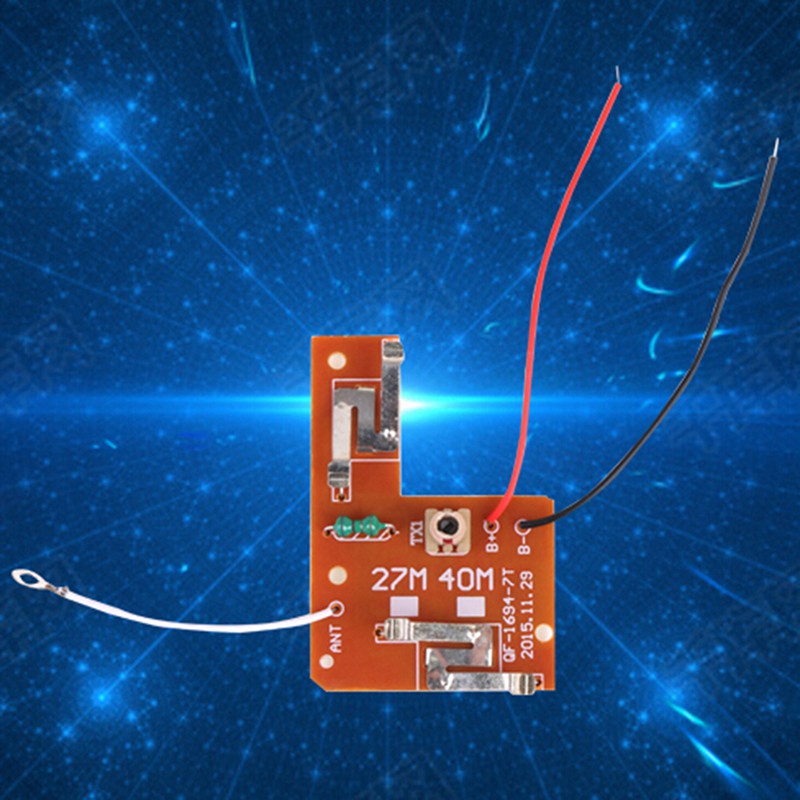

Emission Plate: red V+ positive power supply, black wire V- negative power supply, ANT connect the antenna; 3-4.5V

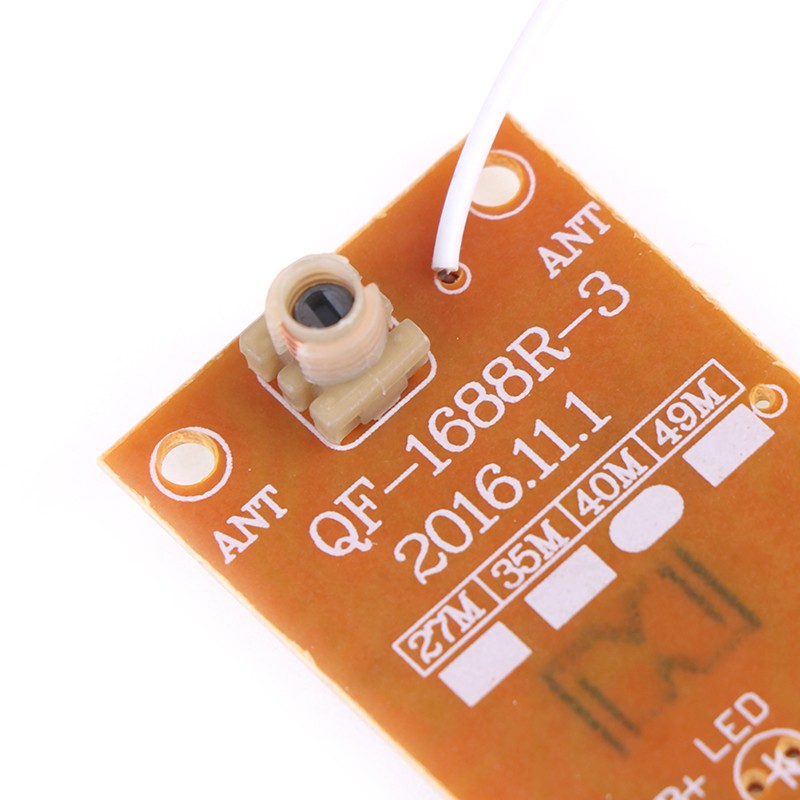

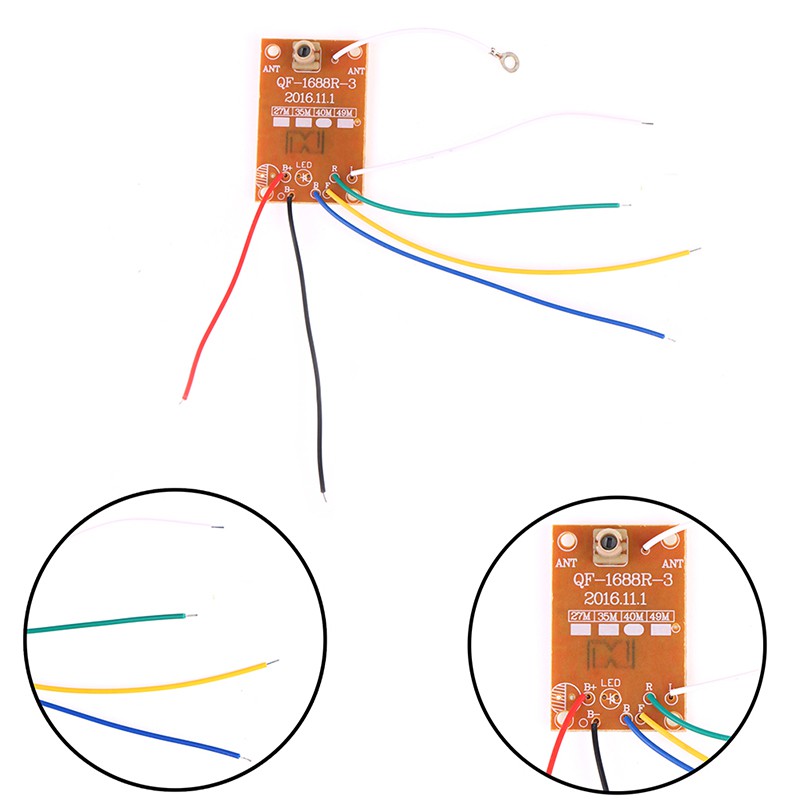

Receiver Board: black wire = negative power supply, red wire =positive power supply;
L R wire for moter 1 can supply continue powerful supply
F B wire for moter 2 can supply continue power supply
Dimensions: (L*W)
Emission plate: 5.7*3.7cm/2.24"*1.46"
Receiver board: 4.2*2.7cm/1.65"*1.06"
No Retail Packages
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:

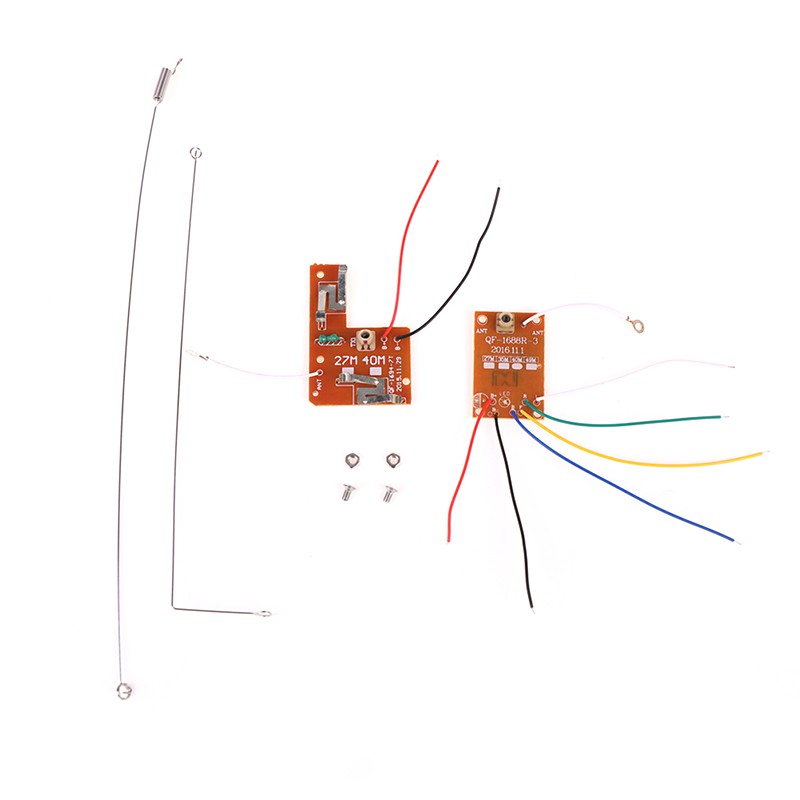

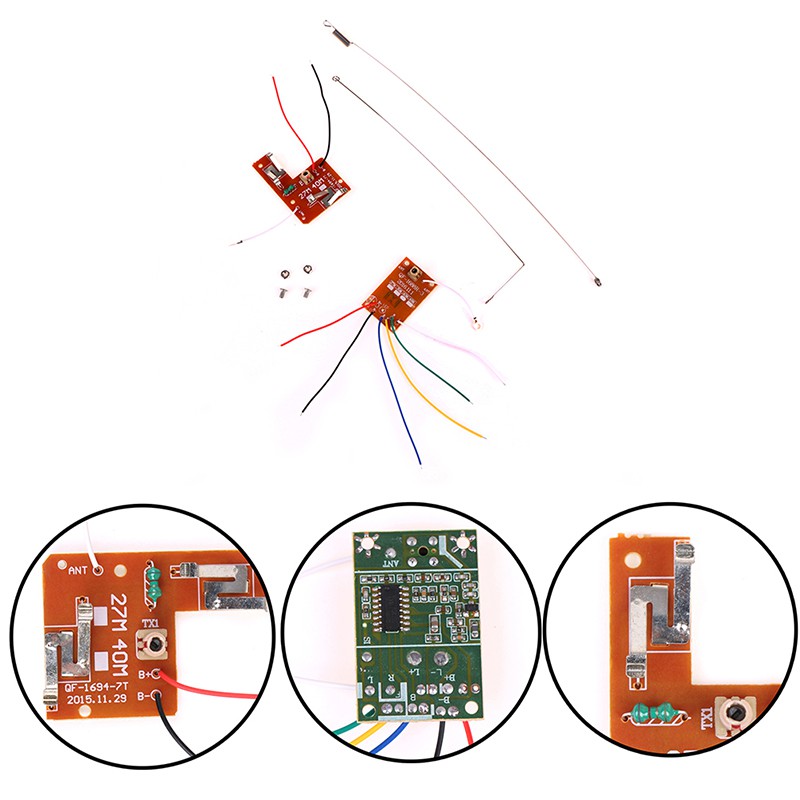

1 Pc x 4CH Remote Control 27MHZ Circuit Board PCB Transmitter Receives Antenna Toys
