M.2 A+E KEY 2.5G Ethernet LAN Card RTL8125B Industrial Control Network Card PCI Express Network Adapter


Mô tả ngắn

Mua M.2 A+E KEY 2.5G Ethernet LAN Card RTL8125B Industrial Control Network Card PCI Express Network Adapter giá rẻ nhất ở đâu?
: Còn hàng
Nước ngoài
: Shopee.vn
390,000₫ 685,000₫

Sản phẩm cùng danh mục

Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.

Xem thêm
Siêu sale Xmas - Lazada.vn

Giới thiệu M.2 A+E KEY 2.5G Ethernet LAN Card RTL8125B Industrial Control Network Card PCI Express Network Adapter

Auto-negotiation with extended next page functionality
Support for swap//skew correction, cross detection and auto-correction
Support hardware ECC (Error Correction Code), hardware CRC (Cyclic Redundancy Check) function
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Supports ECMA-393 ProxZzzy standard for sleeping hosts, supports Wake-on-LAN and "RealWow!" technology (remote wake-up)

Compliant with PCI Express Specification Revision v2.1
Supports 1-Lane 2.5/5Gbps PCI Express bus
Onboard single 2.5G network port, integrated 10/100/1000M/2.5G transceiver
Support 2.5G and 1G Lite, 100M mode
Auto-negotiation with extended next page functionality
Support for swap//skew correction
Cross detection and automatic correction
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
Support shaping algorithm based on IEEE802.1Qav credit
Support IEEE802.1P layer 2 priority encoding
Support IEEE802.1Q VLAN tagging
Support IEEE802.3bz-2016 (NGBASET)
Support full-duplex flow control (IEEE802.3x)
Supports jumbo frames up to 16K bytes
Support for Virtual Machine Queue (VMQ)
Support quad-core receive-side scaling (RSS)
Bus type: M.2 A+E KEY
Transmission medium: 1 x 2.5G RJ45 port
Transmission rate: 2.5G/1000/100Mbps
Network Mode: Support 2.5G and 1G Lite mode
Network topology: - Support IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
System requirements: Win 7/Win 8/Server 2008/Win 8.1/Server 2012/2016, Win 10 32/64bit, Linux...
Support IEEE802.3az-2010
Colour:green
Material:PCB

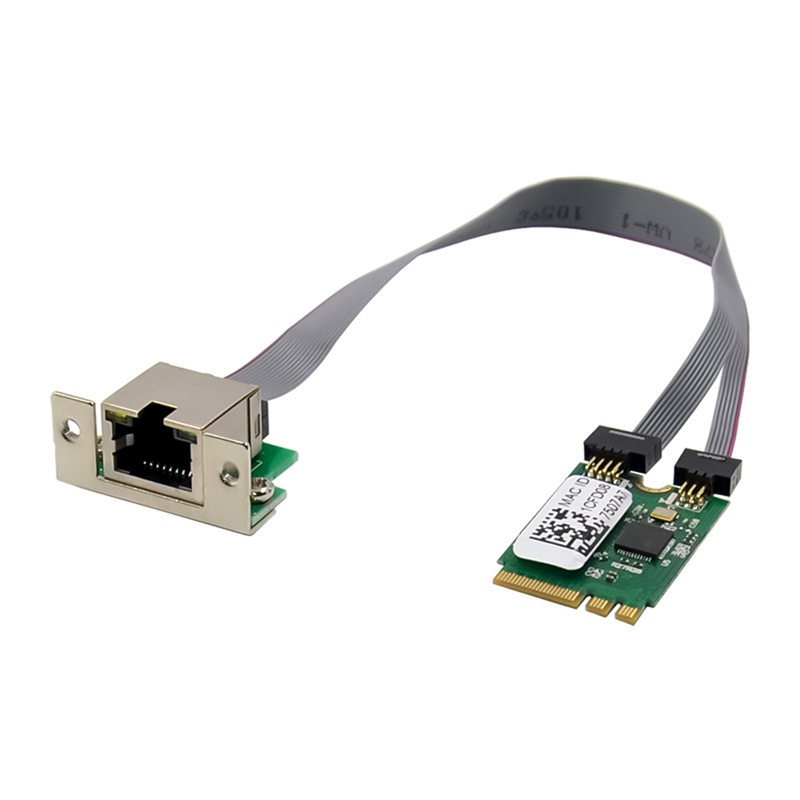

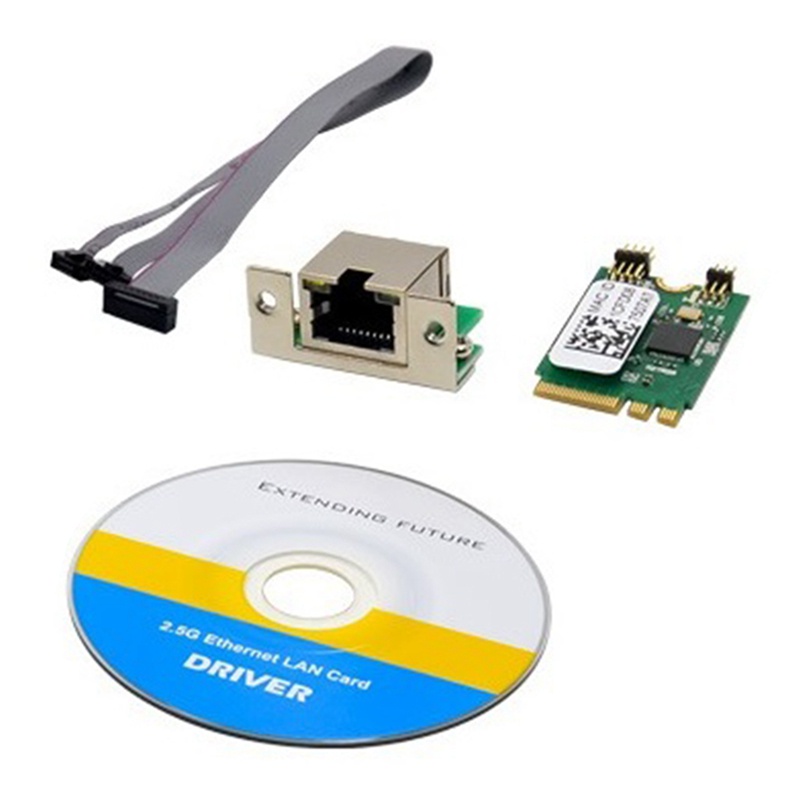

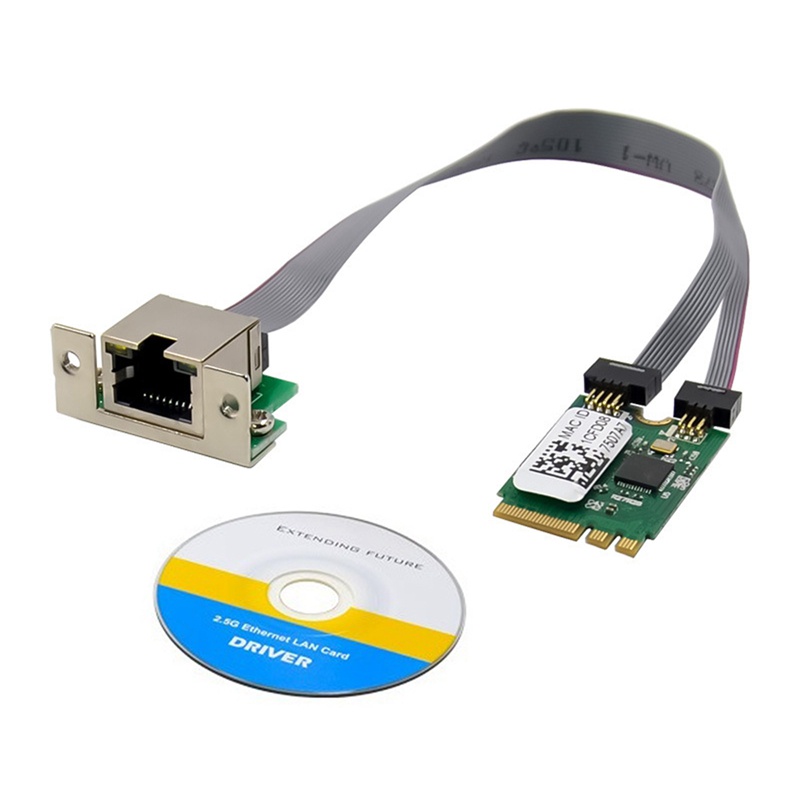

Package Contents:

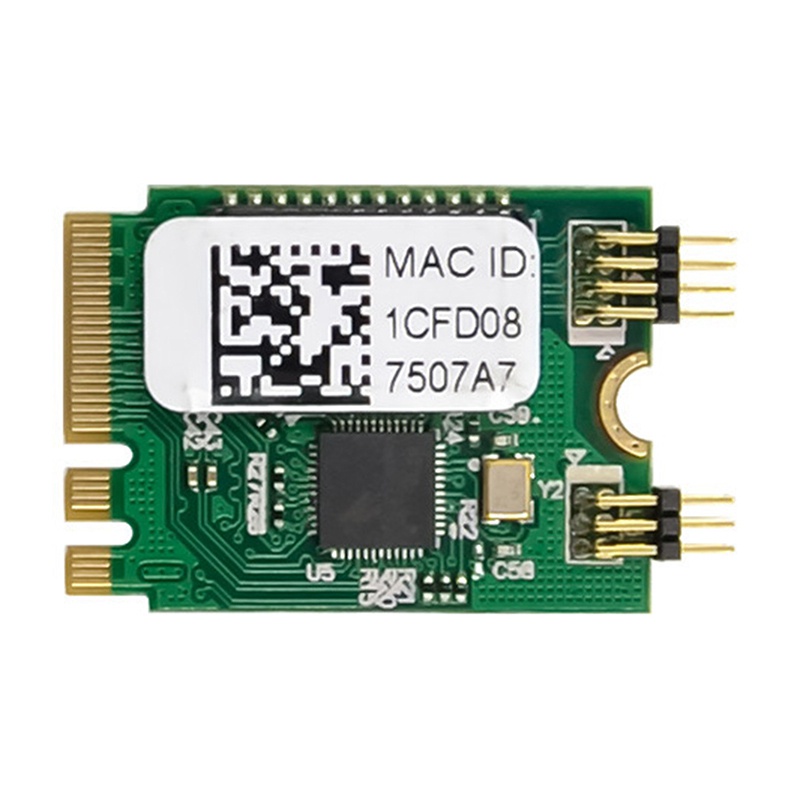

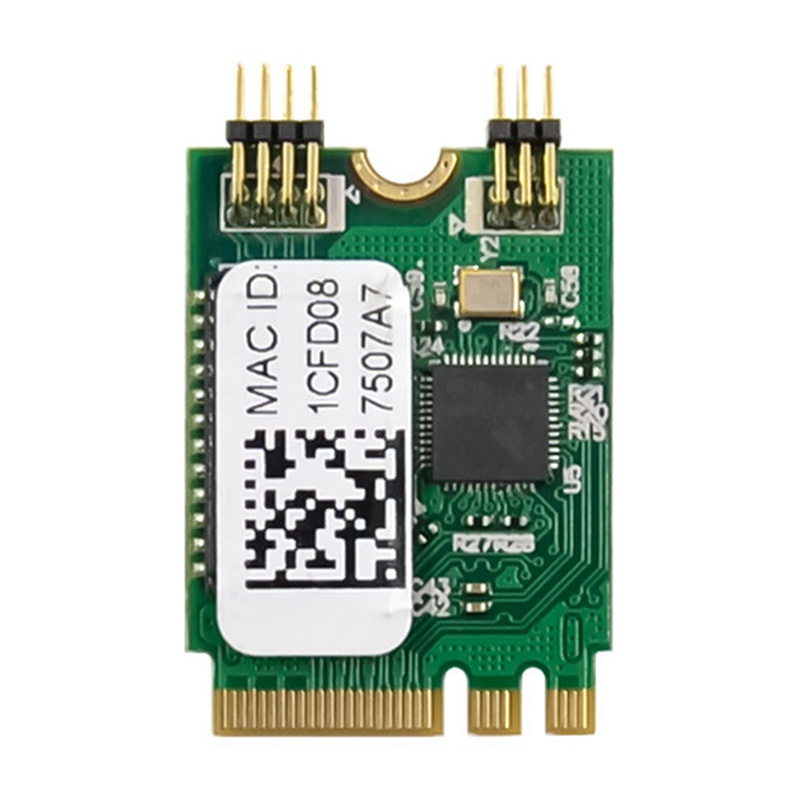

1 x M.2 A+E RTL8125B Main Card
1 x RJ45 Network Terminal
1 x Network Termination Cable
1 x CDOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
