Giới thiệu 0.96 Inch 128x64 Oled Lcd Led Màu Trắng Cho Arduino

High resolution: 128x64 (have the same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)
Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)
Wide voltage supply (3V-5V), 3.3V and 5V level logic compatible, no level shifter IC
IIC interface and only requires 2 IOs to light up easily
The range of working temperature is industrial (-20°C-70°C)
Military-grade process standards, long-term work steadily
Provide rich multi-platform routines and the technology support of underlying driver
name: color ,category
size: 0.96(inch)
type: OLED
OLED driver chip: SSD1306
ule interface: IIC,①-GND,②-VCC,③-SCL,④-SDA

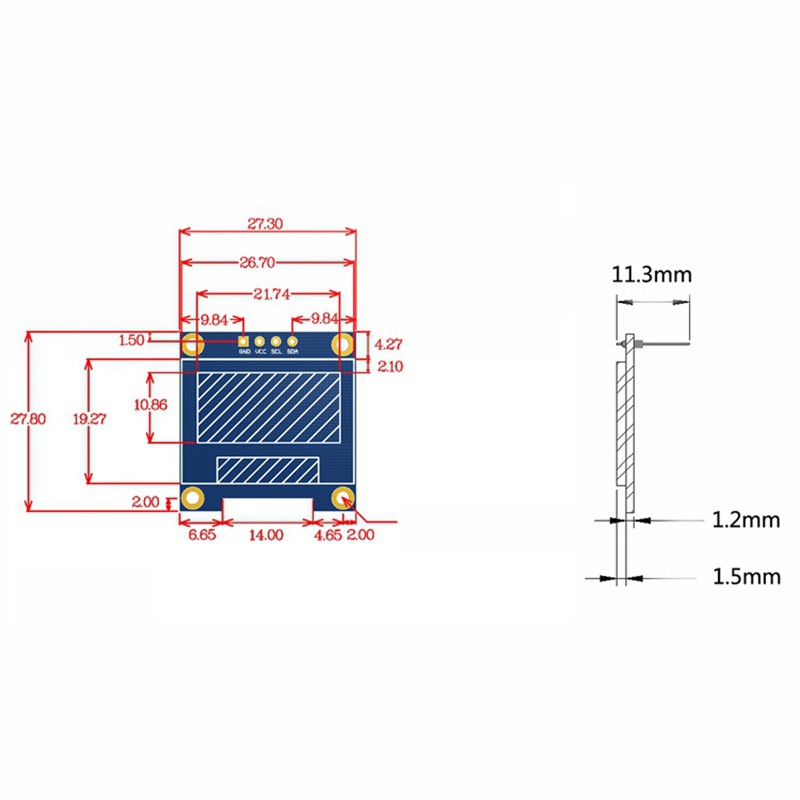

Effective display area: 21.744x10.864(mm)
ule size 27.3x27.8(mm)
storage temperature: -30℃-80℃
Working voltage: 3.3V / 5V
power dissipation : Max:25mA,Min: 1.5mA
product weight : 15(g)
Interface definition
PIN : label : Pin description
1 : GND:OLED GND
2 : VCC :OLED VCC input(3.3V-5V)
3 : SCL :OLED clock signal of IIC bus
4 : SDA :OLED data signal of IIC bus
display color : white / blue
colour:as shown
Material:Metal +pc
Package Contents:
1 * 0.96 inch OLED LCD LED Display ule
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
