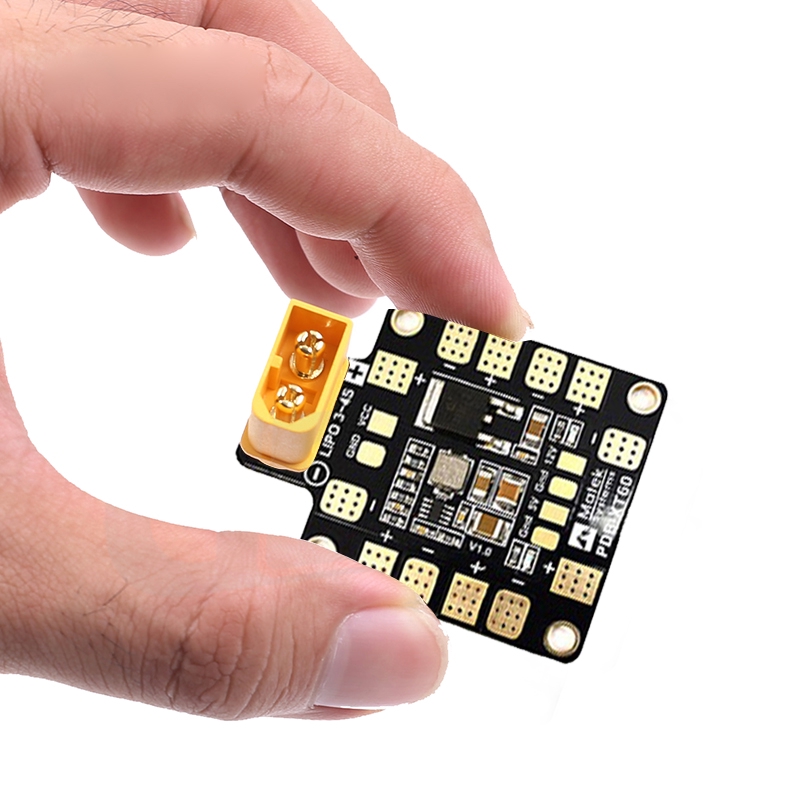

Giới thiệu Bo Mạch Phân Phối Nguồn Pdb Xt60 Hỗ Trợ 5v 2a 12v 0.5a Cho Drone X Hoặc H

Explanation:
Material: circuit board
Color as shown
Board size: 5.2 cm* 3.6cm *0.3cm
Board weight: 7.5g (includes 11g)
2oz copper, 4-layers & 1.6mm PCB
Built-in XT60 Socket
Light and durable for intensive usage
Quick & Easy Installation

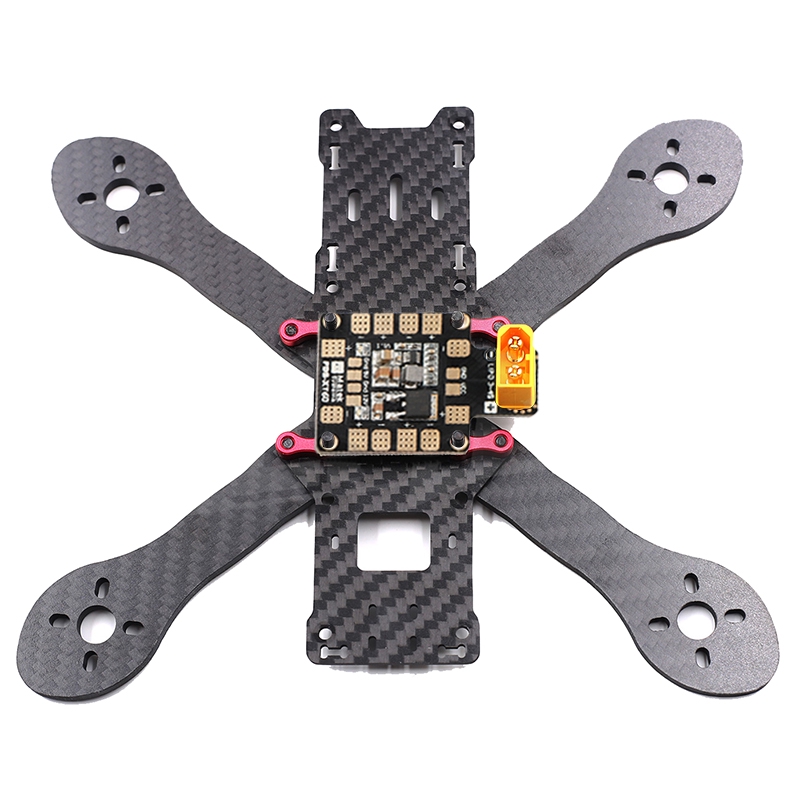

Total 6 pairs ESC solder tabs are fit for H or X type frame
5V & 12V Output LED indicators & Short circuit tolerant

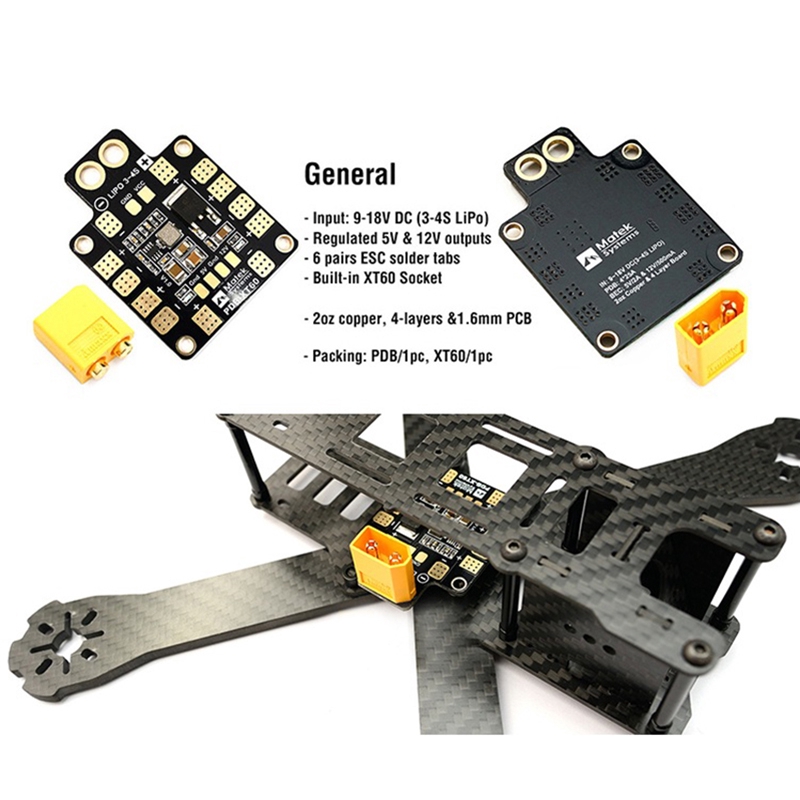

General:
Input voltage range (3S-4S LiPo operation): 9-18V DC
Regulated outputs: 5V and 12V outputs
ESC outputs:
Continuous current: 25A*4 or 15A*6
Peak current (10 seconds/minute): 30A*4 or 20A*6
BEC 5V output:
Designed for: RC Receivers, Flight controllers, OSD, and Servos
BEC Mode: Linear
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant: 5 seconds/minute
BEC 12V output:
Designed for: Video TX or FPV camera with linear regulator
BEC Mode: Linear
Suggested battery: 4S LiPo (13~18V DC)
Voltage: 12.0 +/- 0.3VDC
Continuous current: 500mA (Max.0.8A 5s/minute)
Short-circuit tolerant: 2 seconds/minute
Package Contents:
1 * PDB Board
1 * XT60 Connector
1.The PDB-XT60 has been engineered to provide the highest performance and reliability in a 36*52mm & 4 layers PCB.

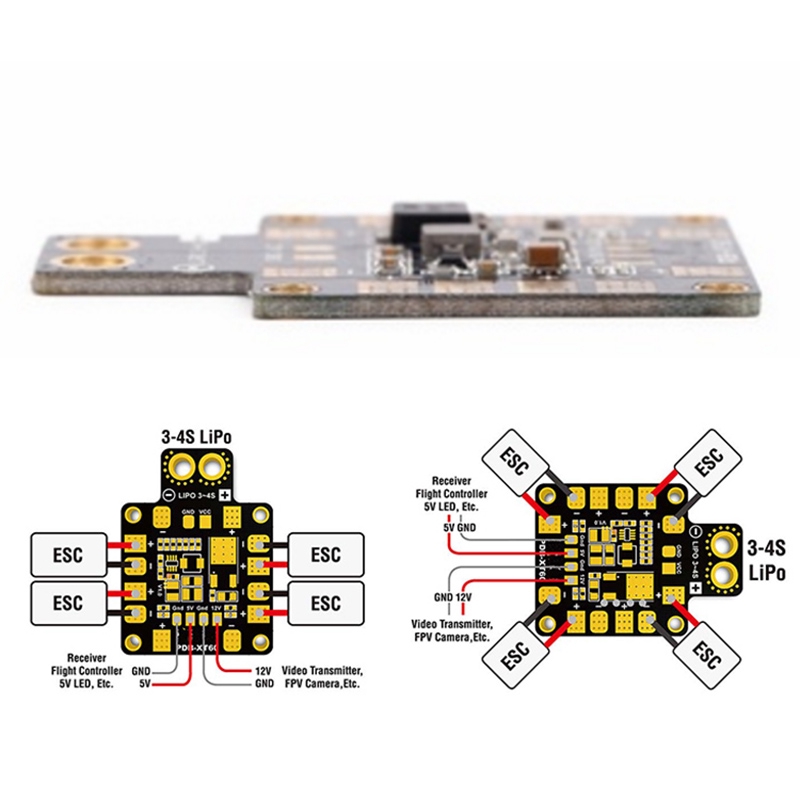

2.It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
3.The PDB-XT60 offers a Authentic Amass XT60 plug to connect the LiPo pack conveniently.
4.4-layer PCB Board, high current power and BEC stratification, avoid ground disturbance BEC power current;

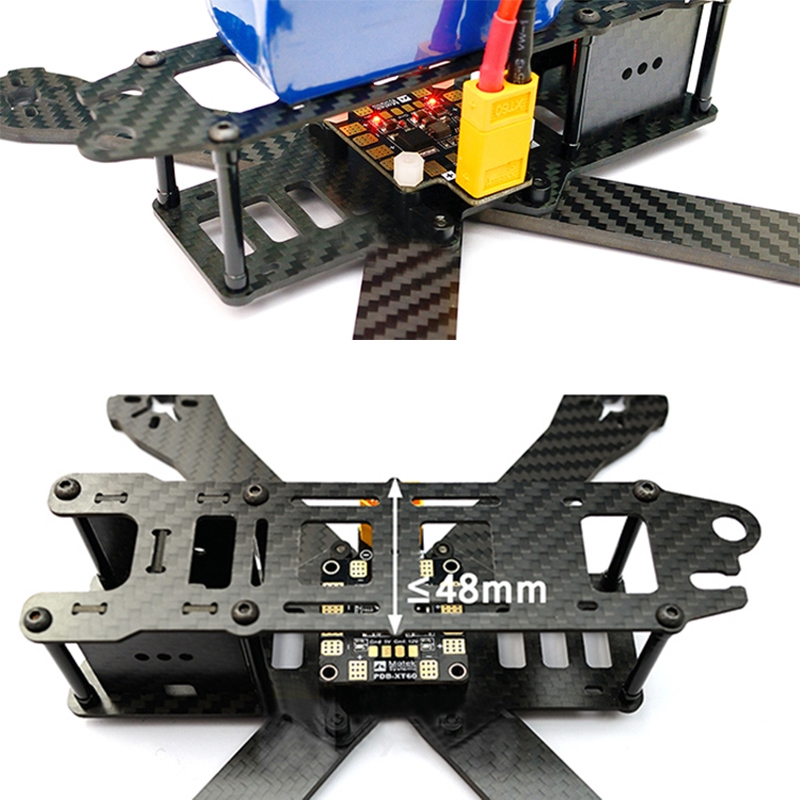

5.This board makes the wiring nice, with the bonus of having the XT60 option. Stacked right on top of the CC3D with plenty of room.
