Mạch ampli XH-M510 TDA7498 công suất cao kỹ thuật số chuyên dụng
Mô tả ngắn
Mua Mạch ampli XH-M510 TDA7498 công suất cao kỹ thuật số chuyên dụng giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
212,000₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.

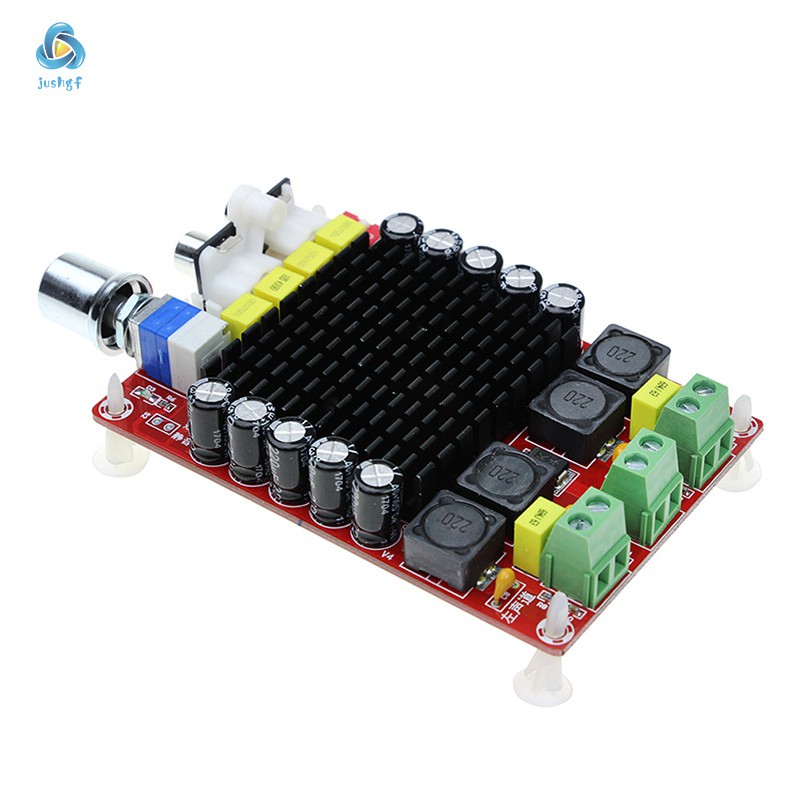

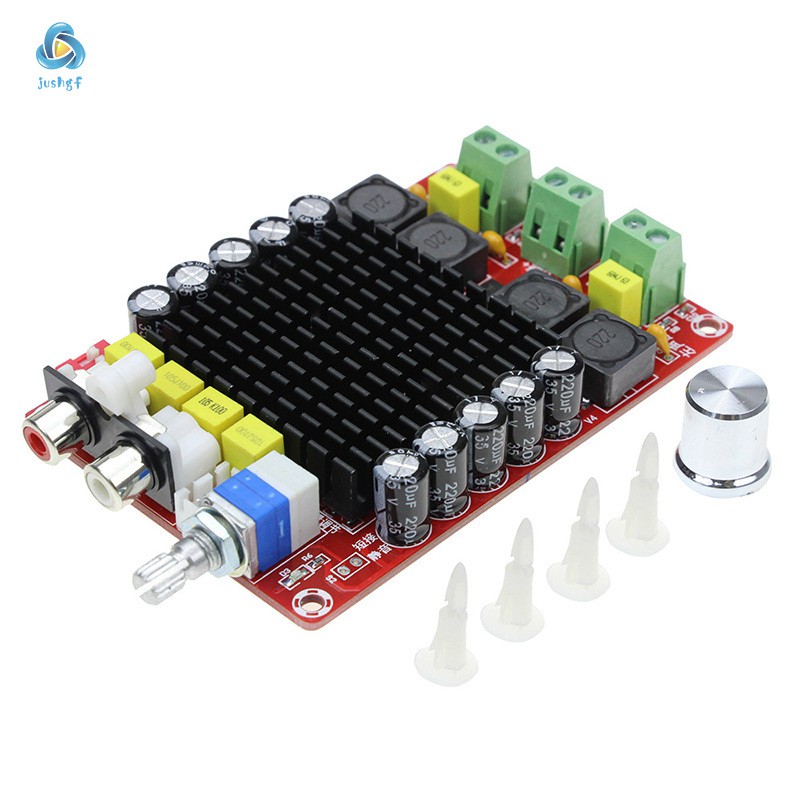

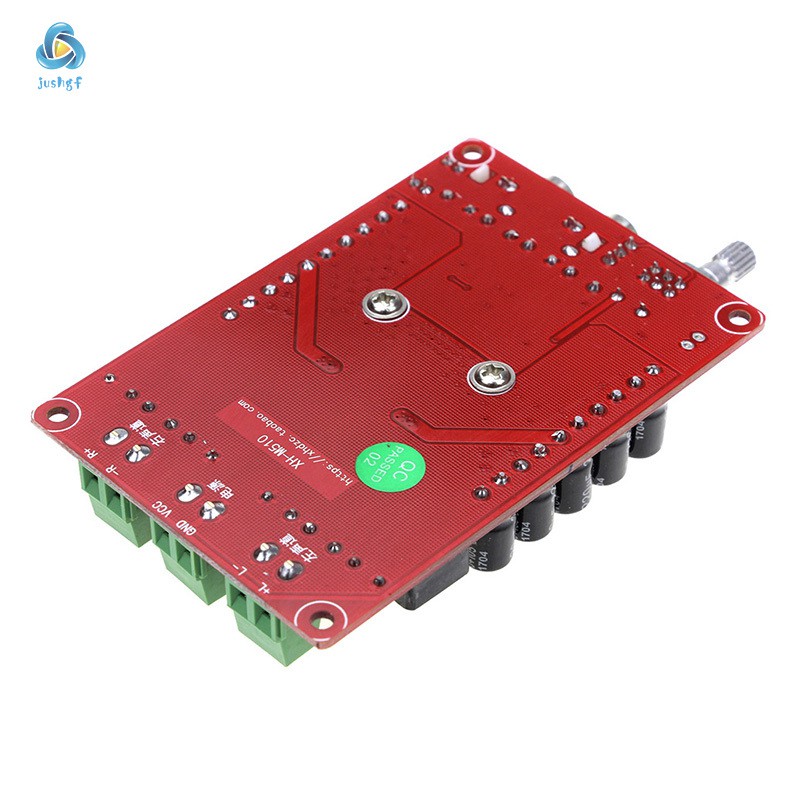

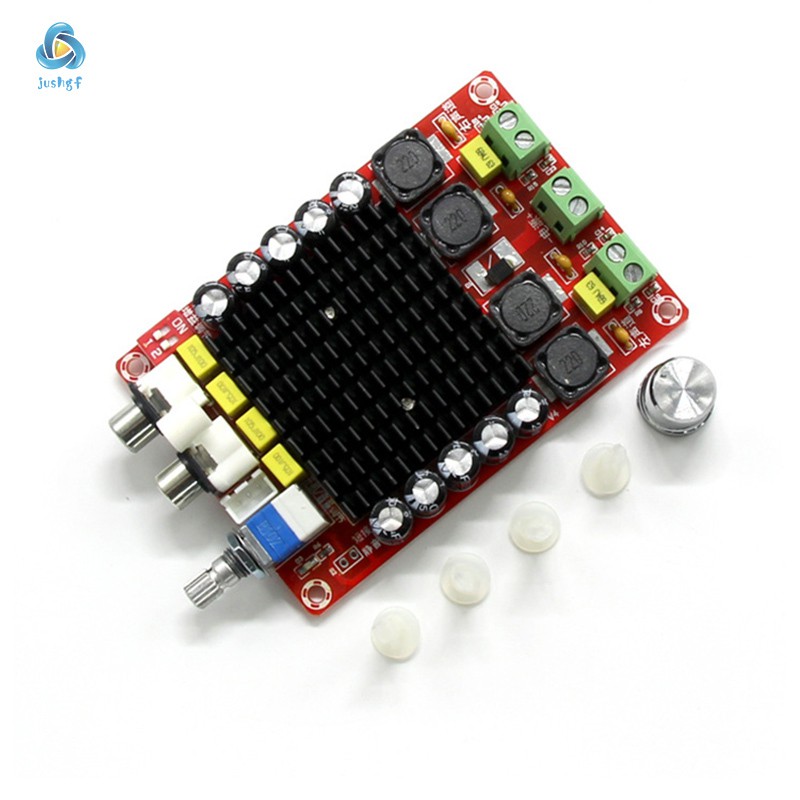

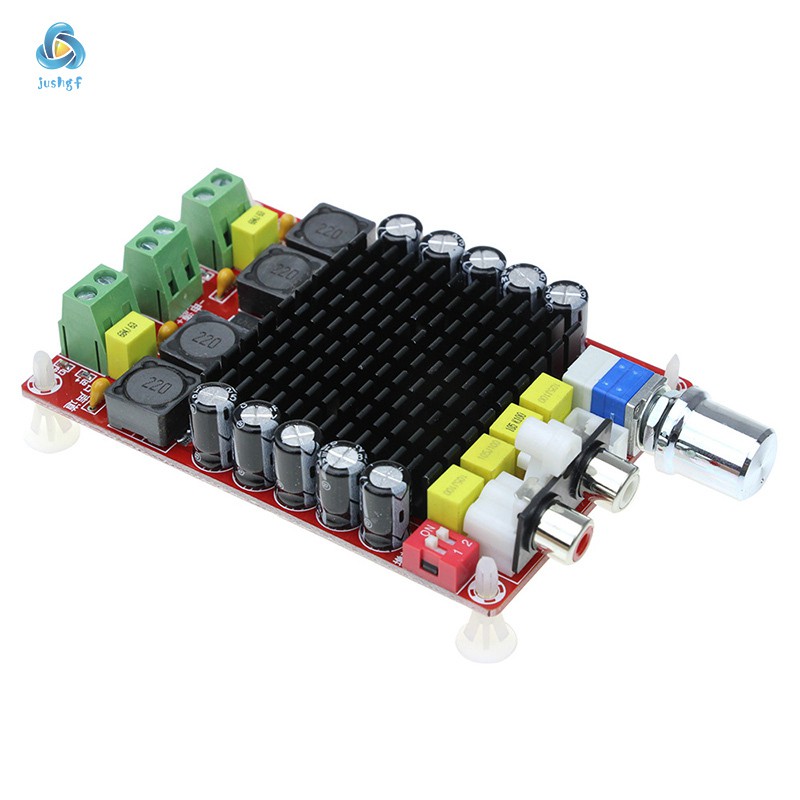

Giới thiệu Mạch ampli XH-M510 TDA7498 công suất cao kỹ thuật số chuyên dụng
Decription:Features:
Output power:100w+100w (VCC+32V,RL=4ohm,THD=10% Wide:14-30v signal power supply Level 4 gain optional:(21.6dB,27.6dB,31.1dB,33.1dB)
Using differential input to reduce common-mode noise significantly
Has the pattern of the fault and silent mode
With intelligent protection function
Have overheating protection function
Specification:
The input voltage: DC14-32 v
Output power:100W*2
Output resistance:4-8ohm
Line type: D types
Chip:TDA7498
Harmonic distortion:Po=1W/0.05%
Frequency response range:18-100KHZ
Switching frequency:360KHz Signal to noise ratio:110db
Size: about(L*W):9.4*6.2cm/3.7*2.44inch
Included:
1 x Amplifier Board
