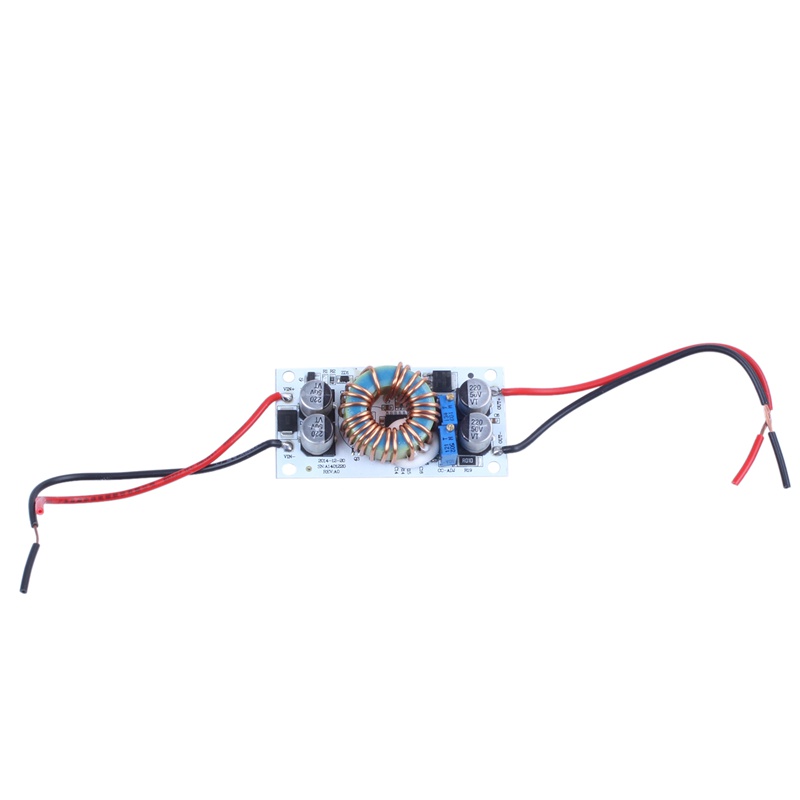

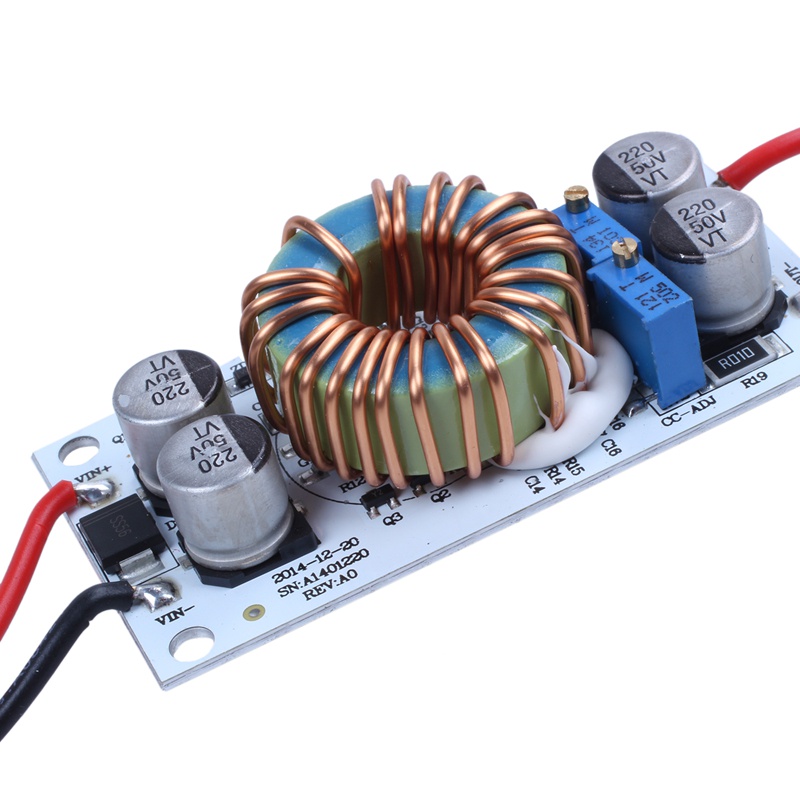

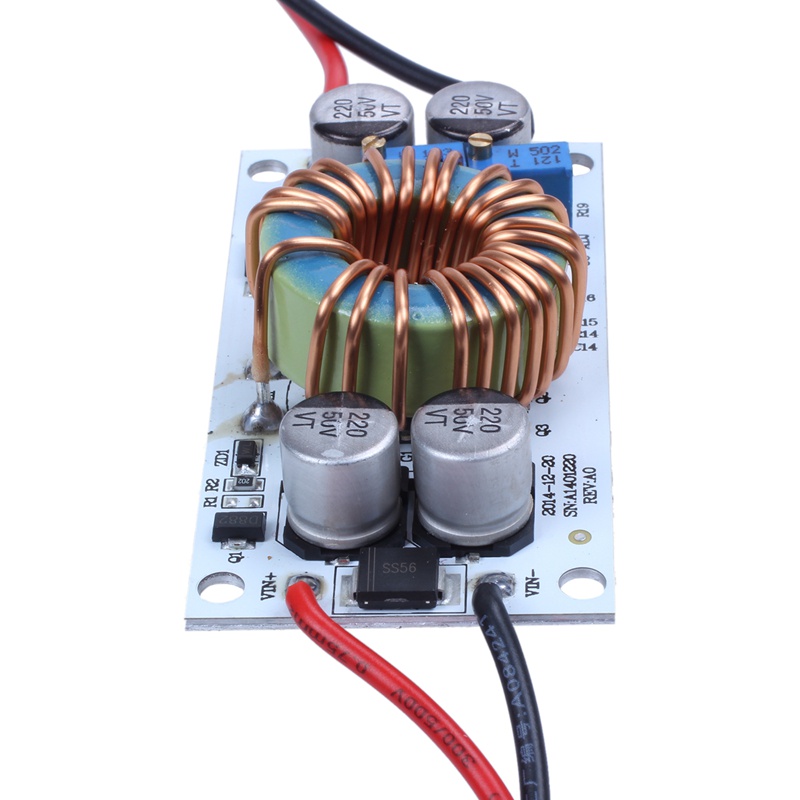

Giới thiệu Mạch tăng áp 250W DC/DC 8.5-48V sang 12-50V Max 10A

ule Properties: non-isolated step-up ule (BOOST)
Input voltage :8.5-48V
Output voltage: 12-50V (adjustable)
Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
Output constant Current: 0.2 - 8A (please don't short the output to adjust the current)
Easy to drive 65W 90W dual-core notebook.
Conversion efficiency: 96%
working frequency: 150KHZ
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation)
Dynamic response speed: 5% 200uS
over circuit protection: yes
Input Reverse Polarity Protection: yes
Colour:white
Material:CCL
size:70 x 46 x 13mm
Package Contents:1 x Boost Converter ule
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
