Bảng Mạch Bảo Vệ Pin Lithium 3S 12V 25A PCB BMS
Mô tả ngắn
Mua Bảng Mạch Bảo Vệ Pin Lithium 3S 12V 25A PCB BMS giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
35,900₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu Bảng Mạch Bảo Vệ Pin Lithium 3S 12V 25A PCB BMS
Features:
1. 100% brand new and high quality.
2. This protection board is suitable for 3 series 3.7V lithium cell.

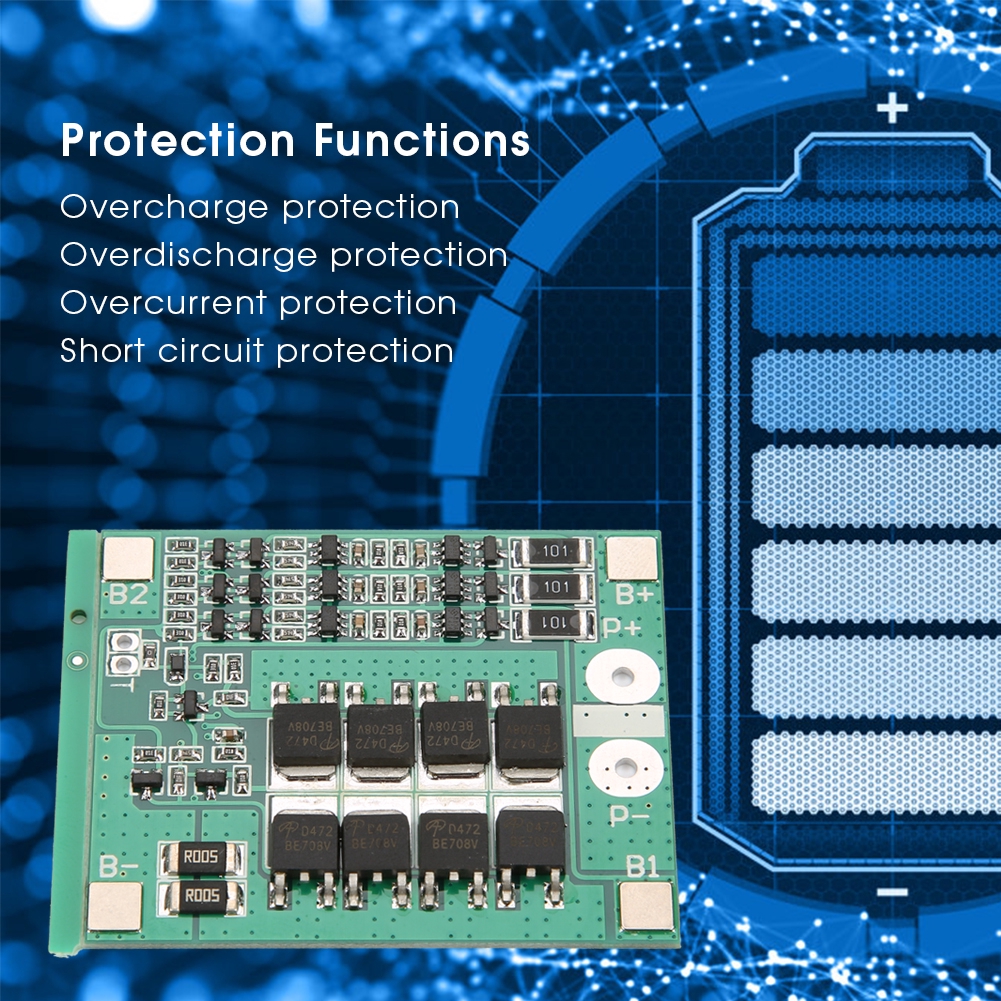

3. Support overcharge protection, overdischarge protection, overcurrent protection and short circuit protection.
4. The circuit board is made with high quality electronic components, stable and reliable.
5. Quality assurance, long service life.
Specification:
Continuous discharge current: 25A
Instantaneous discharge current: 70A
Charge voltage: 13V
Charging current: 25A(Max)
Overcharge detection voltage: 4.28±0.05V
Overdischarge detection voltage: 2.55±0.08V
Overcurrent detection voltage: 150mV
Overcurrent protection current: 75±3A
Working current: ≤20uA
Sleep current (when overdischarge): ≤10uA
Suitable battery: Ternary battery, lithium manganate battery, lithium cobalt battery
Working temperature: -30~80℃
Size: 56*45mm/2.20*1.77in
Package weight: Approx. 12g
Package List:
1 * Protection Board for Lithium Battery
Chi Tiết Sản Phẩm
| Thương hiệu | No brand |
|---|---|
| Bảo Hành | Không Bảo Hành |
