Mô đun sạc DC-DC 9V/12V/24V sang 5V 3A USB cho xe hơi
Mô tả ngắn
Mua Mô đun sạc DC-DC 9V/12V/24V sang 5V 3A USB cho xe hơi giá rẻ nhất ở đâu?: Còn hàng
Nước ngoài
28,400₫
Sản phẩm cùng danh mục
Gợi ý từ dữ liệu sản phẩm đã index trên TecKi.
Sản phẩm cùng tầm giá
Các lựa chọn gần mức giá hiện tại để người dùng so sánh nhanh.
Giới thiệu Mô đun sạc DC-DC 9V/12V/24V sang 5V 3A USB cho xe hơi

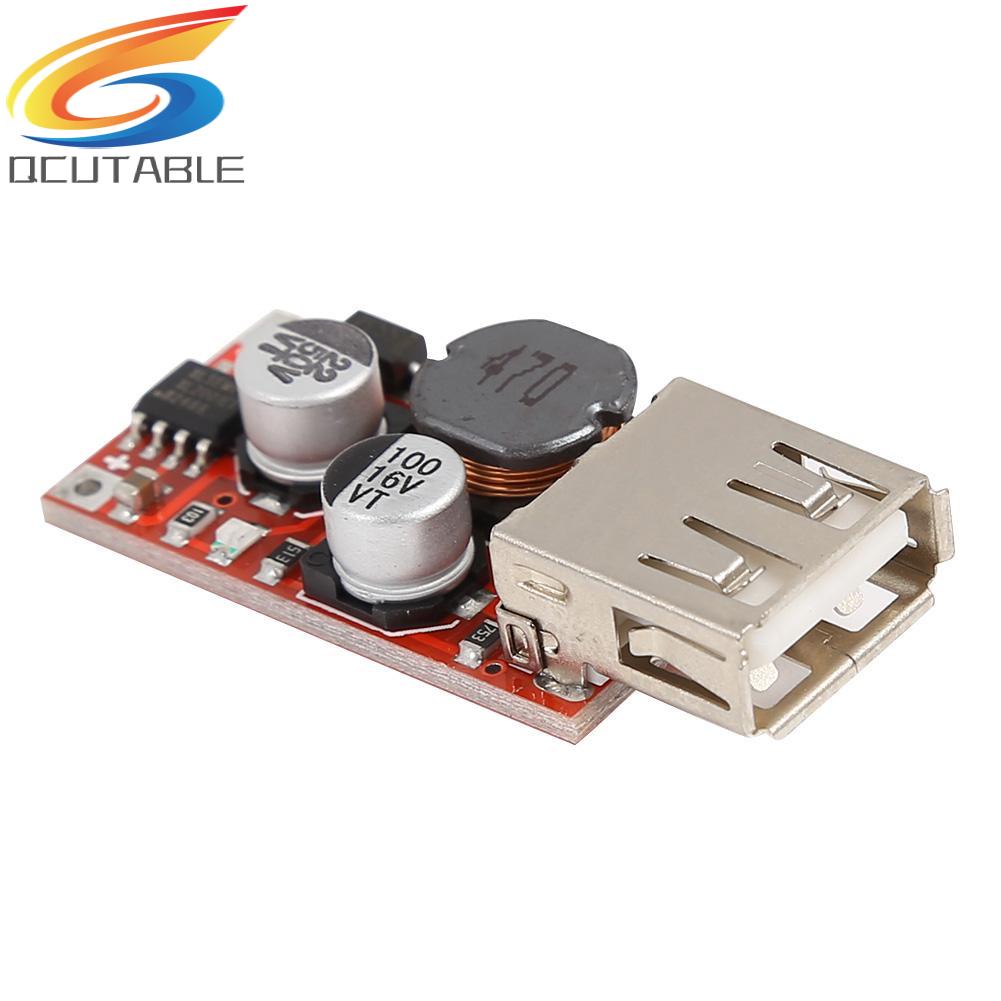

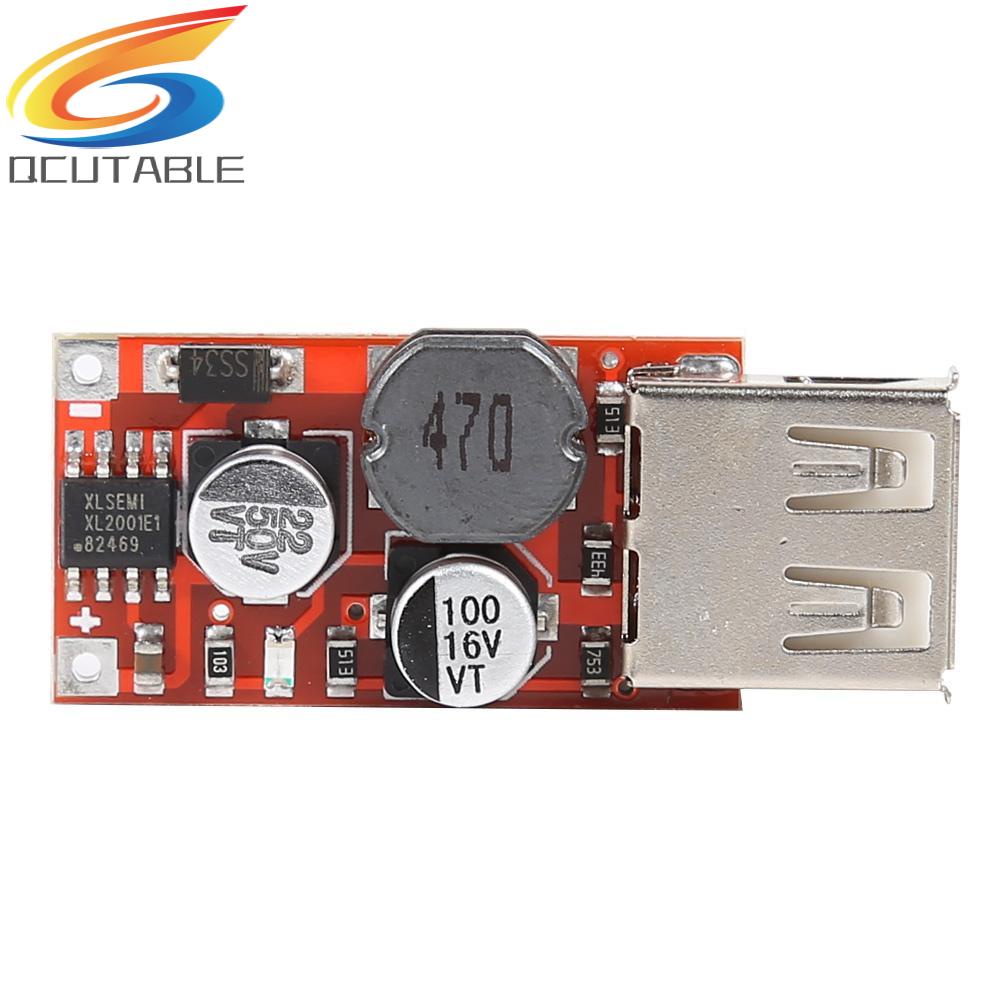

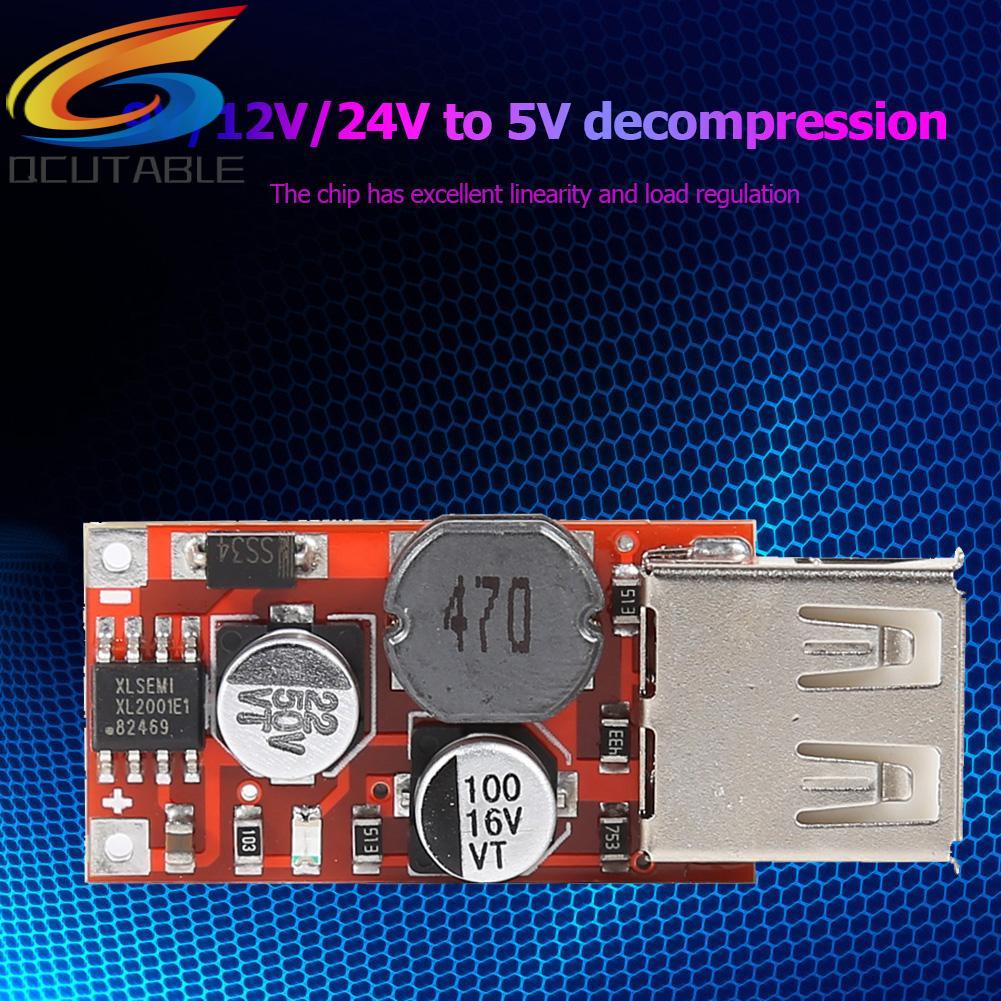

DC-DC 9V/12V/24V to 5V Step Down Charger Power Module 3A Output USB Car Charging Regulator Buck Voltage BoardDescriptions:
A switching step-down DC-DC converter module;

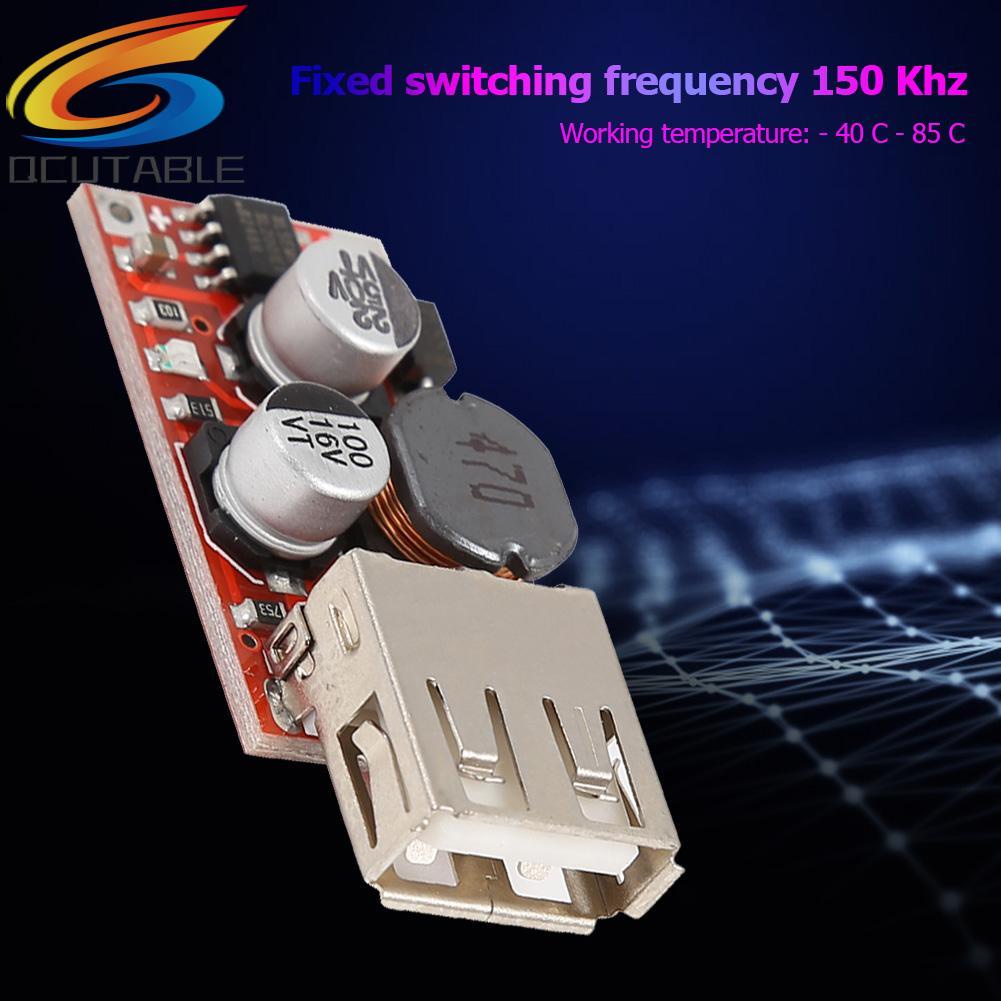

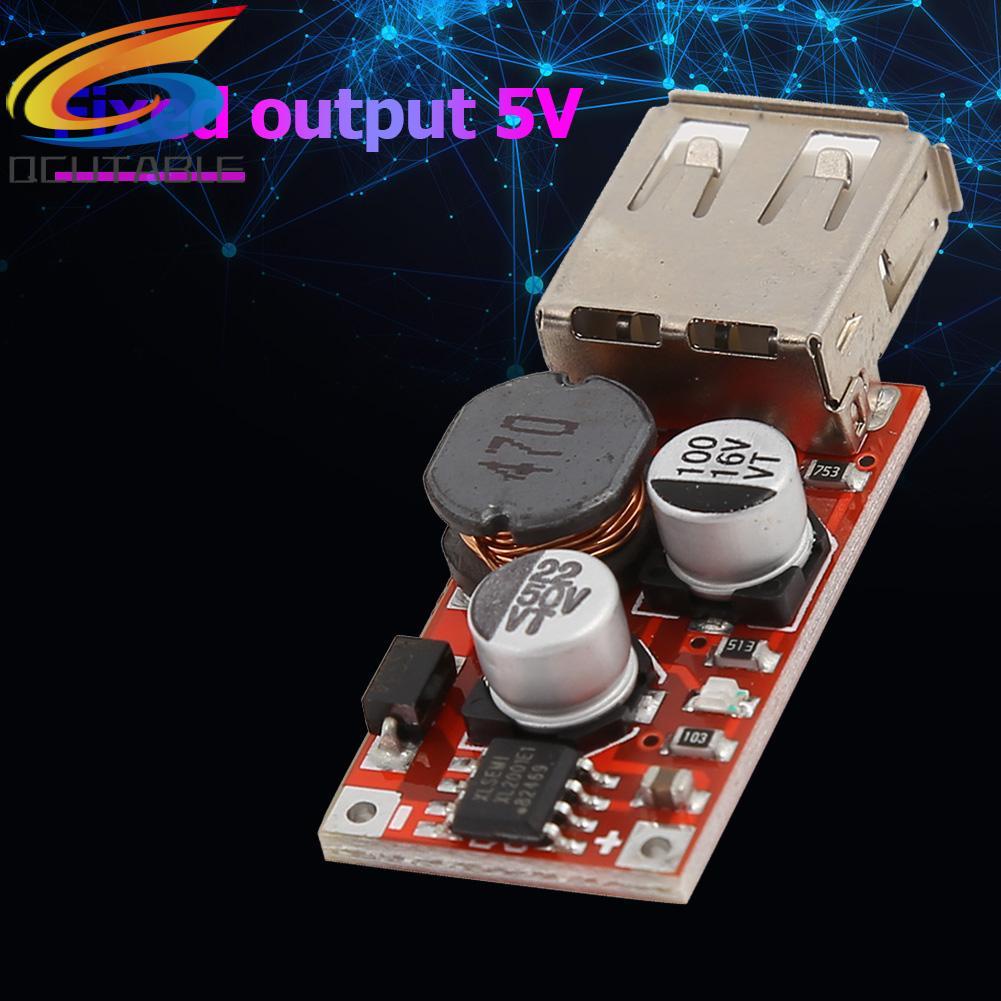

Fixed switching frequency 150KHz, the chip has excellent linearity adjustment and load regulation, fixed output 5V.
The chip integrates reliability modules such as overcurrent protection, overtemperature protection, and short circuit shutdown.
Specifications:
Input: 5V-36V
Output: 5V/3A
Conversion Efficiency: 96%
Switching Frequency: 150KHz
Working Temperature: -40°C-+85°C
Load Capacity: Maximum Output 3A, Long-Term Work 2A
Product Size: 38 X 16 X 5mm/1.5 X 0.63 X 0.2"
Packing Weight: 6g
Scope of Application: USB 5V powered devices such as mobile power, mobile phones, and tablets
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
Included:
1 X DC-DC Step Down Charger Power Module
