Giới thiệu Step-less Single Color Light Strip LED Dimmer Remote Controller DC 24V/12V

Description:
This system is a high performance RGB led touch remote controller, adopting the most advanced PWM control technology, has high reaction sensitivity.
Compatible with DC 12V/24V single color LED light fixtures, can be used to control a variety of lighting fixtures, including LED strip lights, wall washers, and down lights, etc.
Lighting speed and brightness can be controlled by the remote controller.
Energy saving and has a long lifespan, the remote control can be touched for countless times, which overcomes the traditional button remotes.

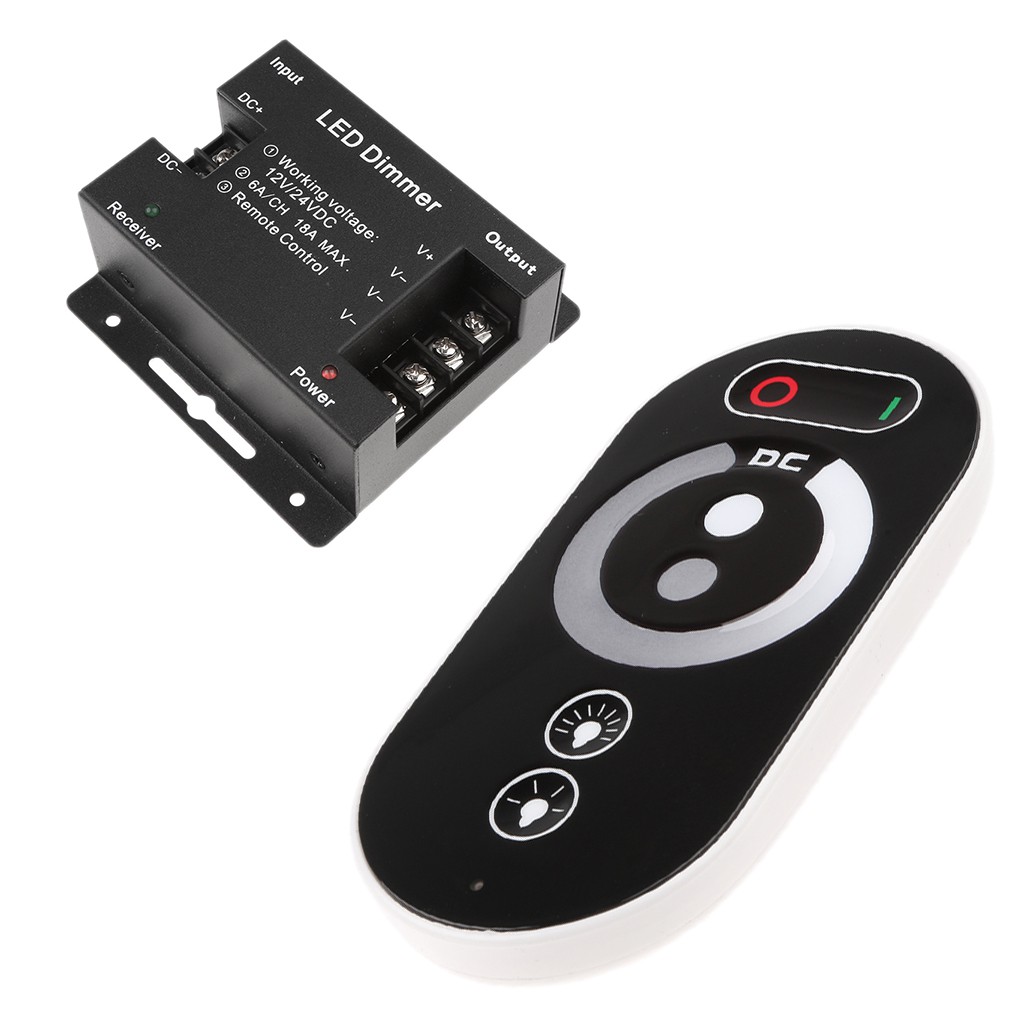

Each Pack comes with a controller and a remote.

Specification:
Material: Metal+Plastic
Remote Distance:20 m/65.6 feet
Remote Size: Approx. 112x55x23mm/4.41x2.17x0.90 inch

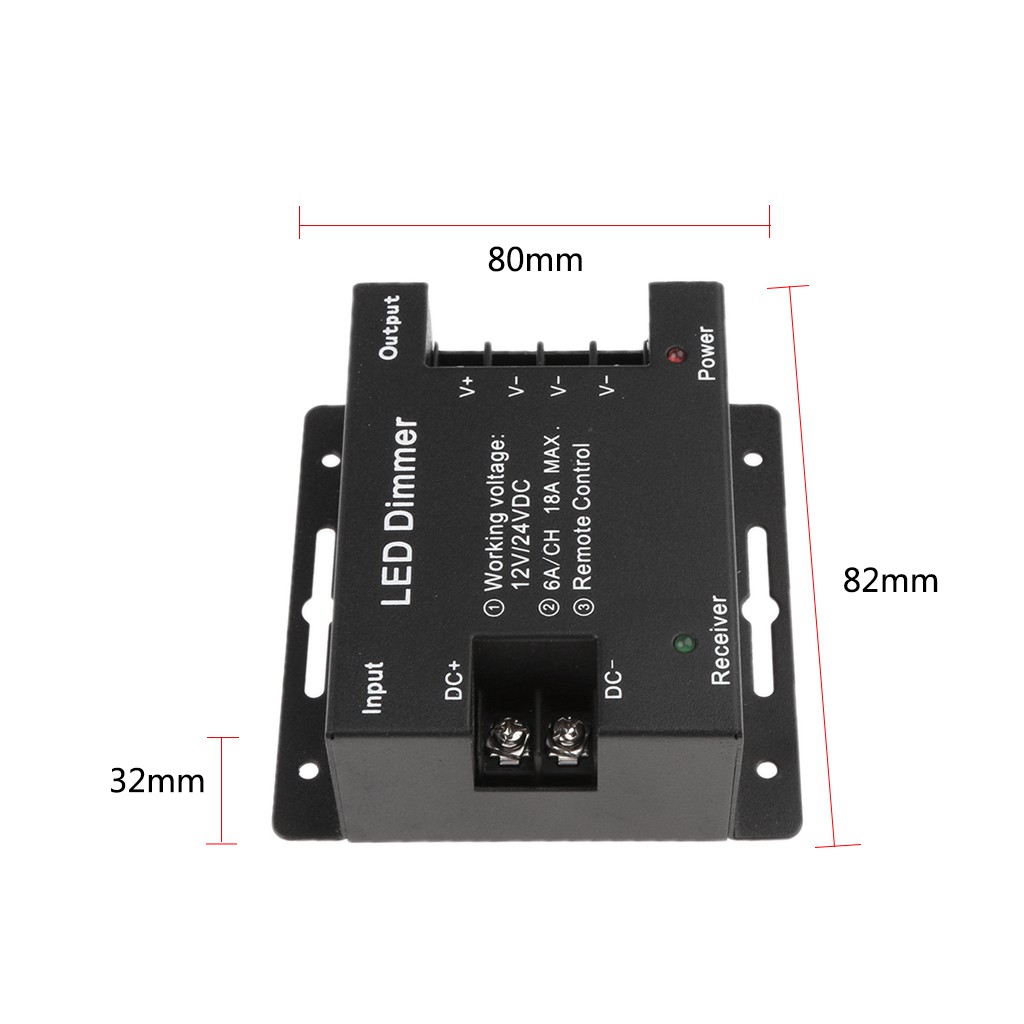

Controller Size: Approx. 80x82x33mm/ 3.15x3.23x1.30 inch
Voltage: DC 12V-24V
Output Current: 6A, One Channel
Connection Mode: Common Anode
Stand-by Power Consumption: 100uA
Remote Power: 3x AAA Battery (Not Included)
Working Temperature: -40~60℃
Remote Controller Lifespan: 40,000 hours
Receiver sensitivity: -105dbmConnector Type: Pin Needle


Package Includes:
1 Piece Controller
1 Piece Remote
1 Piece Manual


Note:
Since the size above is measured by hand, the size of the actual item could be slightly different from the size above.
Due to the lighting effects, monitor settings, etc. There could be some slight difference in the color tone of the pictures and the actual item.


Manual:Hello, there is a light bulb pattern on the remote control: increase the brightness and decrease the brightness key, the two small dots of the point under the DC word: the white dot is adjustable to the brightest, the gray dot is adjusted To the darkest. Wiring diagrams are on the case.
