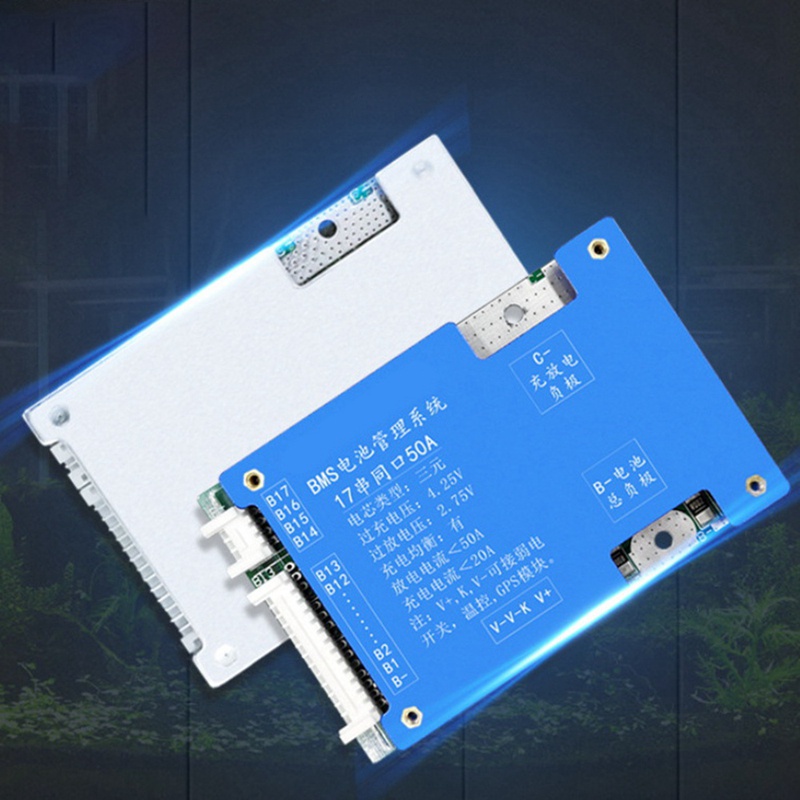

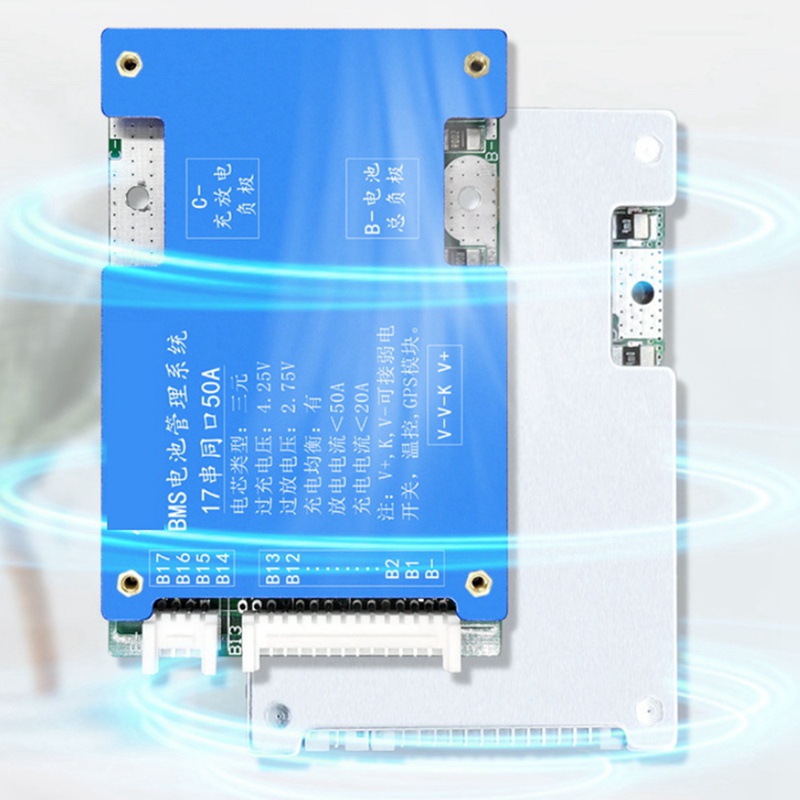

Giới thiệu Bảng bảo vệ pin sạc 18650 Bms 17S 30A 60v li-ion

ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING--Adopt intelligent lithium cell management IC for fast and safe charging
BALANCING CHARGING EXTENDS BATTERY LIFE--With balance charging to balance the characteristic of each battery in battery pack and prolong battery life
MULTI-OVER PROTECTION ENSURES SAFETY USE--Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection

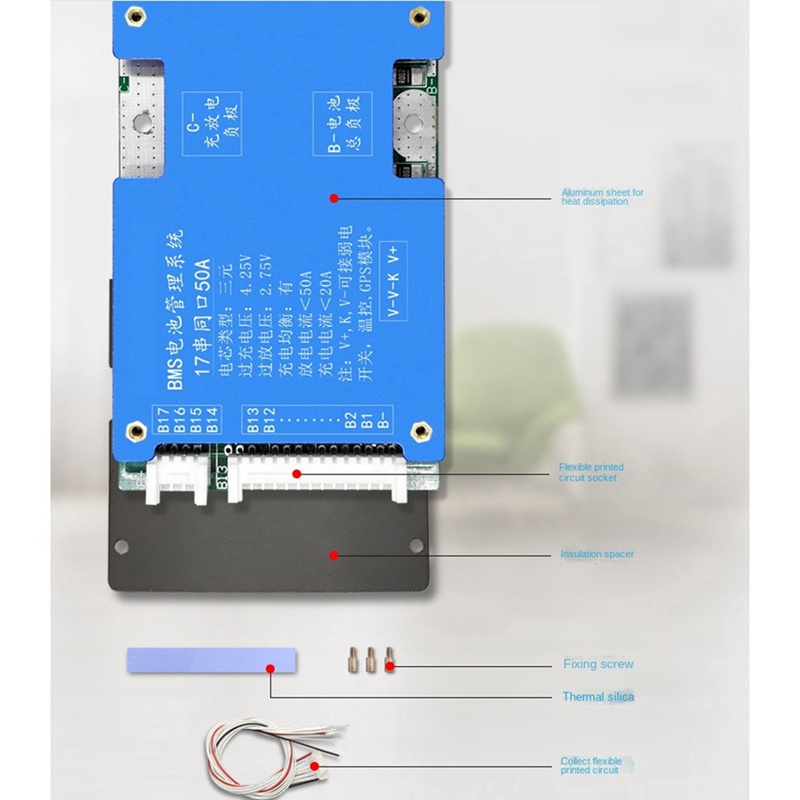

EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION--Equipped with thickened aluminum fin to achieve quick heat dissipation
MANY TIMES TESTING ENSURES HIGH QUALITY--This product has gone through load and aging test for quality assurance
1. Over-discharge protection voltage: 2.8v±0.08v
2. Over-discharge recovery voltage: 3.0v±0.08v
3. Continuous working current: 6mos=20A, 8mos=30A
4. Instantaneous protection current: 6mos=85a, 8mos=115a
5. Overcurrent recovery conditions: load recovery or load disconnection
6. Short circuit recovery conditions: load recovery or load disconnection
1. Overload protection voltage: 4.25v±0.025v
2. Overload recovery voltage: 4.15v±0.025v
3. Continuous charging current: 6mos=15A, 8mos=20A
4. Load balancing voltage: 4.15v±0.025v
5. Load balancing current: 45ma
6. Charger voltage: 75v (recommended)
activation method
(1) The b line and the c line can be shorted once
(2) or reload to activate
Specification
1. Over-charging temperature: -2 Celsius to 50 Celsius
2. Discharge over temperature: -30 Celsius to 70 Celsius
3. Working power consumption: 4040ua
4. Main circuit conduction internal resistance: 1515mΩ
5. Temperature range: -40 to +80 Celsius
6. Disconnection protection: yes

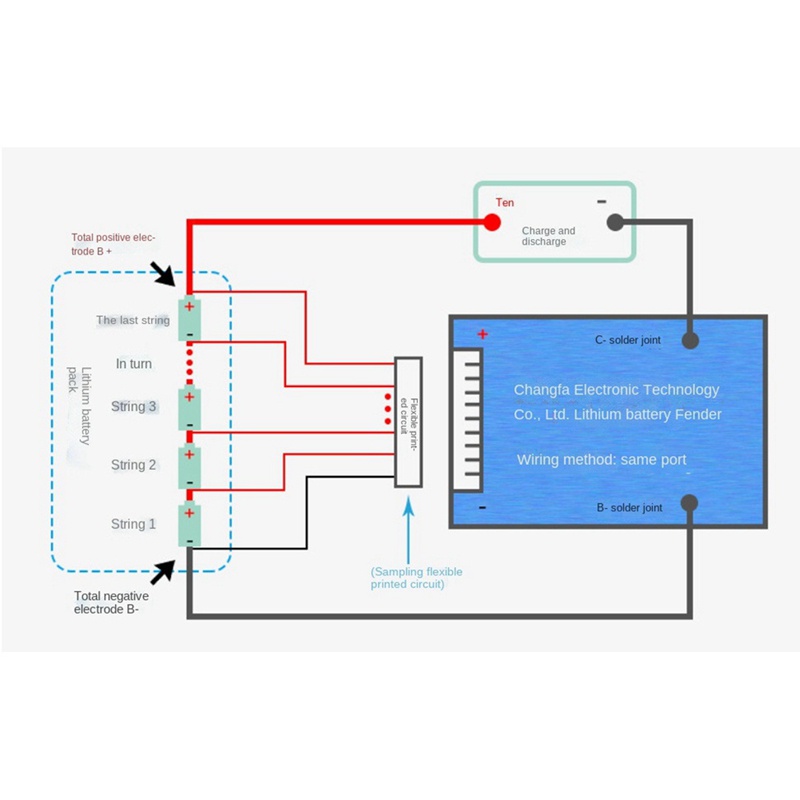

7. Wiring method: same port
B-: Connect to the negative pole of the battery
P-: connected to the negative electrode of charge and discharge
8. Cable size: 2.0mm | Pitch / 18 lines / 50cm long
9. Product appearance size: 77 x 56 x 10mm
Style:30A / 50A
Colour:blue
Material:ABS+Metal
Size:77 x 56 x 10mm

Package Contents:1 * bms battery charging protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
